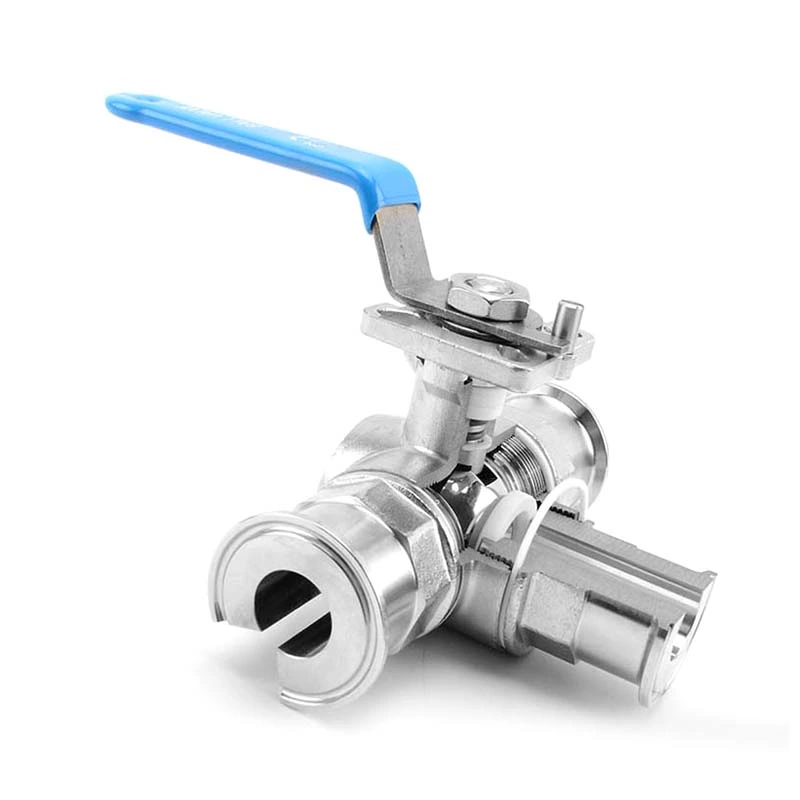

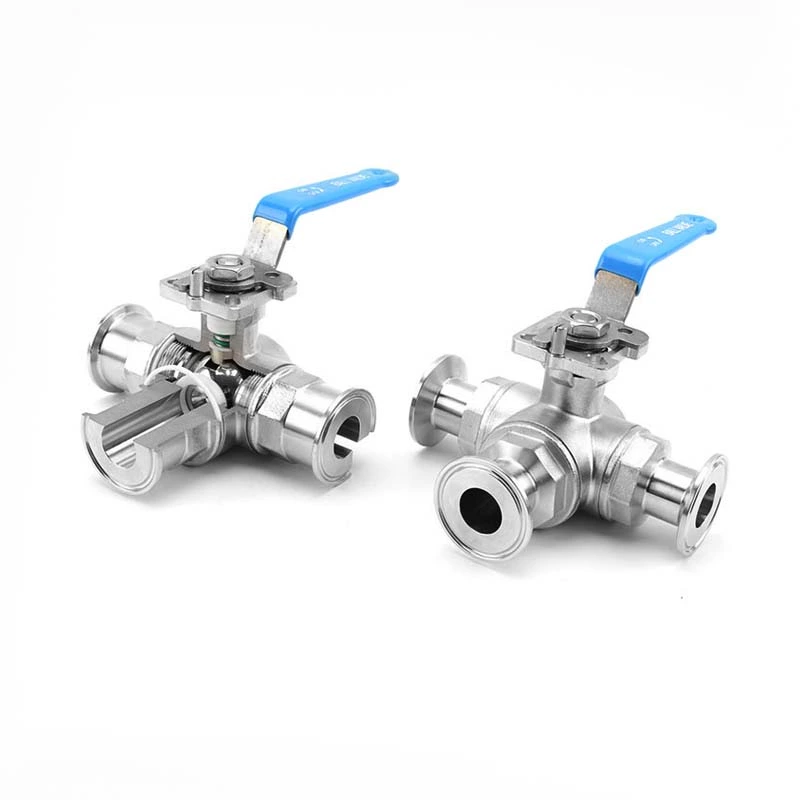

Hygienic Stainless Steel 3 Way Clamped Ball Valve With Mounting Pad

Brand:
J&O
Material:
SS304 / SS316L
Connection:
Clamped
Gasket:
PTFE
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar
Operation:
Manual

Sanitary Stainless Steel Tri Clamp 3 Way Ball Valve

  • J&O Manual 3 Way Ball Valve including Sanitary T Port Ball Valve, Hygienic L Port Ball Valve, Sanitary Cavity Filled Three Way Ball Valve, Sanitary Butt-weld 3 Way Ball Valve, Hygienic Male Thread Three Ways Ball Valve, Hygienic Tri-Clamp 3 Ways Ball Valve.

  • Both Manual and Automatic operated Hygienic 3-way ball valve are mainly used in processing beverage, wine, oil refining, cosmetics and chemical industries.

Technical Data

Valve Body Material: SS304/SS316L
Seal Material: PTFE
Mex working pressure: 10Bar
Max. Working Temperature: 180 degree C
Availably size: 1"-4", DN25-DN100
Availably connection: Clamp, weld, thread
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Manual
Certificate: ISO, PED/97/23/EC, FDA.177.2600

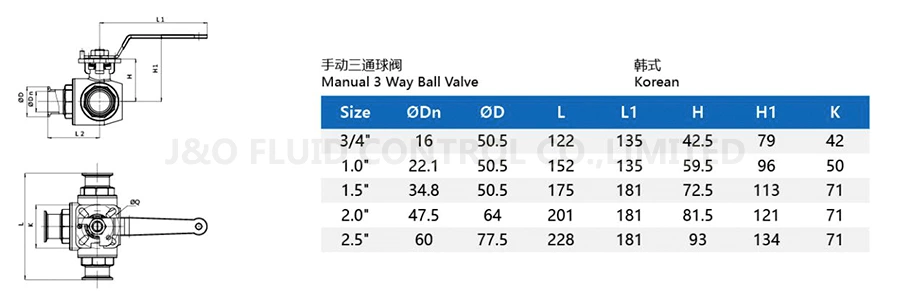

Product Parameter

Hygienic Stainless Steel 3 Way Clamped Ball Valve With Mounting Pad
