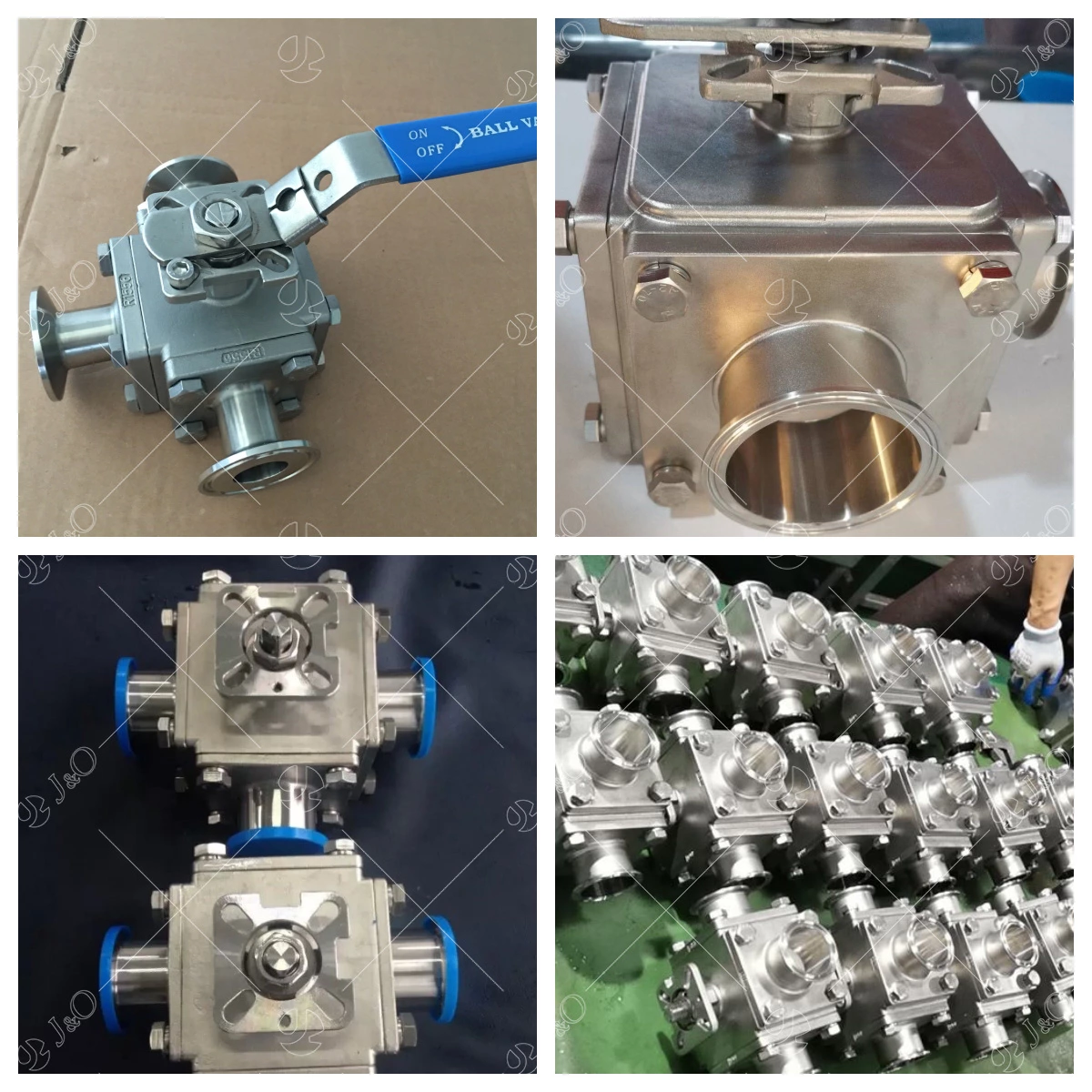

Three-Way Sanitary Butt Weld Ball Valve

This kind of valve is widely used in the field of food processing, beverages, wine, biopharmaceutical.

Model:
JOV-BHM2011-11
Brand:
J&O
Material:
SS316L
Connection:
Weld
Gasket:
PTFE
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar
Operation:
Manual
Enquiry
Three-Way Sanitary Butt Weld Ball Valve

Sanitary Stainless Steel Butt Weld 3 Way Ball Valve

  • Cavity filled seat design, no retention and high cleanliness, meet CIP SIP sterilization and cleaning requirements.

  • Regardless of the connection method, the valve body can be replaced without changing the total length of the valve.

  • L-type and T-type can be replaced on site, and the direction of inlet and outlet can be combined in any way to ensure no stagnation and no dead angle

Technical Data

Valve Body Material: SS304/SS316L
Seal Material: PTFE
Mex working pressure: 10Bar
Max. Working Temperature: 180 degree C
Availably size: 1"-4", DN25-DN100
Availably connection: Clamp, weld, thread
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Manual
Certificate: ISO, PED/97/23/EC, FDA.177.2600

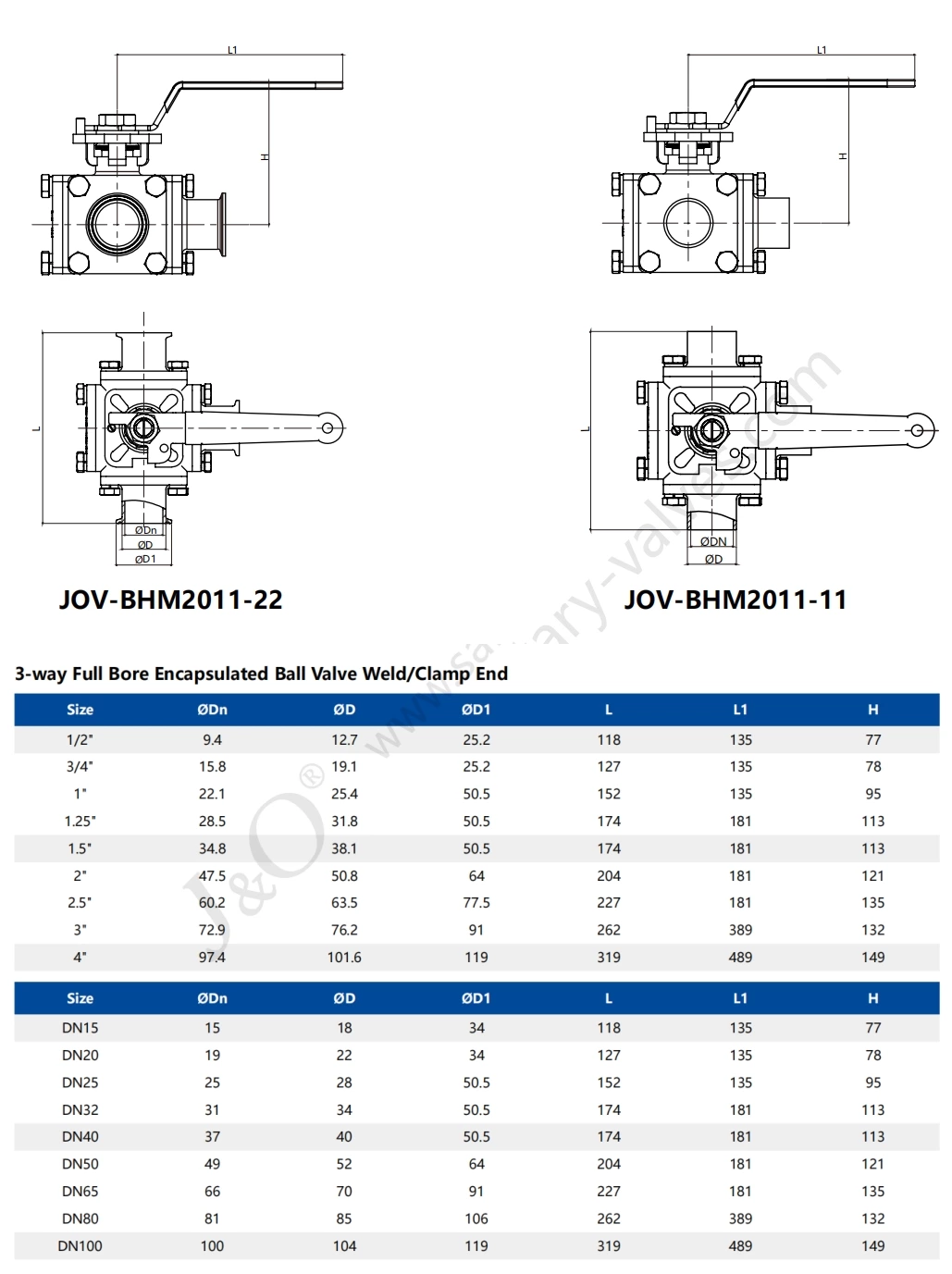

Product Parameter
