Pneumatic Ball Valve

It is widely used in food, beverage, beer; biopharmaceutical, chemical industry and so on.

Model:
JOV-BHPA2002-22
Brand:
J&O
Material:
SS304 / SS316L
Connection:
Clamped
Gasket:
PTFE
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar
Operation:
Pneumatic
Enquiry
Pneumatic Ball Valve
Pneumatic Ball Valve Pneumatic Ball Valve

Sanitary Stainless Steel Pneumatic Tri Clamp Ball Valve

  • There are special texture patterns on the surface, and the forging (extrusion molding at high temperature) process is adopted to make the structural molecules more compact, high strength and more durable.

  • Compact structure, 180 ° switch design, saving space

  • Three-stage, detachable at both ends, easy to disassemble and test, easy to clean.

  • Full bore, The medium can pass through uniformly and the stress is uniform.

Technical Data

Material: AISI304, AISI316L
Standard: DIN/SMS/3A/ISO/IDF/RJT
Size: DN25-DN100; 1/2"-4"
Connections: Threaded, tri-clamp, welding
Gasket: According to PTFE FDA 177.2600

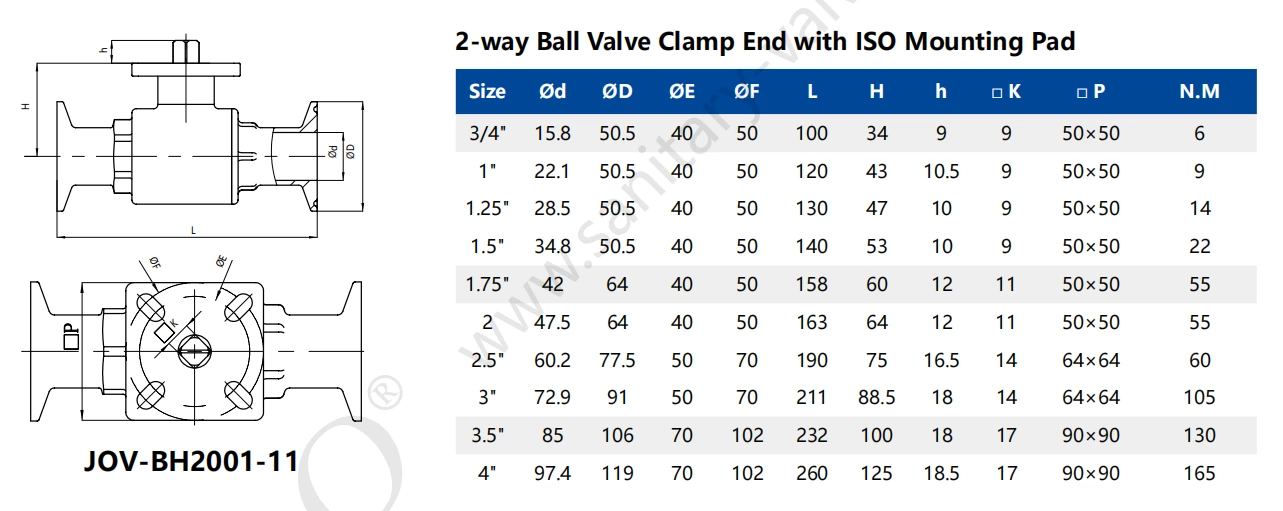

Product Pictures
