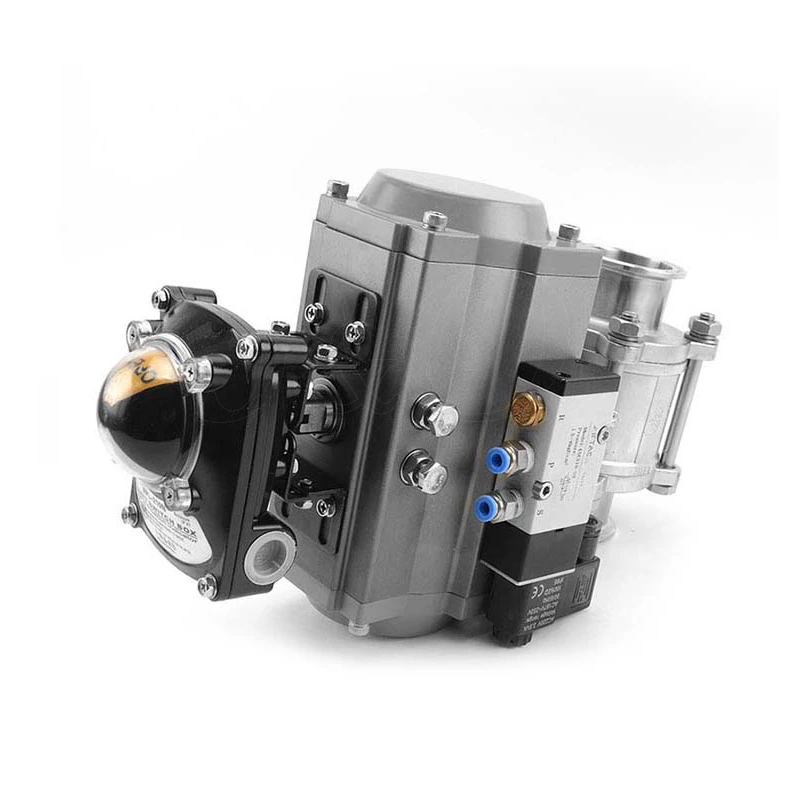

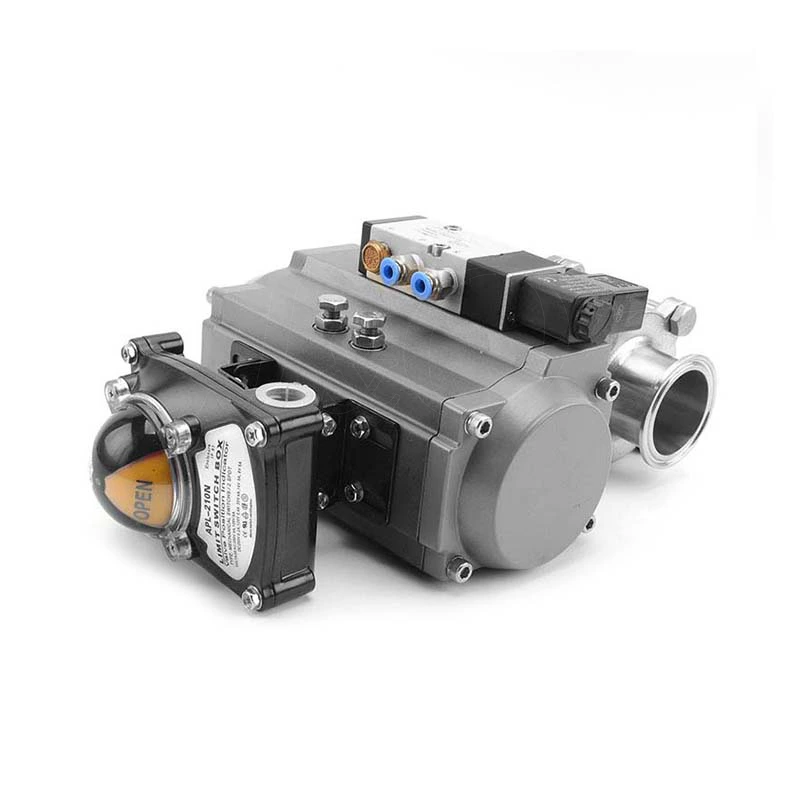

Hygienic Pneumatic Clamped Three Pieces Ball Valve with Aluminum Actuator And Limit Switch

Sanitary Stainless Steel Three Pieces Ball Valve is applied in food, beverage, wine, pharmaceutical and chemical industries.

Brand:
J&O
Material:
SS304 / SS316L
Connection:
Clamped
Gasket:
PTFE
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar
Operation:
Pneumatic
Download Catalog:
J&O 3 PIECES BALL VALVE.pdf
Enquiry
Hygienic Pneumatic Clamped Three Pieces Ball Valve with Aluminum Actuator And Limit Switch
Hygienic Pneumatic Clamped Three Pieces Ball Valve with Aluminum Actuator And Limit Switch Hygienic Pneumatic Clamped Three Pieces Ball Valve with Aluminum Actuator And Limit Switch Hygienic Pneumatic Clamped Three Pieces Ball Valve with Aluminum Actuator And Limit Switch Hygienic Pneumatic Clamped Three Pieces Ball Valve with Aluminum Actuator And Limit Switch

Sanitary Pneumatic Clamped Three Pieces Ball Valve with Aluminum Actuator And Limit Switch

  • J&O Sanitary 3 PCS Ball Valve including Sanitary Butt-weld Three Piece Ball Valve, Hygienic Male 3 Pieces Ball Valve, Hygienic Tri-Clamp 3 PC Ball Valve, Hygienic Pneumatic 3 PCS Ball Valve, Sanitary Electric Actuator 3 Pieces Ball Valve.

  • Encapsulated design, no stranded, high clean, meet the requirement of CIP and SIP sterilization and cleaning.

  • Available with a variety of structures, such as electric pneumatic, stainless steel, horizontal vertical pneumatic, key manually handle can also be equipped with the control the unit, location, position sensor, and other compatible automatic control system.

  • The valve body can be replaced in any connections and the length will not change.

Technical Data

Valve Body Material: SS304/SS316L
Seal Material: PTFE
Mex working pressure: 10Bar
Max. Working Temperature: 180 degree C
Availably size: 1"-4", DN25-DN100
Availably connection: Clamp, weld, thread
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Pneumatic
Certificate: ISO, PED/97/23/EC, FDA.177.2600

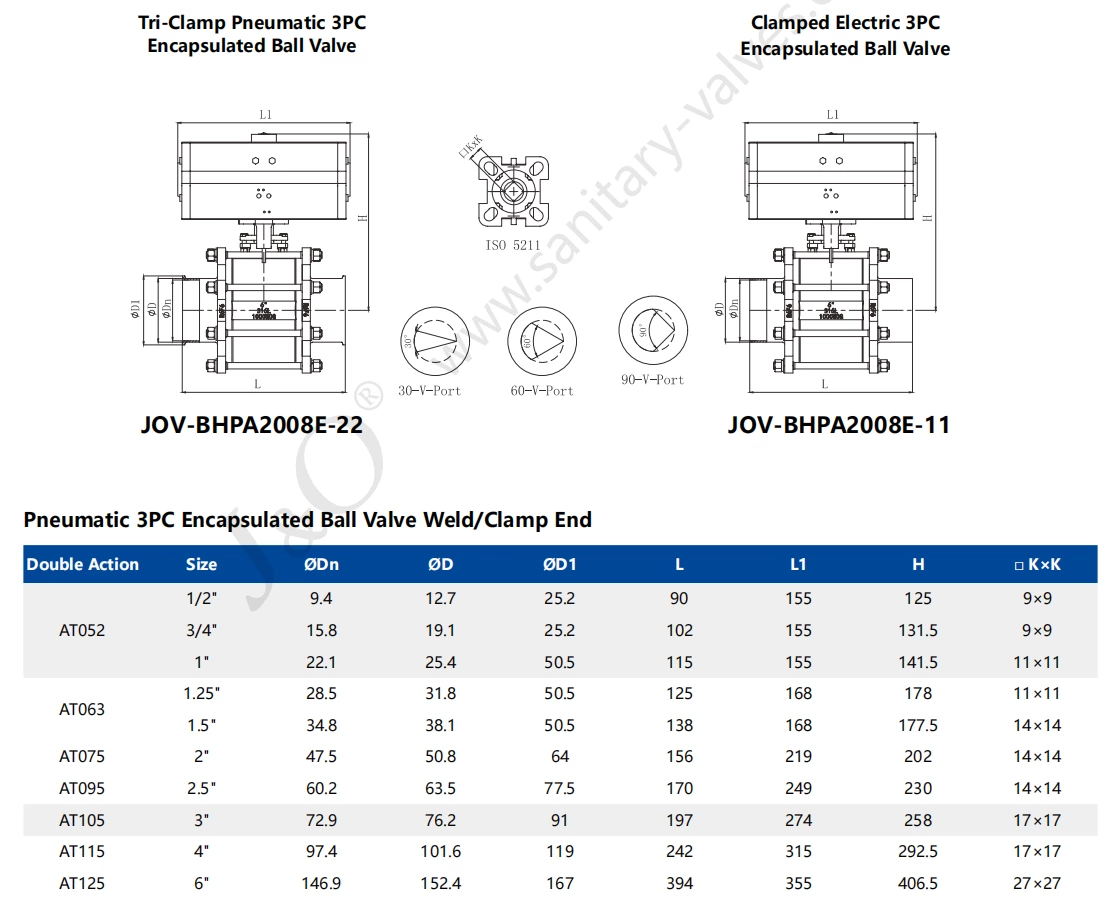

Product Parameter
