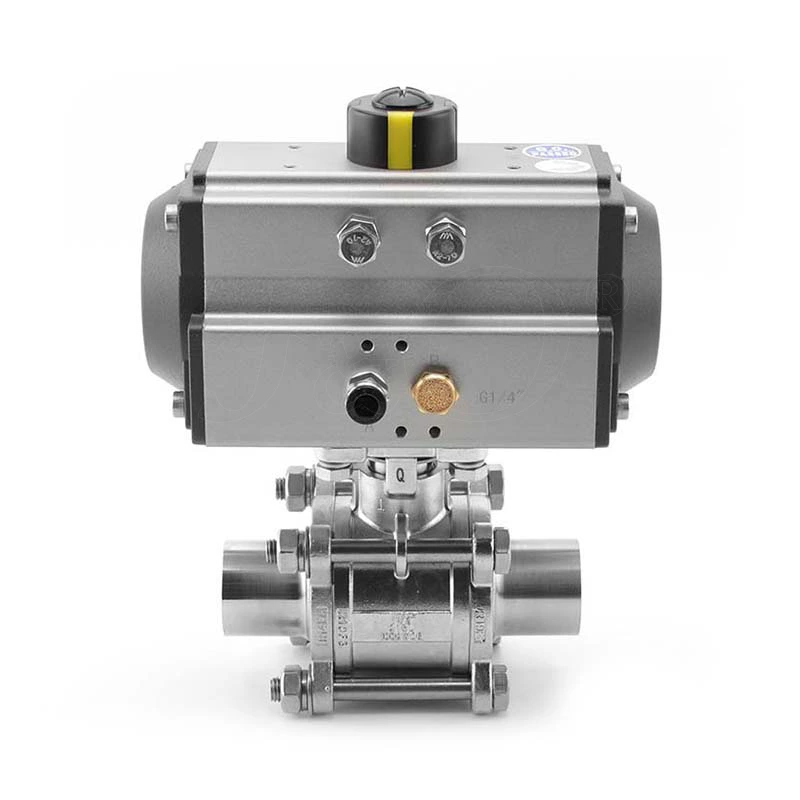

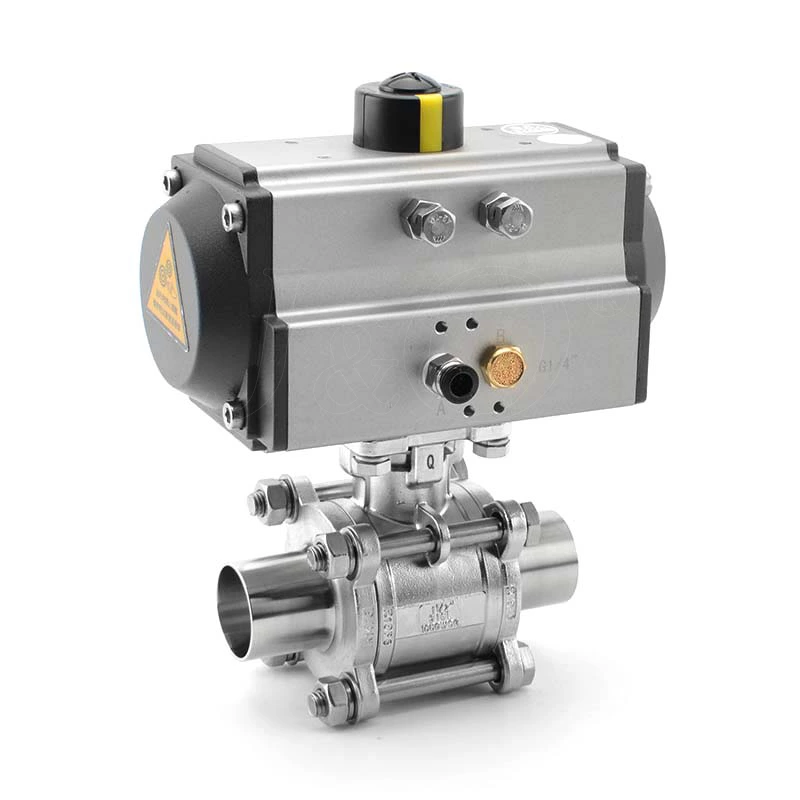

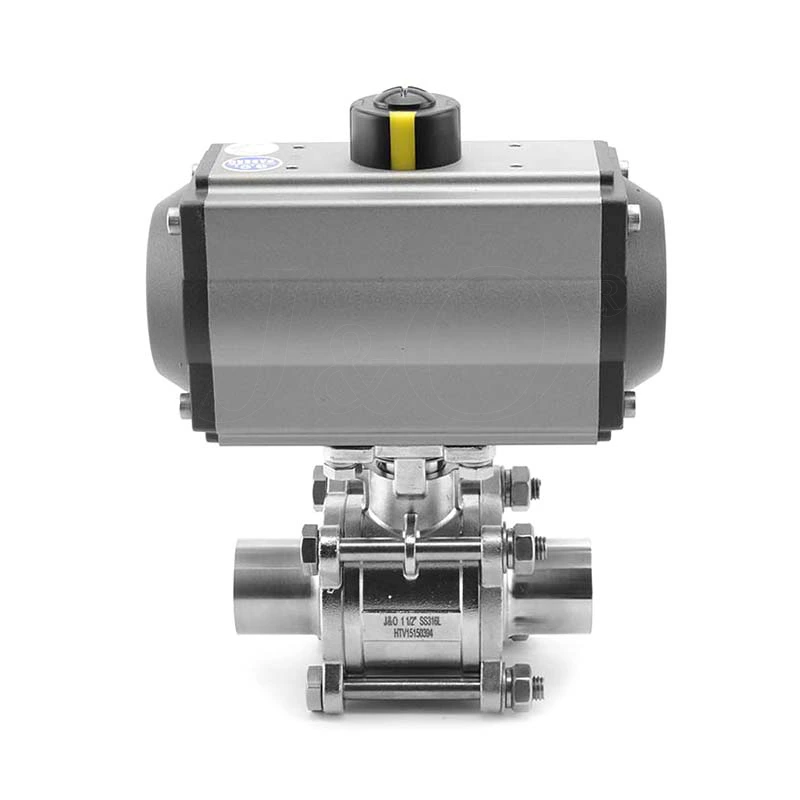

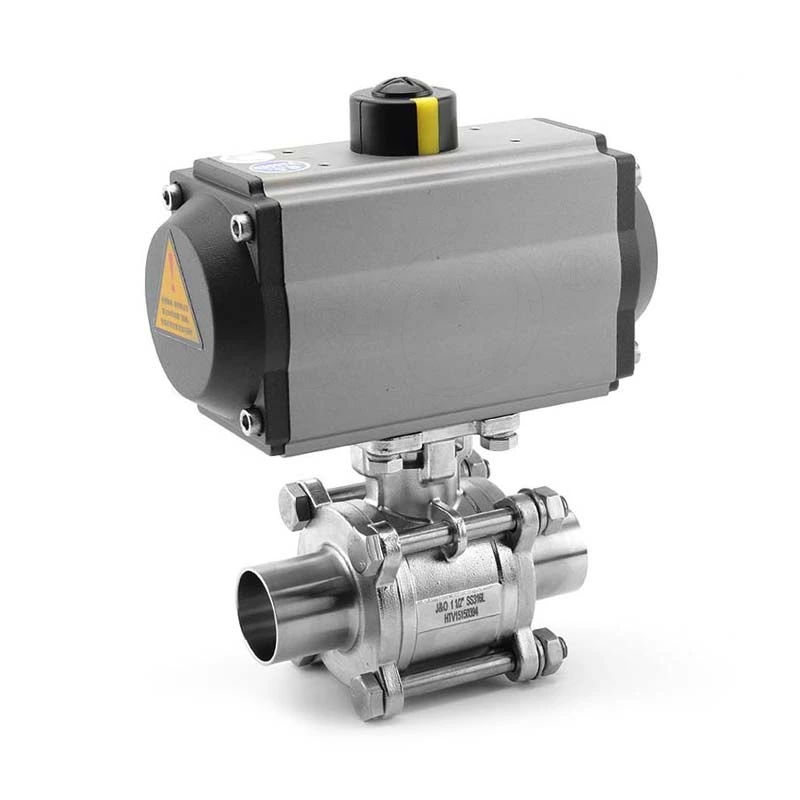

Pneumatic Sanitary Stainless Steel Cavity Filled Welded Three Pieces Ball Valve
Pneumatic Sanitary Stainless Steel Cavity Filled Welded Three Pieces Ball Valve J&O Sanitary 3 PCS Ball Valve including Sanitary Butt-weld Three Piece Ball Valve, Hygienic Male 3 Pieces Ball Valve
- Brand:
- J&O
- Material:
- SS304 / SS316L
- Connection:
- Welded
- Gasket:
- PTFE
- Working Temperature:
- -20°~120°
- Working Pressure:
- 0-10Bar
- Operation:
- Pneumatic
Pneumatic Sanitary Stainless Steel Cavity Filled Welded Three Pieces Ball Valve
- J&O Sanitary 3 PCS Ball Valve including Sanitary Butt-weld Three Piece Ball Valve, Hygienic Male 3 Pieces Ball Valve, Hygienic Tri-Clamp 3 PC Ball Valve, Hygienic Pneumatic 3 PCS Ball Valve, Sanitary Electric Actuator 3 Pieces Ball Valve.
- Encapsulated design, no stranded, high clean, meet the requirement of CIP and SIP sterilization and cleaning.
- Available with a variety of structures, such as electric pneumatic, stainless steel, horizontal vertical pneumatic, key manually handle can also be equipped with the control the unit, location, position sensor, and other compatible automatic control system.
- The valve body can be replaced in any connections and the length will not change.
Technical Data
| Valve Body Material: | SS304/SS316L |
| Seal Material: | PTFE |
| Mex working pressure: | 10Bar |
| Max. Working Temperature: | 180 degree C |
| Availably size: | 1"-4", DN25-DN100 |
| Availably connection: | Clamp, weld, thread |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Pneumatic |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |

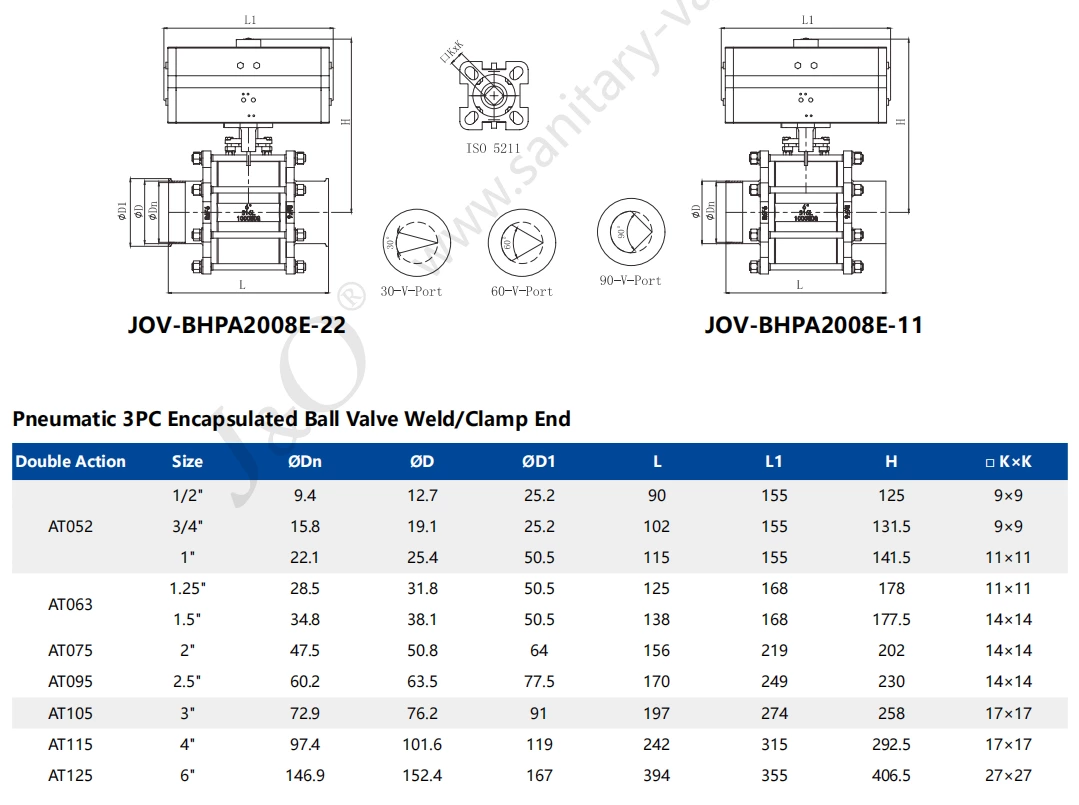

Product Parameter

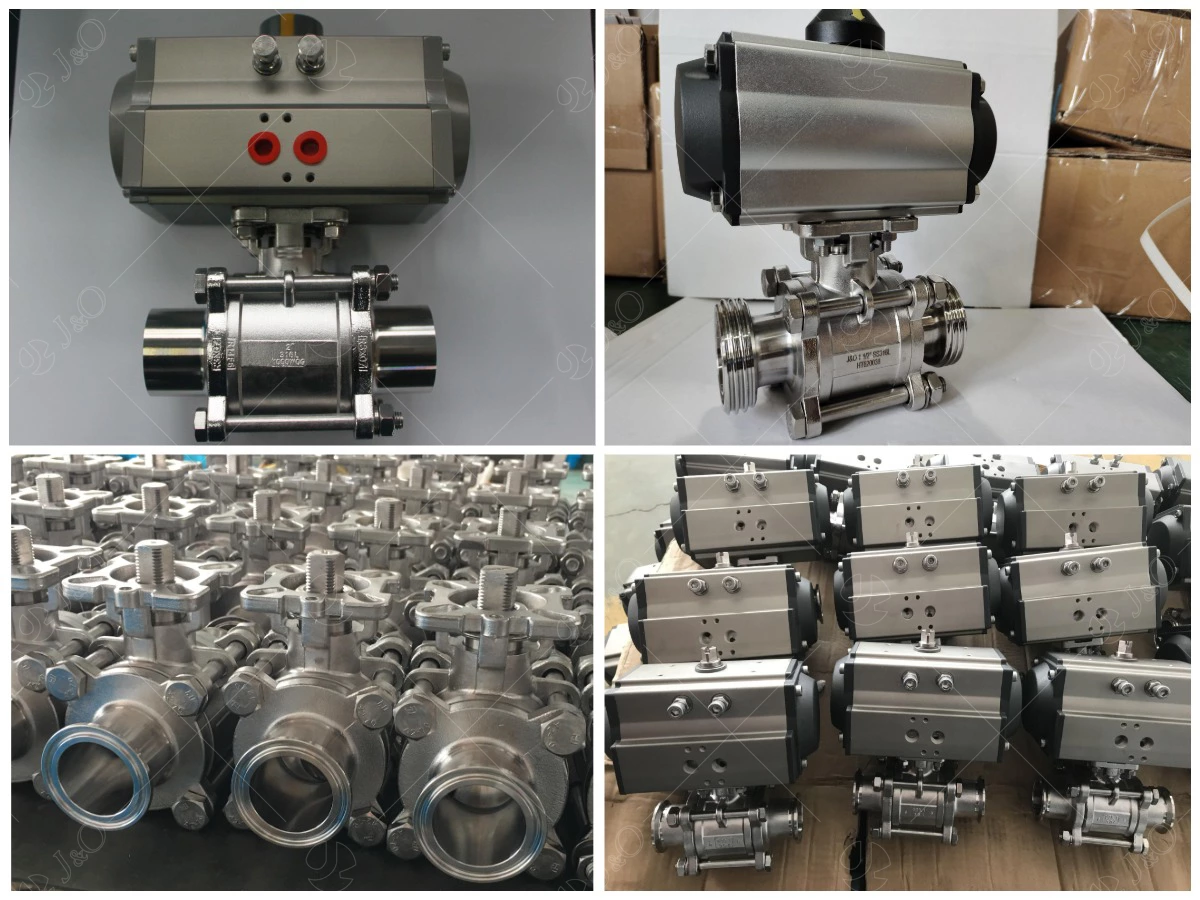

Product Pictures
