Sanitary Stainless Steel Three Pieces Flanged Ball Valve

Encapsulated design, no stranded, high clean, meet the requirement of CIP and SIP sterilization and cleaning.

Brand:
J&O
Material:
SS304 / SS316L
Connection:
Flanged
Gasket:
PTFE
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar
Operation:
Manual

Sanitary Stainless Steel Three Pieces Flanged Ball Valve

  • Encapsulated design, no stranded, high clean, meet the requirement of CIP and SIP sterilization and cleaning.
  • Available with a variety of structures, such as electric pneumatic, stainless steel, horizontal vertical pneumatic, key manually handle can also be equipped with the control the unit, location, position sensor, and other compatible automatic control system.
  • The valve body can be replaced in any connections and the length will not change

Technical Data

Valve Body Material: SS304/SS316L
Seal Material: PTFE
Mex working pressure: 10Bar
Max. Working Temperature: 180 degree C
Availably size: 1"-4", DN25-DN100
Availably connection: Clamp, weld, thread,flanged
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Manual
Certificate: ISO, PED/97/23/EC, FDA.177.2600

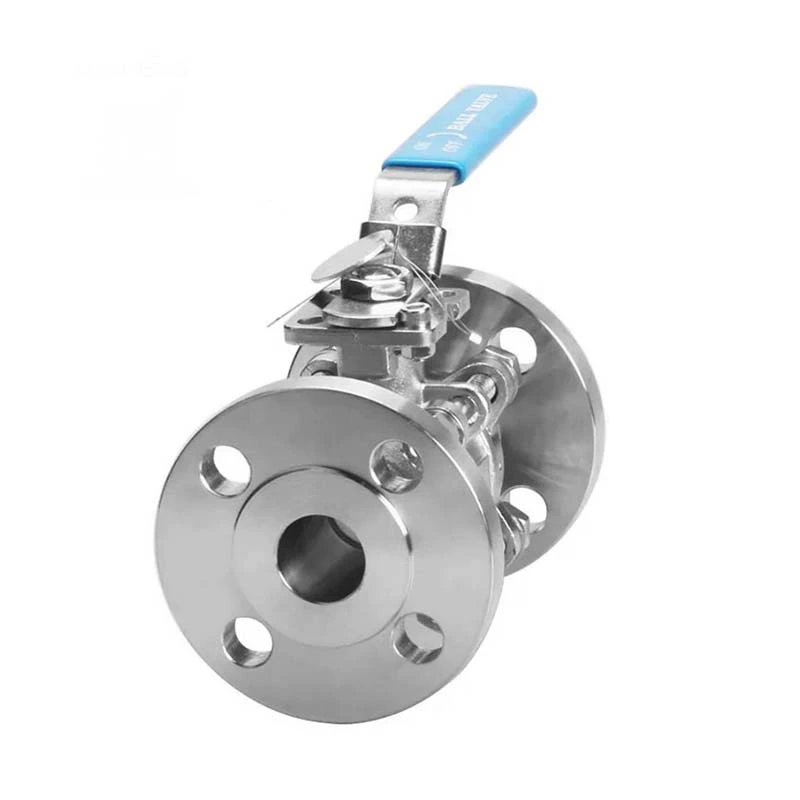

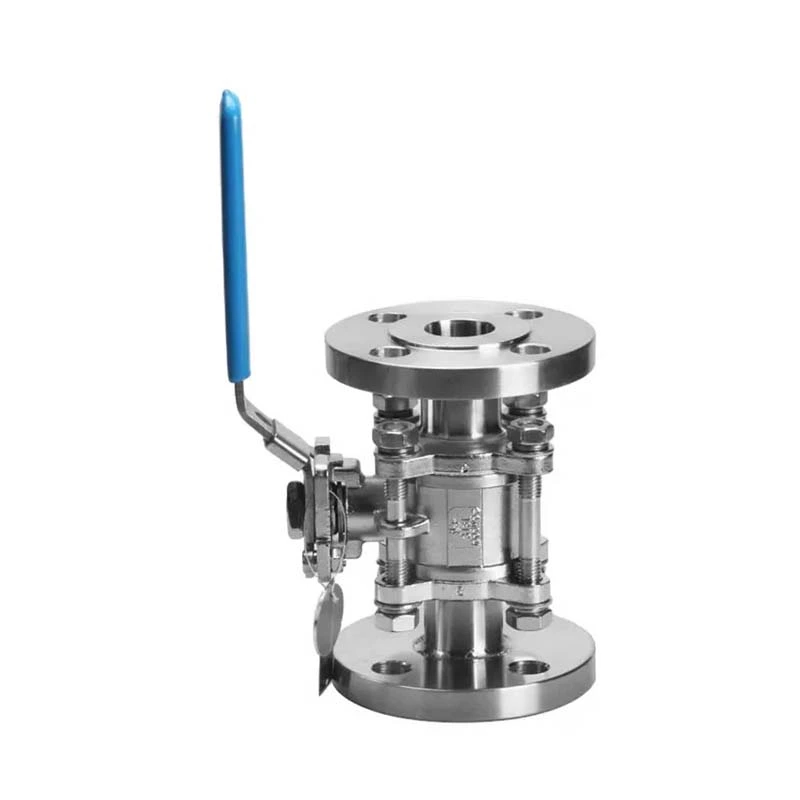

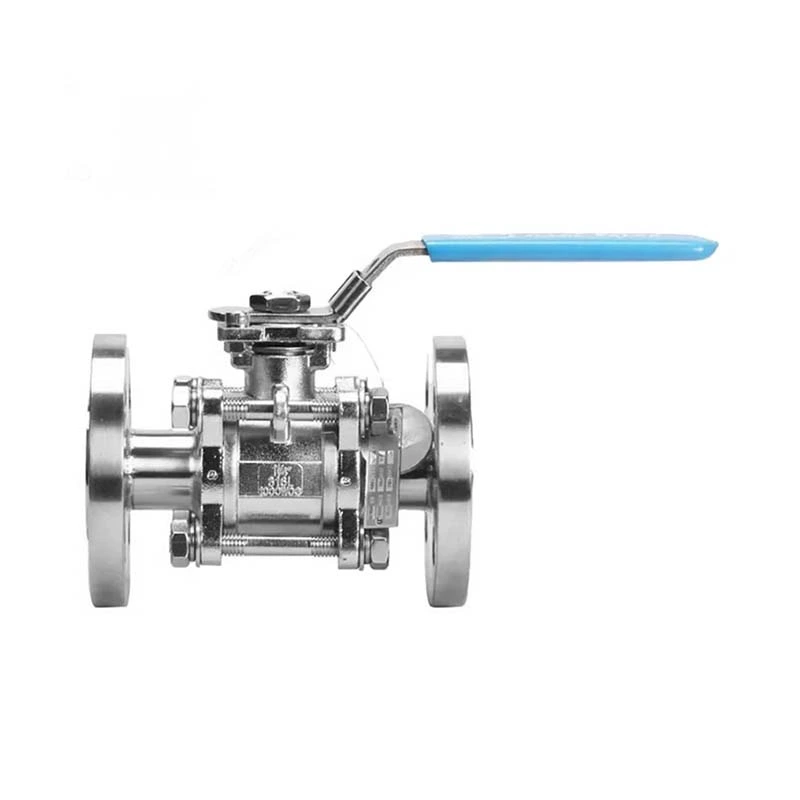

Product Pictures

Sanitary Stainless Steel Three Pieces Flanged Ball Valve
