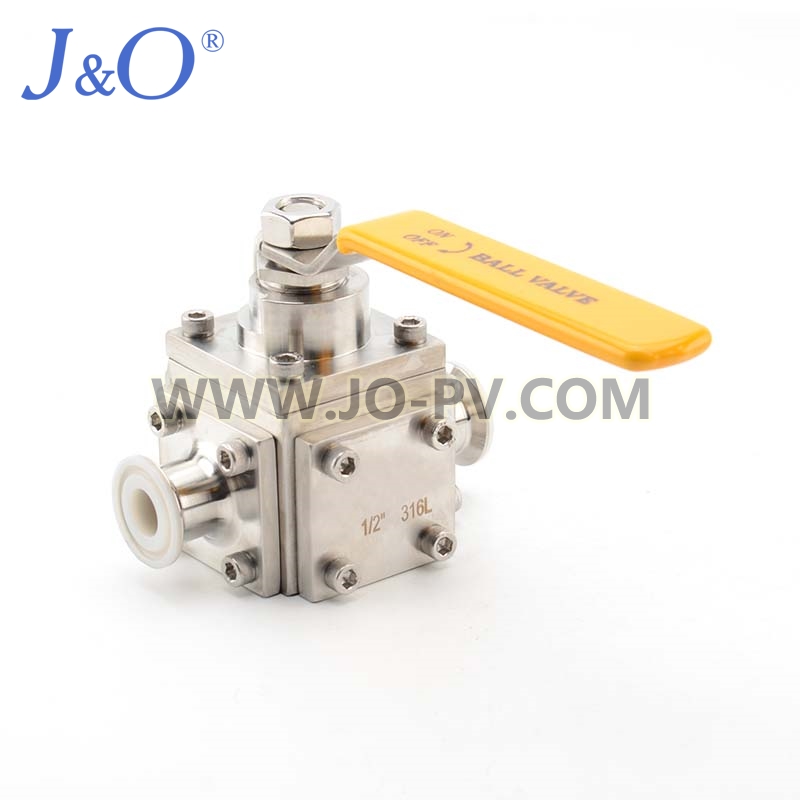

Sanitary Stainless Steel Tri Clamp PFA Lined Three Way Ball Valve
PFA lined ball valve, suitable for most chemically corrosive fluid media such as strong acid and alkali.
- Brand:
- J&O
- Material:
- SS304 / SS316L
- Connection:
- Clamped
- Gasket:
- PTFE
- Working Temperature:
- -20°~120°
- Working Pressure:
- 0-10Bar
- Operation:
- Manual
Sanitary Stainless Steel PFA Lined Tri Clamp 3 Way Ball Valve
- Sanitary Lined ball Valve can transport chemically corrosive fluids, high temperature resistance, vacuum resistance, anti-static, high mechanical strength, excellent chemical stability and dielectric properties.
- PFA lined ball valve, suitable for most chemically corrosive fluid media such as strong acid and alkali.
- Full opening or full closing, the seal surface of the ball and the valve seat is isolated from the medium, and when the medium passes through, it will not cause erosion of the valve seal surface.
Technical Data
| Valve Body Material: | SS304/SS316L |
| Seal Material: | PTFE |
| Mex working pressure: | 10Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | 1/2"-4", DN25-DN100 |
| Availably connection: | Clamp |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual |
| Applicable medium: | Water, oil, acid and alkali, corrosive medium |

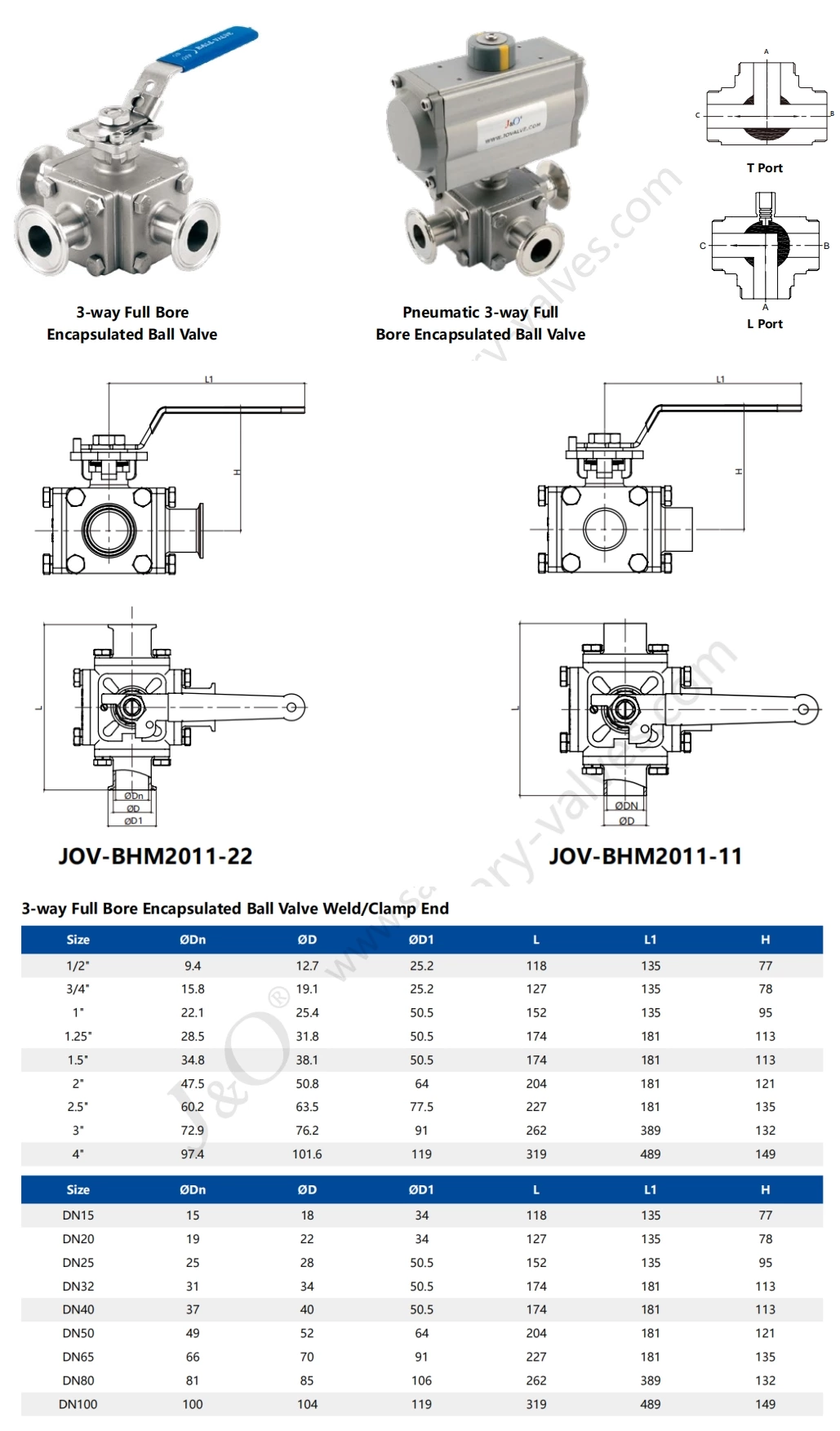

Product Parameter

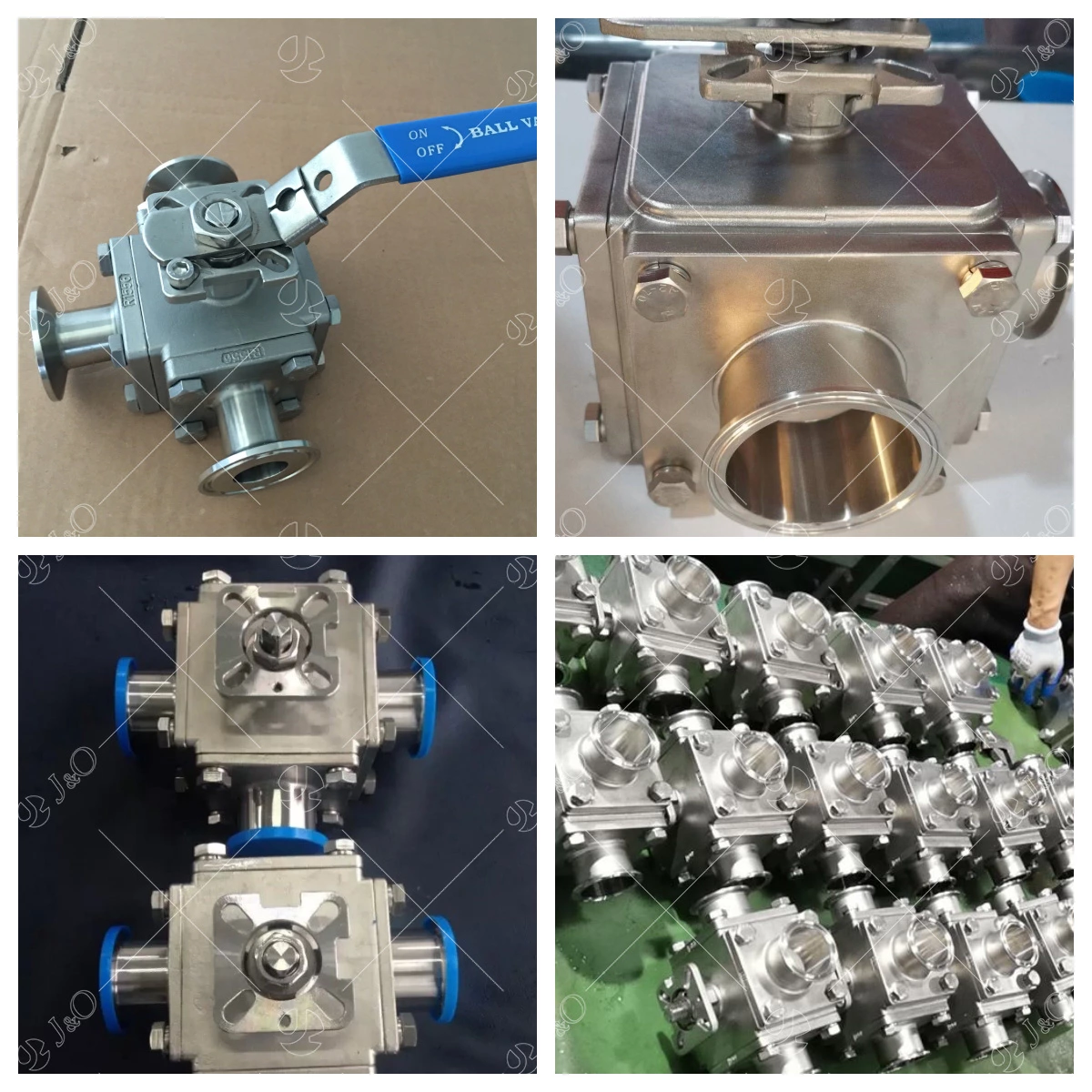

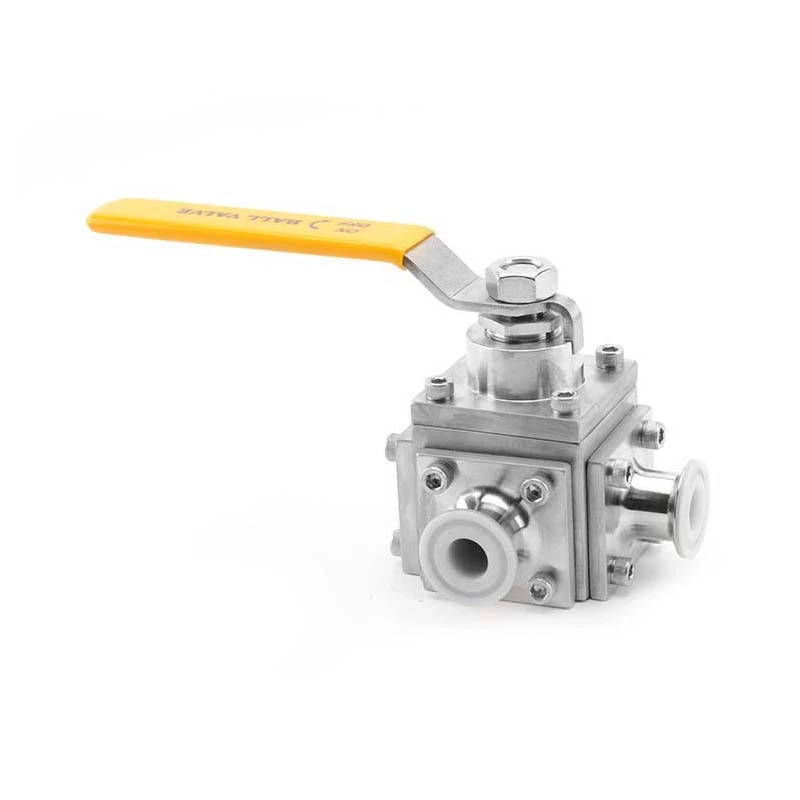

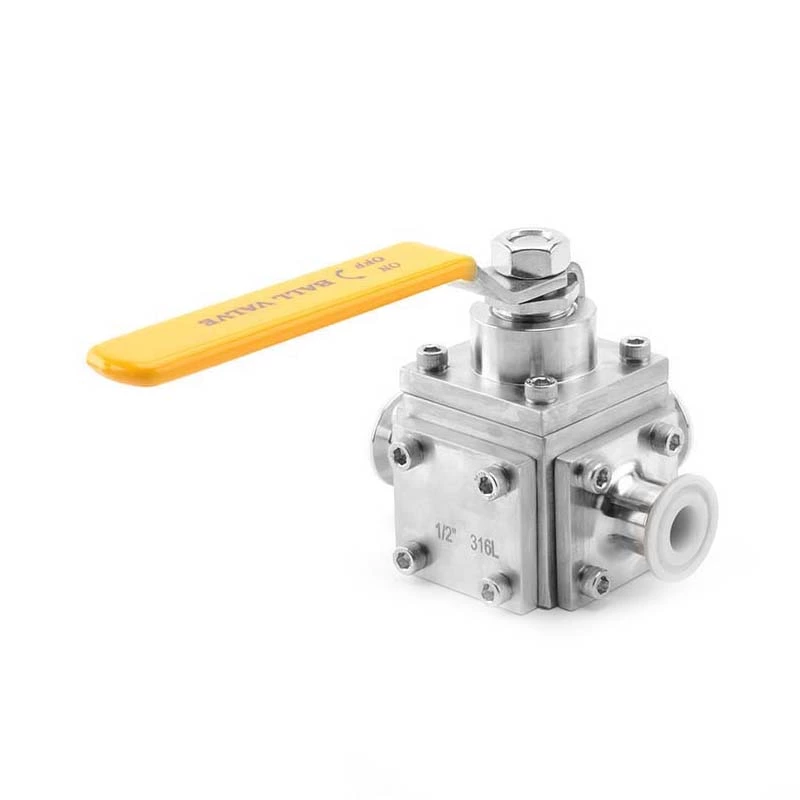

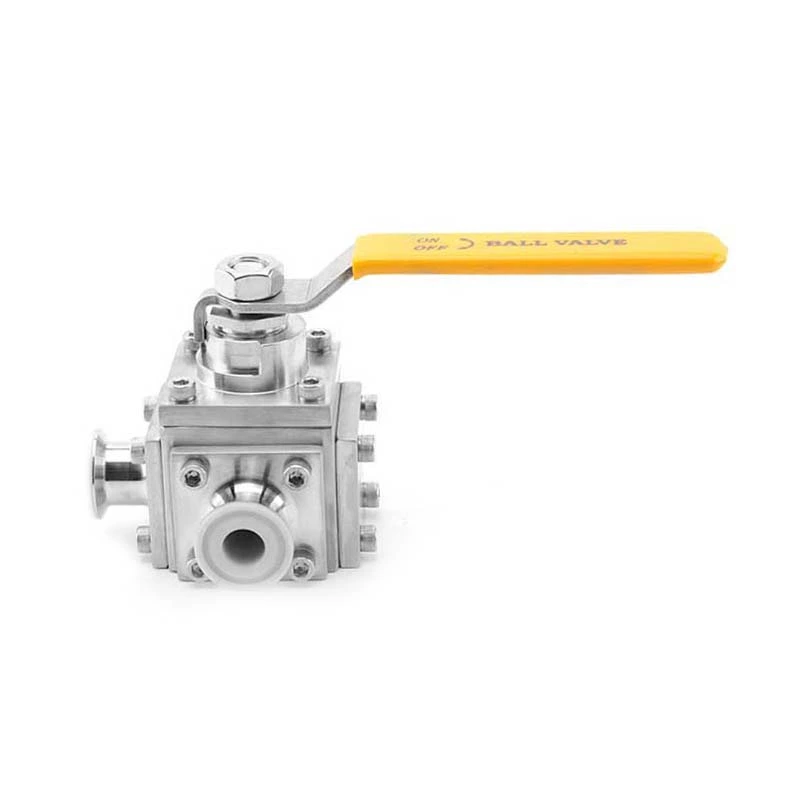

Product Pictures
