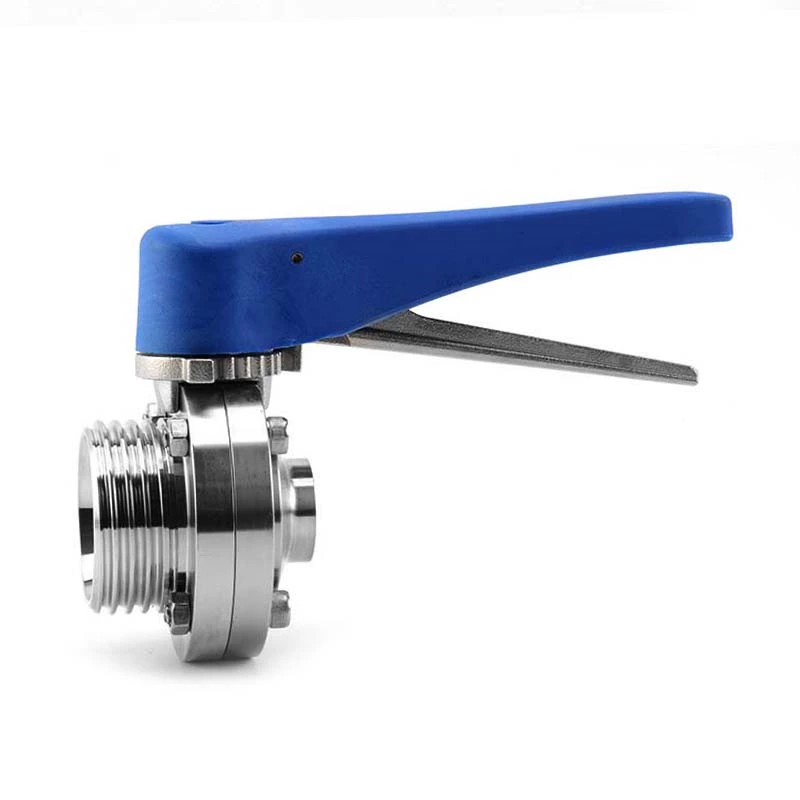

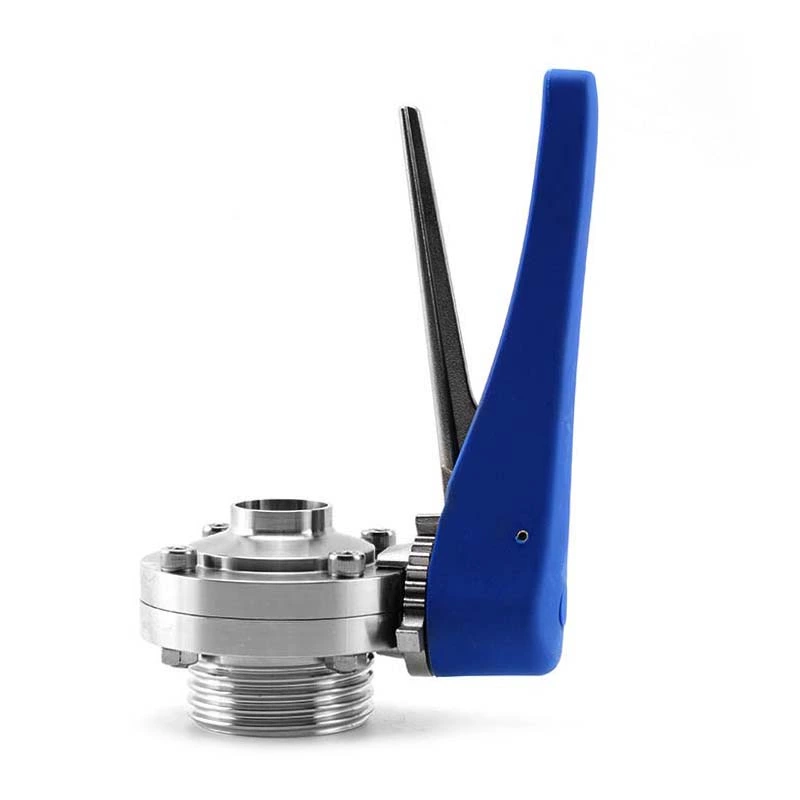

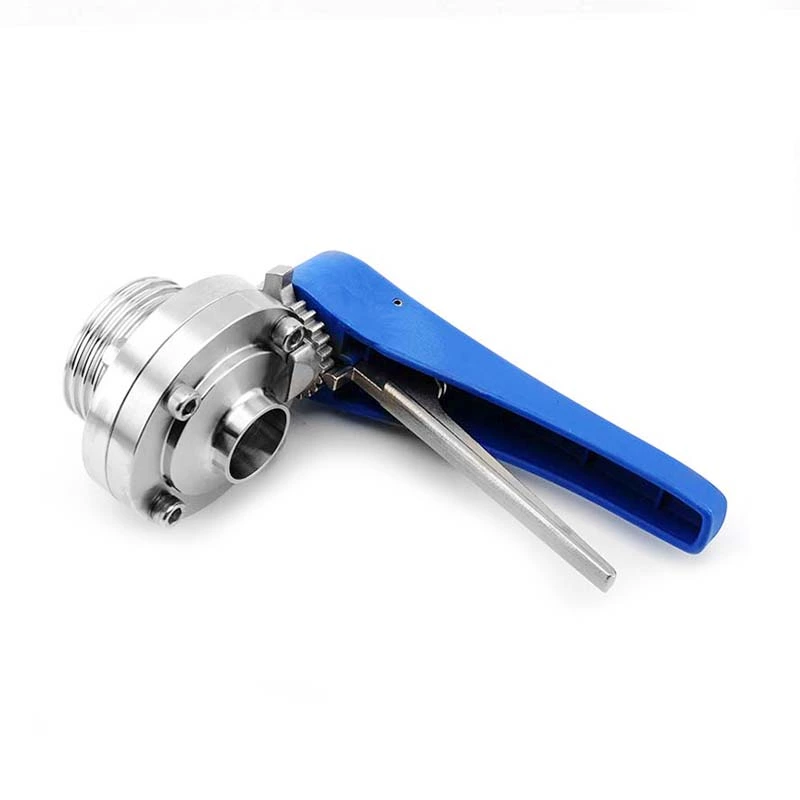

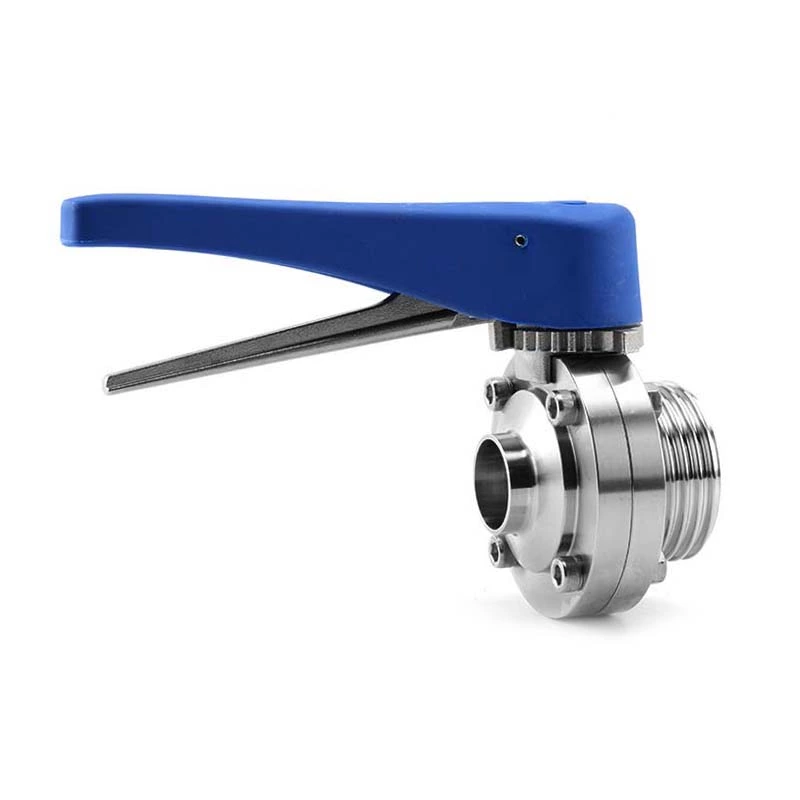

Sanitary Stainless Steel Male Welded Butterfly Valve With Plastic Handle

Sanitary Stainless Steel Male Welded Butterfly Valve We can supply Sanitary Butt-Weld Butterfly Valve, Sanitary Tri-Clamp Butterfly Valve, Hygienic Male Thread Butterfly Valve, Sanitary Pneumatic Butt

Model:
JOV-BFHMP12-13
Brand:
J&O
Material:
SS304 / SS316L
Connection:
Thread-weld
Gasket:
EPDM / Silicon / NBR / FKM
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar
Operation:
Manual
Download Catalog:
J&O SANITARY BUTTERFLY VALVE 1-4.pdf
Enquiry
Sanitary Stainless Steel Male Welded Butterfly Valve With Plastic Handle
Sanitary Stainless Steel Male Welded Butterfly Valve With Plastic Handle Sanitary Stainless Steel Male Welded Butterfly Valve With Plastic Handle Sanitary Stainless Steel Male Welded Butterfly Valve With Plastic Handle Sanitary Stainless Steel Male Welded Butterfly Valve With Plastic Handle

Sanitary Stainless Steel Male Welded Butterfly Valve

  • We can supply Sanitary Butt-Weld Butterfly Valve, Sanitary Tri-Clamp Butterfly Valve, Hygienic Male Thread Butterfly Valve, Sanitary Pneumatic Butterfly Valve, Hygienic Electric Butterfly Valve. For the manual handle, we have Stainless Steel Pull Handle, Plastic Multi Position Gripper Handle and Stainless Steel Multi Position Handle.
  • The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
  • All of the products have been 100% press tested before shipping.
  • It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
  • EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.

Technical Data

Valve Body Material: 1.4404/1.4301, SS304/SS316L
Seal Material: EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Mex working pressure: 10Bar
Max. Working Temperature: 120 degree C
Availably size: 1"-6", DN25-DN150
Availably connection: male-weld
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Manual
Control: Sensor, C-TOP, C-top controller(AS-I)
Certificate: ISO, PED/97/23/EC, FDA.177.2600
Handle application: plastic handle
Application scope: Dairy,food, beverage, pharmacy, cosmetic, Chemical,etc
