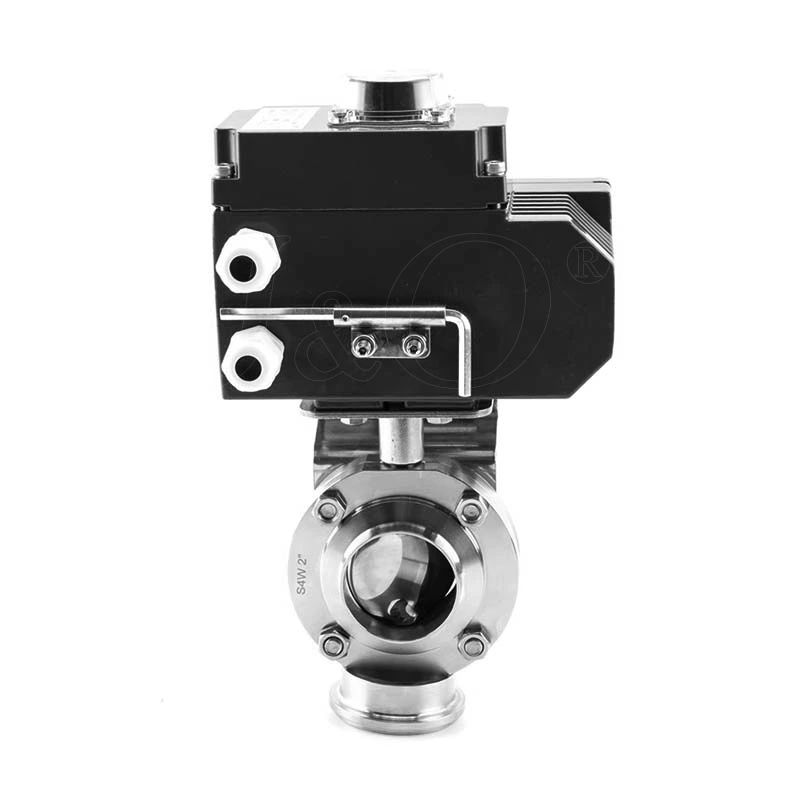

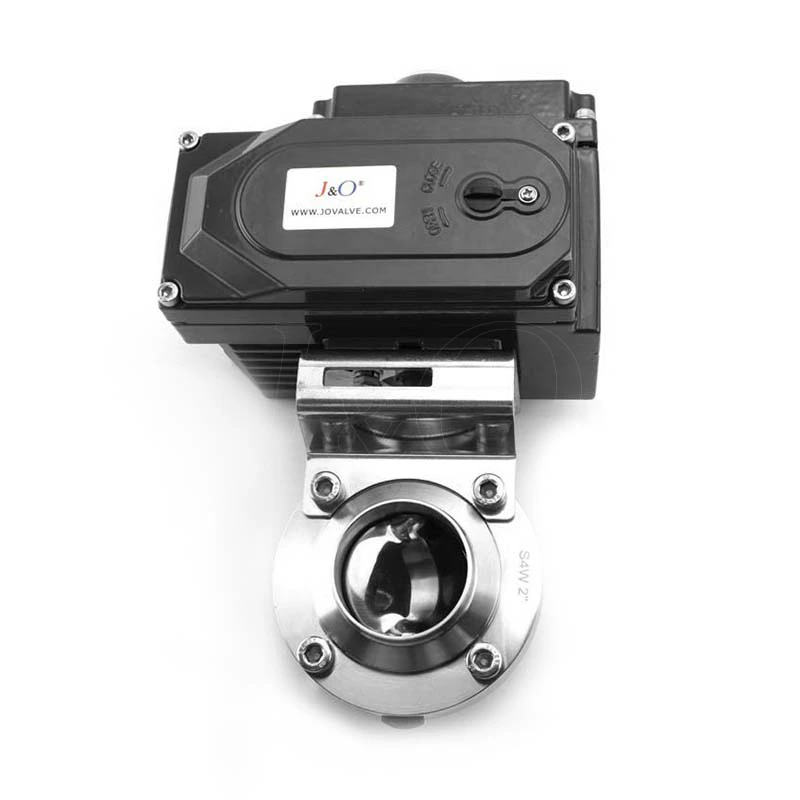

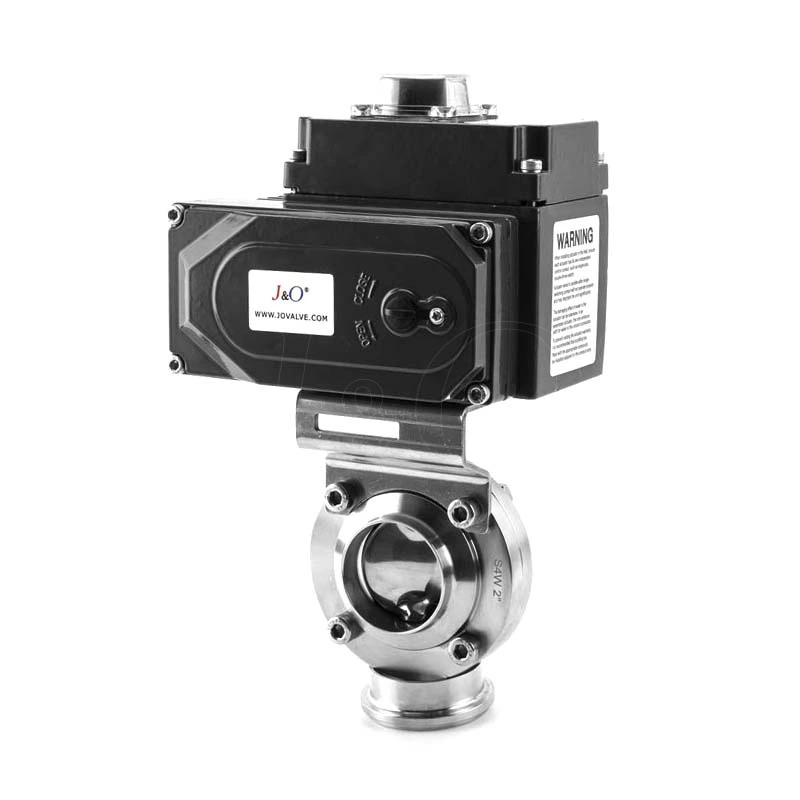

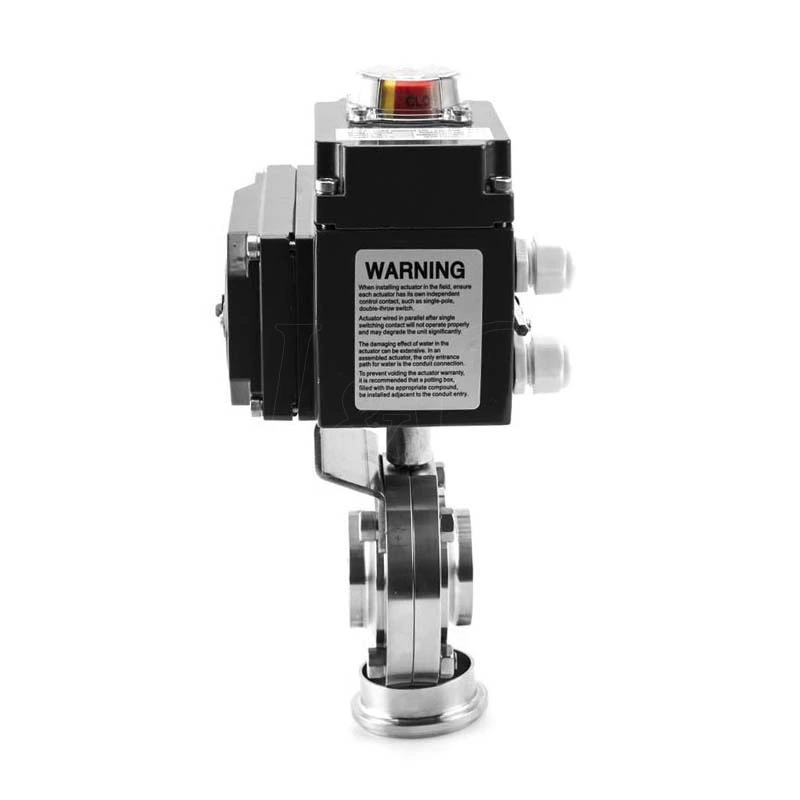

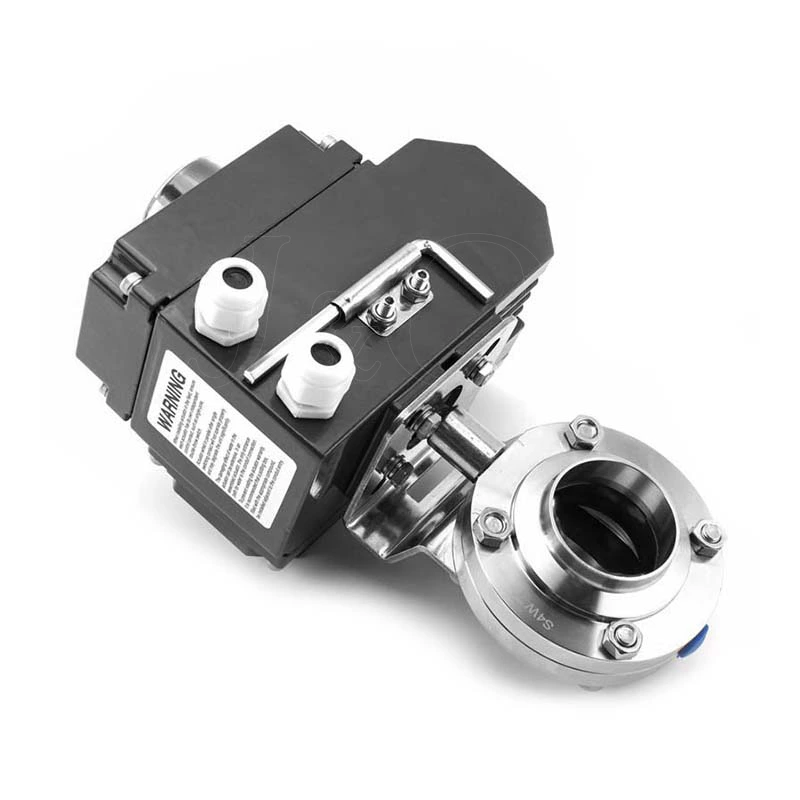

Butterfly Valve With Electric Acutator

Sanitary butterfly valves are used to make a fluid start or stop flowing through a section of pipe for these devices in applications such as food and beverage processing, personal care, biomedical, or pharmaceutical industries.

Model:
JOV-BFHE-11
Brand:
J&O
Material:
SS304 / SS316L
Connection:
Clamped/ Weld / Thread
Gasket:
EPDM / Silicon / NBR / FKM
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar
Code:
JOV-BFHE-11
Operation:
Electric
Enquiry
Butterfly Valve With Electric Acutator
Butterfly Valve With Electric Acutator Butterfly Valve With Electric Acutator Butterfly Valve With Electric Acutator Butterfly Valve With Electric Acutator Butterfly Valve With Electric Acutator Butterfly Valve With Electric Acutator

Sanitary Stainless Steel Welding Butterfly Valve With Electric Actuator

  • We manufacture Electrical Sanitary Butt-Weld Butterfly Valve, Sanitary Tri-Clamp Electric Butterfly Valve, Hygienic Male Thread Electric Butterfly Valve.
  • The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
  • All of the products have been 100% press tested before shipping.
  • It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
  • EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.

Technical Data

Product Name: Sanitary Clamp/Thread/Weld Butterfly Valve With Pull Handle
Valve Body Material: 1.4404/1.4301, SS304/SS316L
Seal Material: EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Mex working pressure: 20Bar
Max. Working Temperature: 120 degree C
Availably size: 1"-6", DN25-DN150
Availably connection: Clamp/Thread/Weld
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Electric
Certificate: ISO, PED/97/23/EC, FDA.177.2600
Motor power: 110/220V AC single-phase, 380/440 3-phase, 50/60hz

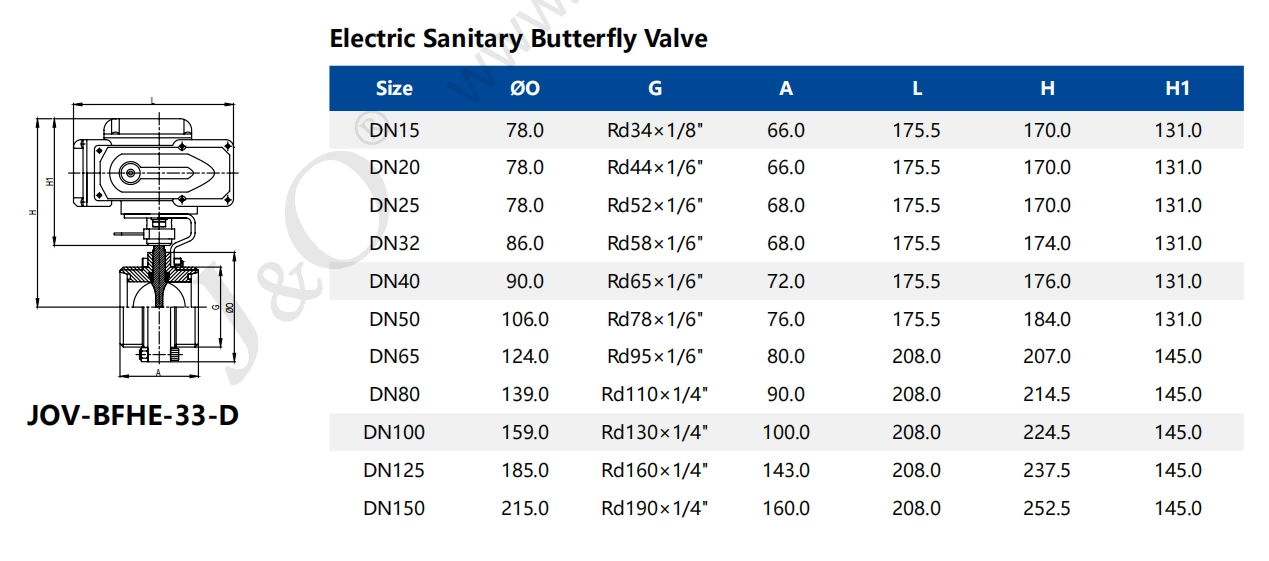

Product Parameter

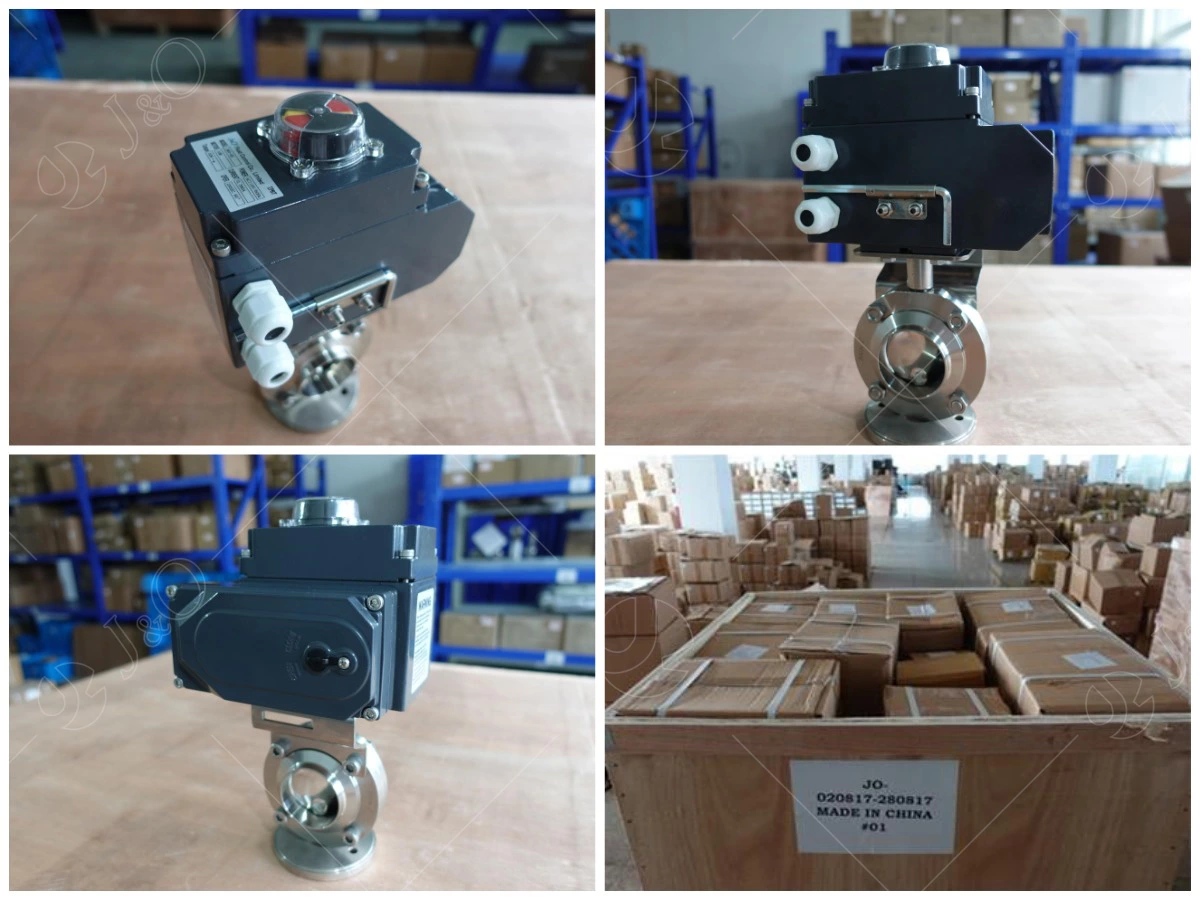

Product Pictures
