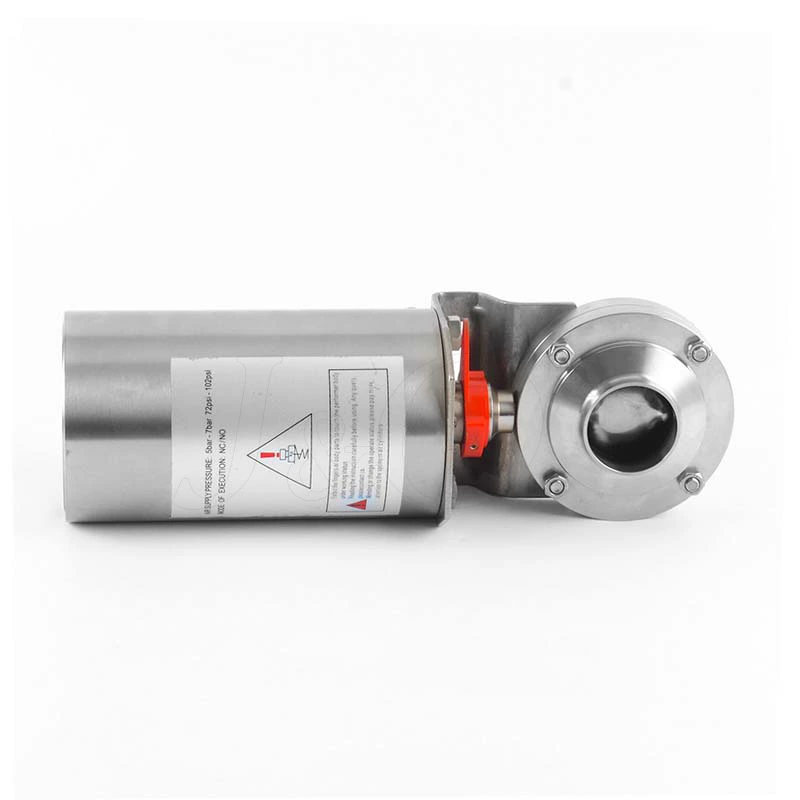

Sanitary Stainless Steel Pneumatic Butt Weld Butterfly Valve With SS Actuator

Sanitary butterfly valves are used to make a fluid start or stop flowing through a section of pipe for these devices in applications such as food and beverage processing, personal care, biomedical, or pharmaceutical industries.

Brand:
J&O
Material:
SS304 / SS316L
Connection:
Weld
Gasket:
EPDM / Silicon / NBR / FKM
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar
Operation:
Pneumatic Actuator

Sanitary Stainless Steel Welding Pneumatic Butterfly Valve

  • Pneumatic Actuated Sanitary Butterfly Valve is the sanitary butterfly valves operated by pneumatic actuator.
  • J&O is ability to provides both intelligent control and stainless steel actuator with multi-connected air actuated butterfly valve of tri-clamp, butt-weld, male/female threaded, flanged to 3A, DIN, SMS, RJT, ISO, IDF etc. The valve is whole stainless steel 304 or 316L.
  • J&O pneumatic actuated sanitary butterfly valve is a idea choice for the processing industries of Food, Brewery, Beverage, Dairy, Pharmaceutical etc.

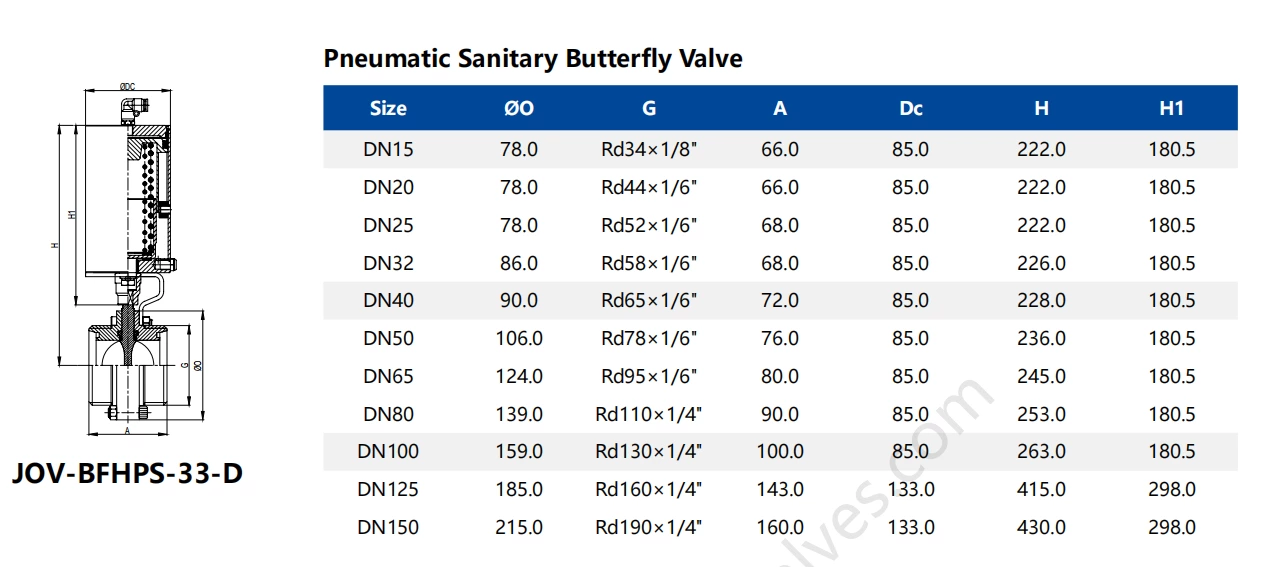

Technical Data

Product Name: Sanitary Pneumatic Butterfly Valve
Valve Body Material: 1.4404/1.4301, SS304/SS316L
Seal Material: EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Mex working pressure: 20Bar
Max. Working Temperature: 120 degree C
Availably size: 1"-6", DN25-DN150
Availably connection: Welding
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Pneumatic
Control: Sensor, C-TOP, C-top controller(AS-I)
Certificate: ISO, PED/97/23/EC, FDA.177.2600
Application scope: Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc

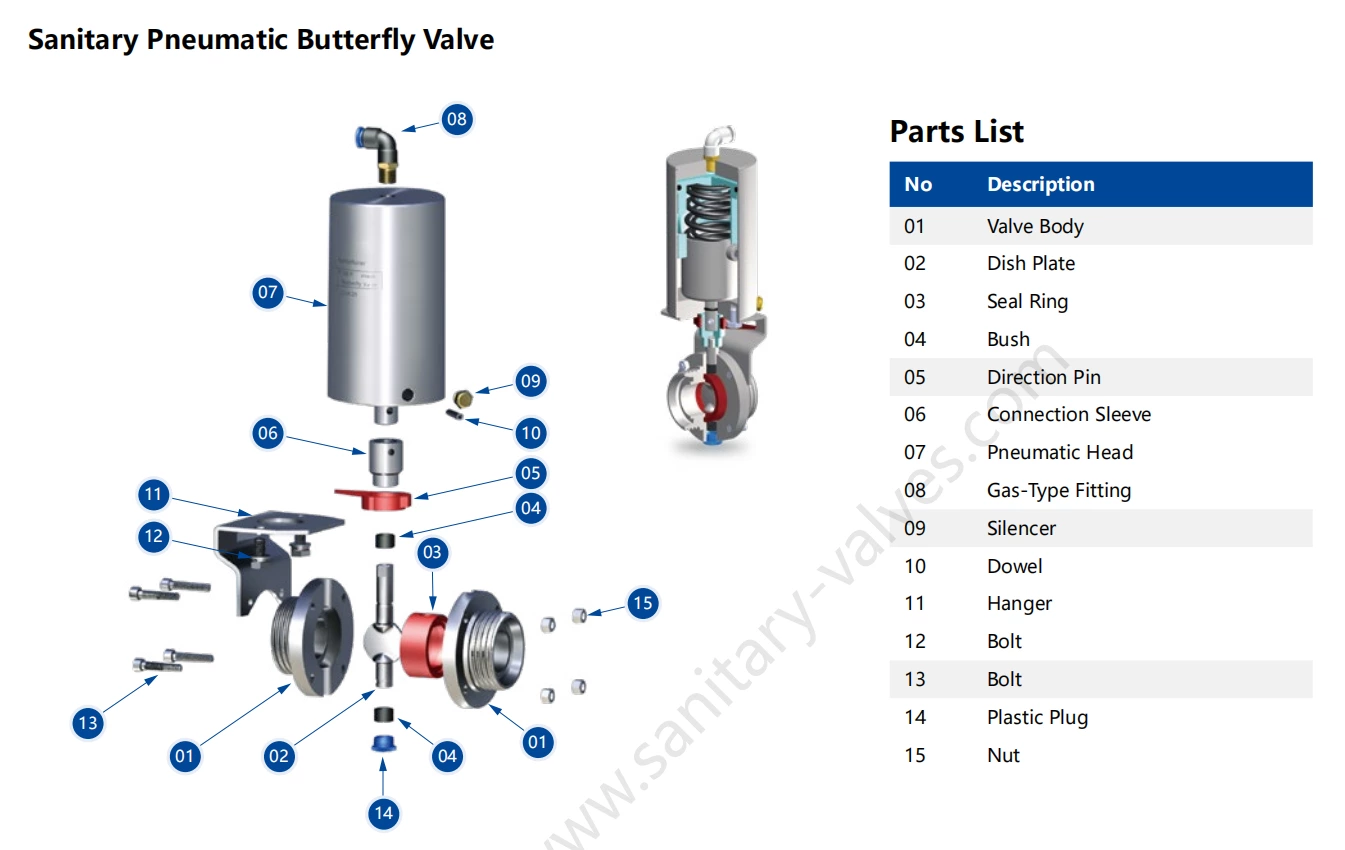

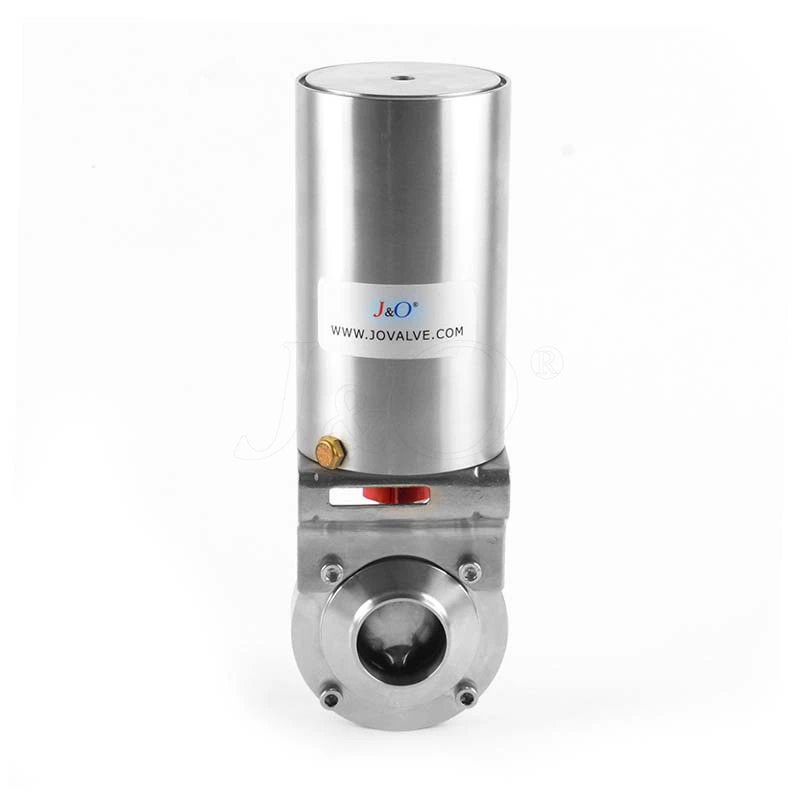

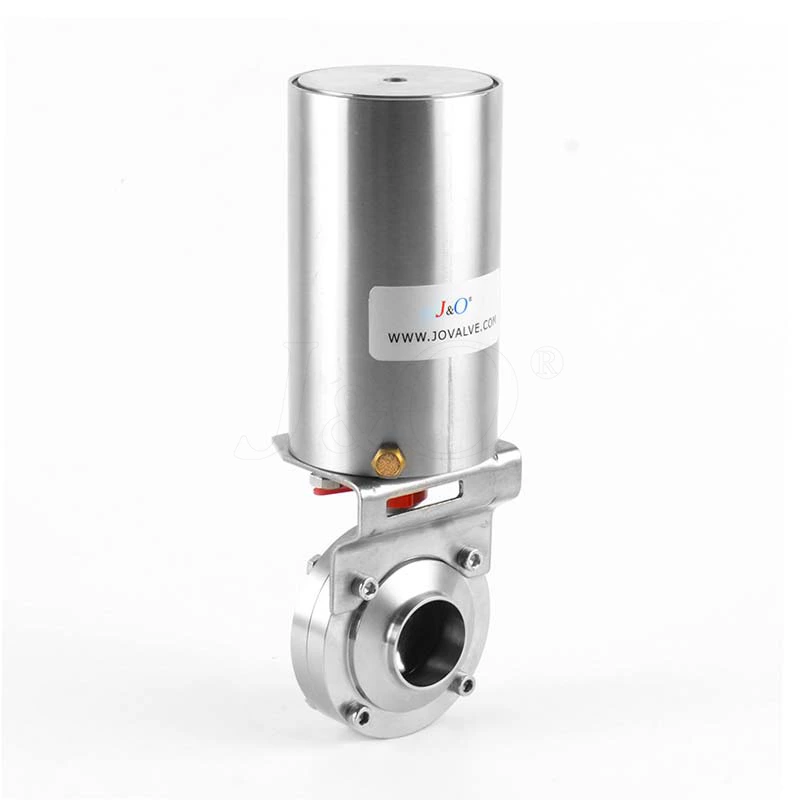

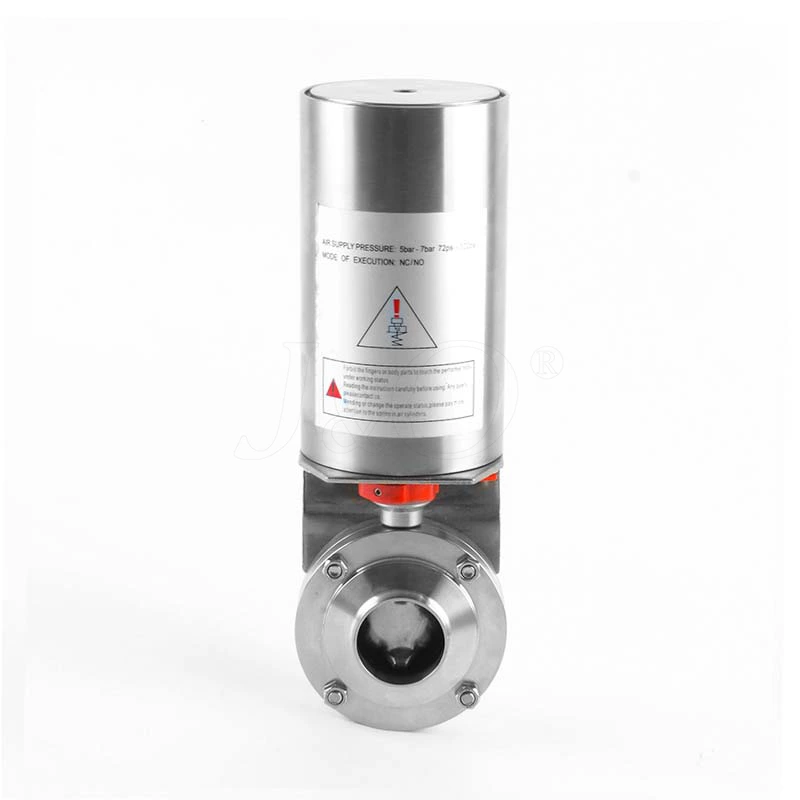

Product Pictures

Sanitary Stainless Steel Pneumatic Butt Weld Butterfly Valve With SS Actuator
