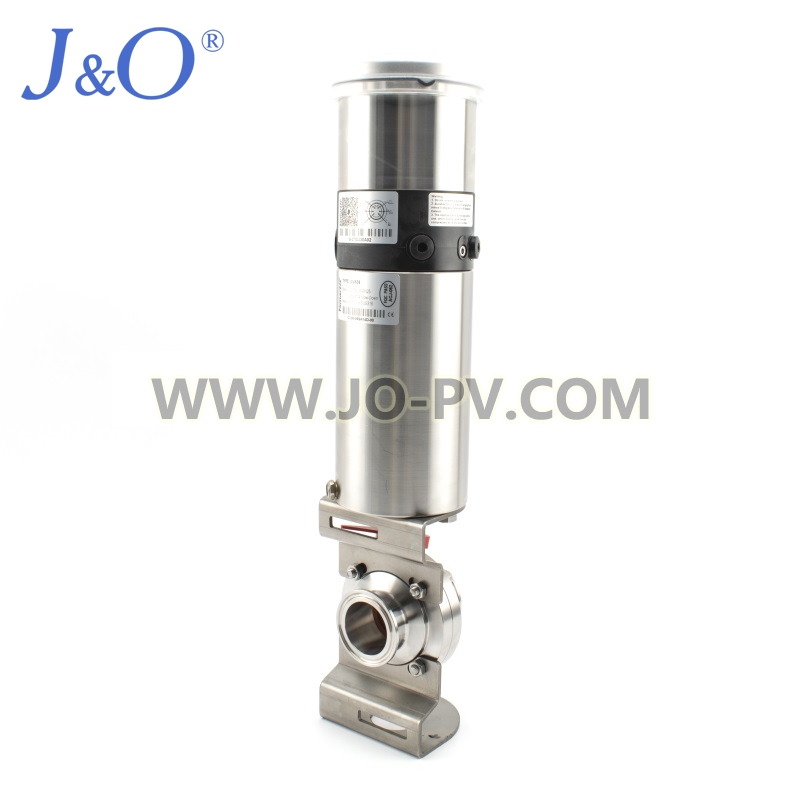

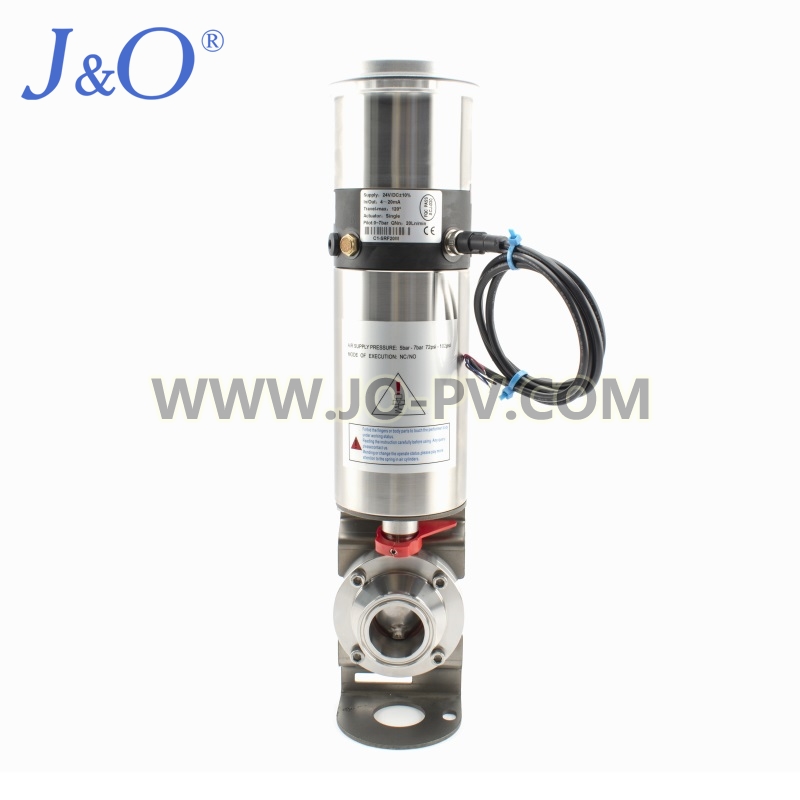

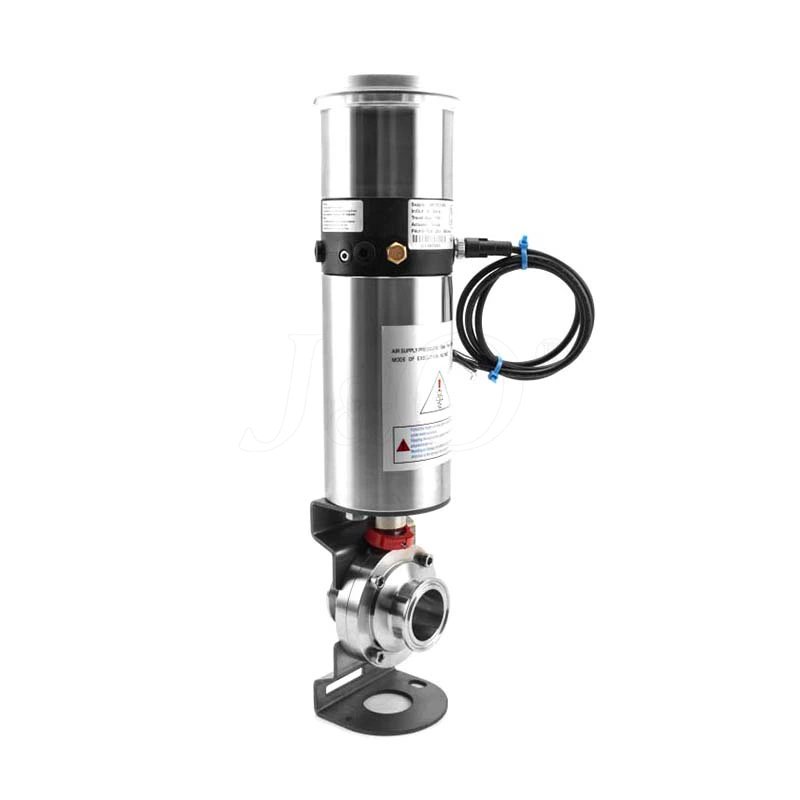

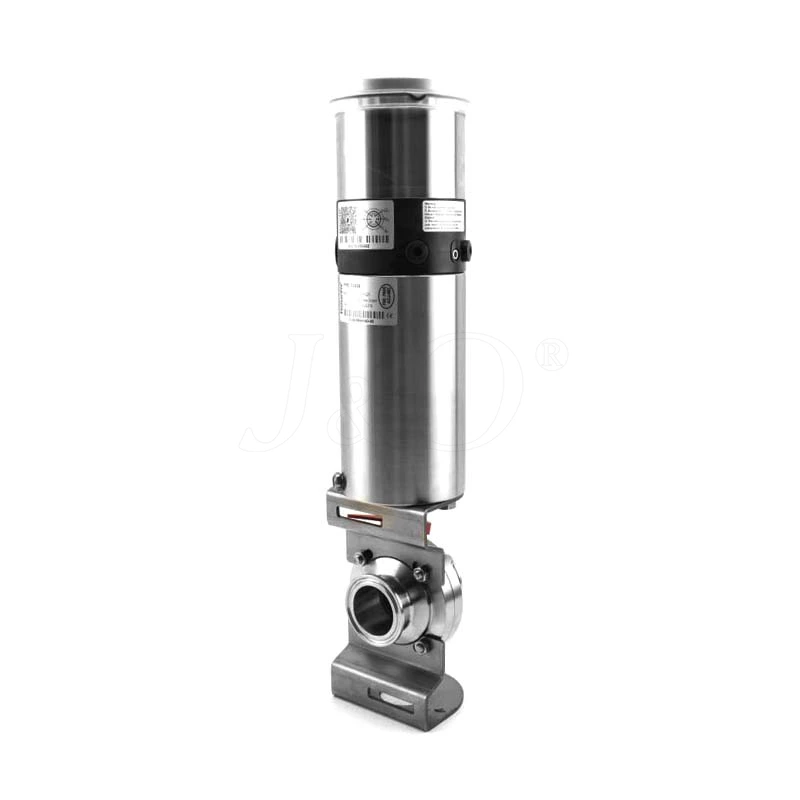

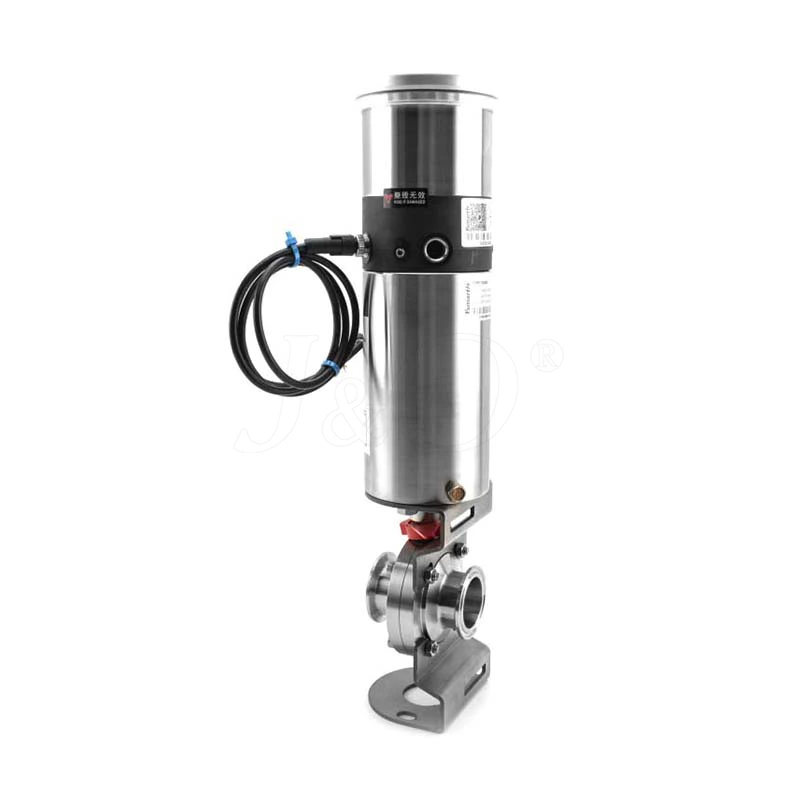

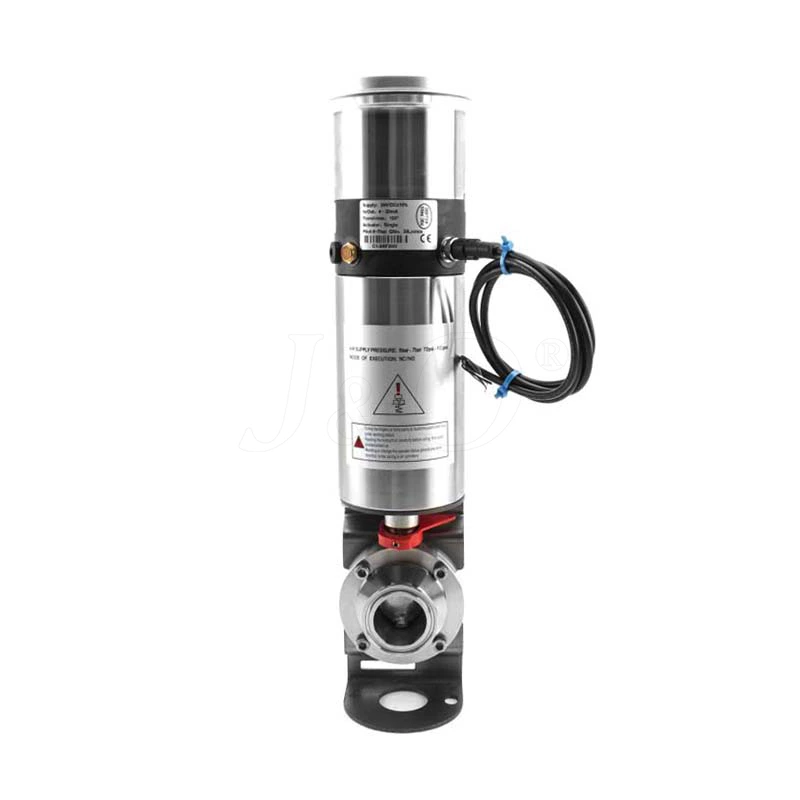

Sanitary Pneumatic Clamped Butterfly Valve With Positioner

Sanitary butterfly valves are used to make a fluid start or stop flowing through a section of pipe for these devices in applications such as food and beverage processing, personal care, biomedical, or pharmaceutical industries.

SS304 / SS316L
EPDM / Silicon / NBR / FKM
Working Temperature:
Working Pressure:
Pneumatic Actuator

Sanitary Stainless Steel Clamped Pneumatic Butterfly Valve

  • Pneumatic Actuated Sanitary Butterfly Valve is the sanitary butterfly valves operated by pneumatic actuator.

  • J&O is ability to provides both intelligent control and stainless steel actuator with multi-connected air actuated butterfly valve of tri-clamp, butt-weld, male/female threaded, flanged to 3A, DIN, SMS, RJT, ISO, IDF etc. The valve is whole stainless steel 304 or 316L.

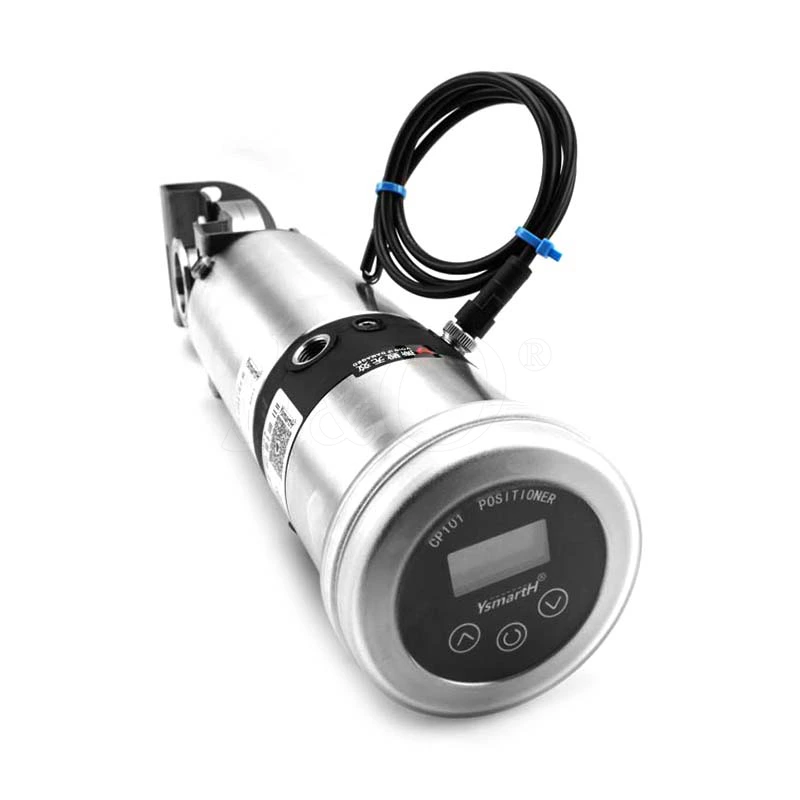

  • The positioner top can be locating valve position by setting a value, 4-20mA input signal and 4-20mA output signal feedback. It can be used as a positioner or a process controller:

       As a positioner, it can locate valve position by setting a value.

       As a process controller, MPU will receive the signal from the control unit, by comparing the setting position with the actual valve position,through PID control algorithm, the process controller will drive the valve to the exact target position.

Technical Data

Product Name: Sanitary Pneumatic Butterfly Valve
Valve Body Material: 1.4404/1.4301, SS304/SS316L
Seal Material: EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Mex working pressure: 20Bar
Max. Working Temperature: 120 degree C
Availably size: 1"-6", DN25-DN150
Availably connection: Clamp
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Pneumatic
Control: Sensor, C-TOP, C-top controller(AS-I)
Certificate: ISO, PED/97/23/EC, FDA.177.2600
Application scope: Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc

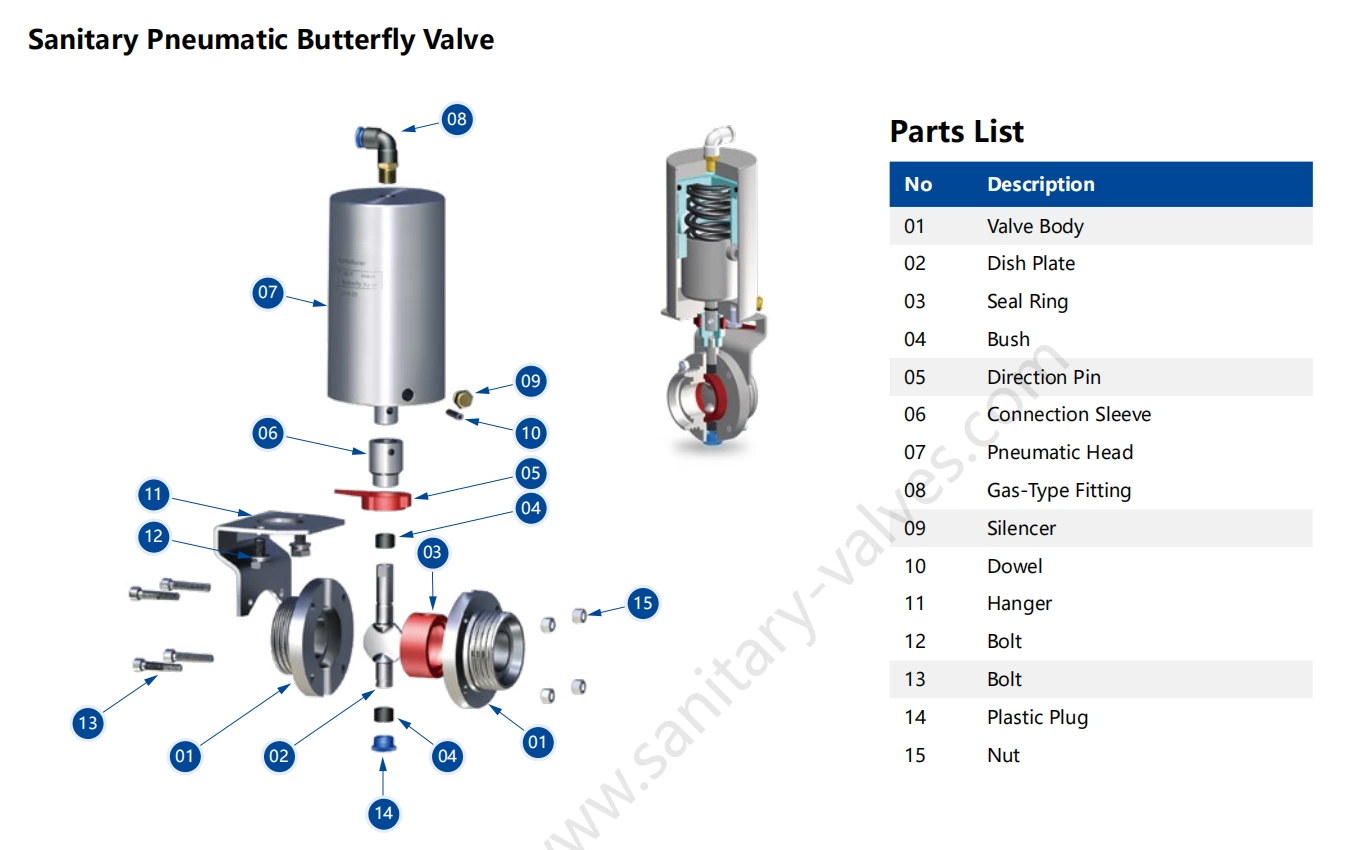

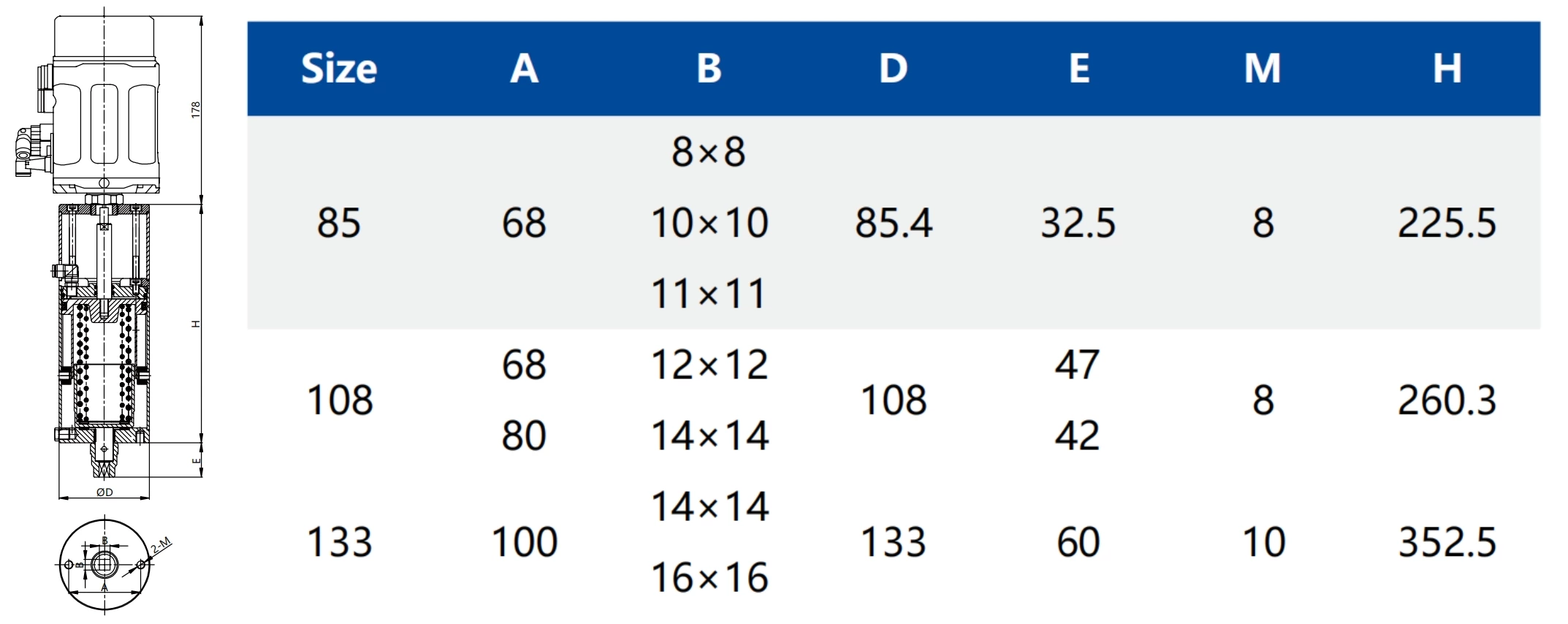

Product Parameter

Sanitary Pneumatic Clamped Butterfly Valve With Positioner
