J&O Fluid

Products

Sanitary Stainless Steel Pneumatic Clamp Powder Butterfly Valve

Brand:
J&O
Material:
SS304 / SS316L
Connection:
Welded
Gasket:
EPDM / Silicon / NBR / FKM
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar
Operation:
Manual

Sanitary Stainless Steel Clamped Powder Butterfly Valve

  • Hygienic powder butterfly valve is not only simple in structure, small in size, light in weight, low in material consumption, small in installation size, but also has small driving torque, easy and quick operation, and also has good flow adjustment function and closing sealing characteristics.

  • The movement of the sanitary butterfly valve valve plate is wiping, so the butterfly valve can be used for media with suspended fixed particles, and can also be used for powder and granular media according to the strength of the seal.

Technical Data

Seal Material: EPDM/FPM/SILICON/NBR, FDA177.2600
Mex working pressure: 20Bar
Max. Working Temperature: 120 degree C
Availably size: 1"-6", DN25-DN150
Availably connection: Tri Clamp
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Pneumatic
Certificate: ISO, PED/97/23/EC, FDA.177.2600
Handle application: Plastic handle
Application scope: Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc



Product Parameter

Sanitary Stainless Steel Pneumatic Clamp Powder Butterfly ValveSanitary Stainless Steel Pneumatic Clamp Powder Butterfly Valve

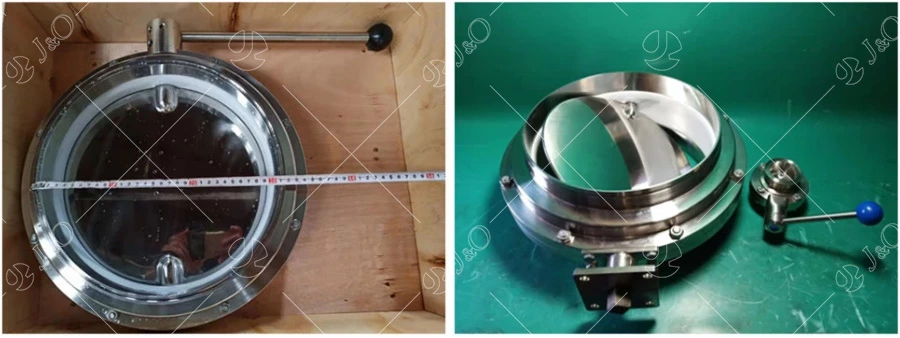

Product Pictures

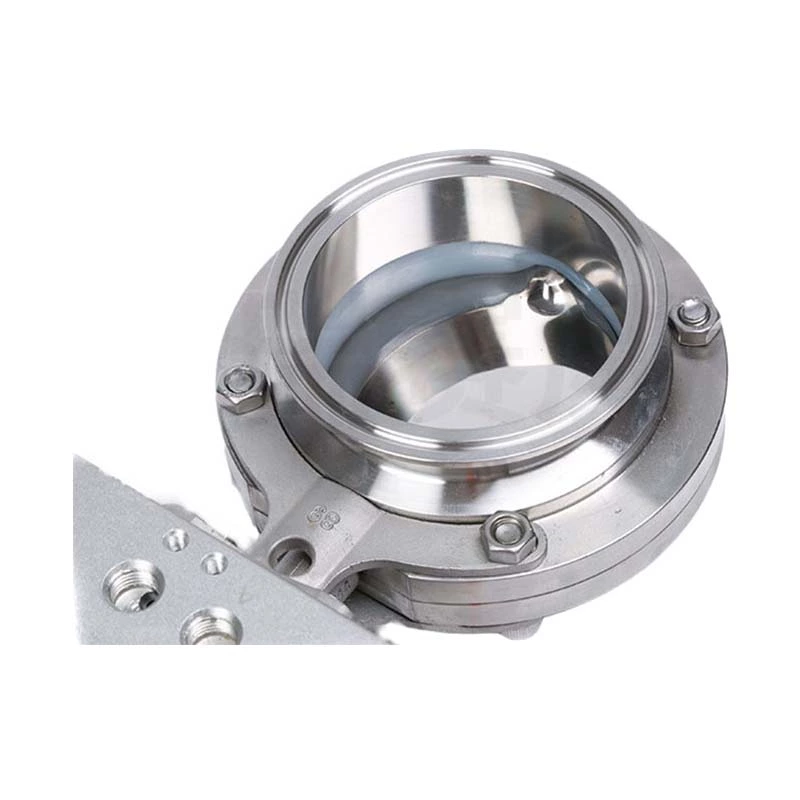

Sanitary Stainless Steel Pneumatic Clamp Powder Butterfly Valve
