Products
Pneumatic Butterfly Valves
Sanitary butterfly valves are used to make a fluid start or stop flowing through a section of pipe for these devices in applications such as food and beverage processing, personal care, biomedical, or pharmaceutical industries.
- Brand:
- J&O
- Material:
- SS304 / SS316L
- Connection:
- Clamped/ Weld / Thread
- Gasket:
- EPDM / Silicon / NBR / FKM
- Working Temperature:
- -20°~120°
- Working Pressure:
- 0-10Bar
- Operation:
- Pneumatic Actuator

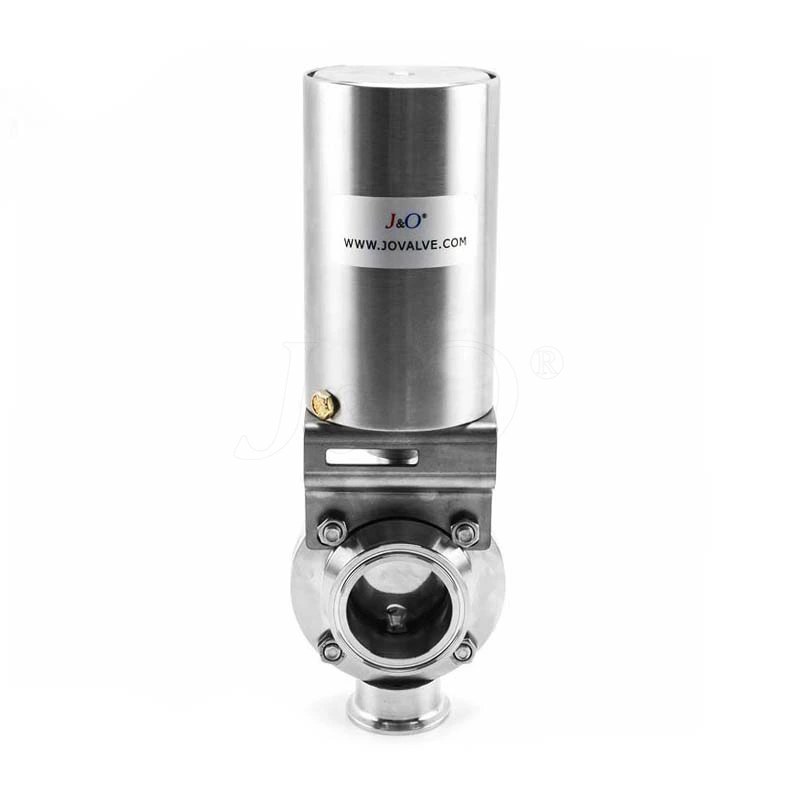

Sanitary Stainless Steel Tri Clamp Pneumatic Butterfly Valve
- J&O Sanitary Butterfly Valve including Sanitary Butt-Weld Butterfly Valve, Sanitary Tri-Clamp Butterfly Valve, Hygienic Male Thread Butterfly Valve, Sanitary Pneumatic Butterfly Valve, Hygienic Electric Butterfly Valve. For the Pneumatic Actuator, we can supply Stainless Steel Actuator and Aluminum Actuator. Also we have the Intelligent Type Pneumatic Butterfly Valve. And you can choose installing the Position Sensor and Solenoid Valve.
- The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
- All of the products have been 100% press tested before shipping.
- It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
- EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.
Technical Data
| Product Name: | Sanitary Pneumatic Butterfly Valve |
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Mex working pressure: | 20Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | 1"-6", DN25-DN150 |
| Availably connection: | Clamped |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Pneumatic |
| Control: | Sensor, C-TOP, C-top controller(AS-I) |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |

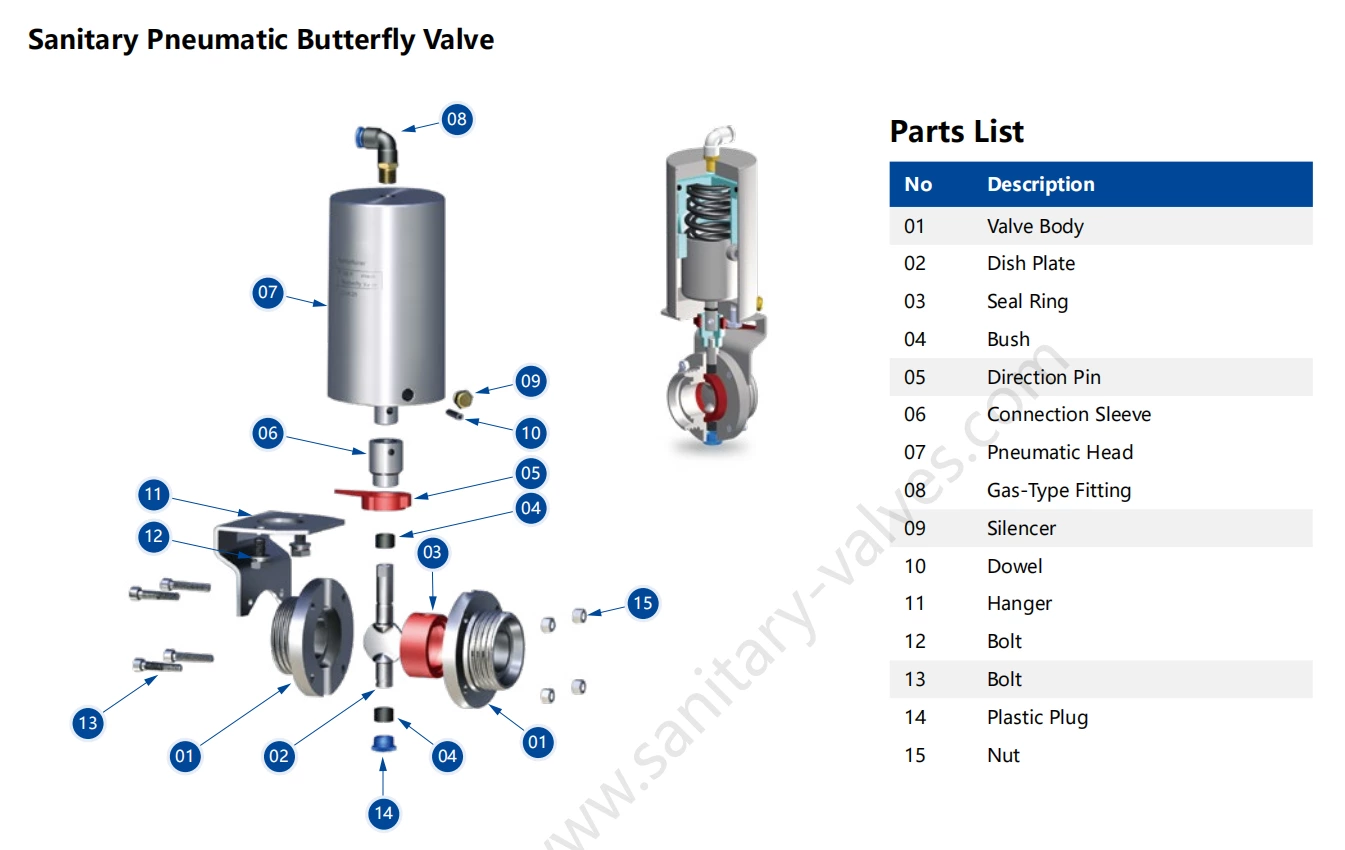

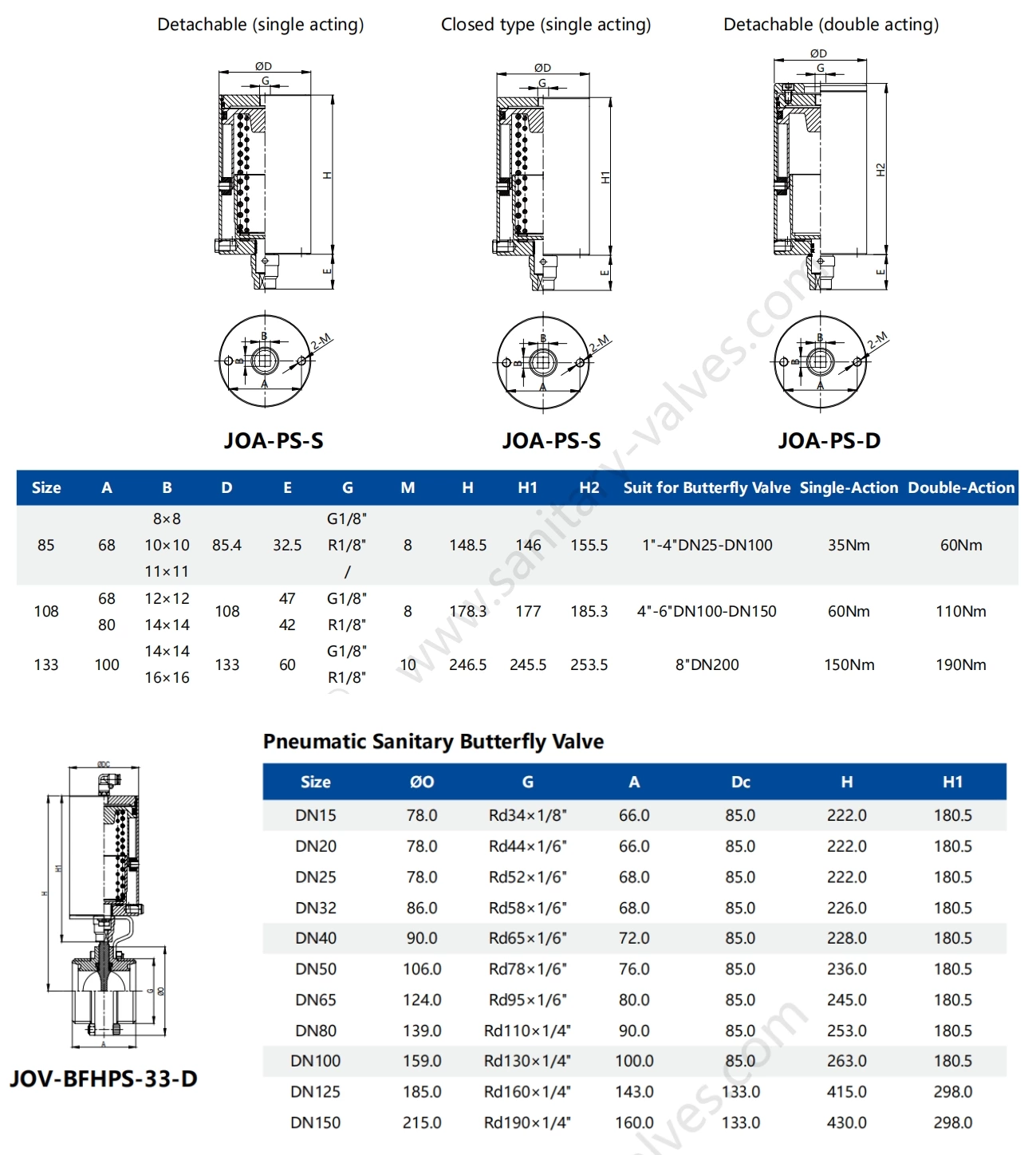

Product Parameter

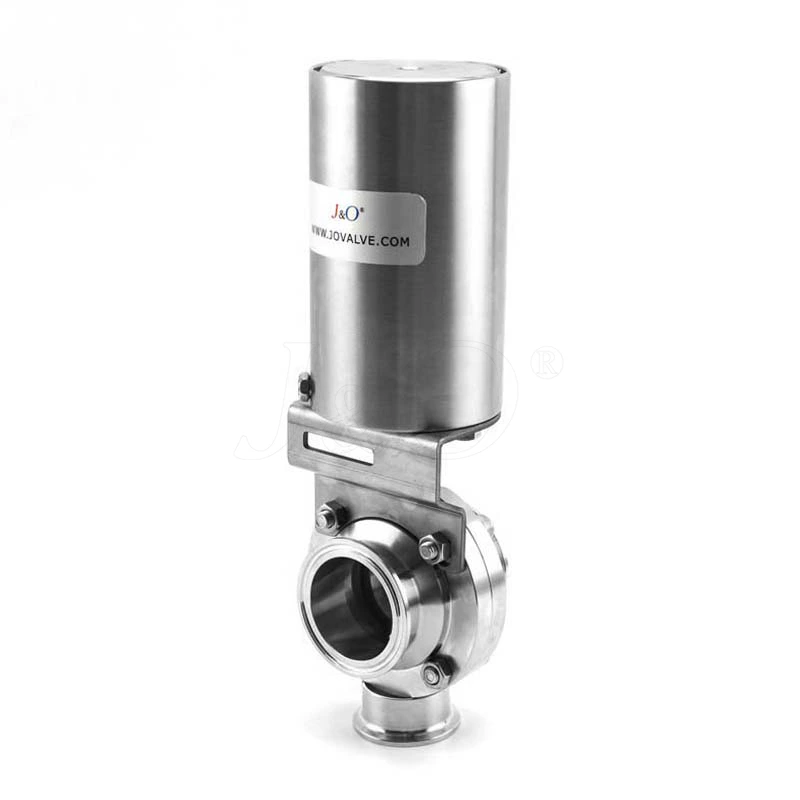

Product Pictures
