China J&O Fluid Control Co., Limited

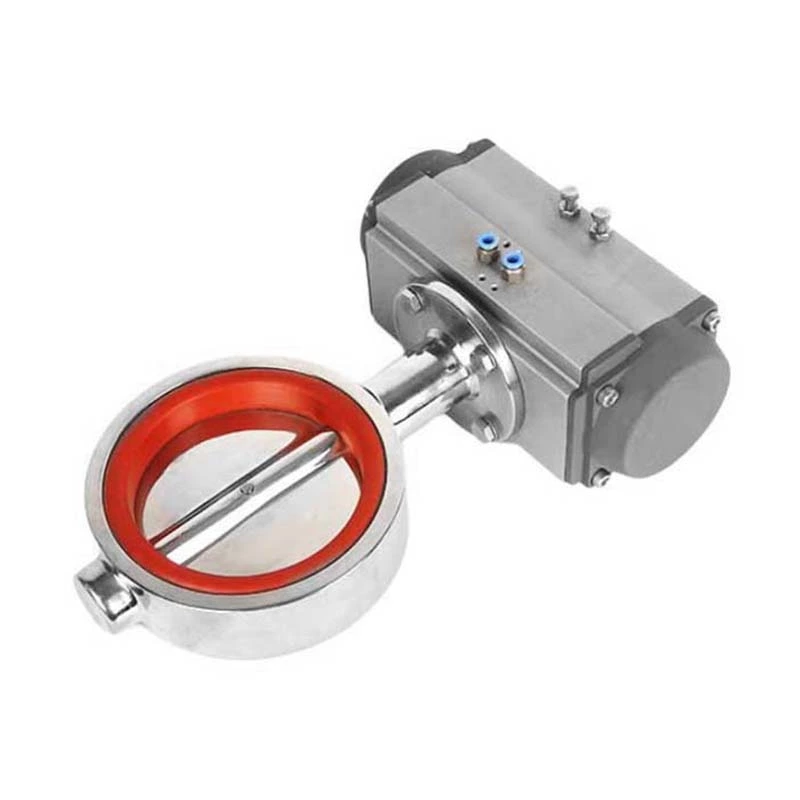

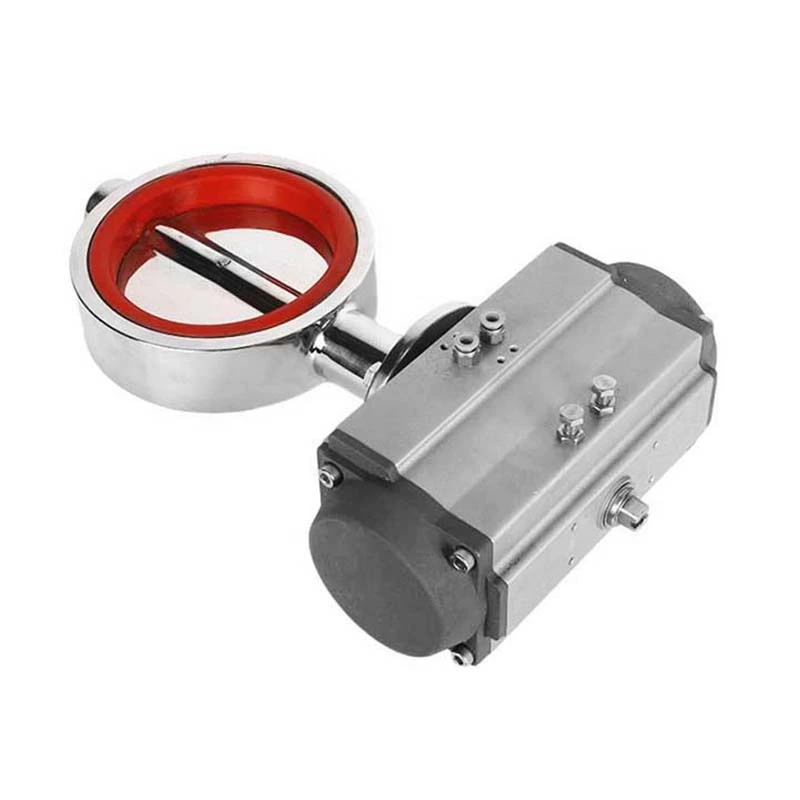

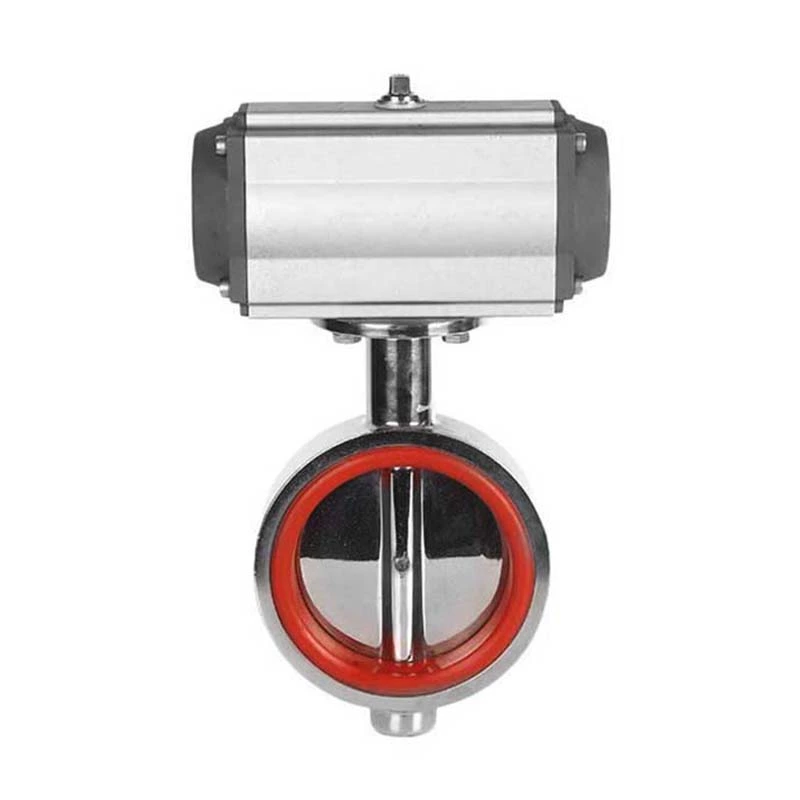

Pneumatic Sanitary Stainless Steel Wafer Type Butterfly Valve

SS304 / SS316L
EPDM / Silicon / NBR / FKM
Working Temperature:
Working Pressure:

Sanitary Stainless Steel Pneumatic Wafer Type Butterfly Valve

J&O Wafer Butterfly Valve is a regulating valve with a simple structure, which can be used to switch butterfly valves for low-pressure pipeline media. The valve closing member rotates around the valve shaft to achieve opening and closing. Wafer type butterfly valve can be used to control the flow of various fluids such as air, water, steam, various corrosive media, and radioactive media. It mainly plays the role of cutting off and throttling on the pipeline.

Technical Data

Valve Body Material: 1.4404/1.4301, SS304/SS316L
Seal Material: EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Mex working pressure: 10Bar
Max. Working Temperature: 120 degree C
Availably size: DN25-DN300
Availably connection: male-weld
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Pneumatic
Control: Sensor, C-TOP, C-top controller(AS-I)
Certificate: ISO, PED/97/23/EC, FDA.177.2600

Product Parameter

Pneumatic Sanitary Stainless Steel Wafer Type Butterfly Valve
