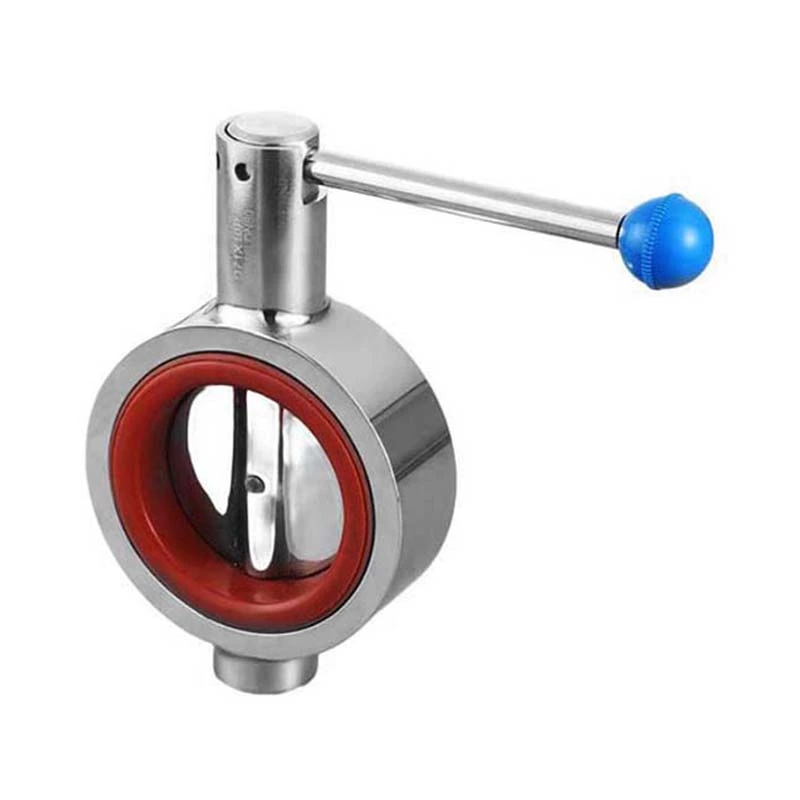

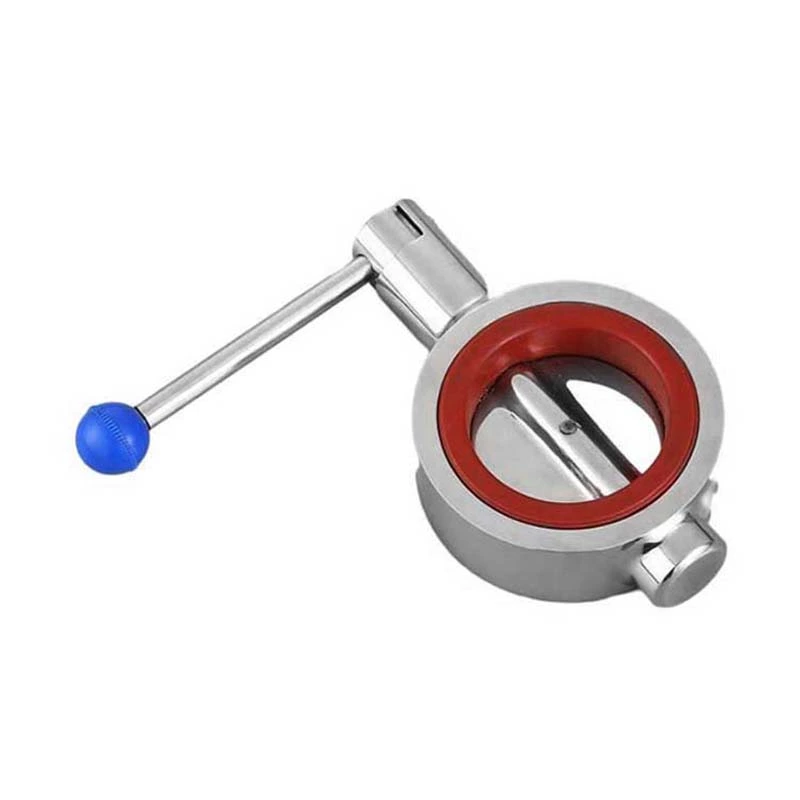

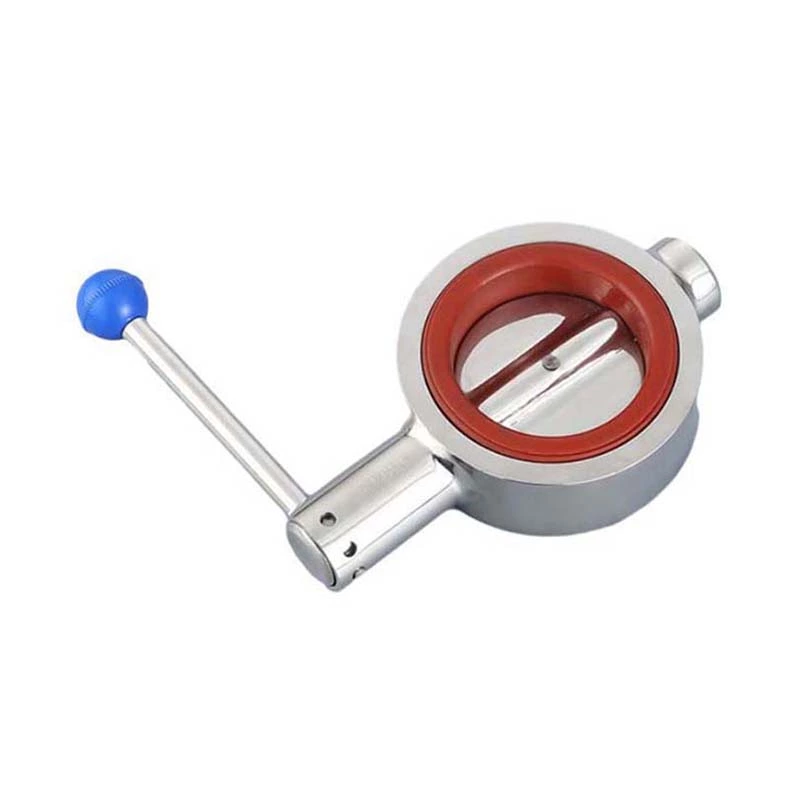

Sanitary Stainless Steel Manual Wafer Type Butterfly Valve
Sanitary Stainless Steel Wafer Type Butterfly Valve J&O Wafer Butterfly Valve is a regulating valve with a simple structure, which can be used to switch butterfly valves for low-pressure pipeline
- Brand:
- J&O
- Material:
- SS304 / SS316L
- Connection:
- Wafer
- Gasket:
- EPDM / Silicon / NBR / FKM
- Working Temperature:
- -20°~120°
- Working Pressure:
- 0-10Bar
- Operation:
- Manual
Sanitary Stainless Steel Wafer Type Butterfly Valve
J&O Wafer Butterfly Valve is a regulating valve with a simple structure, which can be used to switch butterfly valves for low-pressure pipeline media. The valve closing member rotates around the valve shaft to achieve opening and closing. Wafer type butterfly valve can be used to control the flow of various fluids such as air, water, steam, various corrosive media, and radioactive media. It mainly plays the role of cutting off and throttling on the pipeline.
Technical Data
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Mex working pressure: | 10Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | DN25-DN300 |
| Availably connection: | male-weld |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual |
| Control: | Sensor, C-TOP, C-top controller(AS-I) |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
