Products

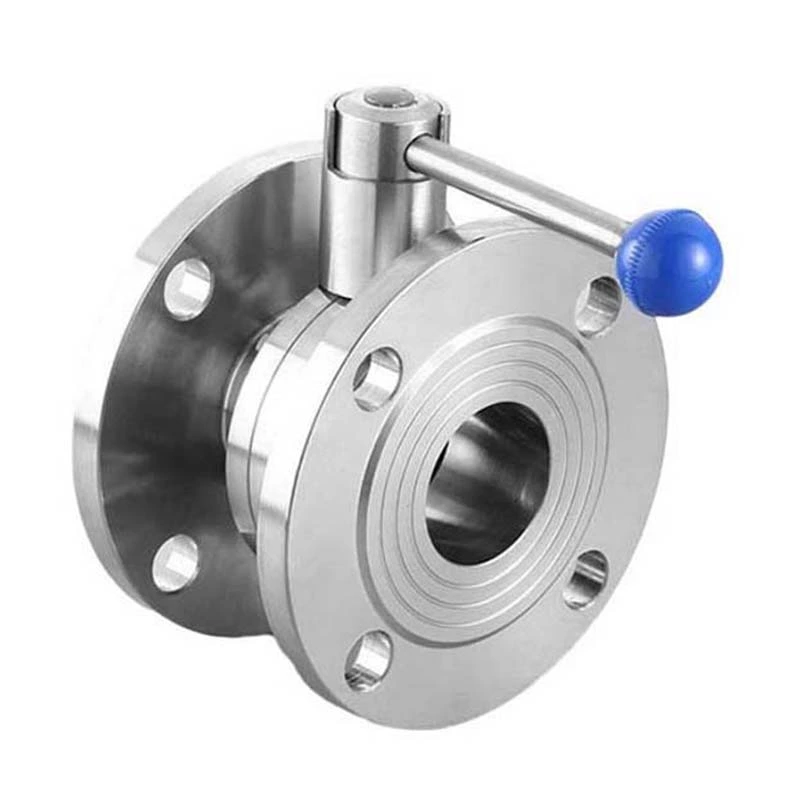

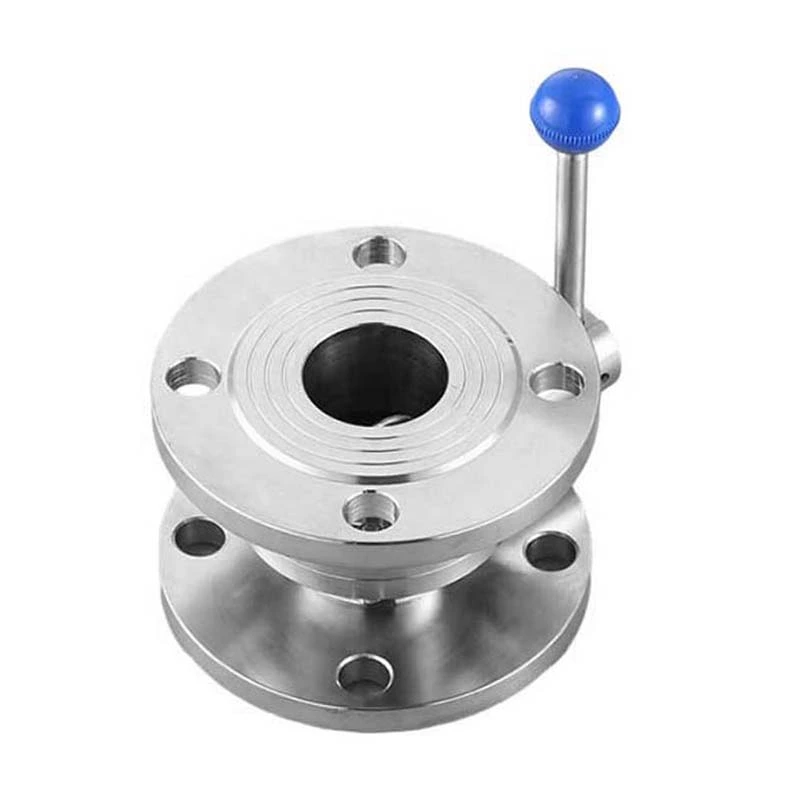

Sanitary Stainless Steel Flanged Butterfly Valve
use in food or drink processing and other clean service applications.
- Brand:
- J&O
- Material:
- SS304 / SS316L
- Connection:
- Flanged
- Gasket:
- EPDM / Silicon / NBR / FKM
- Working Temperature:
- -20°~120°
- Working Pressure:
- 0-10Bar
- Operation:
- Manual
Sanitary Stainless Steel Flanged Butterfly Valve
- The Flanged Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
- All of the products have been 100% press tested before shipping.
- It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
- EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.
Technical Data
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Mex working pressure: | 10Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | 1"-6", DN25-DN150 |
| Availably connection: | Flanged |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual |
| Control: | Sensor, C-TOP, C-top controller(AS-I) |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Handle application: | stainless steel pull handle |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical,etc |
