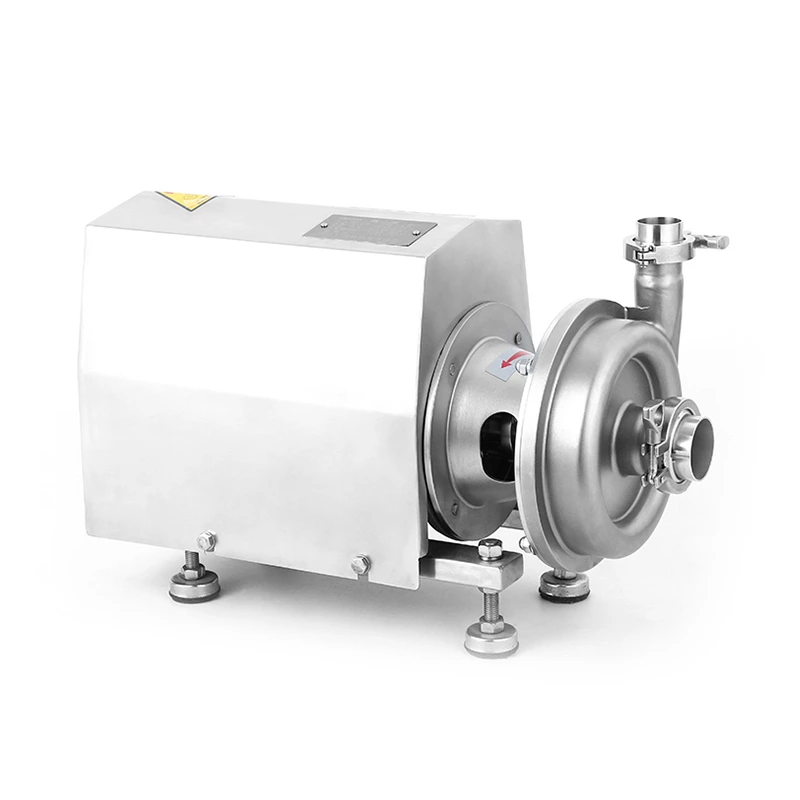

Sanitary Stainless Steel Centrifugal Pump

Use for the dairies, beverages, food-processing, pharmaceutical and fine chemicals industries.

Brand:
J&O
Material:
SS304 / SS316L
Connection:
Clamped
Gasket:
EPDM
Working Temperature:
MAX. 120
Download Catalog:
J&O Centifugal Pump.pdf
Enquiry
Sanitary Stainless Steel Centrifugal Pump

Sanitary Stainless Steel Centrifugal Pump

J&O Pump applies modern new technology and new concept to continuously renovate production technology of centrifugal pump.The new generation sanitary WCP model centrifugal pump is the pride of J&O Pump. It conforms to GMP requirements with good quality.In addition,the pump performance is better,the efficiency is higher,the service life is longer, so that users get more benefits.

The research,development,design and application engineer of J&O Pump have rich technological backgrounds in their respective fields.You can use their experience to solve various pump delivering problems or consult us for technological system design.With their rich knowledge and imagination, our engineers help customers enhance productivity and increase their profits.

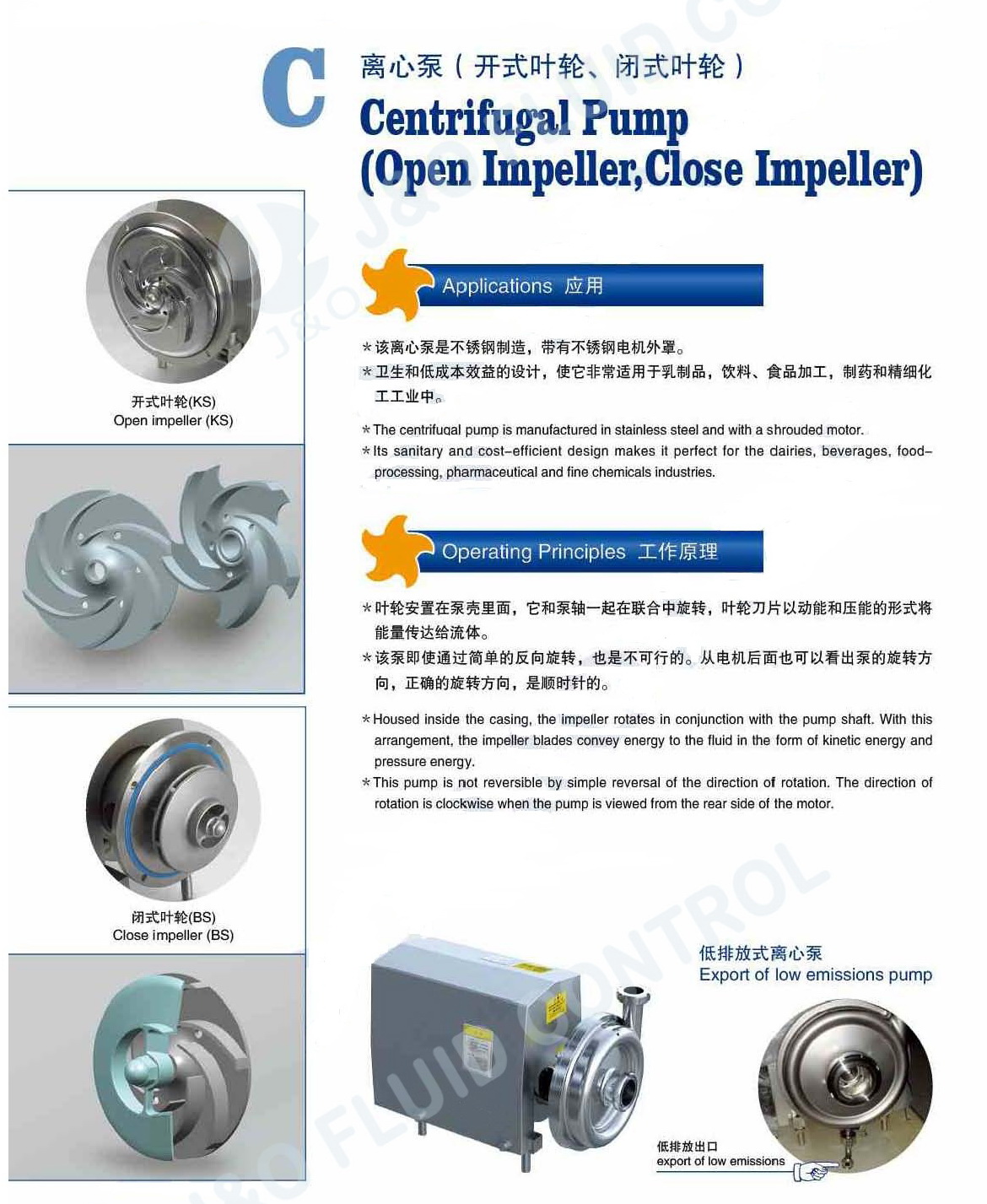

  • Housed inside the casing, the impeller rotates in conjunction with the pump shaft. With this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy.

  • This pump is not reversible by simple reversal of the direction of rotation.

  • The direction of rotation is clockwise when the pump is viewed from the rear side of the motor.

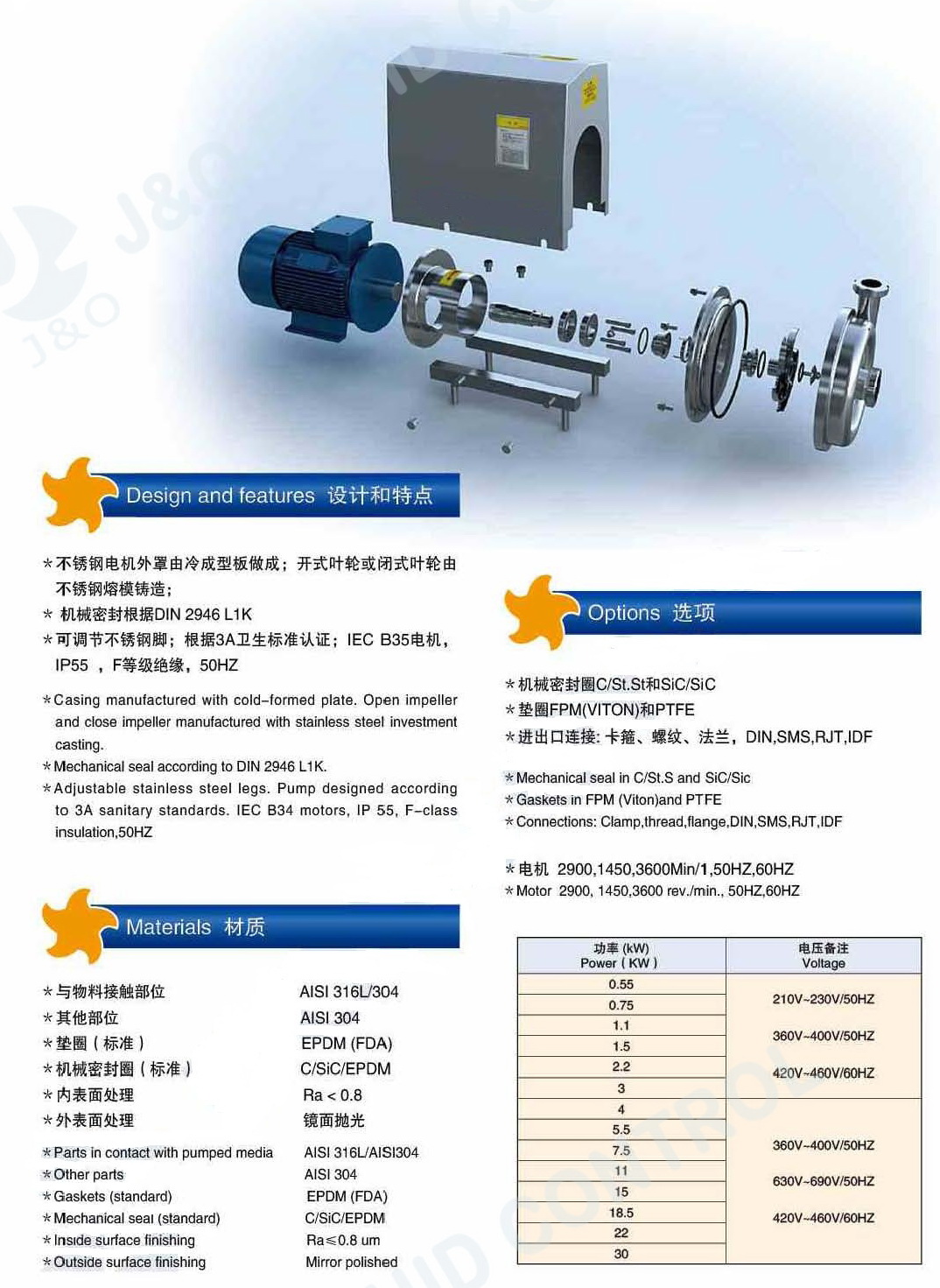

Technical Data

Material: AISI304/AISI316L
Max. flow: 130m3/h
Max. head: 70m
Max. Working Temperature: 120 degree C

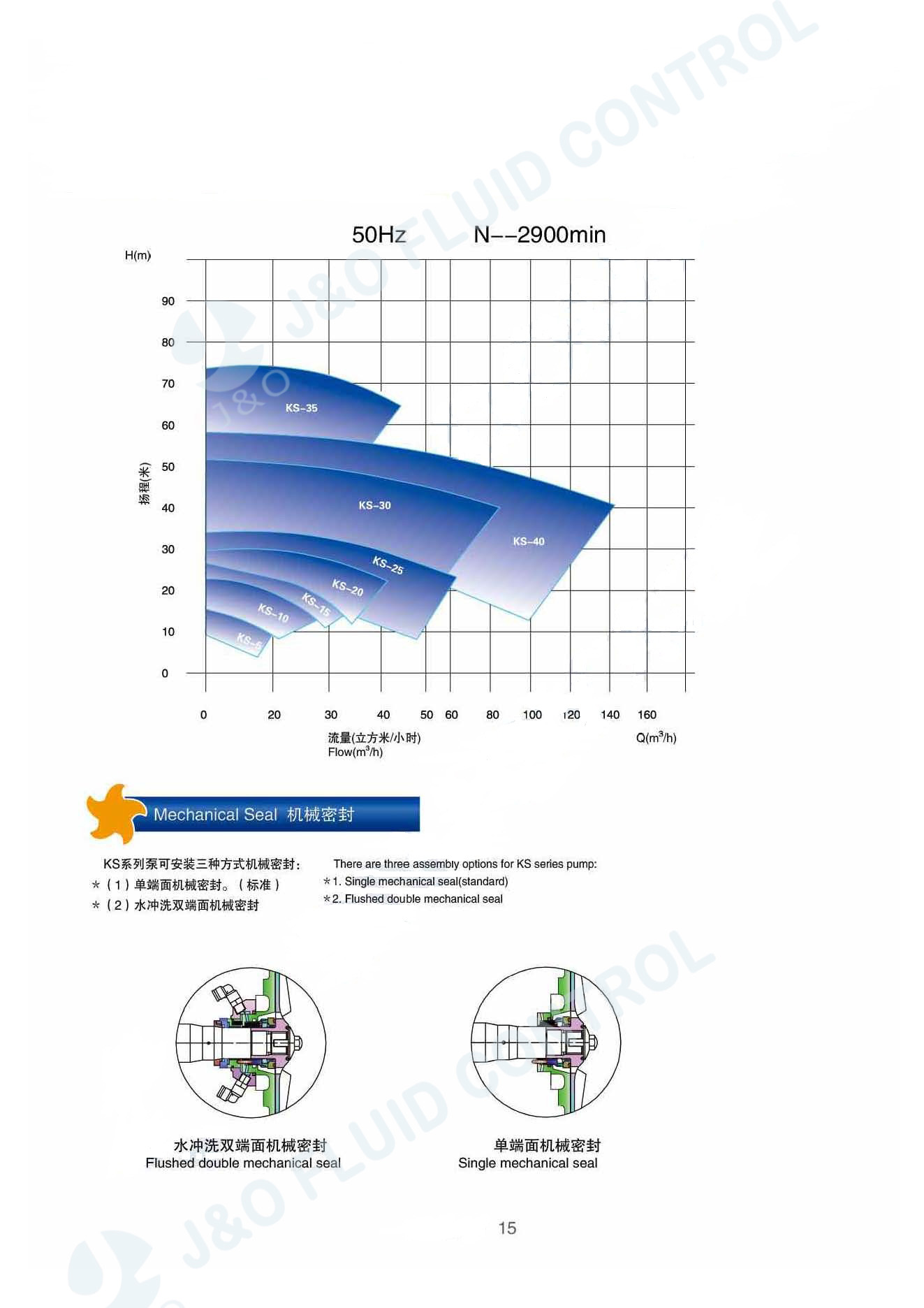

Mechanical seal in: C/St.S and SiC/Sic
Availably connection: Clamp, weld, thread
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Mechanical seal (standard): C/SiC/EPDM
Inside surface finishing: Ra≤0.8 um
Outside surface finishing: Sandblast or Mirror Polish

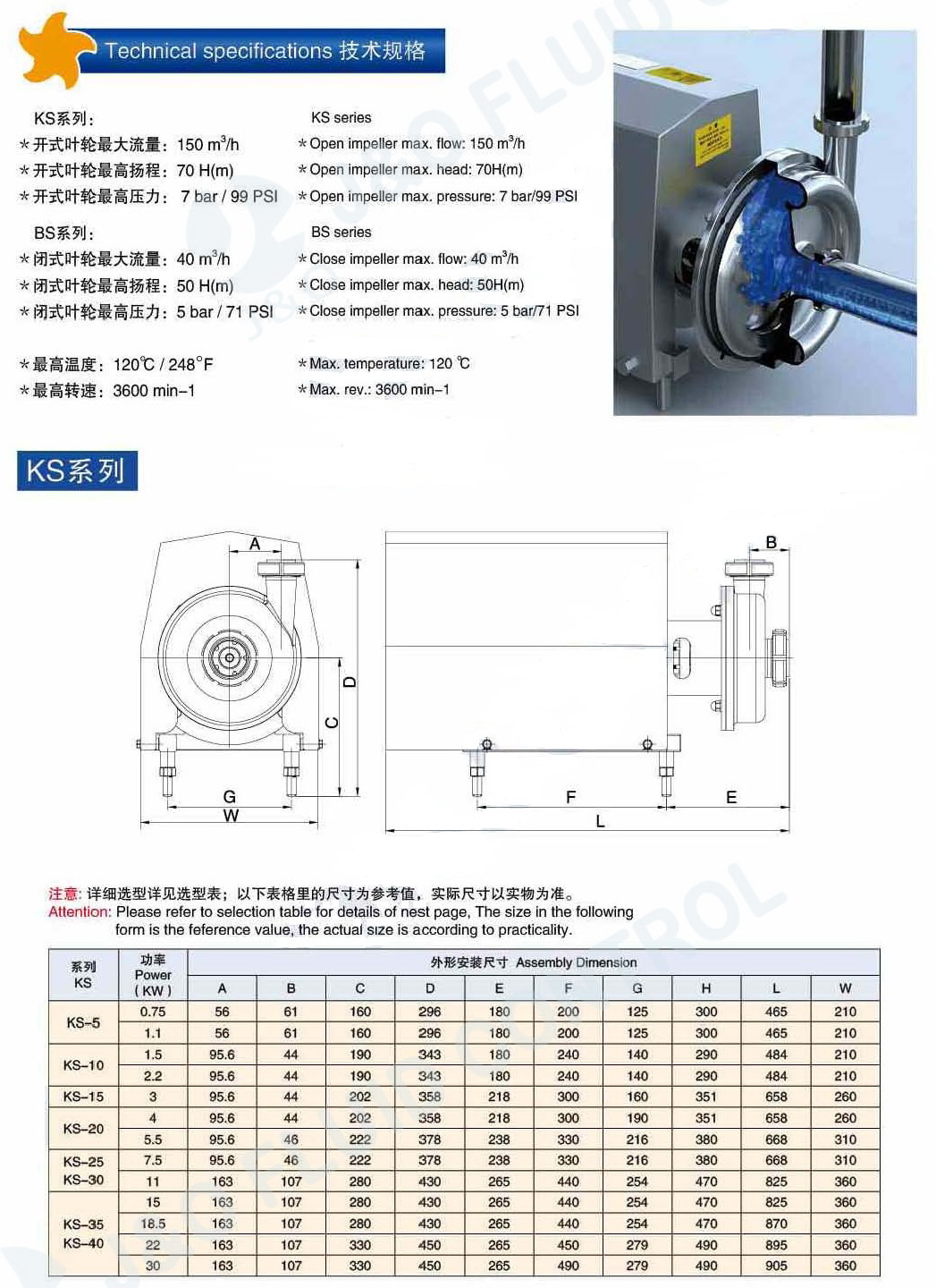

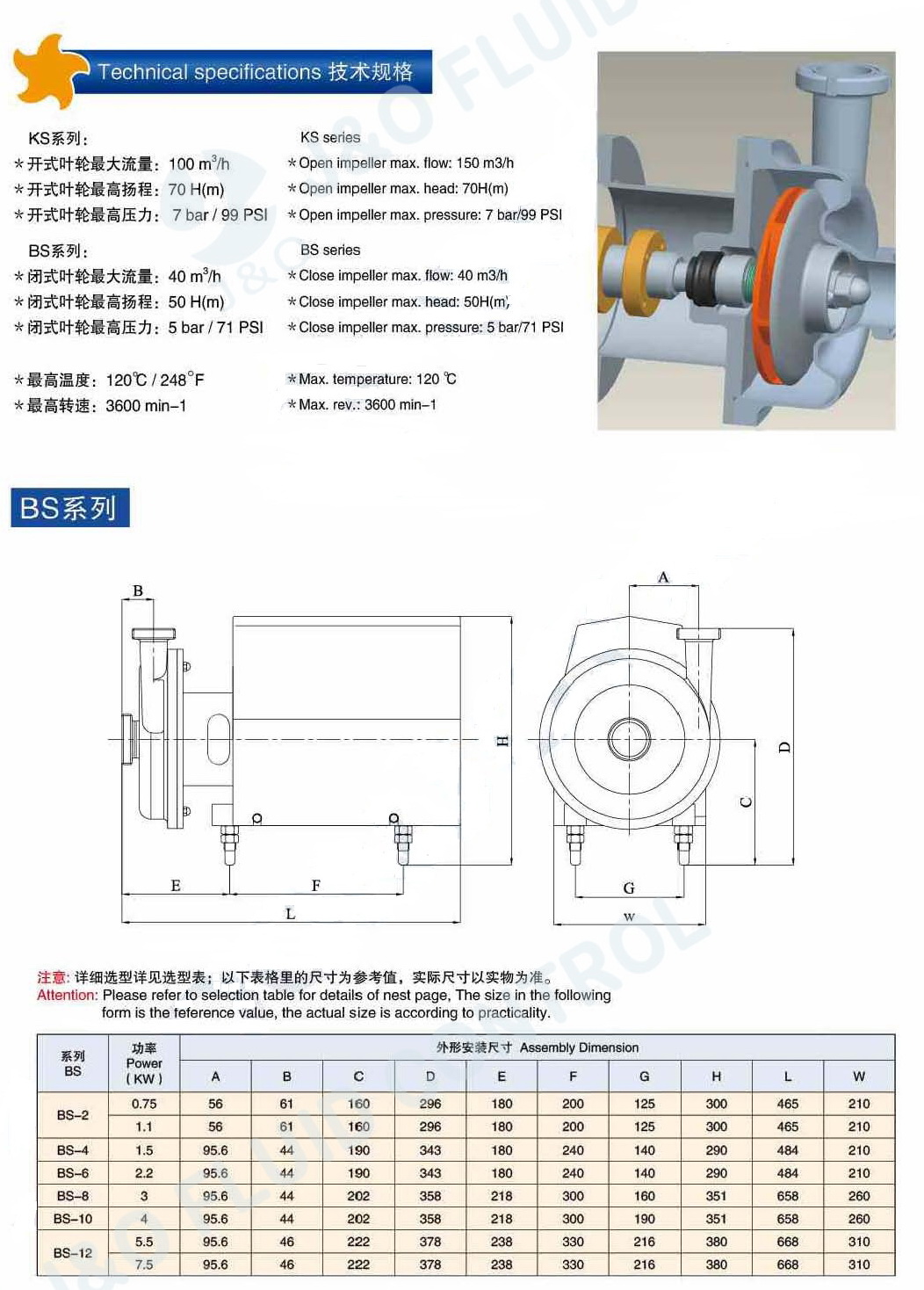

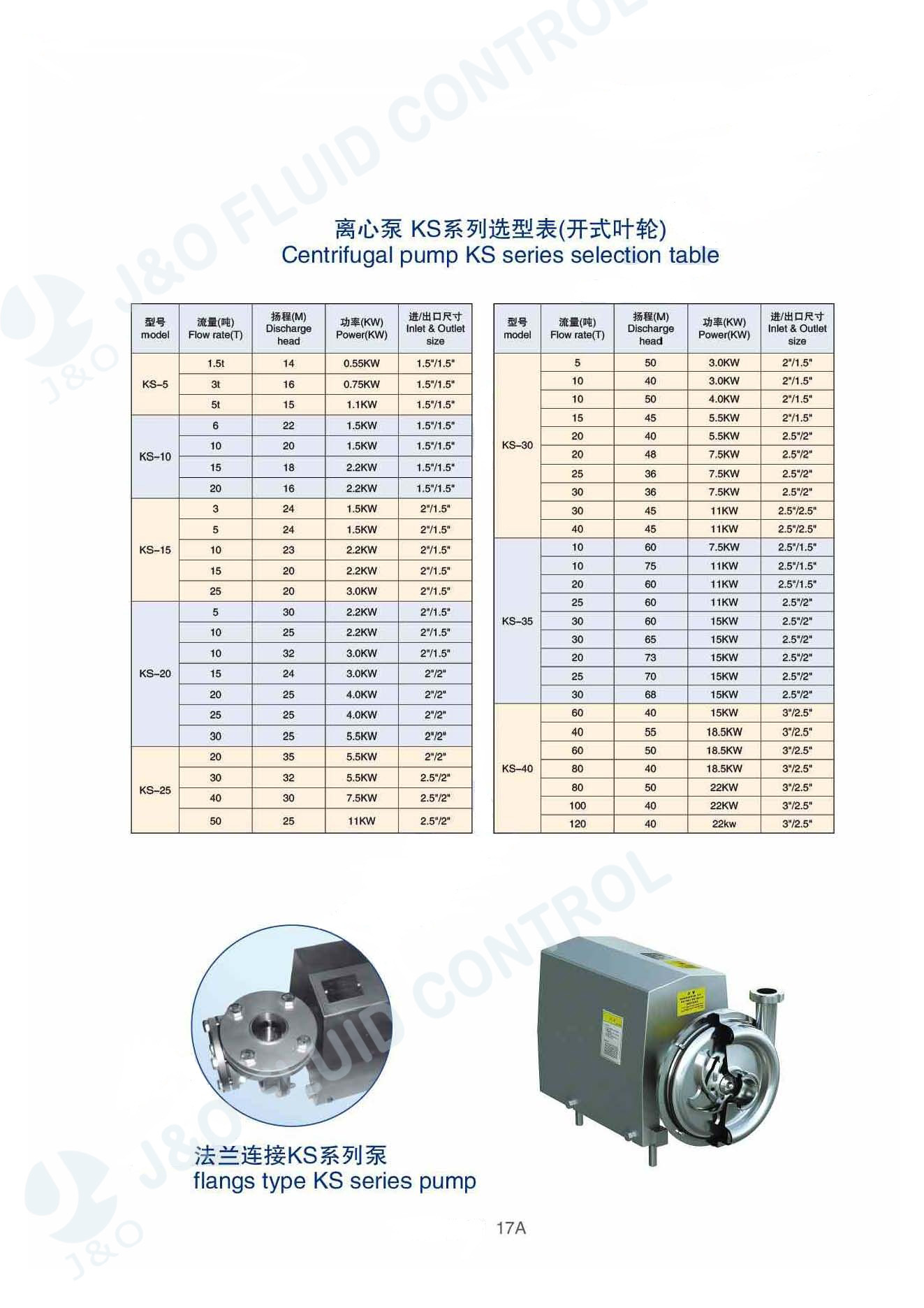

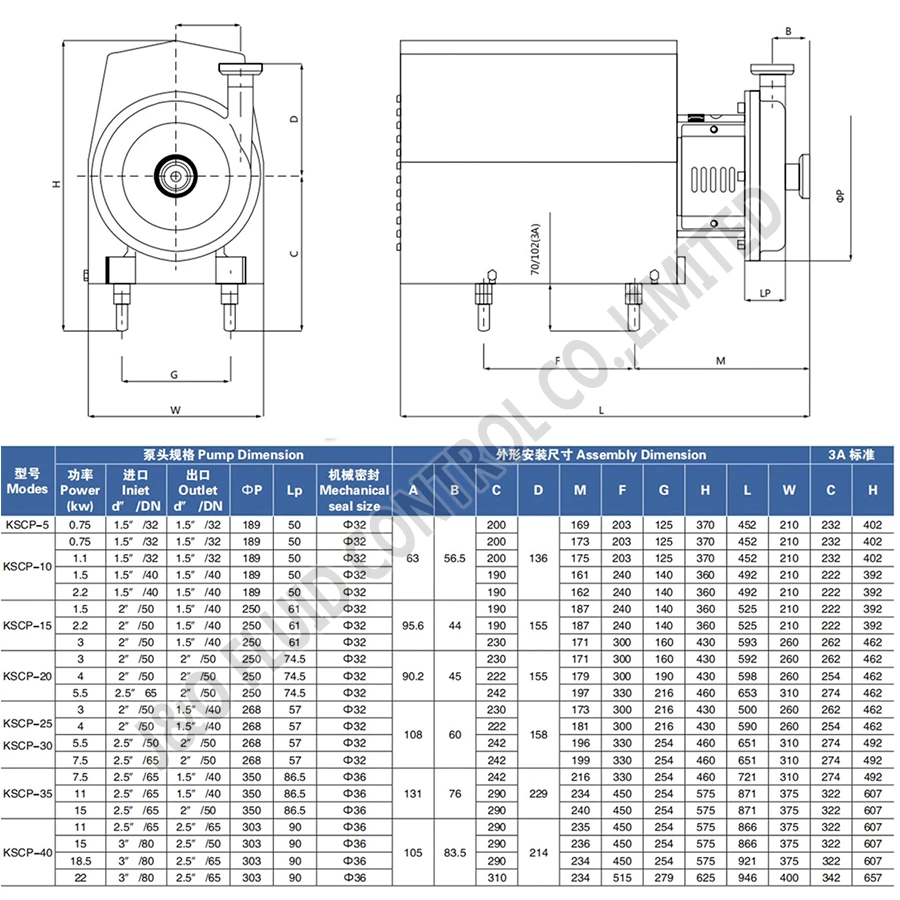

Product Parameter

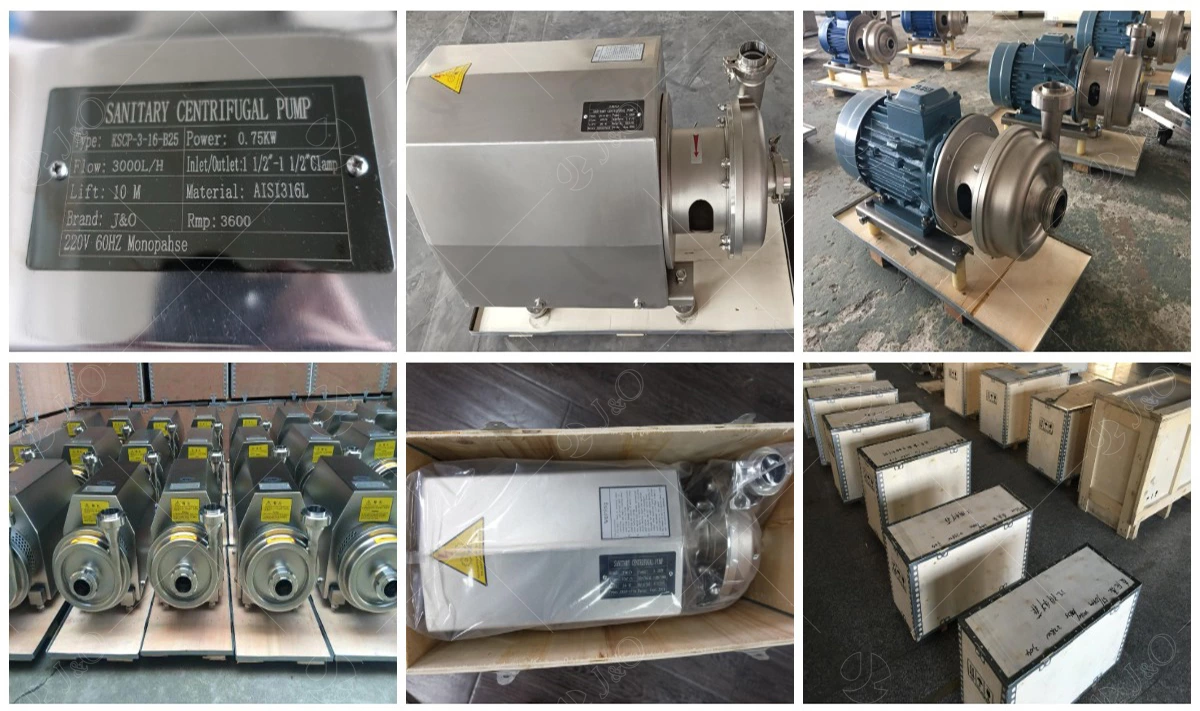

Product Pictures
