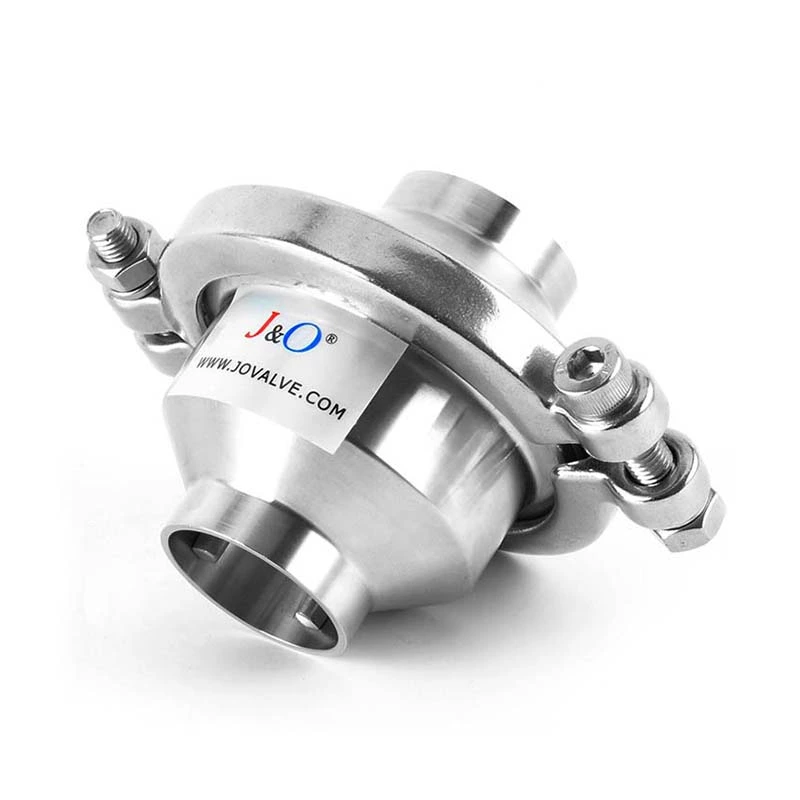

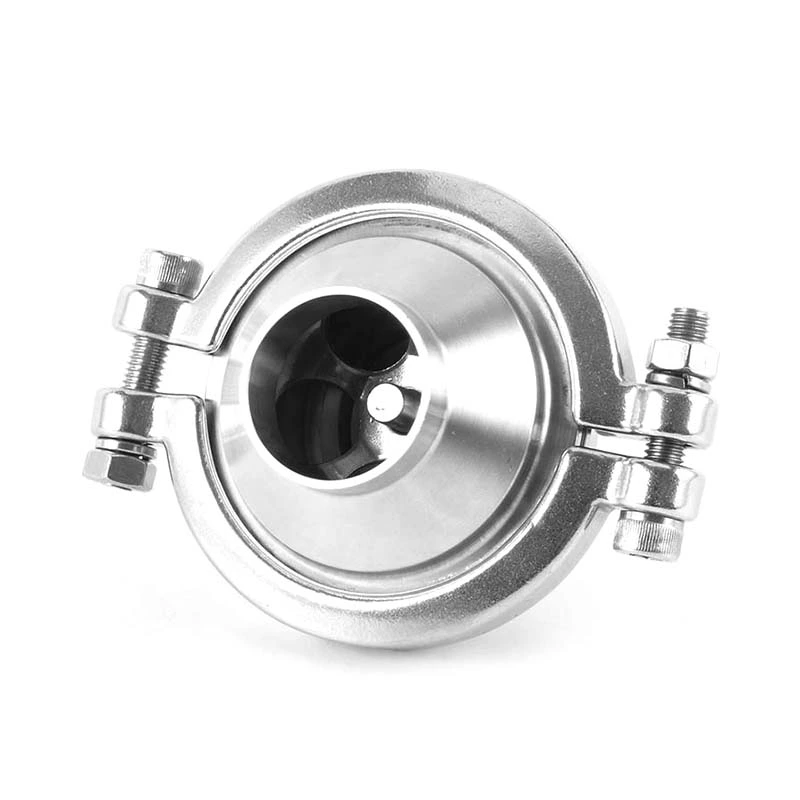

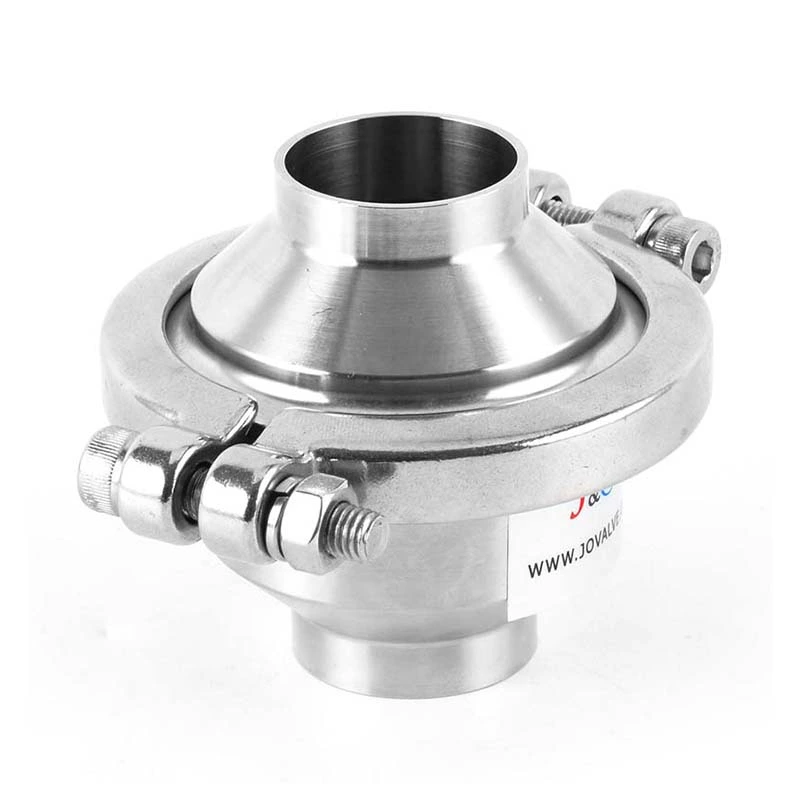

Sanitary Stainless Steel Butt Weld Check Valve
Check valve can prevent the fluid from flowing back and ensures that it flows in only one direction.It can be used to prevent the less of prime of the pump and to avoid pipe-hammering.
- Brand:
- J&O
- Material:
- SS304 or SS316L
- Connection:
- Welded
- Gasket:
- Silicone, EPDM, Viton, NBR
- Working Temperature:
- -10 degree to +120 degree (EPDM)
- Working Pressure:
- 0.3 Bar (DN-25), 0.2 Bar (DN-32/40),0.1Bar(DN-50/100)
Sanitary Stainless Steel Clamped Check Valve
-
We can supply Sanitary Tri Clover Check Valve, Hygienic Welding Check Valve, Sanitary Male Check Valve, Sanitary Union Type Check Valve, Hygienic Flanged Type Check Valve.
-
Check valve can prevent the fluid from flowing back and ensures that it flows in only one direction.
-
It can be used to prevent the less of prime of the pump and to avoid pipe-hammering.
-
It is used in the food-processing, beverage, wine-making, oil-making, cosmetics, pharmaceutical and chemical industries.
-
The valve opens when the pressure of the fluid exceeds the pressure exerted by the pump spring.
-
When the two pressures are equalized, the valve closes. A stronger counter-pressure allows the valve to close.
Technical Data
| Product Name: | Sanitary Check Valve |
| Material: | SS304 or SS316L |
| Standard: | 3A, SMS, DIN, RJT, IDF |
| Size: | 19mm - 200mm or DN15-DN100 |
| Connection Way: | Weld |
| Seal Material: | Silicone, EPDM, Viton, NBR |
| Surface Finishing: | Ra≤0.8 |
| Working Temperature: | -10 degree to +120 degree (EPDM) |
| Opening Pressure: | 0.3 Bar (DN-25), 0.2 Bar (DN-32/40),0.1Bar(DN-50/100) |
| Packing Details: | within carton box or plywood case |
| Applied Industries: | Dairy, Cosmetic, Pharmaceutical, Food and Beverage Industries |

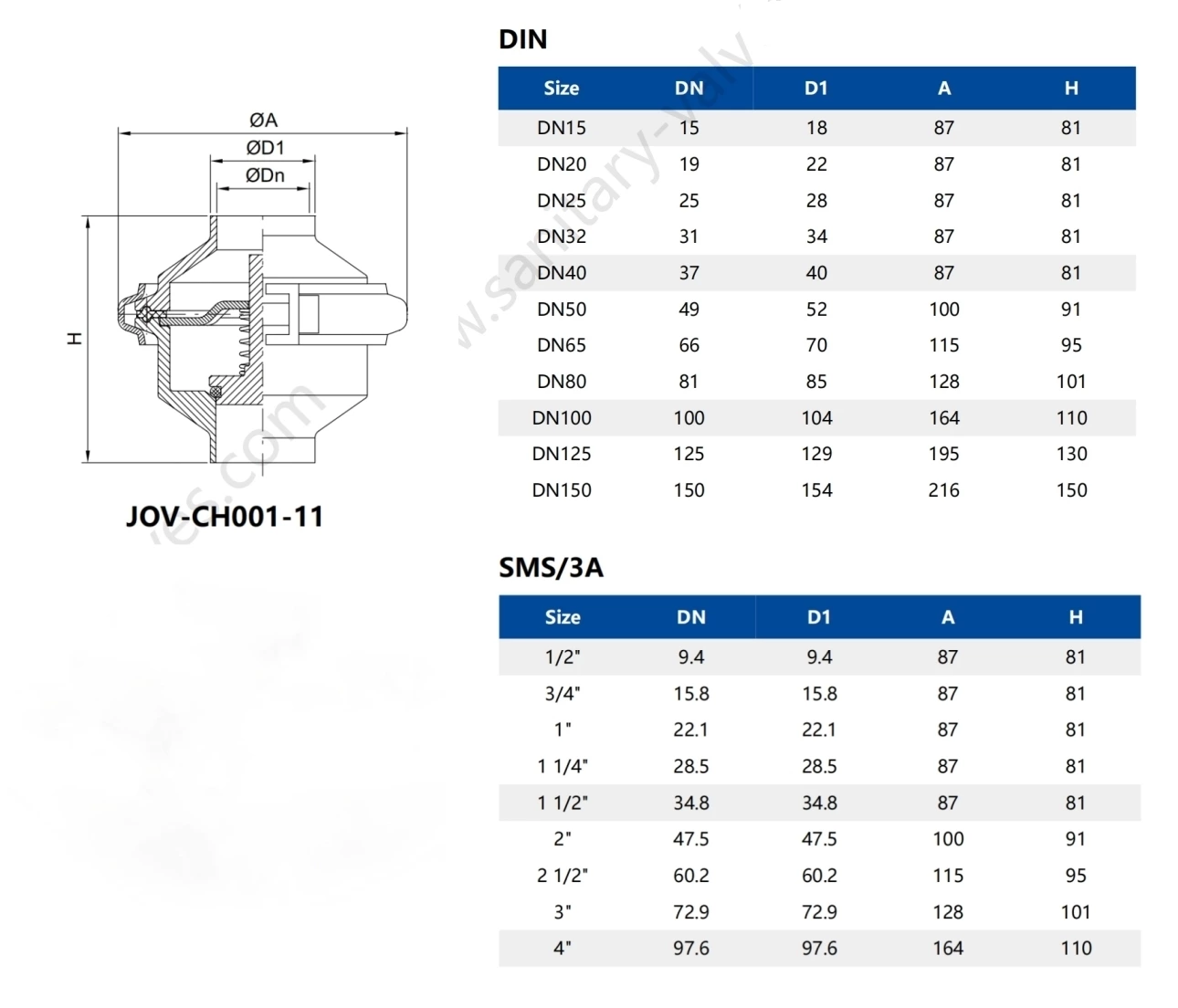

Product Parameter

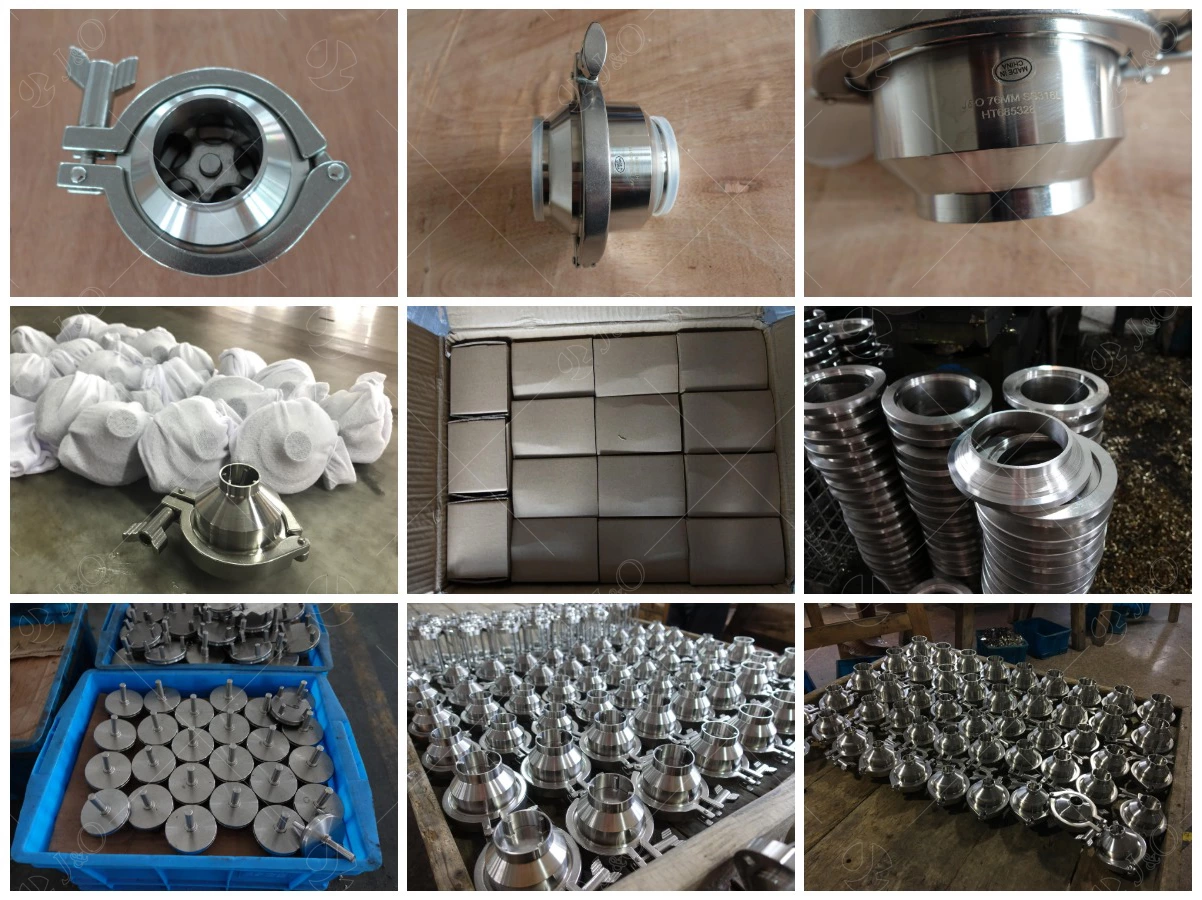

Product Pictures
