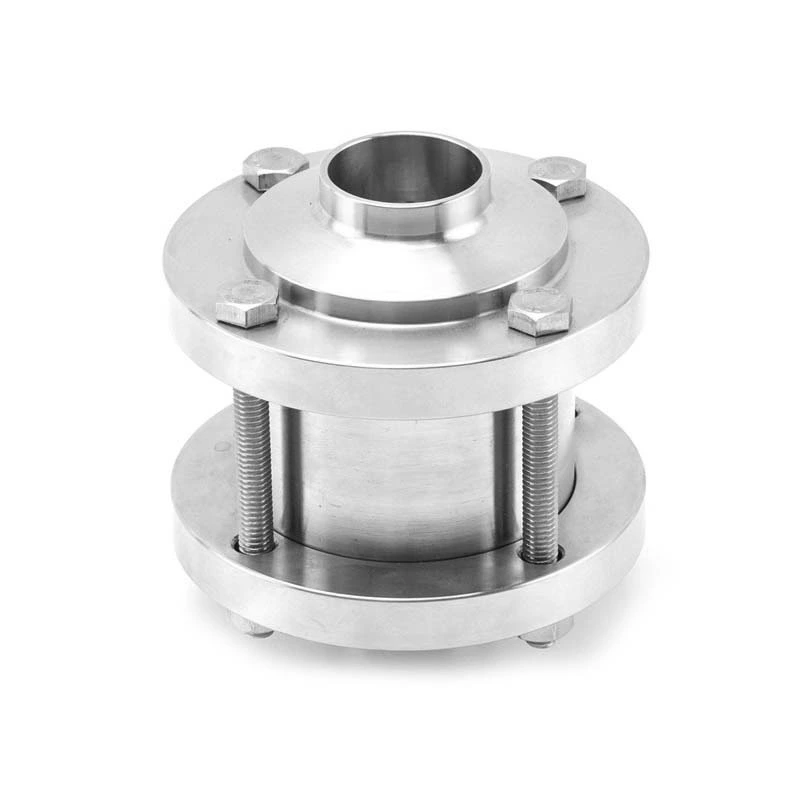

Sanitary Stainless Steel Flange Type Check Valve

Our Sanitary Stainless Steel Check Valve including Sanitary Clamped One Way Check Valve, Hygienic Butt Weld Check Valve, Sanitary Male Check Valve, Sanitary Union Type Check Valve, Hygienic Flanged Type Check Valve.

Model:
JOV-CH004-11
Brand:
J&O
Material:
SS304 or SS316L
Connection:
Welded
Gasket:
Silicone, EPDM, Viton, NBR
Working Temperature:
-10 degree to +120 degree (EPDM)
Working Pressure:
0.3 Bar (DN-25), 0.2 Bar (DN-32/40),0.1Bar(DN-50/100)
Download Catalog:
J&O SANITARY CHECK VALVE.pdf
Enquiry
Sanitary Stainless Steel Flange Type Check Valve
Sanitary Stainless Steel Flange Type Check Valve Sanitary Stainless Steel Flange Type Check Valve Sanitary Stainless Steel Flange Type Check Valve Sanitary Stainless Steel Flange Type Check Valve Sanitary Stainless Steel Flange Type Check Valve

Sanitary Stainless Steel Flange Type Check Valve

  • Our Sanitary Stainless Steel Check Valve including Sanitary Clamped One Way Check Valve, Hygienic Butt Weld Check Valve, Sanitary Male Check Valve, Sanitary Union Type Check Valve, Hygienic Flanged Type Check Valve.

  • Check valve can prevent the fluid from flowing back and ensures that it flows in only one direction.

  • It can be used to prevent the less of prime of the pump and to avoid pipe-hammering.

  • It is used in the food-processing, beverage, wine-making, oil-making, cosmetics, pharmaceutical and chemical industries.

  • The valve opens when the pressure of the fluid exceeds the pressure exerted by the pump spring. When the two pressures are equalized, the valve closes. A stronger counter-pressure allows the valve to close.

Technical Data

Product Name: Sanitary Check Valve
Material: SS304 or SS316L
Standard: 3A, SMS, DIN, RJT, IDF
Size: 19mm - 200mm  or DN15-DN100
Connection Way: Weld
Seal Material: Silicone, EPDM, Viton, NBR
Surface Finishing: Ra≤0.8
Working Temperature: -10 degree to +120 degree (EPDM)
Opening Pressure: 0.3 Bar (DN-25), 0.2 Bar (DN-32/40),0.1Bar(DN-50/100)
Packing Details: within carton box or plywood case
Applied Industries: Dairy, Cosmetic, Pharmaceutical, Food and Beverage Industries

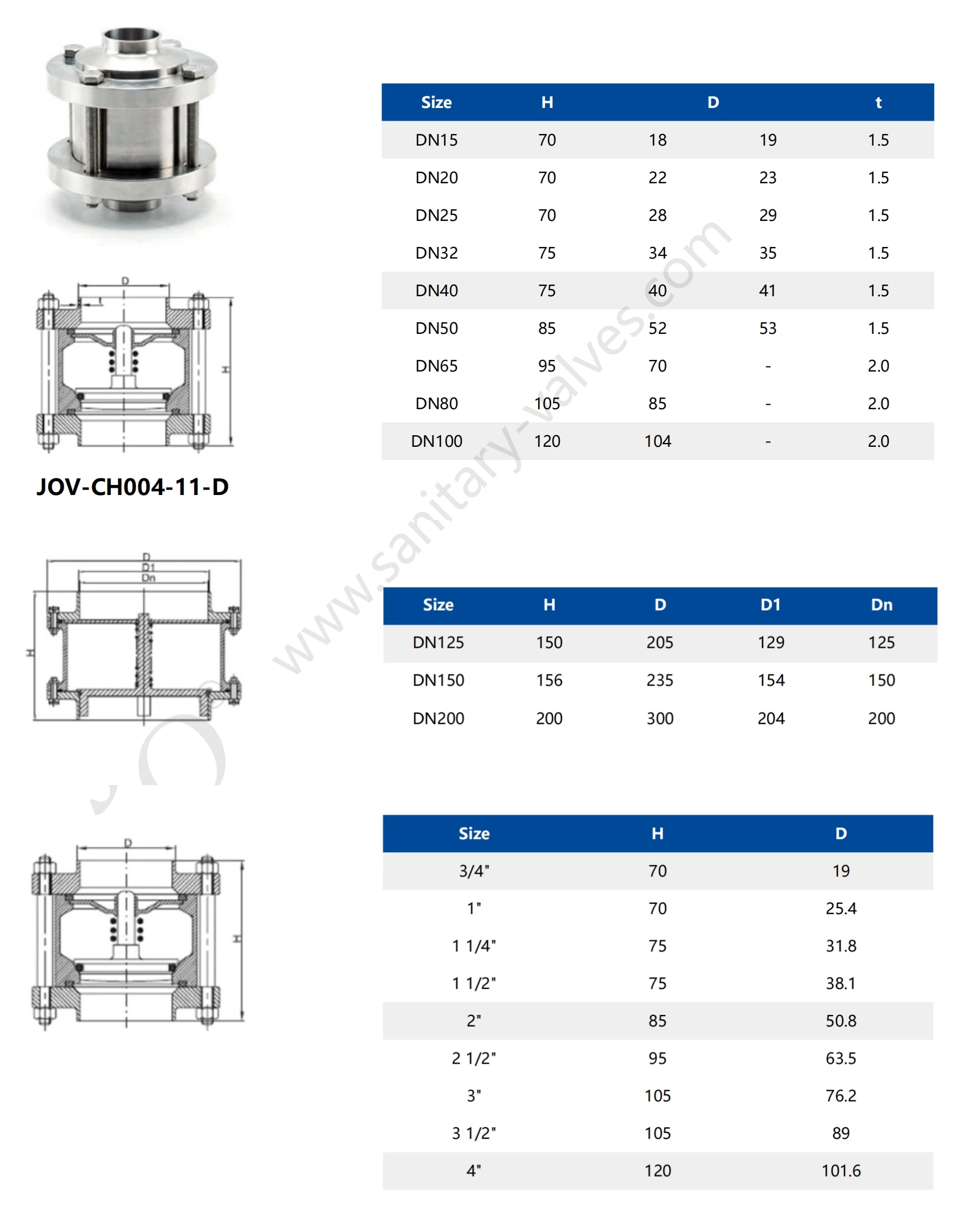

Product Parameter

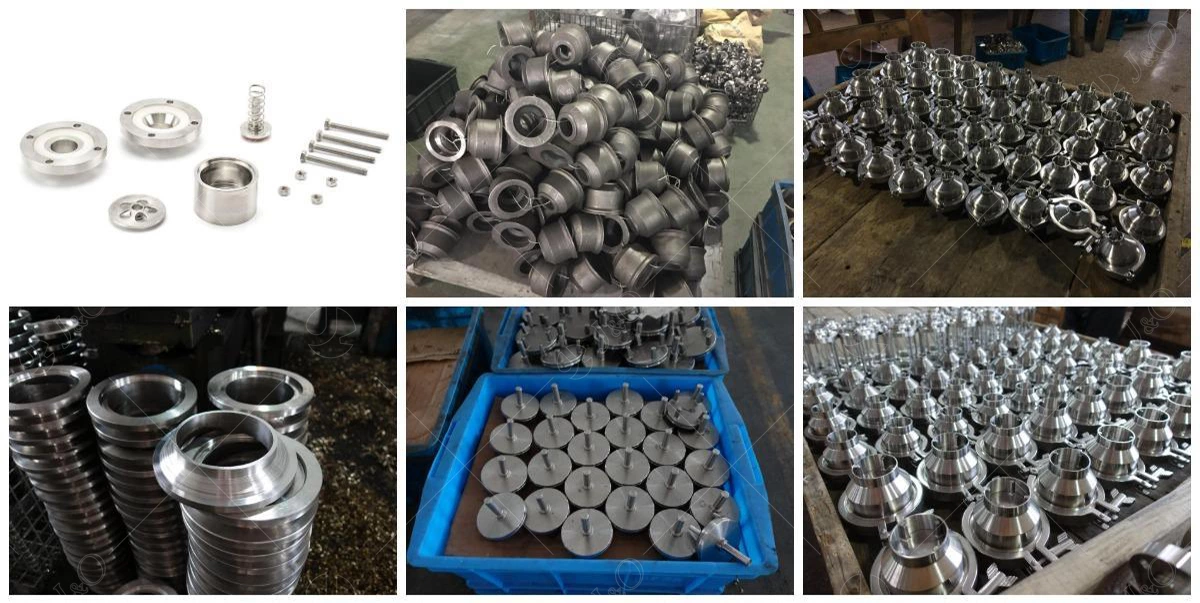

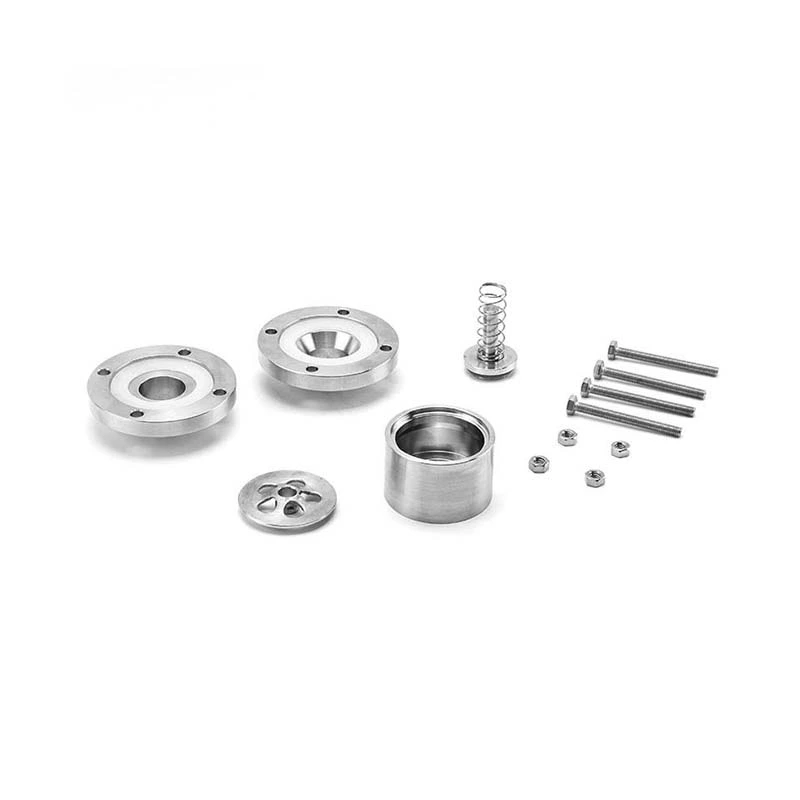

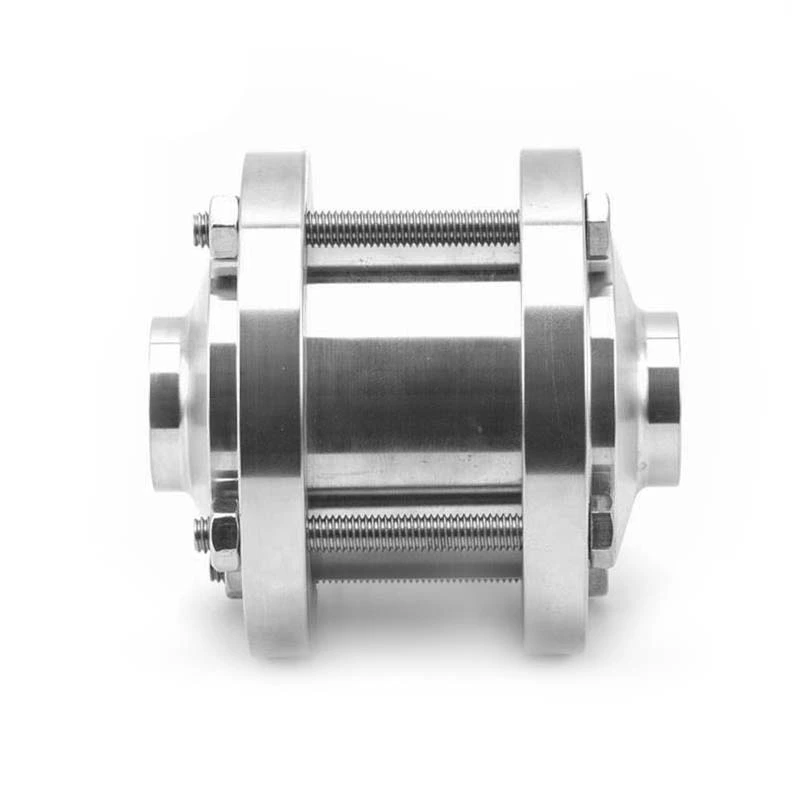

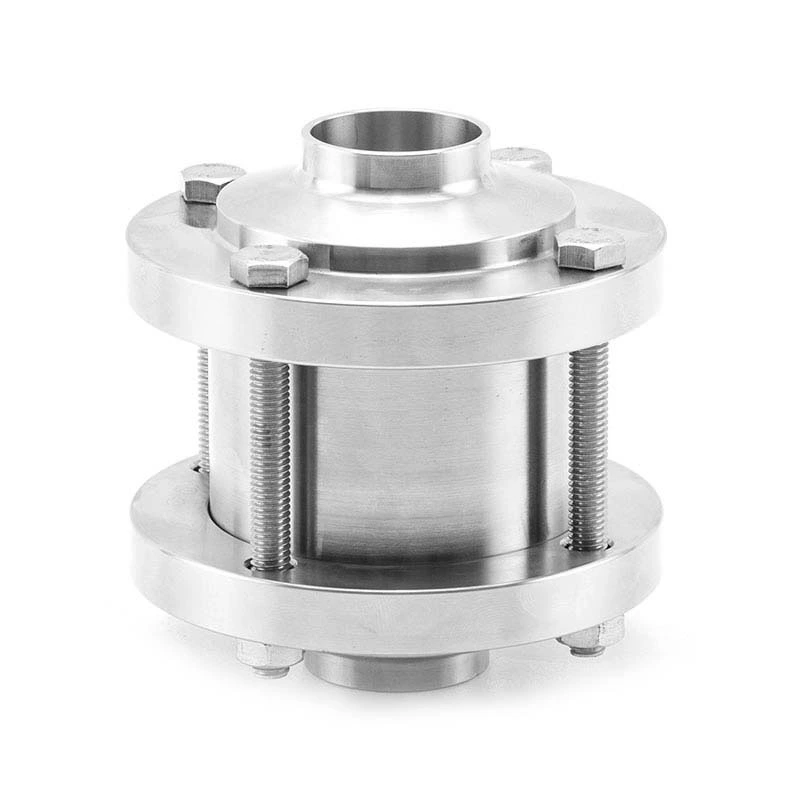

Product Pictures
