Pneumatic Divert Valve L

The divert valves can be working automatically by air in case of the valves are equipped with CSEs control boxes which are designed for signal transfer or individually valve working control.A piston valve is a device used to control the motion of fluid in tube according to linear motion of a piston within a cylinder.
Model:
JOV-RHPSL-11
Brand:
J&O
Material:
SS304 or SS316L
Connection:
Welded
Gasket:
PTFE, EPDM, NBR
Working Temperature:
120 degree C
Working Pressure:
10Bar
Operation:
Pneumatic
Download Catalog:
Sanitary Divert Valve 2.pdf
Enquiry
Pneumatic Divert Valve L
Pneumatic Divert Valve L Pneumatic Divert Valve L

Sanitary Stainless Steel Pneumatic L Flow Type Divert Valve

  • Pneumatic seat valves conbined a piston within a cylinder, ball housing, stem, and connected end parts and are developing to various flowing types such as F type and others like LL, TT, LT, Y, T, L, TL....

  • The divert valves can be working automatically by air in case of the valves are equipped with CSEs control boxes which are designed for signal transfer or individually valve working control.A piston valve is a device used to control the motion of fluid in tube according to linear motion of a piston within a cylinder.

Technical Data

Material quality AISI304, AISI304L, AISI316, AISI316
Size 1"-4" or DN25-DN100
Standards DIN,SMS,ISO,IDF,RJT,3A,etc
Connection End Threaded, Welded, Clamped
Types L,T,L/L,L/T, T/L,T/T

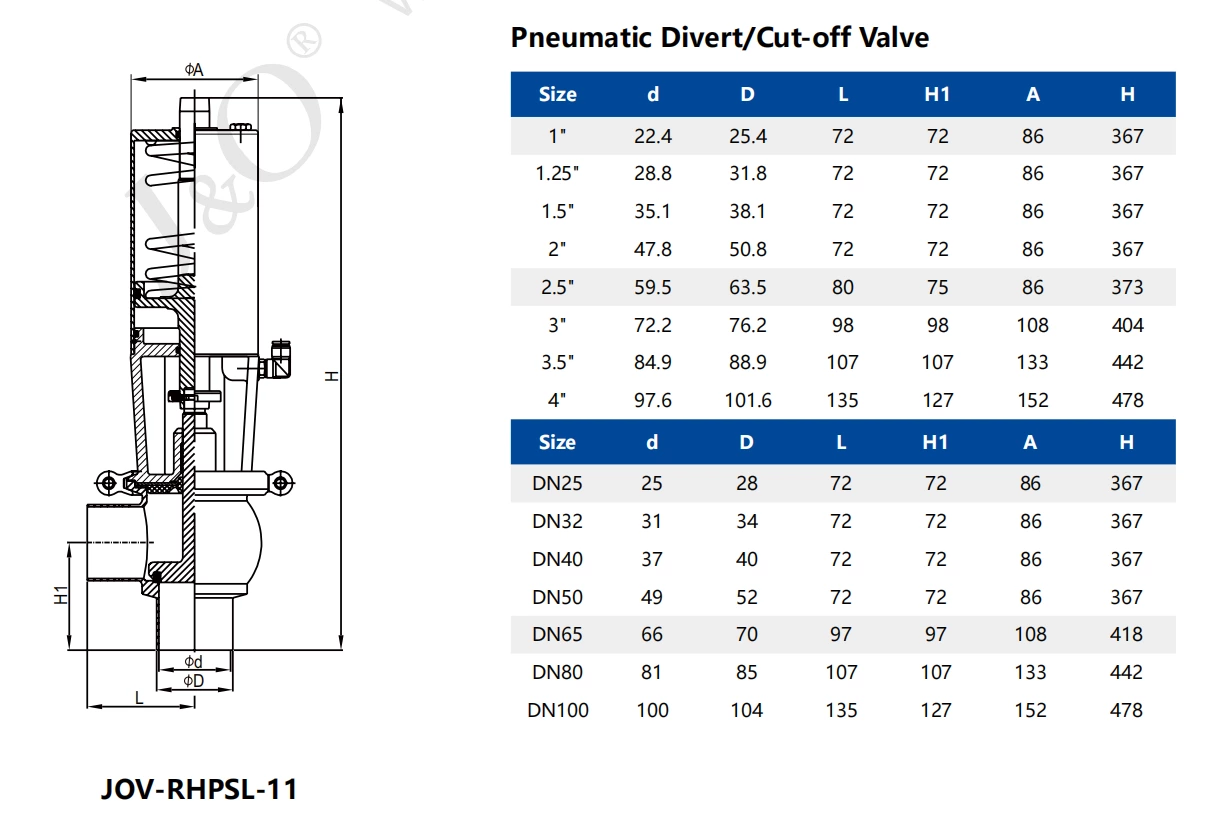

Product Parameter

Product Pictures
