J&O Fluid Control Co., Limited.

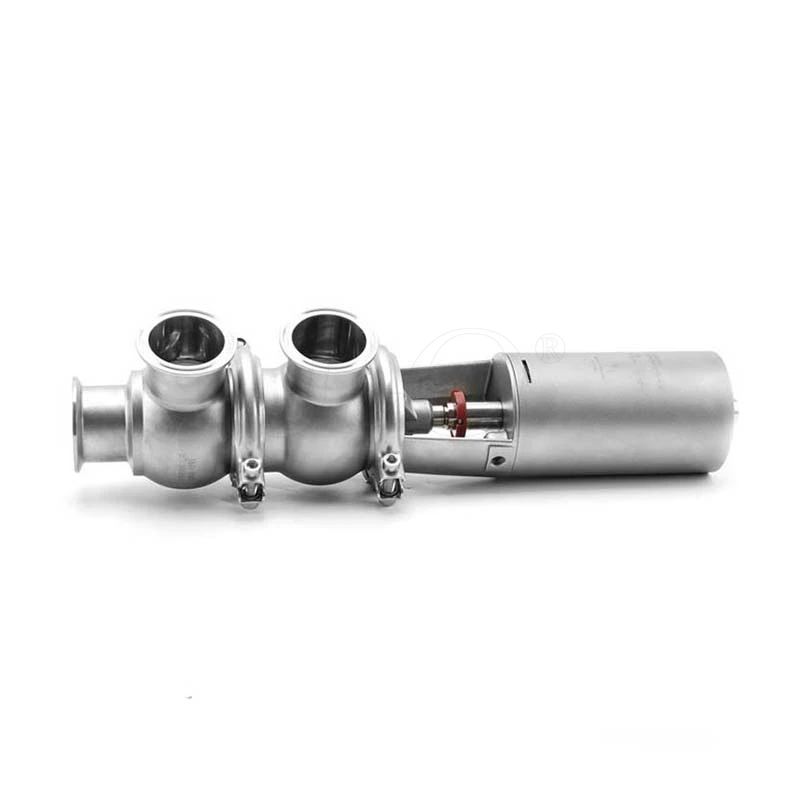

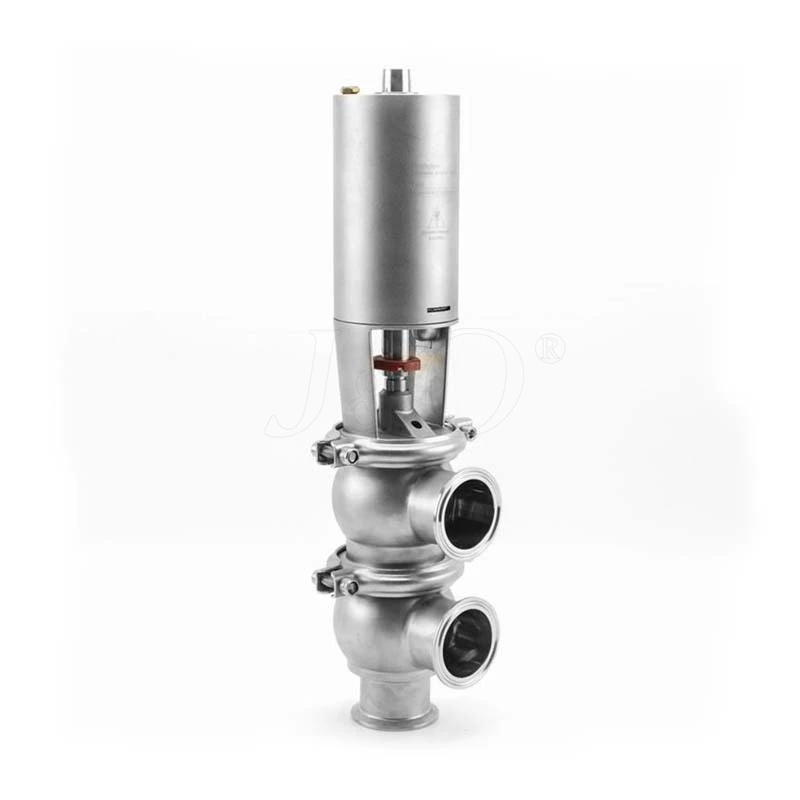

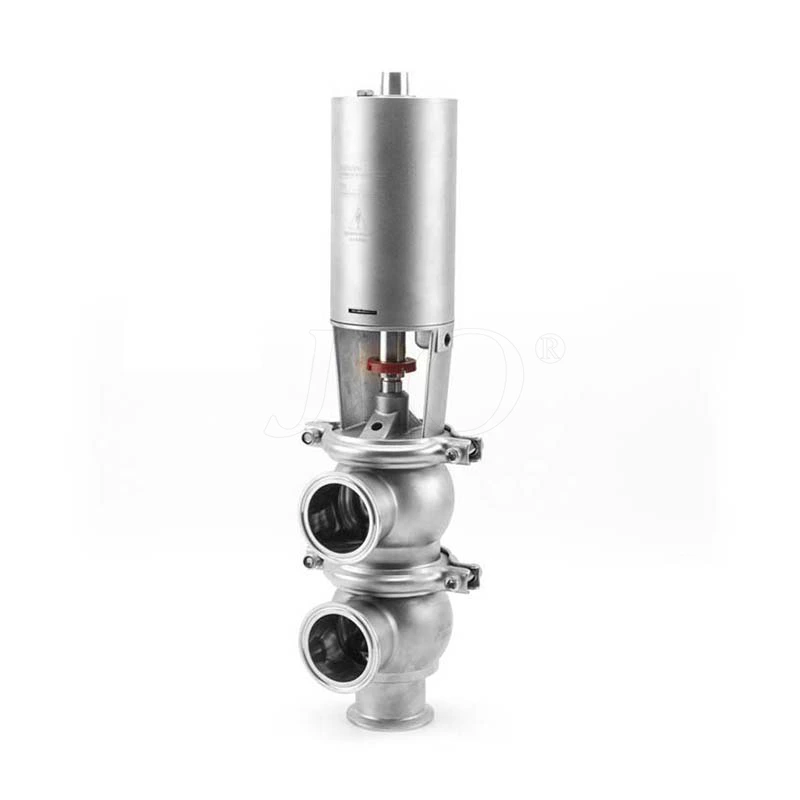

Sanitary Stainless Steel Pneumatic Clamp Divert Valve

The series of pneumatic cut-off reversing valve change the energy which process by compressed air to the mechanical energy, the mechanical energy can drive the valve rod axial moving, thus move the different location of seal elements, which can control the switch for inlet of pipeline, finally realise the purpose of medium reversing or stop.

Brand:
J&O
Material:
SS304 or SS316L
Connection:
Clamped
Gasket:
PTFE, EPDM, NBR
Working Temperature:
120 degree C
Working Pressure:
10Bar
Operation:
Pneumatic

Sanitary Stainless Steel Pneumatic Clamped Reversing Valve

  • We manufacture Sanitary Butt Weld Divert Valve, Hygienic Clamped Reversing Valve, Sanitary Male Thread Divert Valve.

  • The series of valve are major let the medium reach the purpose of reversing or end stop, because the good sealablity and cleanability, they are extensively use to different sanitary industry areas.

  • The series of pneumatic cut-off reversing valve change the energy which process by compressed air to the mechanical energy, the mechanical energy can drive the valve rod axial moving, thus move the different location of seal elements, which can control the switch for inlet of pipeline, finally realise the purpose of medium reversing or stop.

  • The manual cut-off reversing valve series control by handle, also reach the purpose of medium reversing or stop at the end.

Technical Data

Material quality AISI304, AISI304L, AISI316, AISI316
Size 1"-4"
Standards DIN,SMS,ISO,IDF,RJT,3A,etc

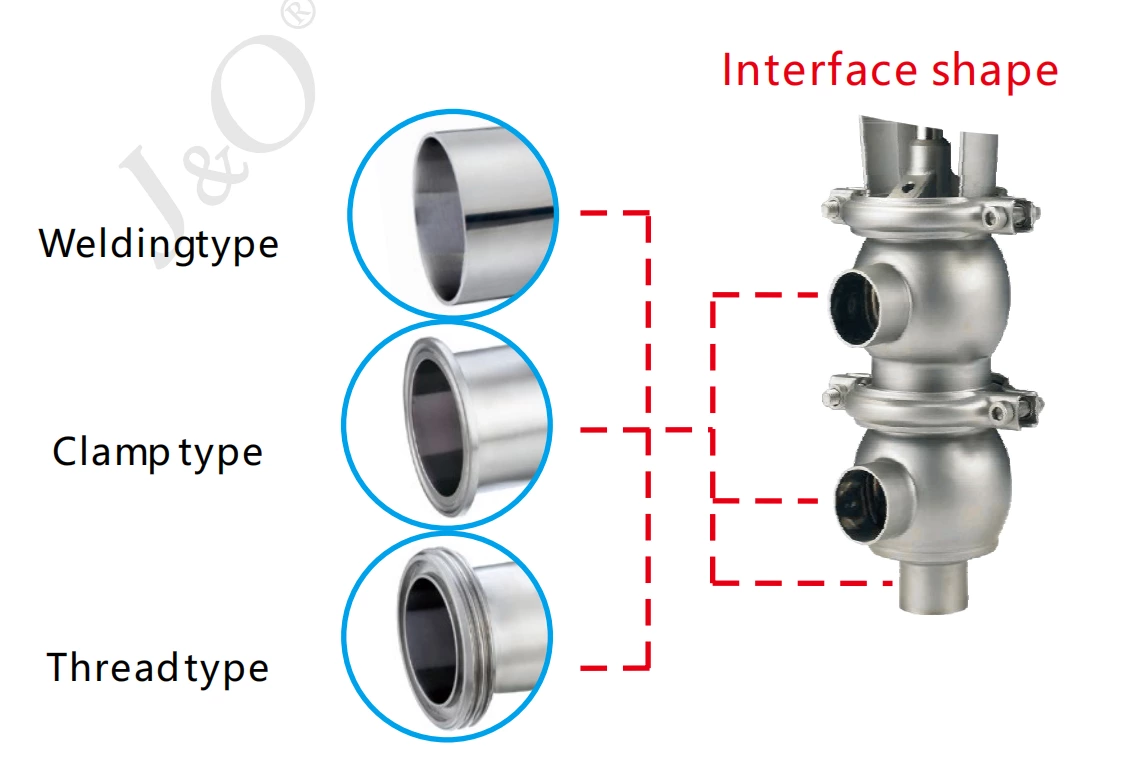

Connection End Threaded, Welded, Clamped
Types L,T,L/L,L/T, T/L,T/T

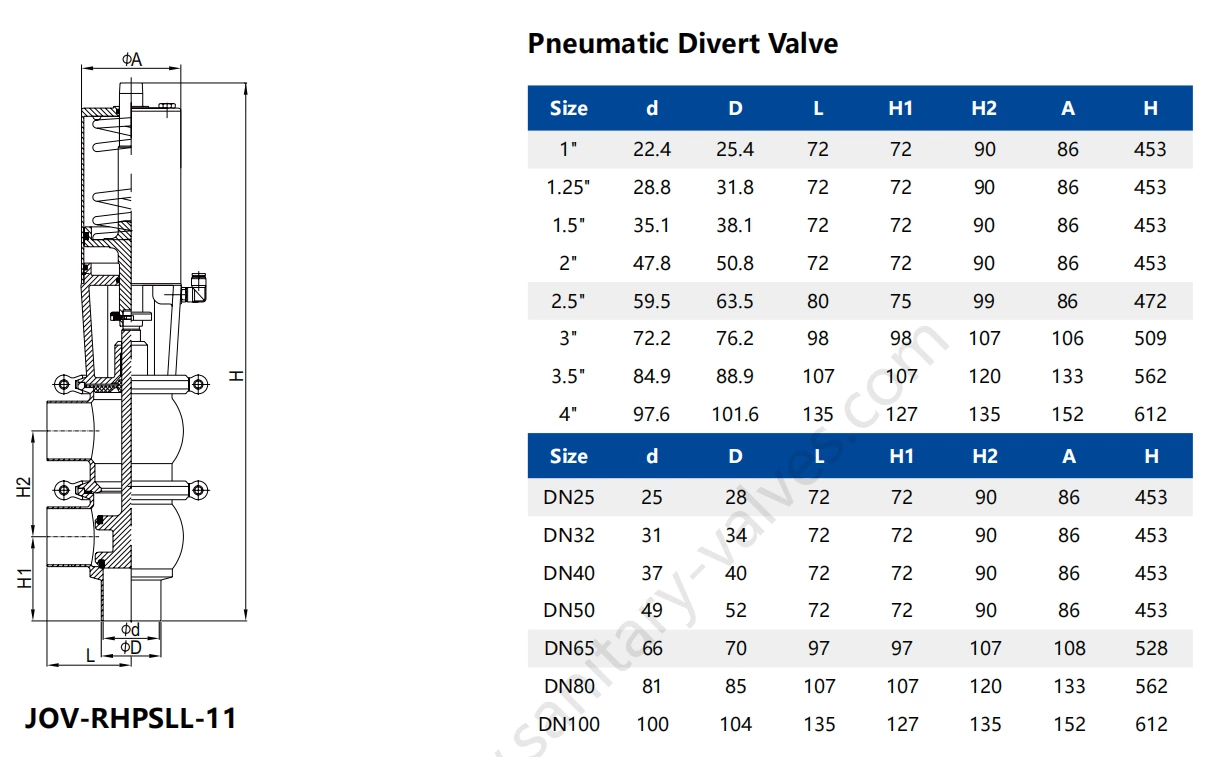

Product Parameter

Sanitary Stainless Steel Pneumatic Clamp Divert Valve

Sanitary Stainless Steel Pneumatic Clamp Divert Valve

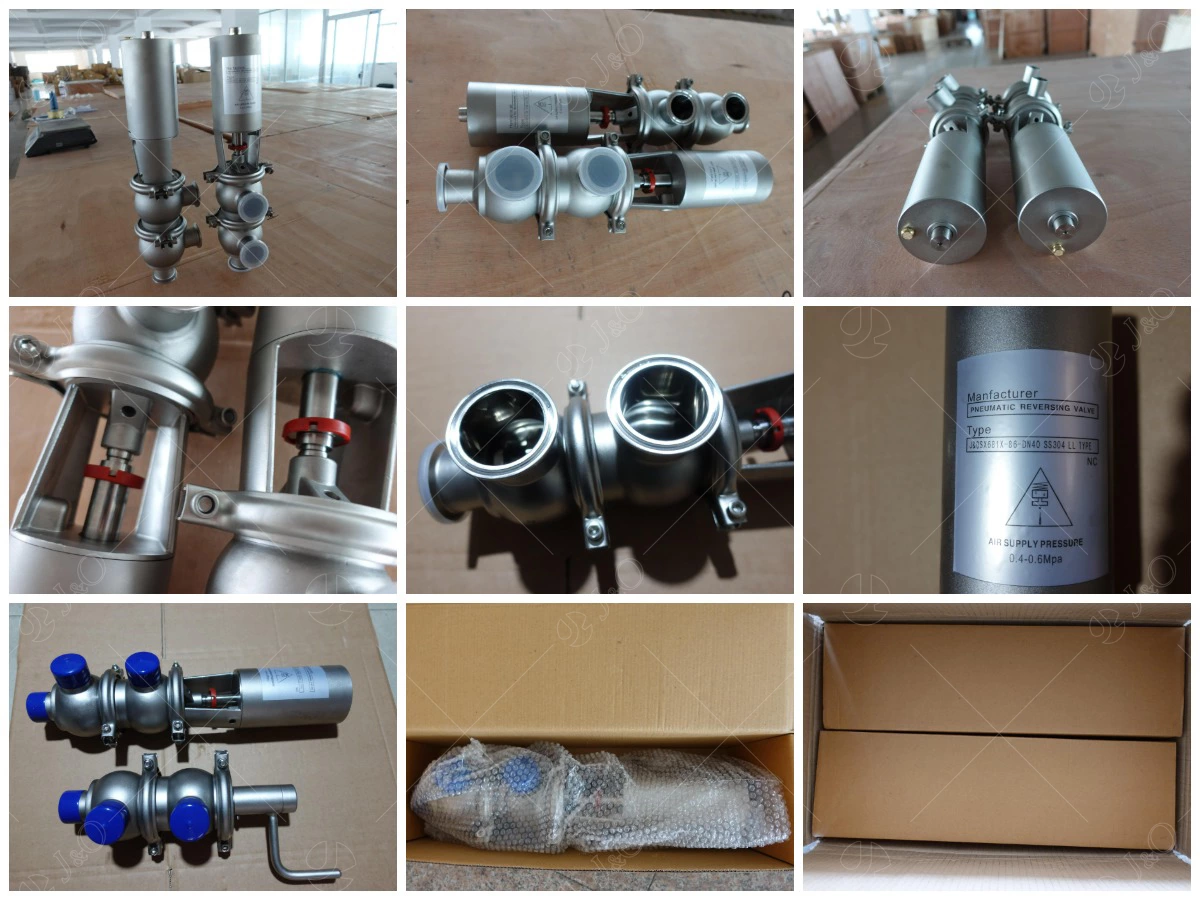

Product Pictures

Sanitary Stainless Steel Pneumatic Clamp Divert Valve
