Food Grade Stainless Steel Self-Priming CIP Pump
Use for the dairies, beverages, food-processing, pharmaceutical and fine chemicals industries.
- Brand:
- J&O
- Material:
- SS304 / SS316L
- Connection:
- Clamped
- Gasket:
- EPDM
- Working Temperature:
- MAX. 120
Sanitary Stainless Steel Self-priming Pump
The pump is a sanitary side channel self priming pump, it’s suitable for food processing, pharmacy and chemical industry.
It is specially designed for pumping materials containing air or gas, and it can also be used for negative suction with prior priming as well as with filtration equipment.
It can be used with wine, oil, syrups, volatile products such as alcohol, acetone and other solvents,or with products at temperatures close to boiling point. However, the main use of this pump is for CIP return.
Technical Data
| Material: | AISI304/AISI316L |
| Max. flow: | 30m3/h |
| Max. head: | 40m |
| Max. Working Temperature: | 120 degree C |
| Mechanical seal in: | C/St.S and SiC/Sic |
| Availably connection: | Clamp, weld, thread |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Mechanical seal (standard): | C/SiC/EPDM |
| Inside surface finishing: | Ra≤0.8 um |
| Outside surface finishing: | Sandblast or Mirror Polish |

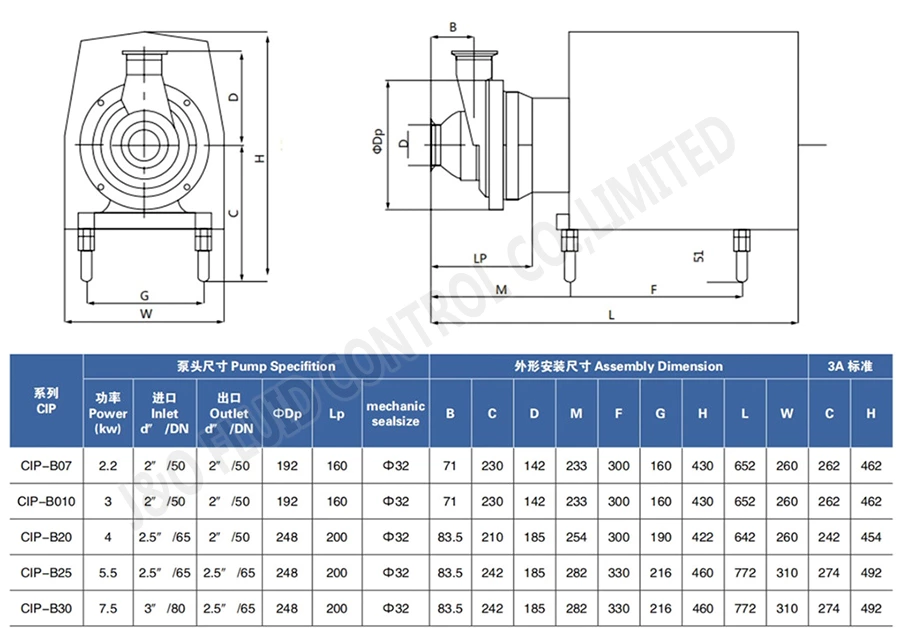

Product Parameter

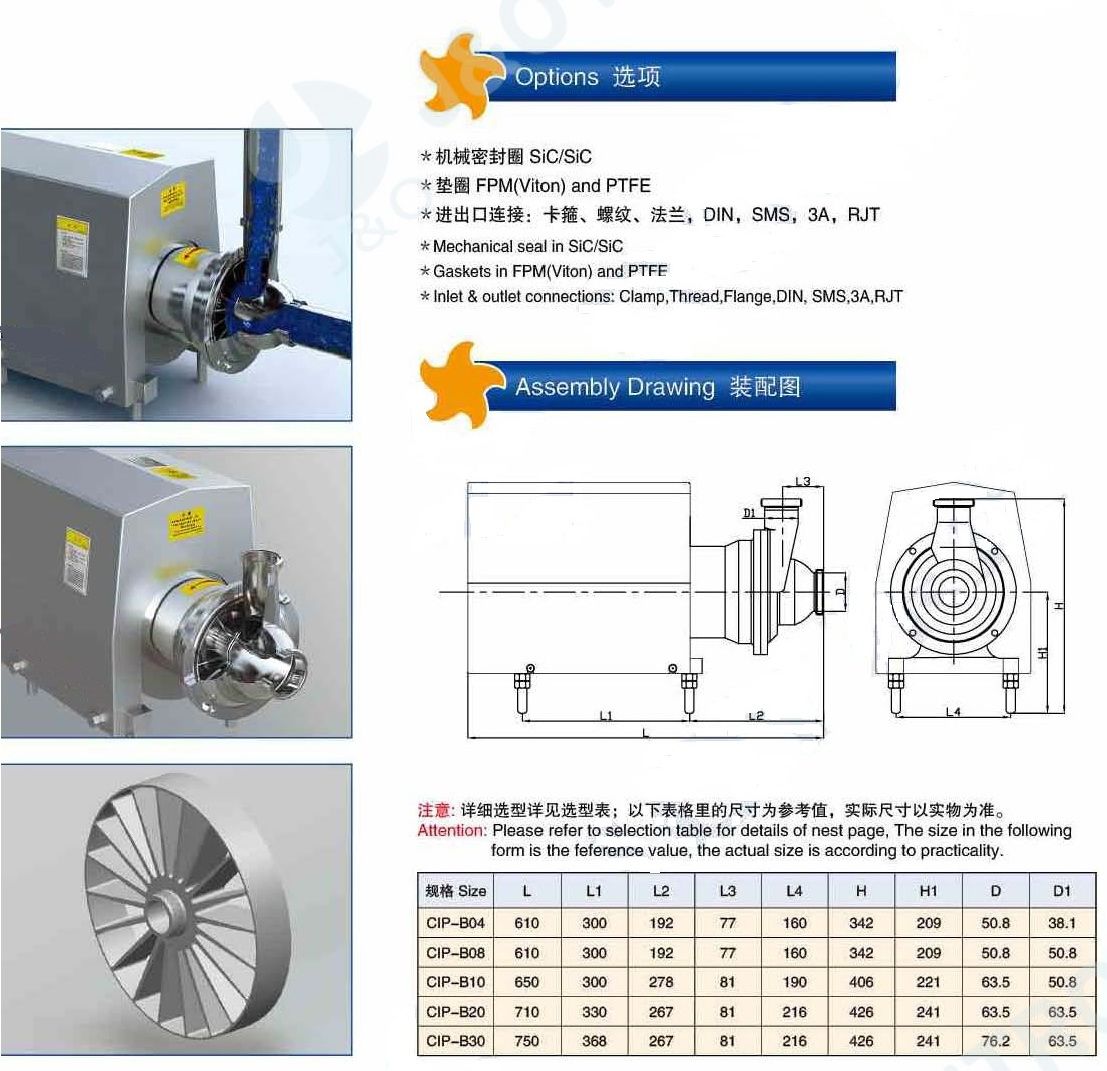

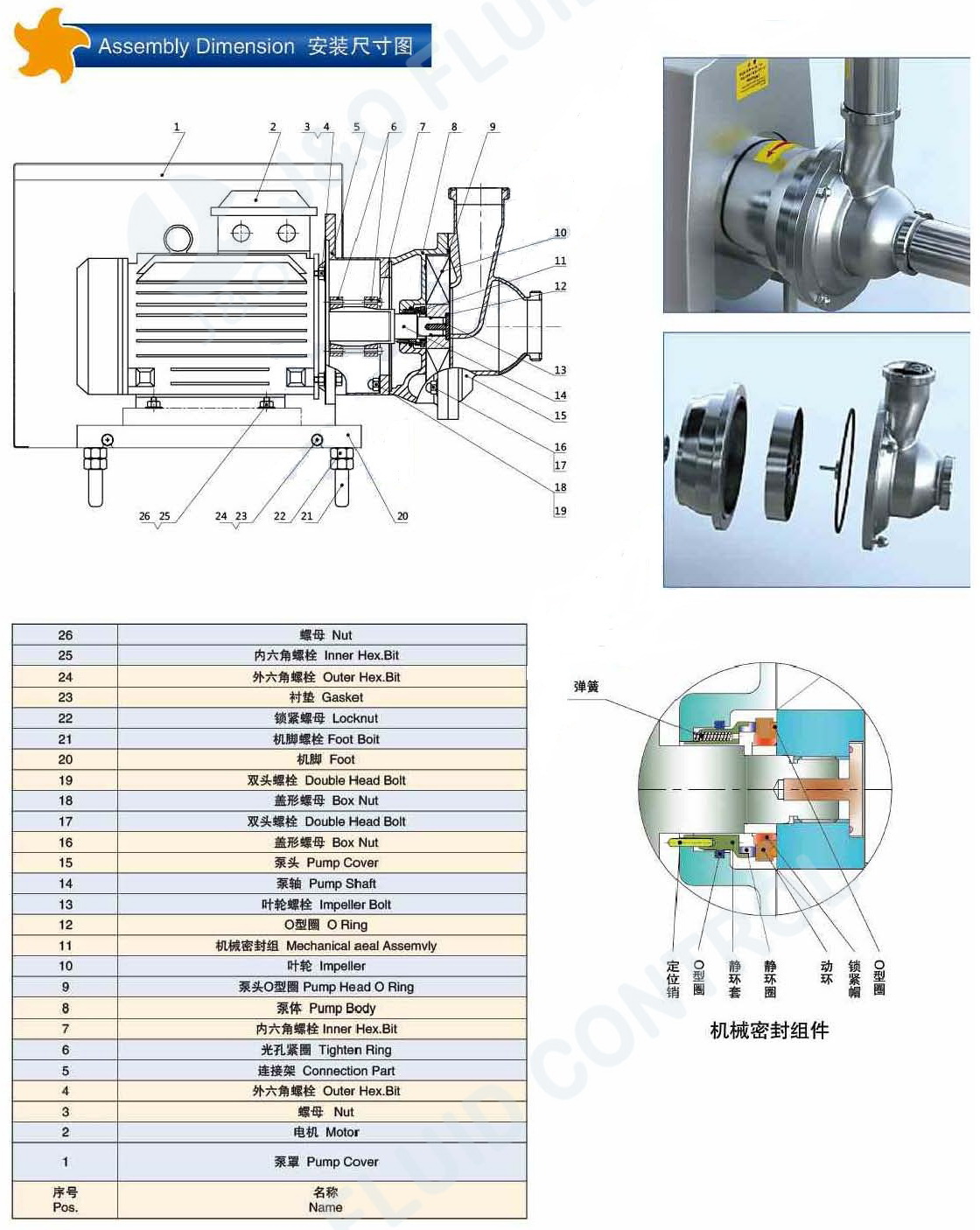

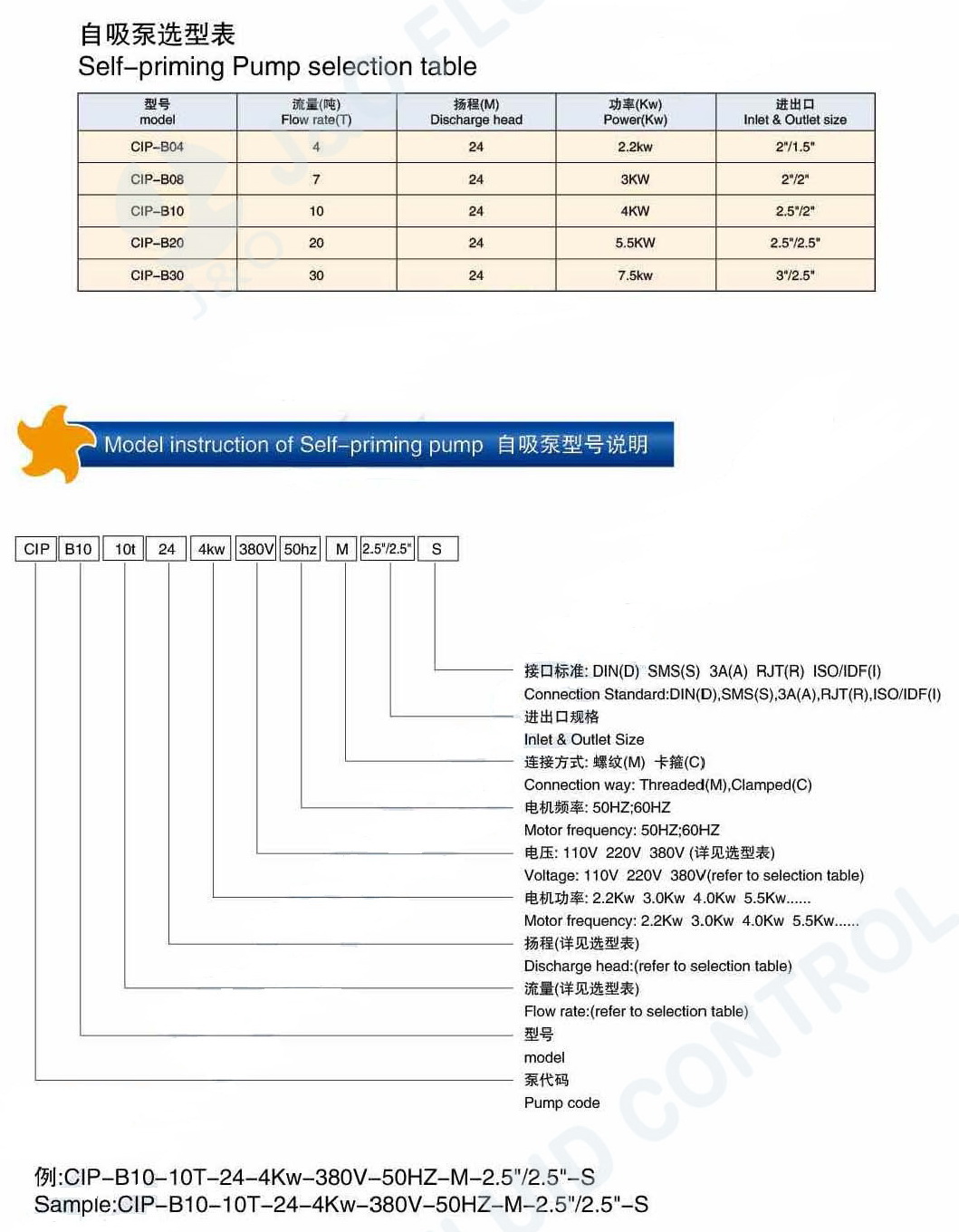

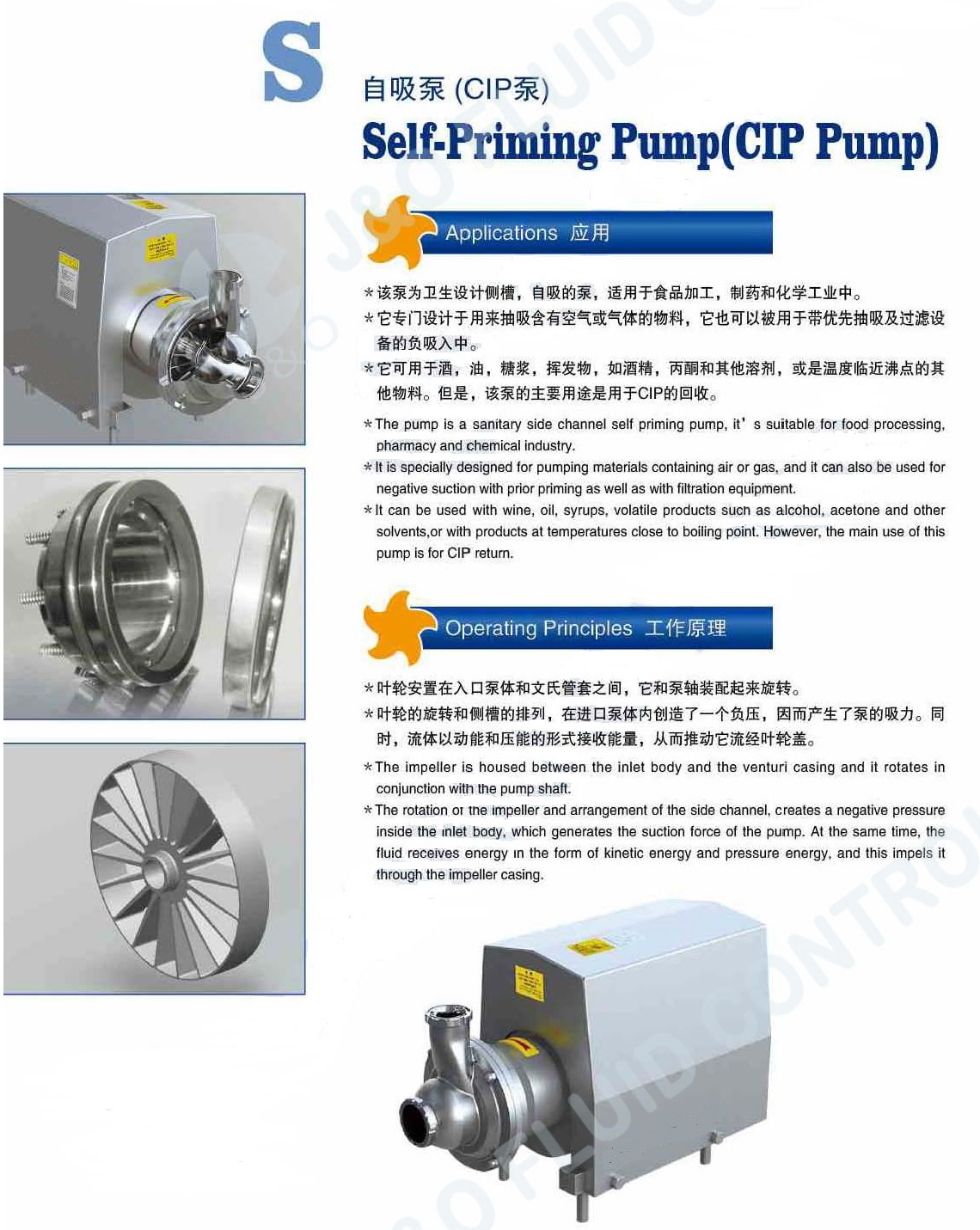

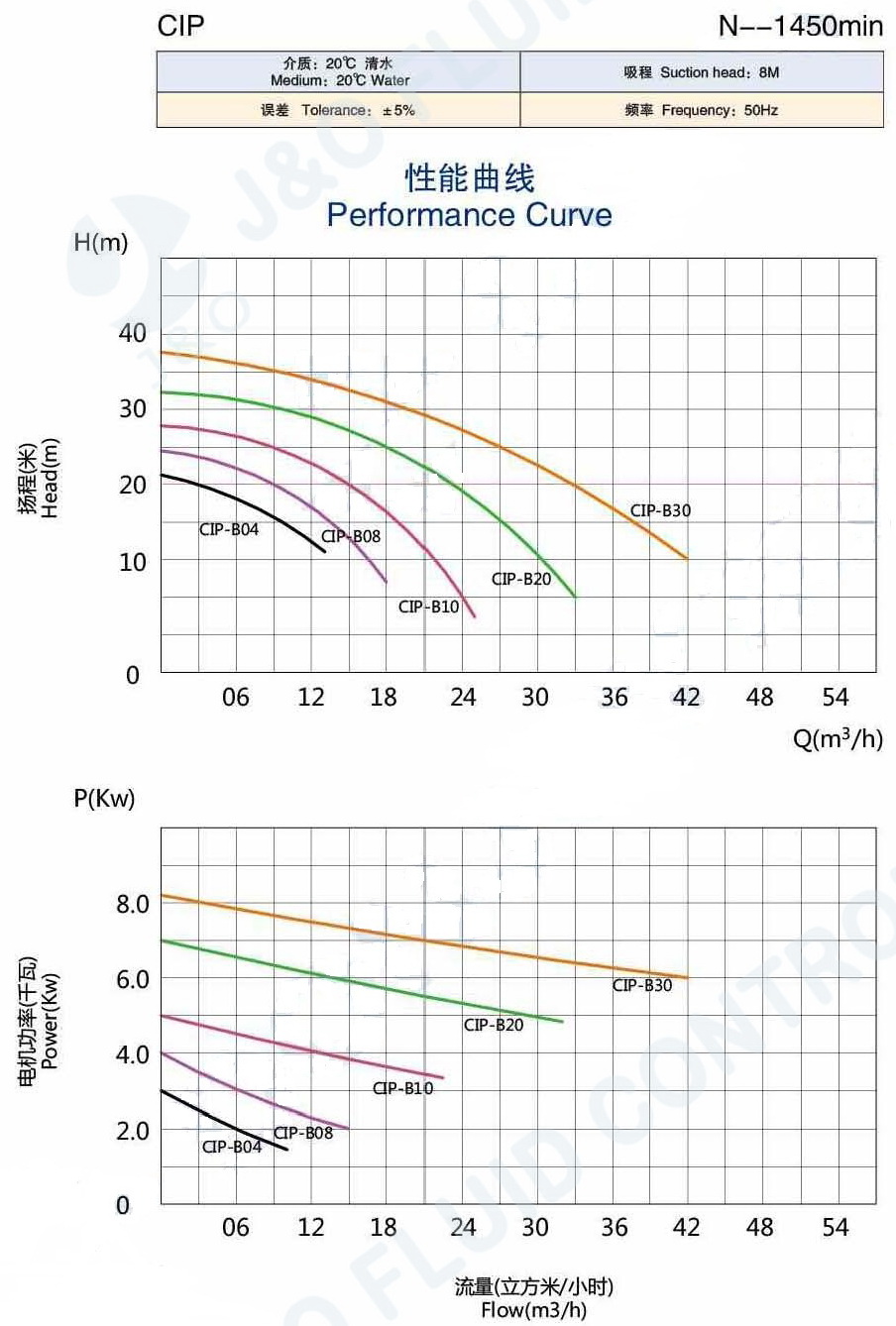

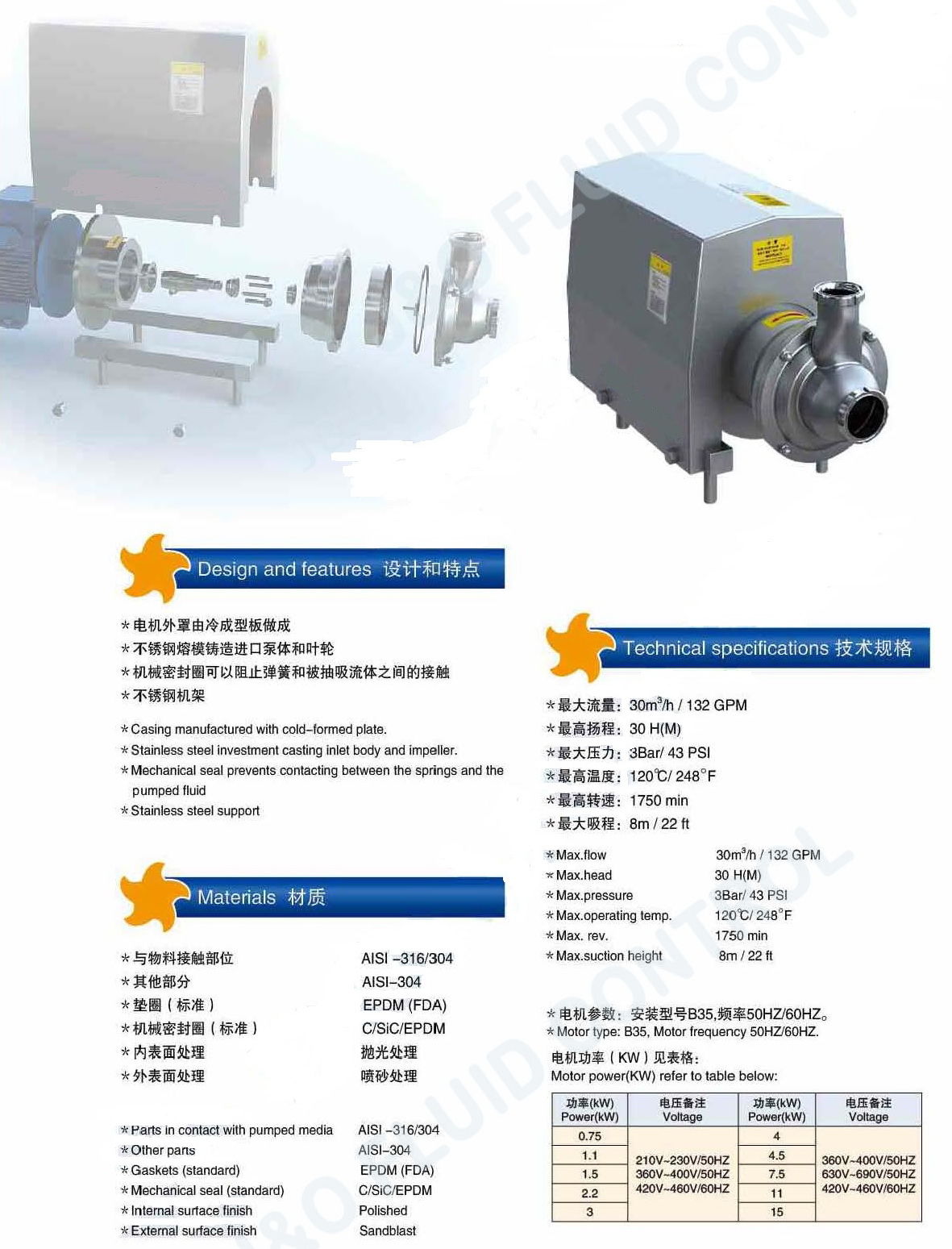

Product Pictures
