Stainless Steel Hygienic Self-Priming CIP Pump

Use for the dairies, beverages, food-processing, pharmaceutical and fine chemicals industries.

Brand:
J&O
Material:
SS304 / SS316L
Connection:
Clamped
Gasket:
EPDM
Working Temperature:
MAX. 120
Download Catalog:
J&O Self-priming Pump.pdf
Enquiry
Stainless Steel Hygienic Self-Priming CIP Pump

Sanitary Stainless Steel Self-priming Pump

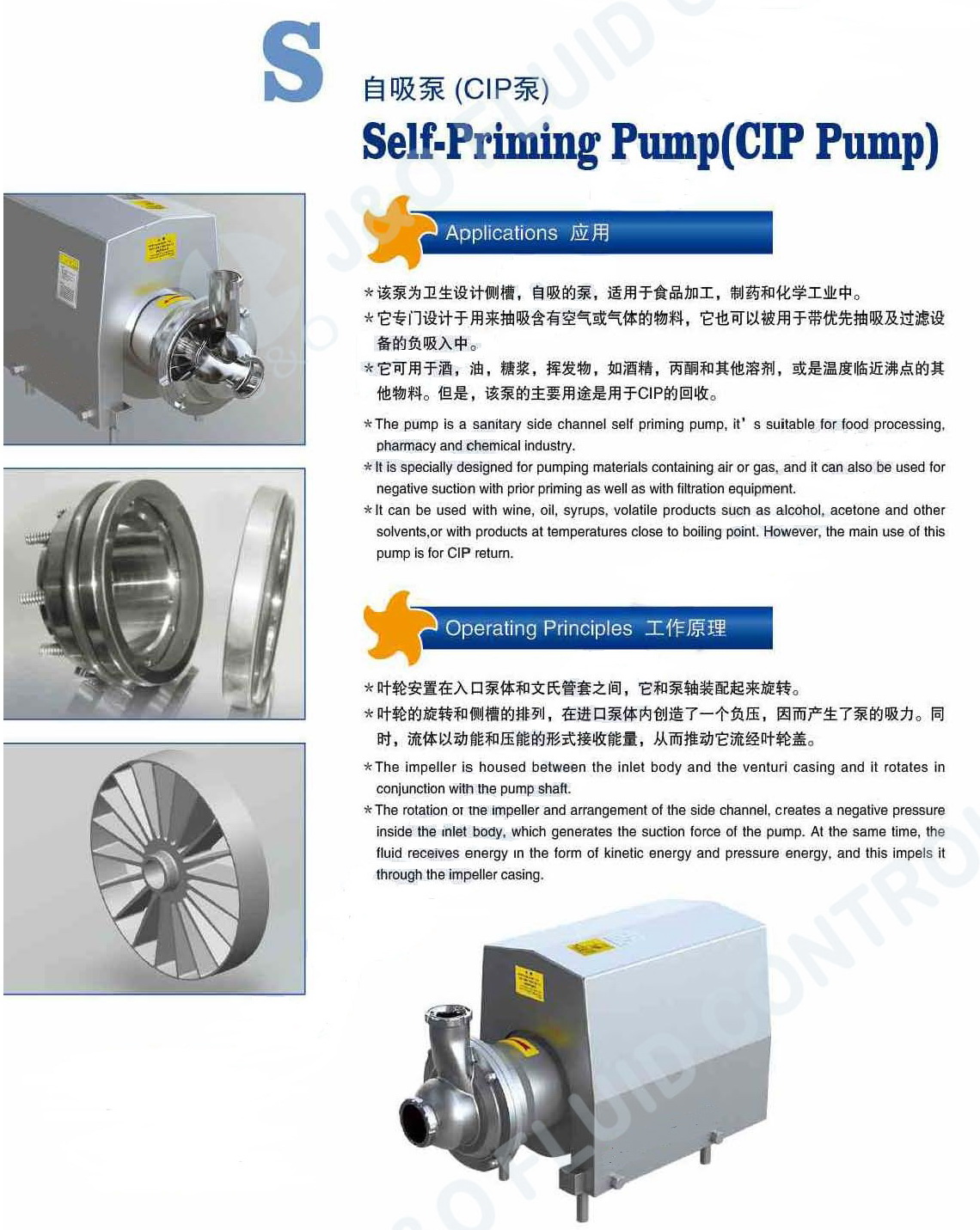

The pump is a sanitary side channel self priming pump, it’s suitable for food processing, pharmacy and chemical industry.

It is specially designed for pumping materials containing air or gas, and it can also be used for negative suction with prior priming as well as with filtration equipment.

It can be used with wine, oil, syrups, volatile products such as alcohol, acetone and other solvents,or with products at temperatures close to boiling point. However, the main use of this pump is for CIP return.

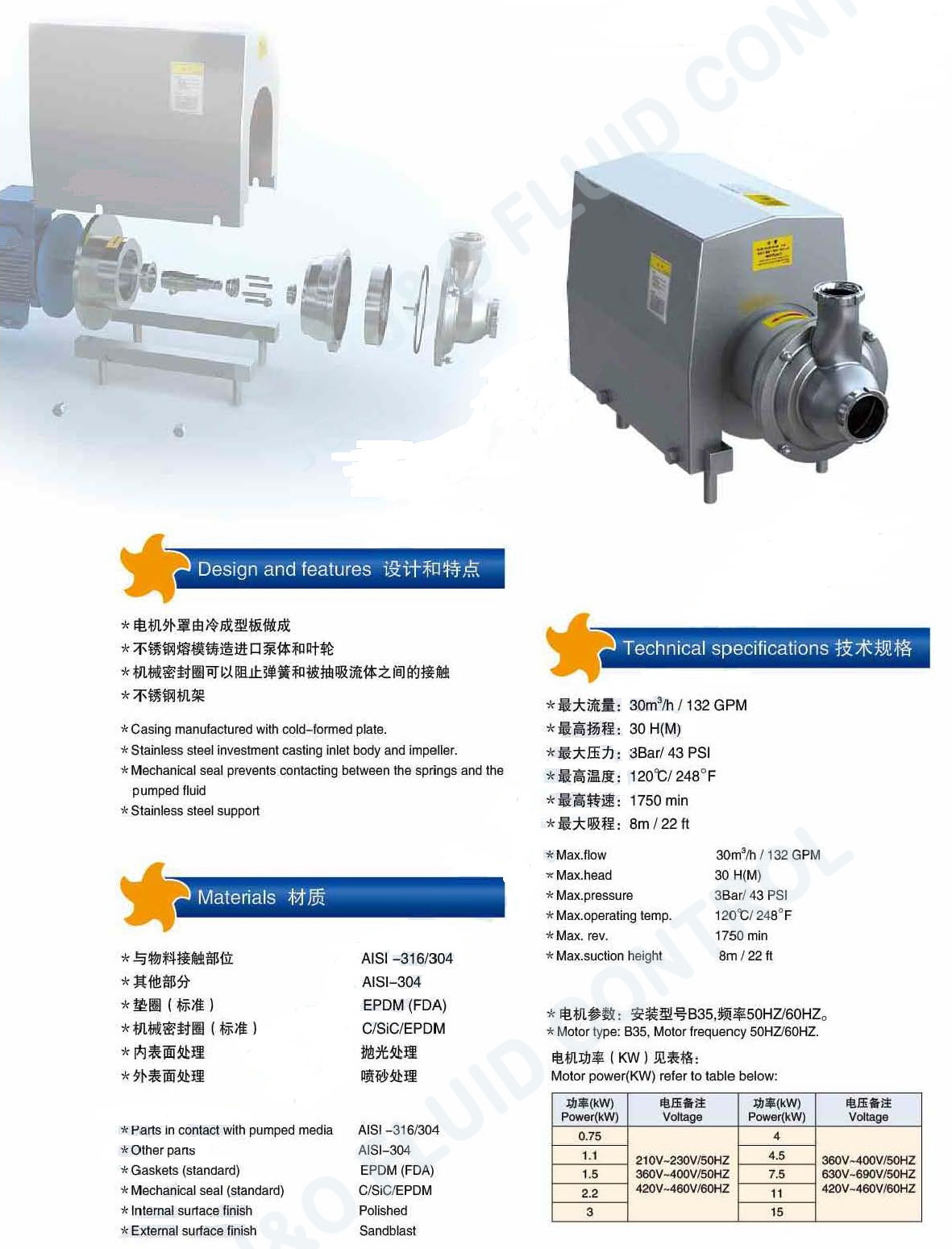

Technical Data

Material: AISI304/AISI316L
Max. flow: 30m3/h
Max. head: 40m
Max. Working Temperature: 120 degree C
Mechanical seal in: C/St.S and SiC/Sic
Availably connection: Clamp, weld, thread
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Mechanical seal (standard): C/SiC/EPDM
Inside surface finishing: Ra≤0.8 um
Outside surface finishing: Sandblast or Mirror Polish

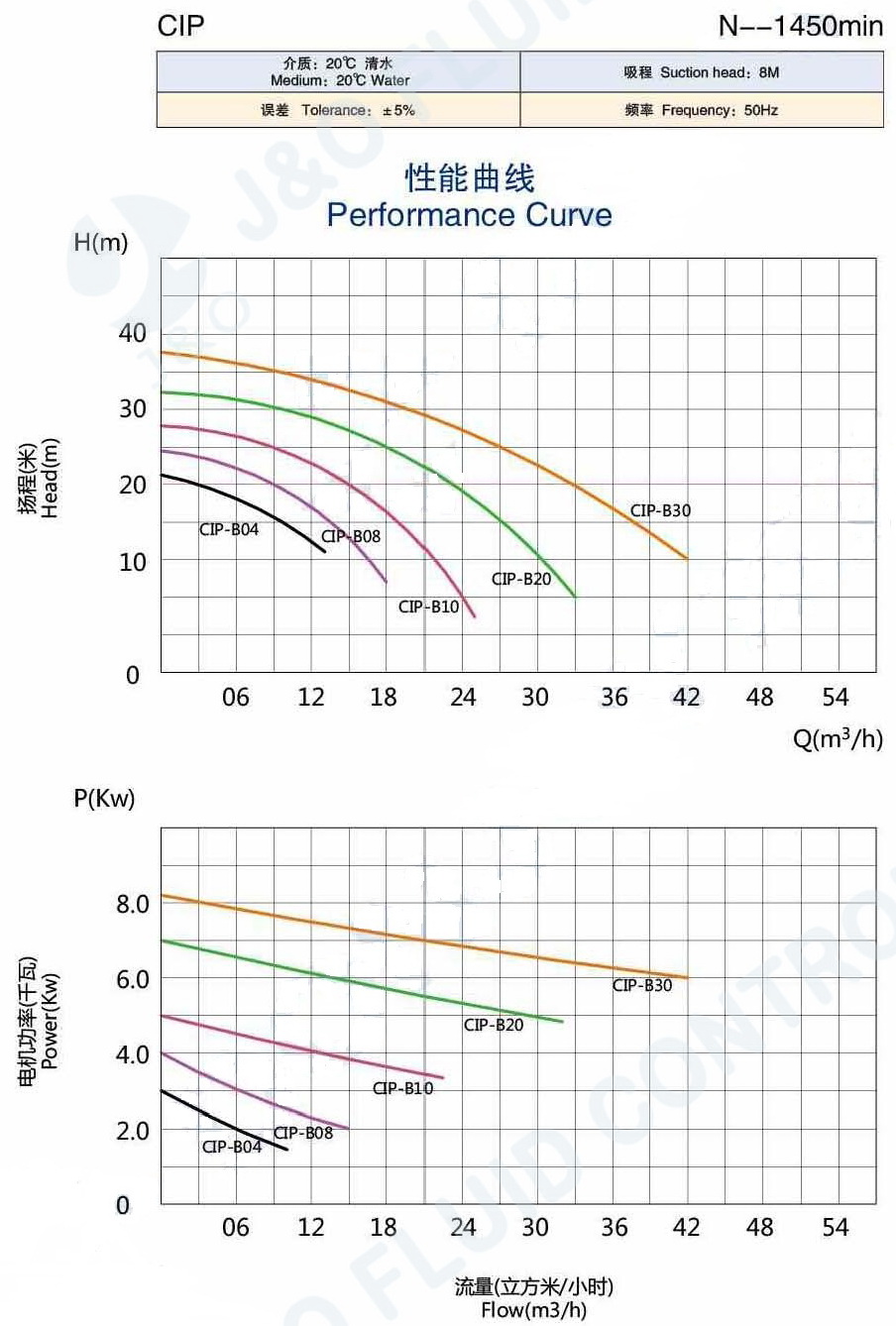

Product Parameter

Product Pictures
