Stainless Steel 20 to 13 Pneumatic Filling Valve

Brand:
J&O
Material:
SS304 / SS316L
Connection:
Female
Gasket:
PTFE
Working Temperature:
-10 degree C ~ +120 degree C
Working Pressure:
0-16bar
Operation:
Pneumatic
Payment:
T/T, L/C, Western Union

Stainless Steel Pneumatic Filling Valve

  • The filling valve is a switching valve that can accurately and quantitatively control the flow. The special structure and sealing design at the bottom of the valve can ensure filling without dripping while ensuring flow. It has been widely used in filling machinery, especially for viscous, creamy and easy-froth fluid filling.
  • The long filling gun is specially designed for high viscosity fluid. Fast filing accurate and steady performance. Compact design could be assembled in a small space.

Technical Data

Valve Body Material: 1.4404/1.4301, SS304/SS316L
Seal Material: PTFE
Fluid pressure: 0-0.7MPa
Medium Temperature: -10 degree C ~ +120 degree C
Availably connection: Female
Operated: Pneumatic
Medium: Neutral gas, air, water

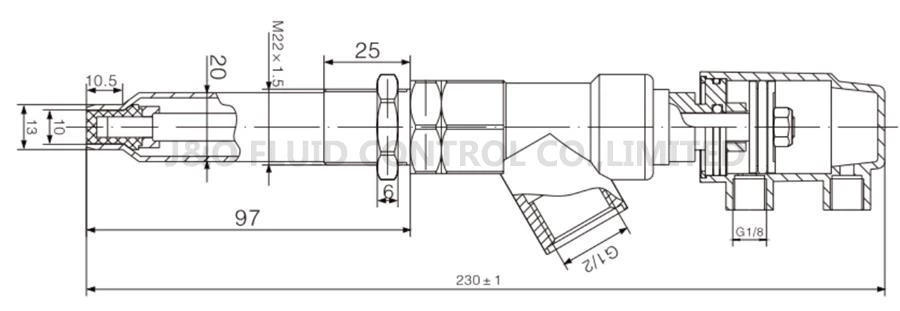

Product Parameter

Stainless Steel 20 to 13 Pneumatic Filling Valve
