Stainless Steel Three Way Clamp Pneumatic Angle Seat Valve

The three way pneumatic angle seat valve has three ports that enable "reversing" and "blending" features.

Brand:
J&O
Material:
SS304 / SS316L
Connection:
Clamped
Gasket:
PTFE
Working Temperature:
-10 degree C ~ +180 degree C
Working Pressure:
0-16bar
Operation:
Pneumatic
Enquiry
Clamped Three Way Angle Seat Valve

Stainless Steel Three Way Clamp Pneumatic Angle Seat Valve

The three way pneumatic angle seat valve has three ports that enable "reversing" and "blending" features. When the valve is in idle state, C port is closed due to force of the spring. When the actuator piston is compressed, C port is opened and B port is closed. WHen double acting, the valve opens and closes by compressed air.

Technical Data

Valve Body Material: 1.4404/1.4301, SS304/SS316L
Seal Material: PTFE
Max working pressure: 1.6MPa
Medium Temperature: -10 degree C ~ +180 degree C
Availably connection: thread, clamp
Operated: Pneumatic
Medium: Neutral gas or liquid, water, steam, oil, organic solvent, acid base solution, etc

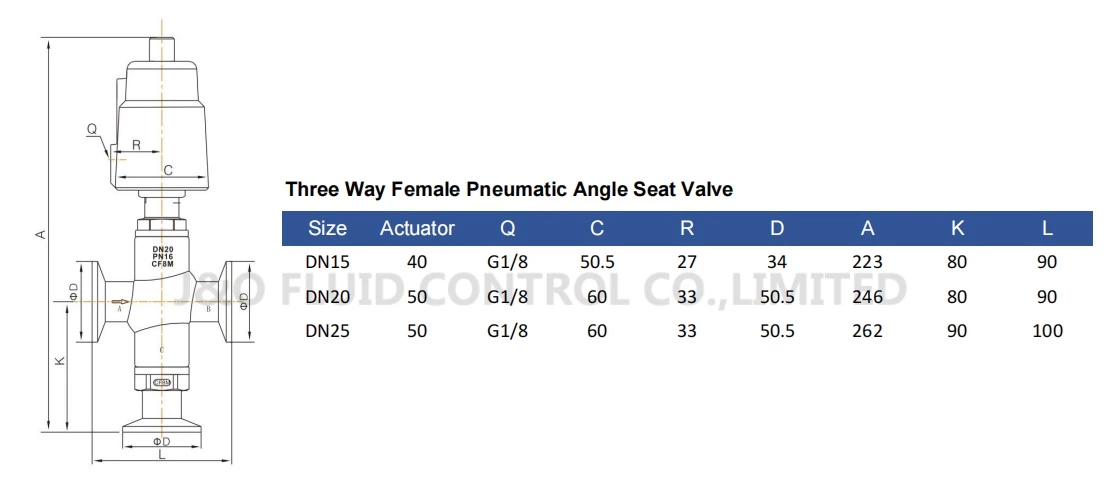

Product Parameter
