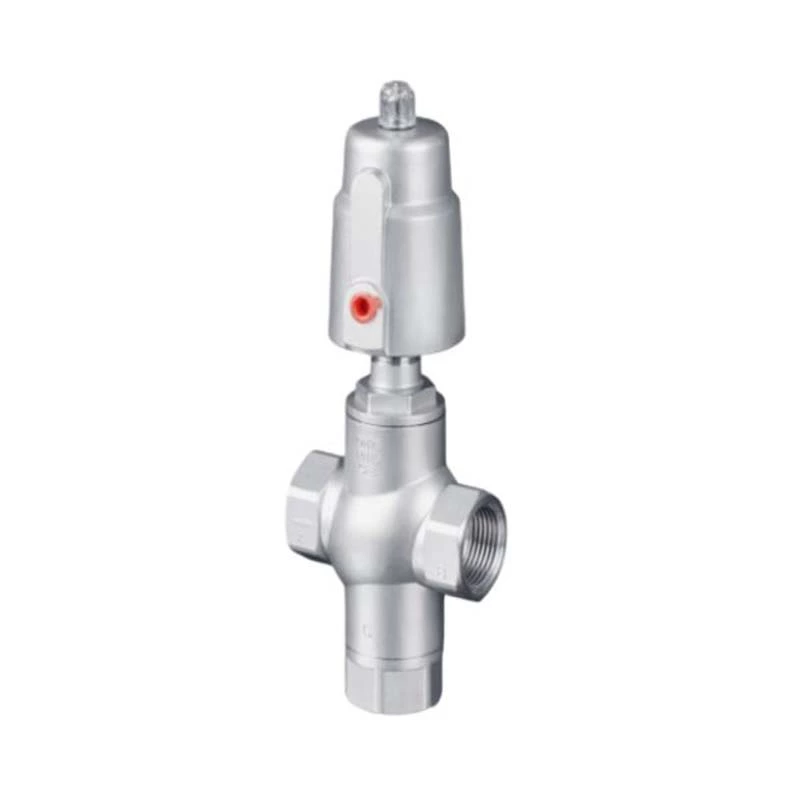

Stainless Steel Three Way Female Pneumatic Angle Seat Valve
The three way pneumatic angle seat valve has three ports that enable "reversing" and "blending" features.
- Brand:
- J&O
- Material:
- SS304 / SS316L
- Connection:
- Thread
- Gasket:
- PTFE
- Working Temperature:
- -10 degree C ~ +180 degree C
- Working Pressure:
- 0-16bar
- Operation:
- Pneumatic
Stainless Steel Three Way Female Pneumatic Angle Seat Valve

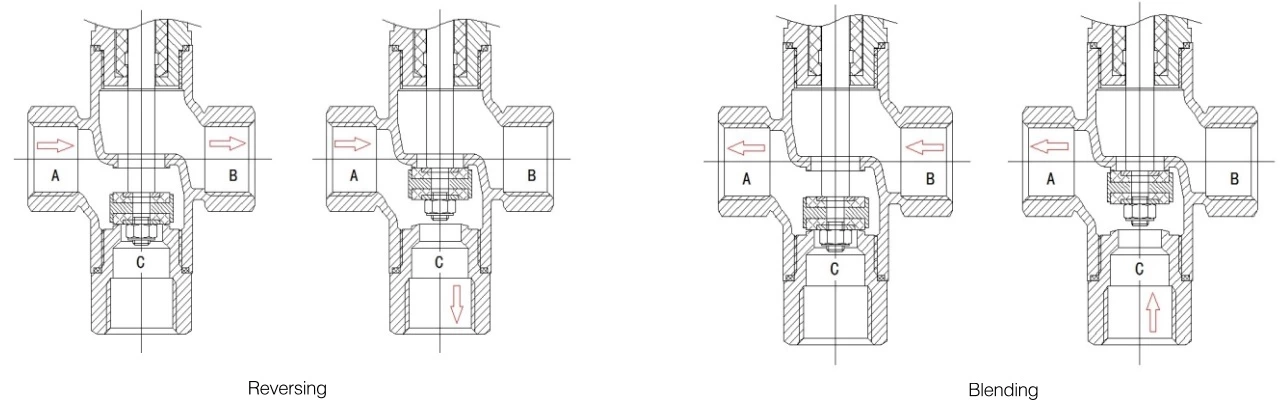

The three way pneumatic angle seat valve has three ports that enable "reversing" and "blending" features. When the valve is in idle state, C port is closed due to force of the spring. When the actuator piston is compressed, C port is opened and B port is closed. WHen double acting, the valve opens and closes by compressed air.
Technical Data
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
| Seal Material: | PTFE |
| Max working pressure: | 1.6MPa |
| Medium Temperature: | -10 degree C ~ +180 degree C |
| Availably connection: | thread, clamp |
| Operated: | Pneumatic |
| Medium: | Neutral gas or liquid, water, steam, oil, organic solvent, acid base solution, etc |

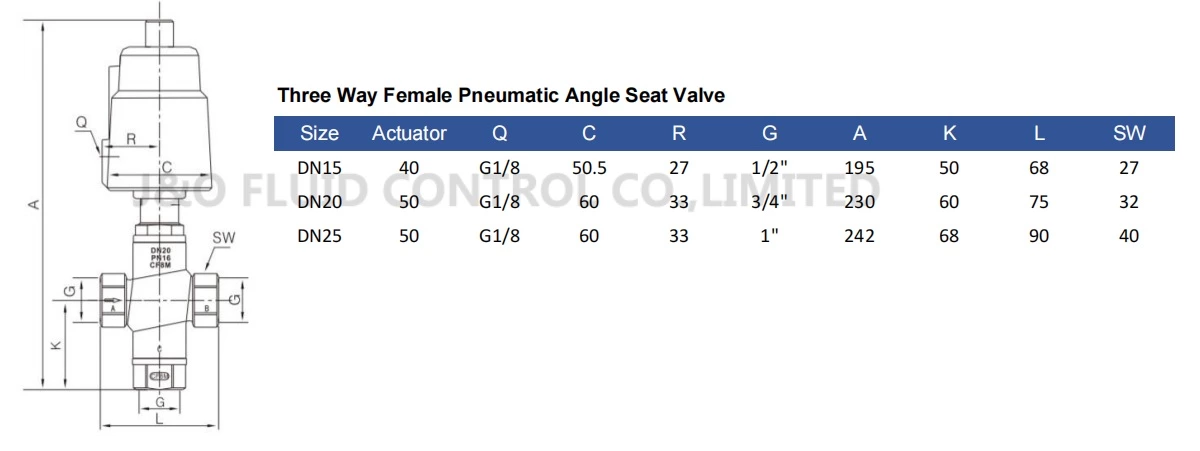

Product Parameter
