Stainless Steel Modular Valve System

Stainless Steel Modular Valve System Seat is separate from the public ports.

Brand:
J&O
Material:
SS304 / SS316L
Connection:
Clamp
Gasket:
PTFE
Working Temperature:
-10 degree C ~ +180 degree C
Working Pressure:
0-16bar
Operation:
Pneumatic
Enquiry
modular valve system

Stainless Steel Modular Valve System

  • Seat is separate from the public ports. Well machined inner wall of the public ports ensure a smooth flow.
  • The valve utilizes bottom seal ans seal ring for connection to valve stem in order to avoid fluid residue and allow effortless cleaning.
  • The modular valve system is easy to install and assemble, allowing many different layouts. It is a good choice for mixing, distributing and collecting fluids.

Technical Data

Valve Body Material: 1.4404/1.4301, SS304/SS316L
Seal Material: PTFE
Max working pressure: 1.6MPa
Medium Temperature: -10 degree C ~ +180 degree C
Availably connection: clamp
Operated: Pneumatic
Medium: Neutral gas or liquid, water, steam, oil, organic solvent, acid base solution, etc

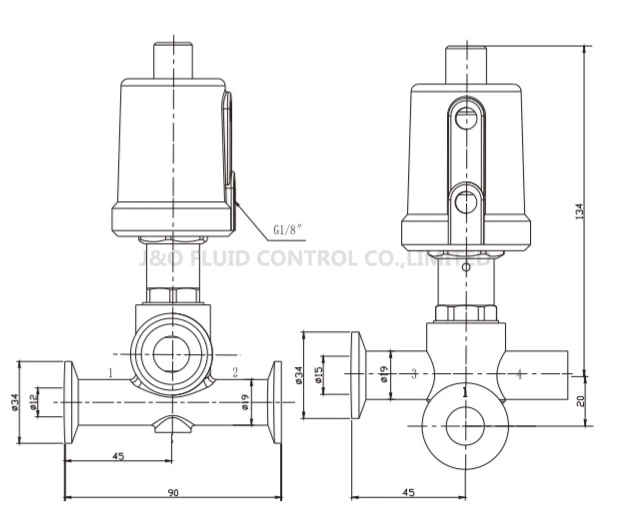

Product Parameter
