China J&O Fluid Control Co., Limited

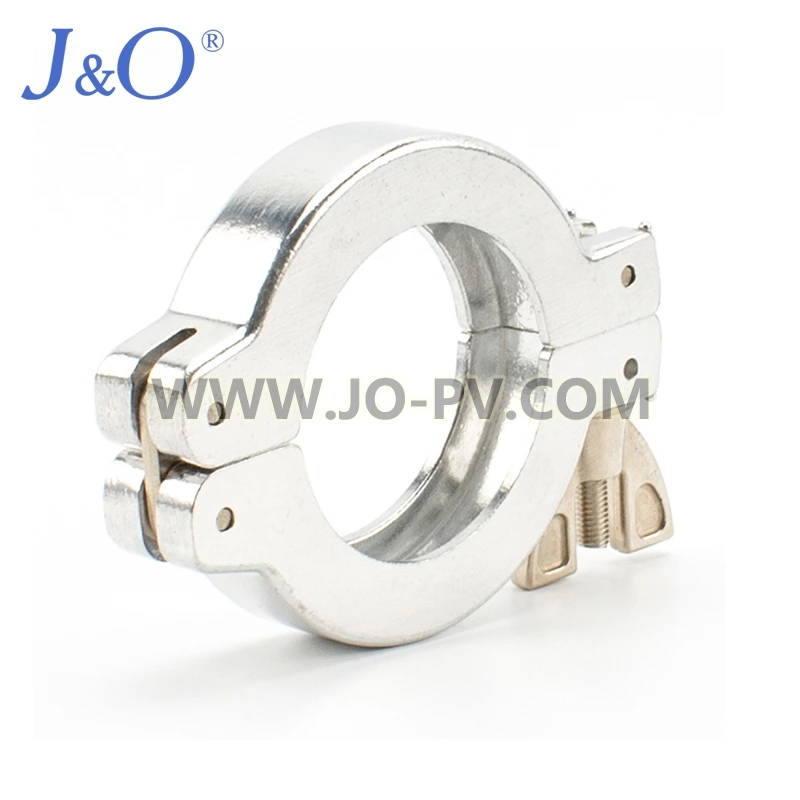

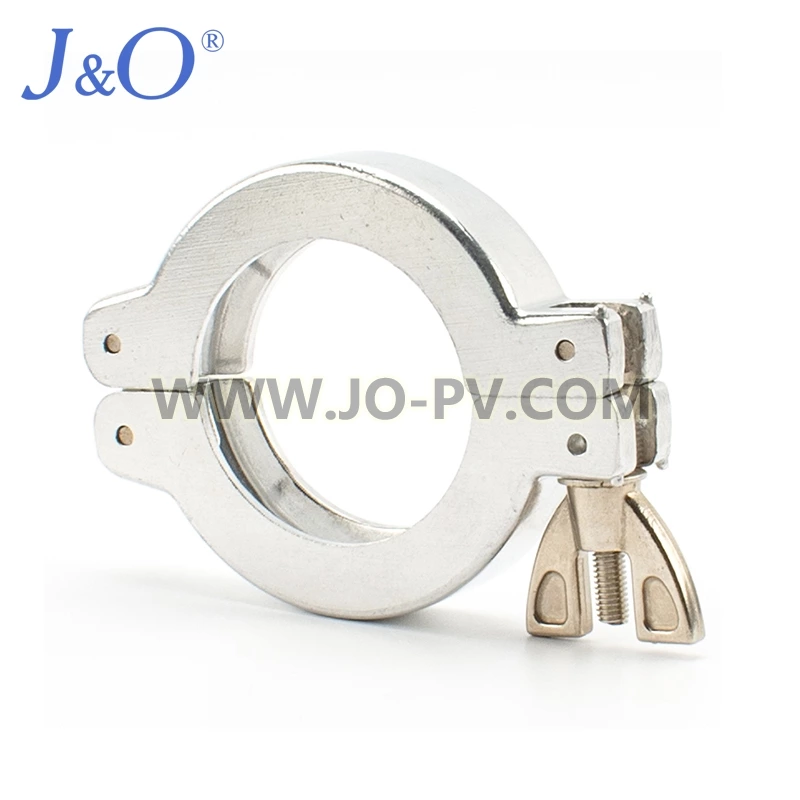

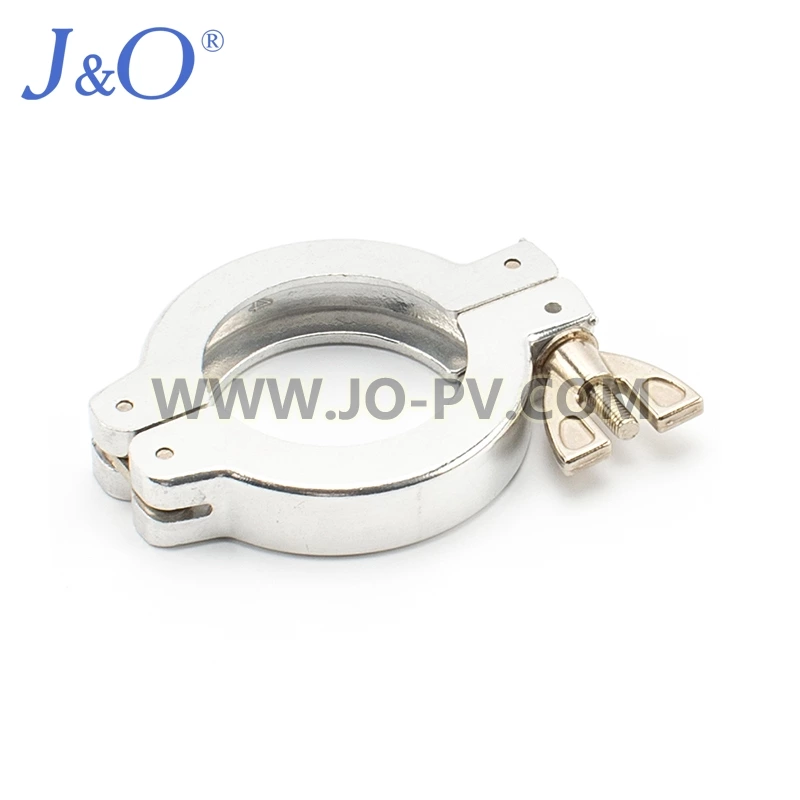

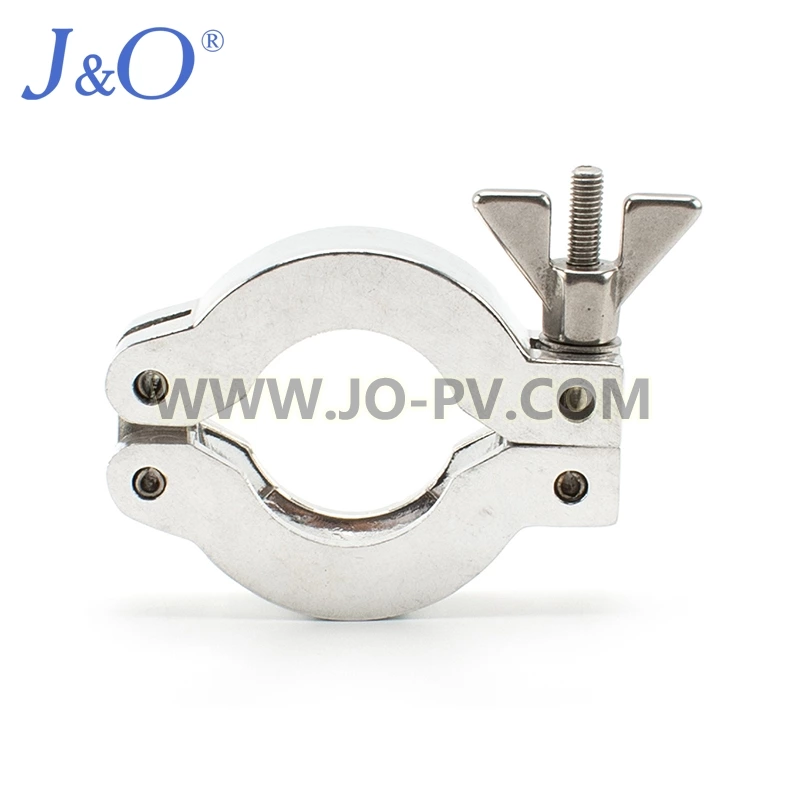

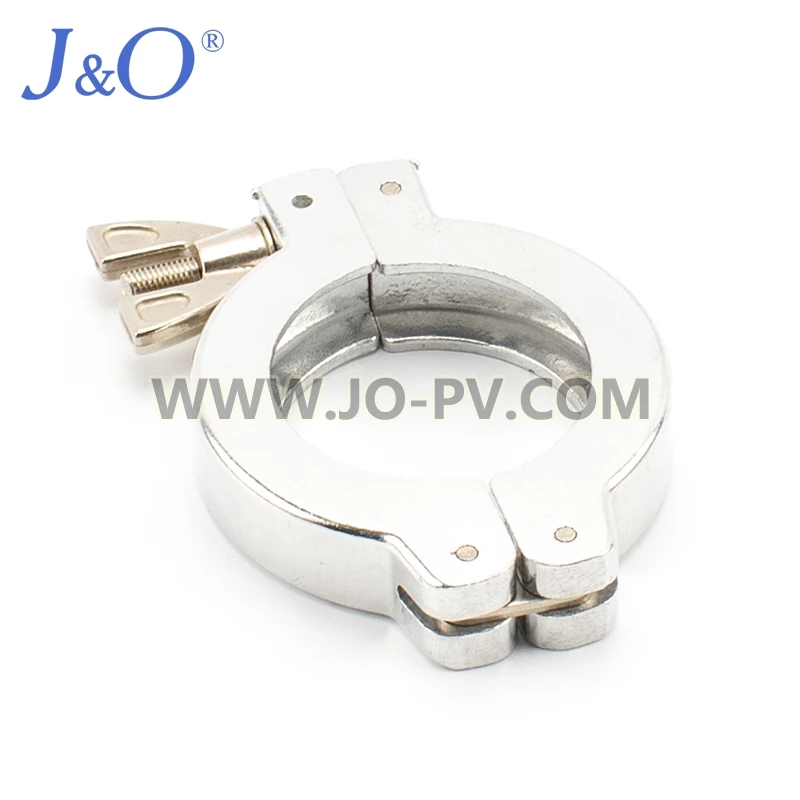

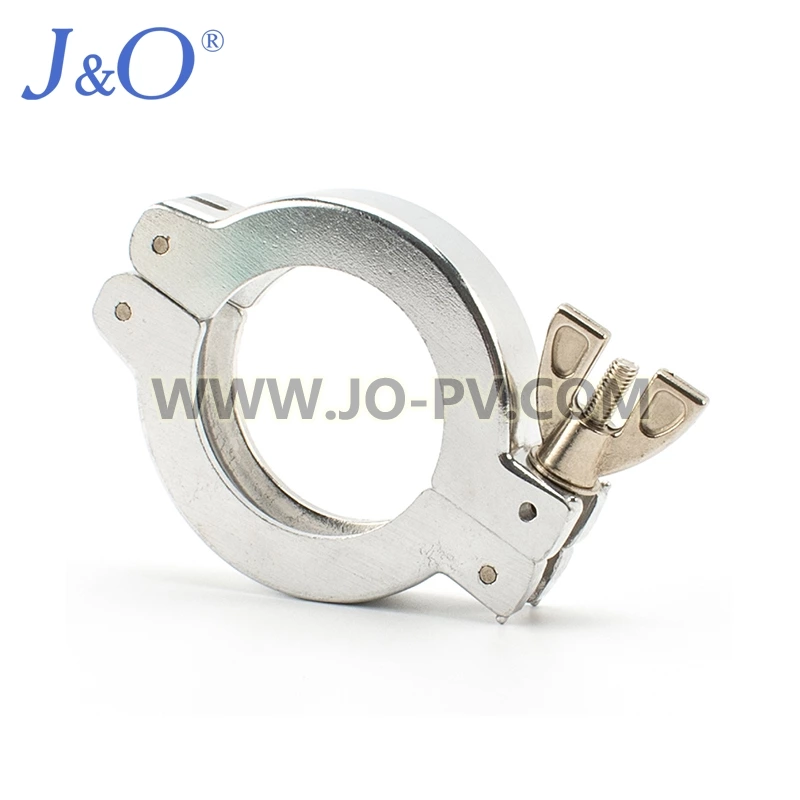

Aluminum KF Vacuum Wing Nut Clamps

Stainless Steel/Aluminum


Aluminum KF Vacuum Nut Clamps

The KF Hardware (also known as NW) assembly consists of two flanges, a center ring and an aluminum clamp. The quick clamp is assembled with a wing nut, ensuring easy tool-less use for long-term use. Applying even pressure on the clamp ensures a vacuum seal. The mating flange surface compresses the O-ring, which is held in place by a metal centering ring to create a vacuum seal.

Product Description

Product Name: Aluminum KF Vacuum Nut Clamps
Size: 1/2"-2"
Material: Aluminum
Machine: CNC Lathe Machine
Connection: Tri Clamp
SurfaceTreatment: Ra≤0.8
Gasket Food Grade Silicone, Viton, PTFE
Type Ferrule; elbow; tee; cross, hosebarb etc.
Optional Customized tri clamp fitting available
Packing Details: within carton box or plywood case
Applied Industries:  Chemical, gas, petrochemical, electric power, metallurgy, medical, food and pharmaceutical industry

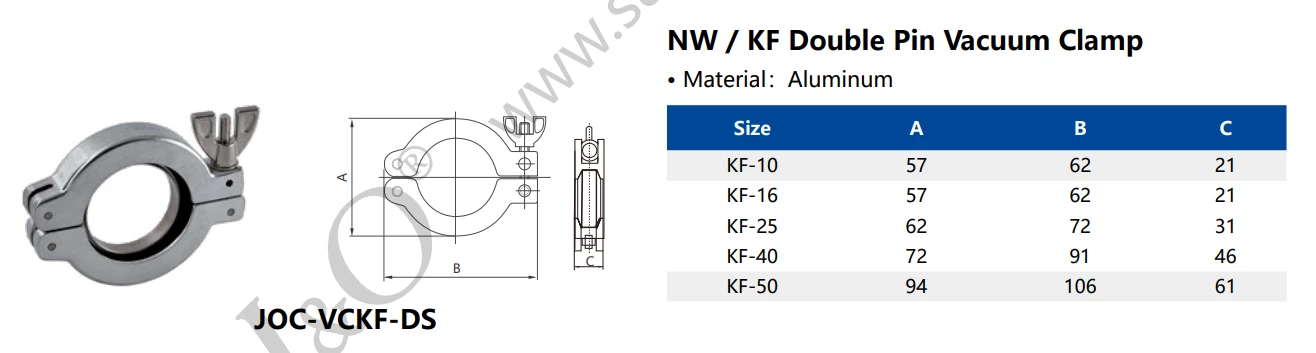

Product Parameter

Aluminum KF Vacuum Wing Nut Clamps
