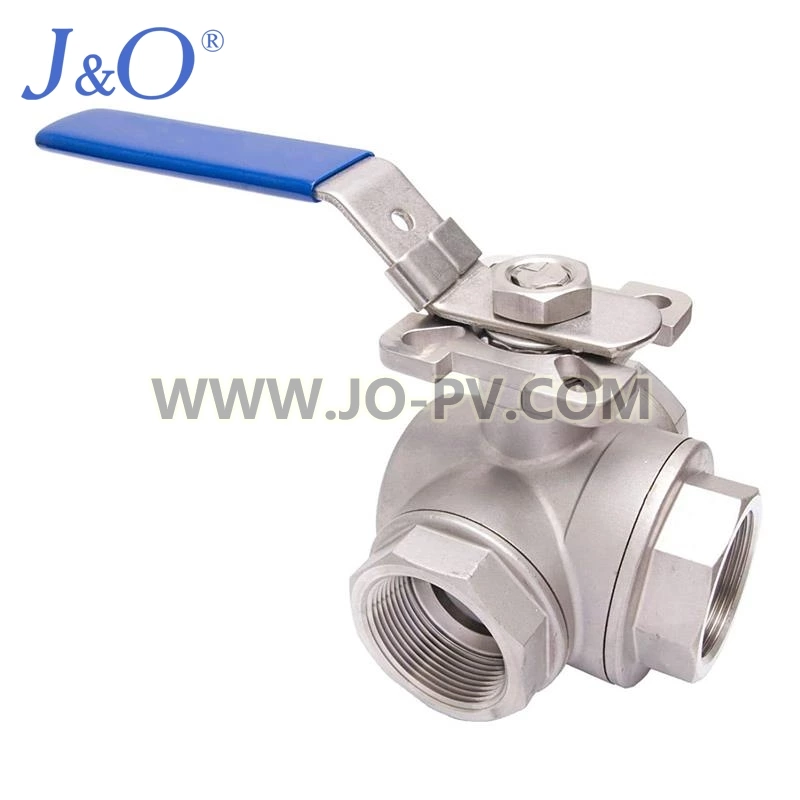

3 Way Ball Valve with Mounted Pad

3 way ball valve is a 3 port valve which enable fluids flow to alternative path of hydraulic system.

Model:
JOV-BGM2216
Brand:
J&O
Material:
SS304 / SS316
Connection:
Female
Gasket:
PTFE
Working Pressure:
1000WOG
Enquiry
3 Way Ball Valve with Mounted Pad

Stainless Steel 1000Wog Female Three Way Ball Valve

  • 3 way ball valve is a 3 port valve which enable fluids flow to alternative path of hydraulic system. It allow fluid to enter or exit the valve for more than one port.

  • 3 way ball valve is available in stainless steel material and able to withstand 1000 WOG working pressure. The available ports are L-Port or T-Port.

Technical Data

Valve Body Material: SS304/SS316
Seal Material: PTFE
Mex working pressure: 1000 WOG
Max. Working Temperature: 180 degree C
Availably size: 1/4"-3"
Thread type: NPT, BSPT, PT
Valve type: T port, L port

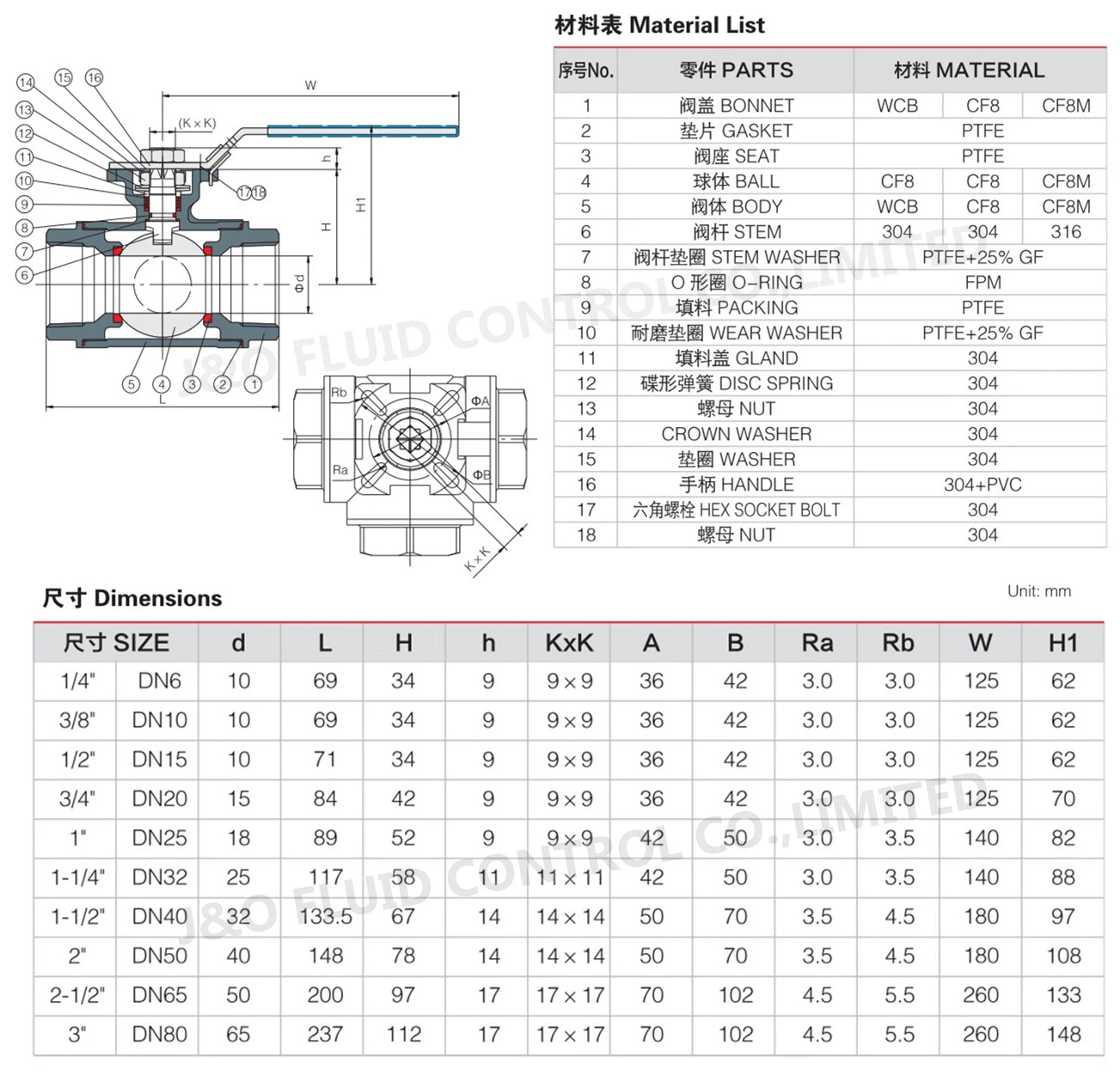

Product Parameter
