3000Psi 2PC Ball Valve

Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it.
Brand:
J&O
Material:
CF8,CF8M,WCB
Connection:
Female Thread
Gasket:
PTFE
Working Temperature:
-20℃ ~ 180℃
Working Pressure:
3000WOG(PN200)
Operation:
Manual
Download Catalog:
J&O INDUSTRIAL BALL VALVES.pdf
Enquiry
3000Psi 2PC Ball Valve
3000Psi 2PC Ball Valve 3000Psi 2PC Ball Valve

3000PSI 2PC High Pressure Ball Valve Thread End

  • Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

  • Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.

Technical Data

Product Name: Industrial 3000PSI 2PC High Pressure Ball Valve Thread End
Material: CF8,CF8M,WCB
Seal Material: PTFE
Working Pressure: 3000WOG(PN200)
Working Temperature: -20℃ ~ 180℃
Design Standard: ASME B16.34
Testing Standard: API 607
Thread Type: BSPT, NPT, DIN259, DIN2999
Packing Details: within carton box or plywood case

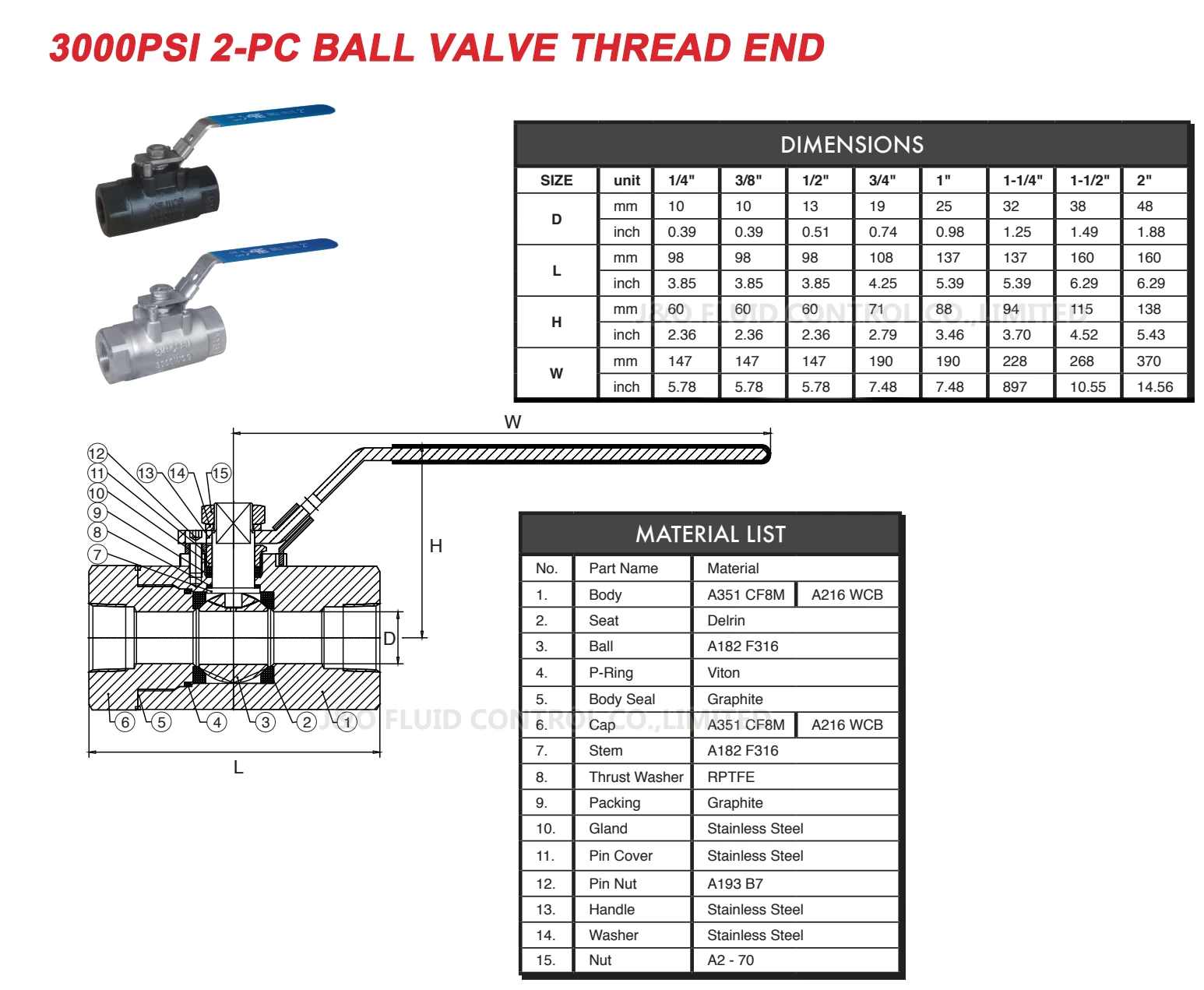

Product Parameter
