Specifications, Standards, And Validation For Sanitary Diaphragm Valves

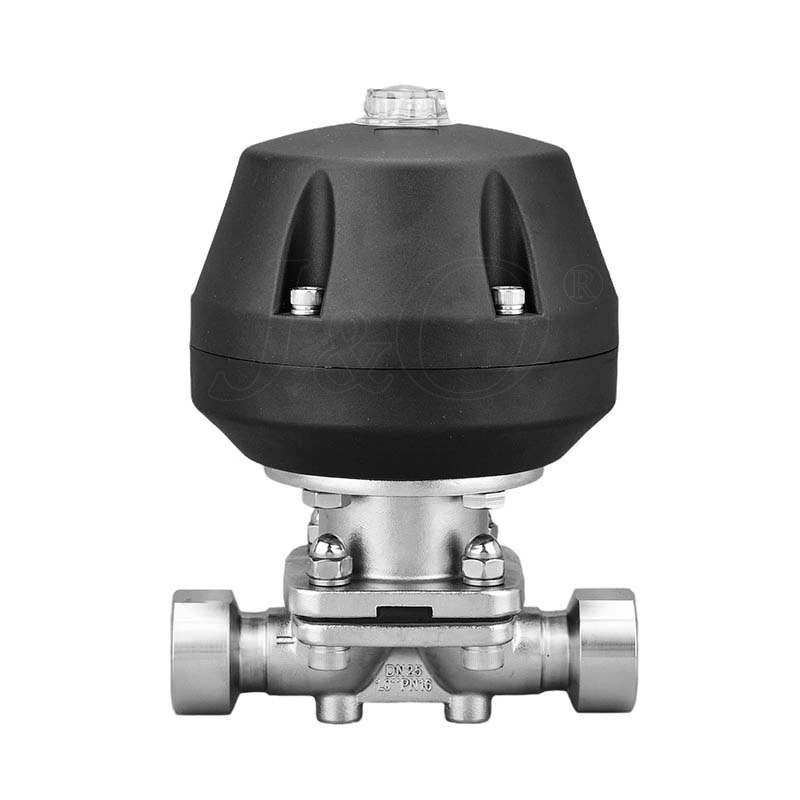

Reliable product acceptance depends on more than the physical condition of a sanitary diaphragm valve. Technical drawings, manufacturing records, material certificates, revision histories, and delivery documents must describe the same approved product configuration. Consistent document control connects purchasing requirements with manufacturing evidence and final inspection, reducing discrepancies between ordered equipment and delivered products.
Technical Document Management Throughout the Supply Process
Technical documents serve different purposes during purchasing, manufacturing, inspection, and delivery. A product drawing defines the approved construction, while manufacturing records establish which configuration was actually produced. Inspection documents then connect the finished equipment with the requirements established before production.
For a sanitary diaphragm valve, these records should remain identifiable throughout the supply process. Documents belonging to different models, production batches, or drawing revisions should not be combined into one acceptance package without checking their applicability.
Main Document Categories
-
Purchasing documents: Establish the ordered model, quantity, configuration, and agreed requirements.
-
Approved drawings: Identify the authorized product construction and revision.
-
Manufacturing records: Connect production activities with the relevant product identification.
-
Material certificates: Provide supporting evidence for specified component materials.
-
Inspection records: Document completed manufacturing and acceptance checks.
-
Change records: Identify approved modifications to the original configuration.
-
Delivery documents: Connect shipped products with their corresponding inspection and identification records.
Document management should maintain a clear relationship between these categories. A technically correct certificate can still become unsuitable for acceptance when its model identification, production reference, or applicable revision does not match the supplied equipment.
Documentation Review Matrix
| Document | Information to Verify | Acceptance Purpose |
|---|---|---|
| Product specification | Size, pressure and temperature | Configuration confirmation |
| Technical drawing | Dimensions and connections | Design conformity |
| Material certificate | Body material and grade | Material identification |
| Diaphragm declaration | Composition and formulation | Component conformity |
| Actuator specification | Operating arrangement | Drive compatibility |
| Inspection report | Measured results | Manufacturing verification |
| Pressure test report | Test conditions and results | Pressure integrity |
| Identification record | Model and traceability | Delivery verification |
Technical Drawing Revision Control
Drawing revision control prevents different departments from manufacturing, inspecting, or accepting products against conflicting technical references. Preliminary drawings, approved production drawings, and subsequently revised documents may contain different construction details, making revision identification necessary throughout the production process.
The approved drawing should remain the common reference for manufacturing and inspection. When a customer requests a modification, the revised document should identify the changed sections and receive the required authorization before the updated configuration enters production.
Drawing Revision Review Procedure
-
Identify the original drawing number and revision.
-
Confirm that the purchasing department uses the approved version.
-
Verify that manufacturing records reference the same revision.
-
Compare revised drawings with previously approved documents.
-
Identify changes affecting components or assembly arrangements.
-
Record the authorization associated with each modification.
-
Ensure that obsolete documents are excluded from active production references.
A 3 way sanitary diaphragm valve may involve several connected ports and a specific internal arrangement. Its approved drawing should therefore remain consistent across purchasing, manufacturing, inspection, and delivery rather than relying on an earlier general product illustration.

Manufacturing Records and Production Traceability
Production traceability connects the finished valve with the manufacturing information associated with its production batch. This relationship becomes particularly important when several product models or customized configurations are manufactured within the same production period.
Manufacturing records should identify the relevant production order, component references, assembly information, inspection status, and authorized deviations. These records provide a traceable history when questions arise concerning product identification or differences between ordered and delivered configurations.
Production Traceability Elements
-
Production order and corresponding product model.
-
Manufacturing batch or identification reference.
-
Component identification and approved substitutions.
-
Assembly records associated with the supplied configuration.
-
Inspection status and recorded nonconformities.
-
Authorized changes during manufacturing.
-
Final product identification and packaging reference.
Traceability should extend from individual products to their associated manufacturing records. Where several valves share the same nominal size, model identification and batch references help distinguish products that may have different materials, connection arrangements, or customer-specific configurations.
Material Certificates and Document Authenticity
Material certificates should be evaluated according to their issuing source, identification details, and relationship with the supplied components. The presence of a certificate alone does not establish that the material described in the document was actually used in the delivered valve.
For stainless steel bodies and other wetted components, the certificate reference should correspond with the relevant material designation and production identification. Diaphragm declarations should also identify the applicable formulation or component reference rather than relying on a generic statement covering an entire product family.
Certificate Verification Points
-
Check the issuing organization and document identification.
-
Confirm that the material designation matches the approved requirement.
-
Compare the certificate reference with the production record.
-
Verify that the document applies to the supplied component.
-
Review whether the certificate contains the required identification information.
-
Record missing or inconsistent supporting documents.
-
Request clarification when the document cannot be connected with the delivered product.
A point of use valve may be supplied as part of a larger equipment package, where several components share similar material descriptions. Its supporting records should clearly distinguish the actual valve assembly and its relevant wetted components from adjoining equipment.
Document Consistency Across Product Configurations
Product configuration consistency requires purchasing documents, drawings, manufacturing records, and inspection results to describe the same equipment. Differences between these records can create uncertainty even when the physical product appears similar to the ordered model.
The review should focus on identifying conflicting descriptions rather than repeating every technical parameter. Product names, model references, connection arrangements, component designations, and revision numbers should remain consistent throughout the document package.
Common Documentation Discrepancies
-
Product model differs between the purchase order and inspection report.
-
Drawing revision does not match the approved production version.
-
Material certificate references an unrelated component.
-
Diaphragm identification differs from the manufacturing record.
-
Actuator configuration is inconsistent with the approved order.
-
Inspection documents refer to another production batch.
-
Delivery labels do not match the final product identification.
These discrepancies should be investigated before final acceptance. A difference may originate from an authorized modification, an administrative error, or an actual manufacturing deviation, and each situation requires a documented resolution.
Change Management and Customer Authorization
Changes to an approved product configuration should follow a controlled authorization process. Material substitutions, connection modifications, component replacements, and customized arrangements can affect the relationship between the original order and the finished equipment.
The change record should identify the original requirement, proposed modification, reason for the change, and approval status. Manufacturing should not treat an informal communication or an unconfirmed drawing as authorization to alter the approved configuration.
Controlled Change Procedure
-
Record the original requirement and affected product.
-
Describe the proposed modification.
-
Identify documents and components affected by the change.
-
Obtain the required technical and customer approval.
-
Issue the revised document with a new revision reference.
-
Update manufacturing and inspection records.
-
Retain the previous approval history for traceability.
For customized sanitary valve assemblies, this process prevents unauthorized differences from being introduced during production. It also establishes a documented reference when subsequent orders require the same configuration or an approved modification.

Nonconformity Identification and Corrective Records
A nonconformity occurs when the delivered product or its supporting documentation does not satisfy an approved requirement. The discrepancy may involve incorrect identification, missing certificates, conflicting drawings, unauthorized substitutions, or incomplete inspection records.
Each nonconformity should be recorded with enough information to identify the affected product and the requirement that remains unresolved. Corrective action should address the actual discrepancy rather than simply replacing or editing a document without establishing why the inconsistency occurred.
Nonconformity Management Steps
-
Identify the affected model, batch, or component.
-
Record the original purchasing or drawing requirement.
-
Describe the observed discrepancy.
-
Determine whether the issue concerns documentation or physical conformity.
-
Request supporting evidence or an approved correction.
-
Record the responsible authorization.
-
Verify that the corrected record matches the delivered product.
-
Close the issue only after the required evidence is available.
This approach separates administrative inconsistencies from actual product deviations. It also prevents unresolved documentation issues from being transferred into the final delivery package.
Acceptance Requirements for Different Installation Configurations
Different installation arrangements may require different supporting documents because their external connections and equipment interfaces are not necessarily identical. A standard pipeline valve, a three-way configuration, and a compact installation can therefore require different drawing references and identification details. A 3 way sanitary diaphragm valve should have its port identification and approved configuration clearly documented, ensuring that the supplied arrangement corresponds with its intended process connections.
A point of use valve may require additional installation drawings showing its position within the local equipment arrangement, particularly when limited space or adjoining components affect installation. The acceptance process should use documentation applicable to the actual configuration rather than applying one generic checklist to every model, maintaining consistency when several valve arrangements are supplied under one purchasing agreement.
Final Delivery Acceptance Matrix
| Acceptance Category | Required Document or Record | Review Objective |
|---|---|---|
| Product identity | Product identification and packing list | Model consistency |
| Approved configuration | Final technical drawing | Revision confirmation |
| Material traceability | Applicable material certificates | Component identification |
| Manufacturing history | Production records | Batch traceability |
| Authorized changes | Approved change records | Modification authorization |
| Inspection completion | Final inspection report | Acceptance status |
| Pressure verification | Applicable test report | Recorded test conformity |
| Compliance evidence | Relevant declarations | Document applicability |
| Shipment information | Delivery documentation | Order reconciliation |
Final Delivery Documentation and Acceptance
The final document package should connect each delivered valve with its approved purchasing reference, manufacturing history, and completed inspection records. Documents should be organized according to product identification so that the receiving party can establish which records belong to each supplied model or production batch.
The receiving process should compare the delivered products with the approved purchasing information and accompanying records. Missing certificates, inconsistent identification, or unresolved deviations should be placed under review before the equipment receives final acceptance.
Frequently Asked Questions
What documents should be checked before accepting a sanitary diaphragm valve?
The main documents include the approved product drawing, material certificates, manufacturing records, inspection reports, change approvals, and delivery identification. Each record should correspond with the supplied model and production reference.
Why is drawing revision control necessary?
Revision control prevents manufacturing and inspection activities from using different technical references. It also establishes which product configuration was authorized for production and delivery.
How can material certificates be connected with a delivered valve?
Material certificates should contain identifiable references that can be compared with the production records and supplied component information. Generic certificates without an identifiable relationship to the product require further verification.
What should happen when a delivered product differs from its approved drawing?
The discrepancy should be recorded and reviewed against the original purchasing requirement. Acceptance should remain on hold until the difference is explained, supported by evidence, and authorized where necessary.
What additional documents may be required for a 3 way sanitary diaphragm valve?
The documentation should clearly identify its port arrangement, approved configuration, connection references, and corresponding inspection records. These details distinguish the supplied model from other valve configurations.
Why are production batch records important?
Batch records connect individual products with their manufacturing and inspection history. They also support investigations when component identification, production changes, or delivery discrepancies arise.
What should be checked when verifying a point of use valve?
Its product identification, installation drawing, connection arrangement, and supporting manufacturing records should correspond with the intended local equipment configuration.
Can an updated certificate replace an incorrect manufacturing record?
Not automatically. The updated certificate must be verified against the actual component and production history. Any inconsistency between records should be resolved rather than concealed through document replacement.
What information should appear in a product change record?
A change record should identify the original requirement, affected product, proposed modification, reason for the change, approval reference, and updated document revision.
When is a sanitary diaphragm valve ready for final acceptance?
Final acceptance is appropriate when the delivered product matches the approved configuration, required inspection records are complete, applicable supporting documents are available, and unresolved discrepancies have been addressed.
