Sanitary 180 Degree Elbow Weld

Our Sanitary Stainless Steel Pipe Fittings including Sanitary 45 Degree Short Elbow, Hygienic 45 Degree Long Elbow, Sanitary 90 Degree Elbow, Sanitary 180 Degree Elbow, Hygienic Tee, Stainless Steel Cross, Sanitary Reducer.

Brand:
J&O
Material:
SS304 / SS316L
Connection:
Weld

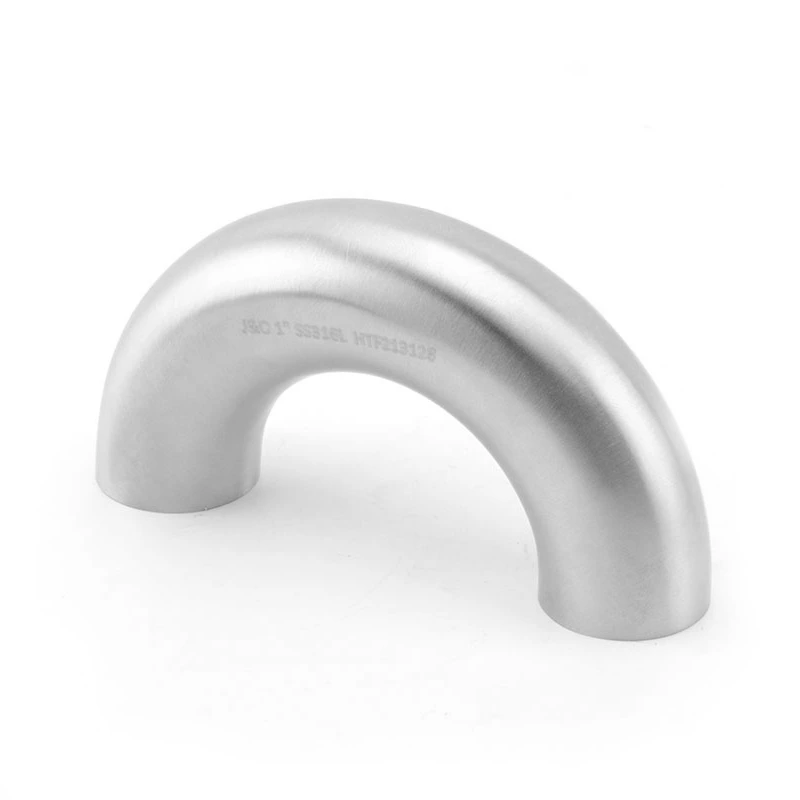

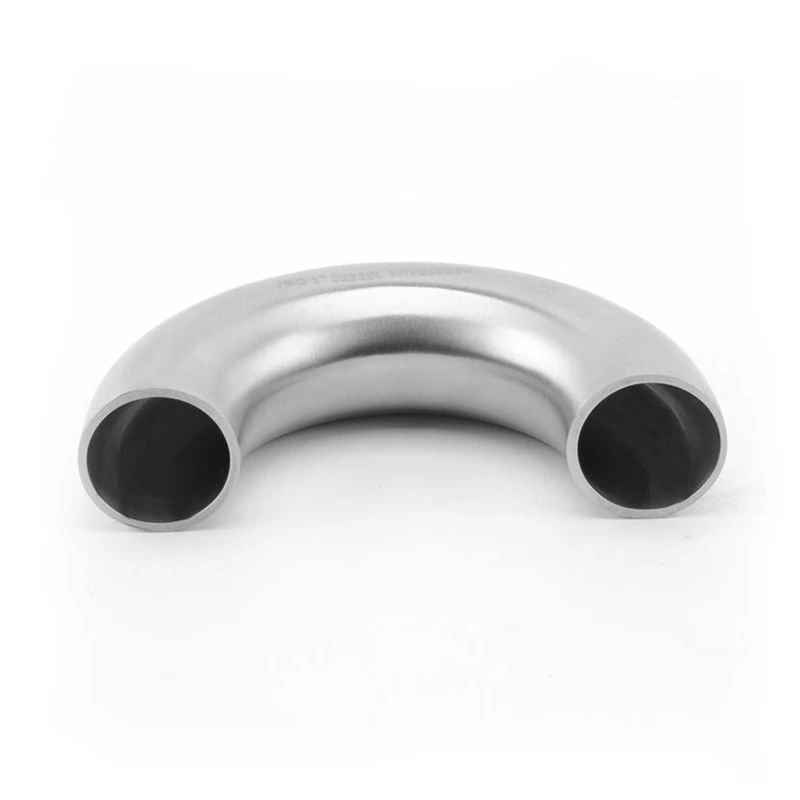

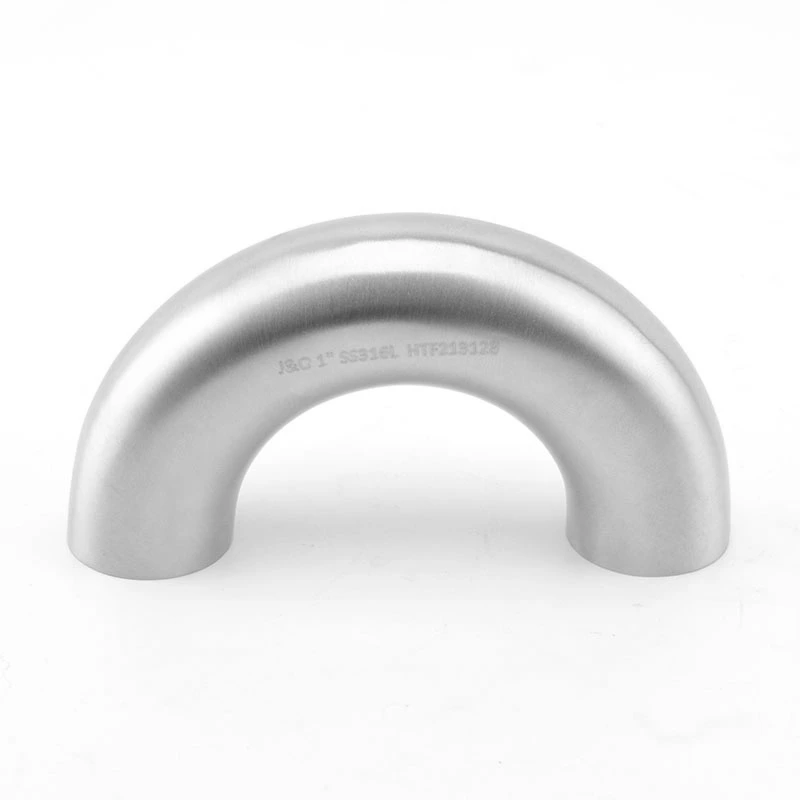

Sanitary Stainless Steel 180 Degree Welded U Type Elbow

  • Our Sanitary Stainless Steel Elbow including Sanitary 45 Degree Elbow, Hygienic 90 Degree Bend, Sanitary 180 Degree Elbow.

  • It is applied to the stainless steel pipeline system,which is used for milk,food,juice,beer,phramcy,ec.

  • Each kind of products has strong corrosion resistance and over-long service liftime.

  • Tank accessories are easy to be installed.

  • Problem-free welding and assembly and highest possible strenghth.

  • Welding Requirements:aware of the constantly increasing demands for quality of welding. In accordance with these demands, all our weld and fittings meet the hightest of standard. The reducers have cylindrical welding ends and are avaible for all tube combiations, ensuring you that the right diamter and wall thickness for your process.

Technical Data

Material: AISI304,   AISI316L
Size: 1/2''-4''
Finish: mirror   polish, Matt finishing
Connection: weld
Standard: 3A/DIN/SMS/ISO/IDF
Certificate: CE,   ISO9001/2008, 3A
Application scope: Dairy,   food, beer, beverage, pharmacy, cosmetic, etc
Packaging Details: Shrink   wrapped - carton - pallet . Or as per the request of customers
Delivery details: Usually   within 20 days after receiving T/T down payment

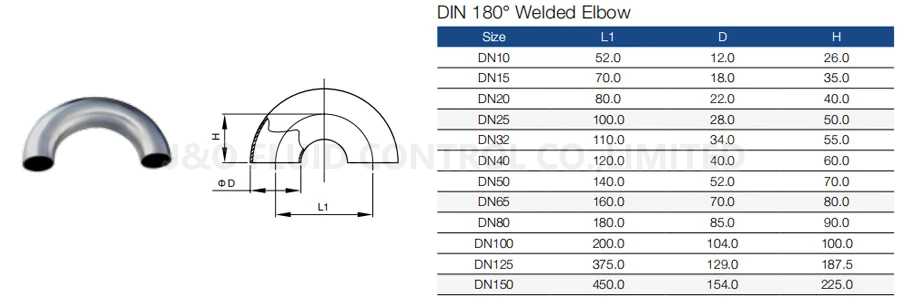

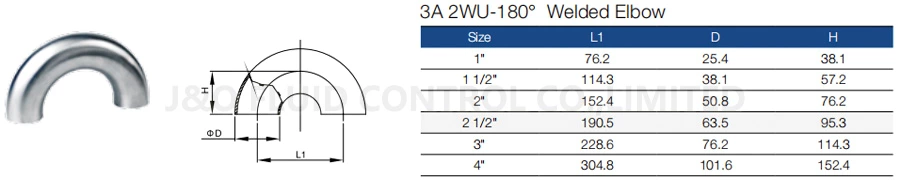

Product Parameter

Sanitary 180 Degree Elbow WeldSanitary 180 Degree Elbow Weld

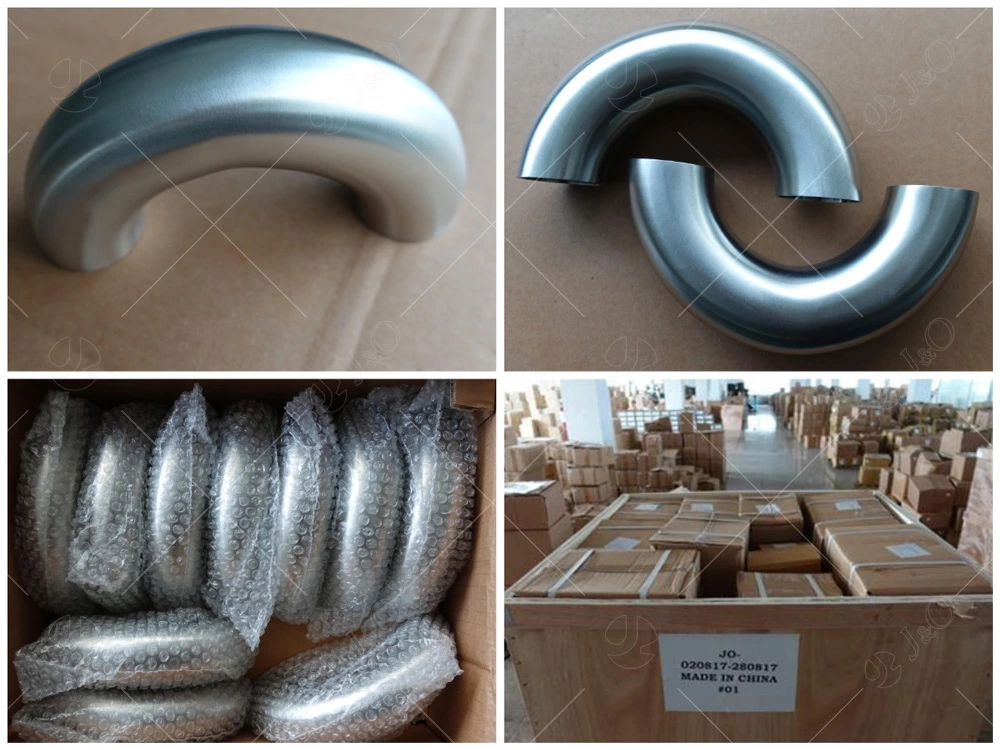

Product Pictures

Sanitary 180 Degree Elbow Weld
