Sanitary 90 Degree Elbow Clamp
Our Sanitary Stainless Steel Pipe Fittings including Sanitary 45 Degree Short Elbow, Hygienic 45 Degree Long Elbow, Sanitary 90 Degree Elbow, Sanitary 180 Degree Elbow, Hygienic Tee, Stainless Steel Cross, Sanitary Reducer.
- Brand:
- J&O
- Material:
- SS304 / SS316L
- Connection:
- Clamped
- Code:
- JOF-3AEBH90-22
Sanitary Stainless Steel 90 Degree Clamp Elbow
-
For Sanitary 90 Degree Elbow, we can supply Sanitary 90 Degree Butt Weld Short Elbow, Stainless Steel Long Type 90 Degree Elbow, Hygienic Clamped 90 Degree Elbow. For the polish, we have Mirror Polishing and Matt Polishing.
-
It is applied to the stainless steel pipeline system,which is used for milk,food,juice,beer,phramcy,ec.
-
Each kind of products has strong corrosion resistance and over-long service liftime.
-
Tank accessories are easy to be installed.
-
Problem-free welding and assembly and highest possible strenghth.
-
Welding Requirements:aware of the constantly increasing demands for quality of welding. In accordance with these demands, all our weld and fittings meet the hightest of standard. The reducers have cylindrical welding ends and are avaible for all tube combiations, ensuring you that the right diamter and wall thickness for your process.
Technical Data
| Material: | AISI304, AISI316L |
| Size: | 1/2''-6'' |
| Finish: | mirror polish, stain finishing |
| Connection: | Clamp |
| Standard: | 3A/DIN/SMS/ISO/IDF |
| Certificate: | CE, ISO9001/2008, 3A |
| Application scope: | Dairy, food, beer, beverage, pharmacy, cosmetic, etc |
| Packaging Details: | Shrink wrapped - carton - pallet . Or as per the request of customers |
| Delivery details: | Usually within 20 days after receiving T/T down payment |

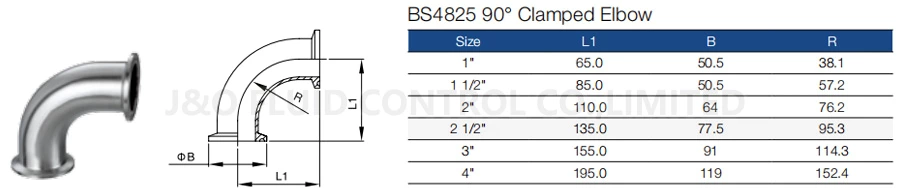

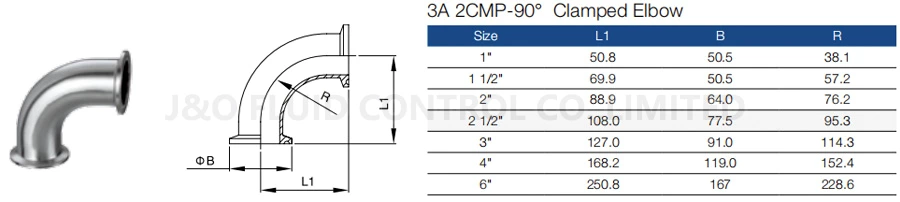

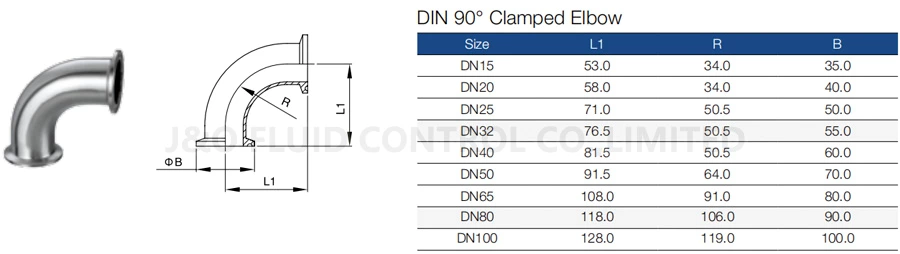

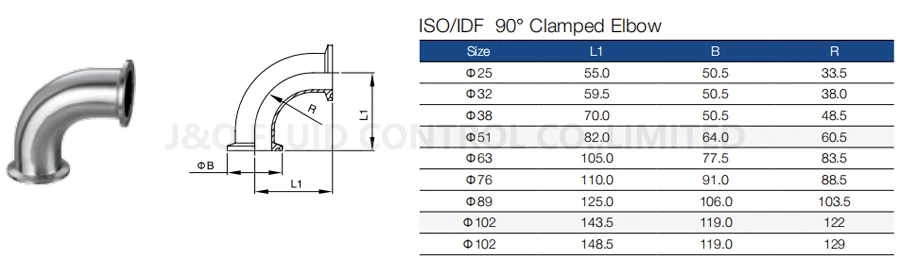

Product Parameter

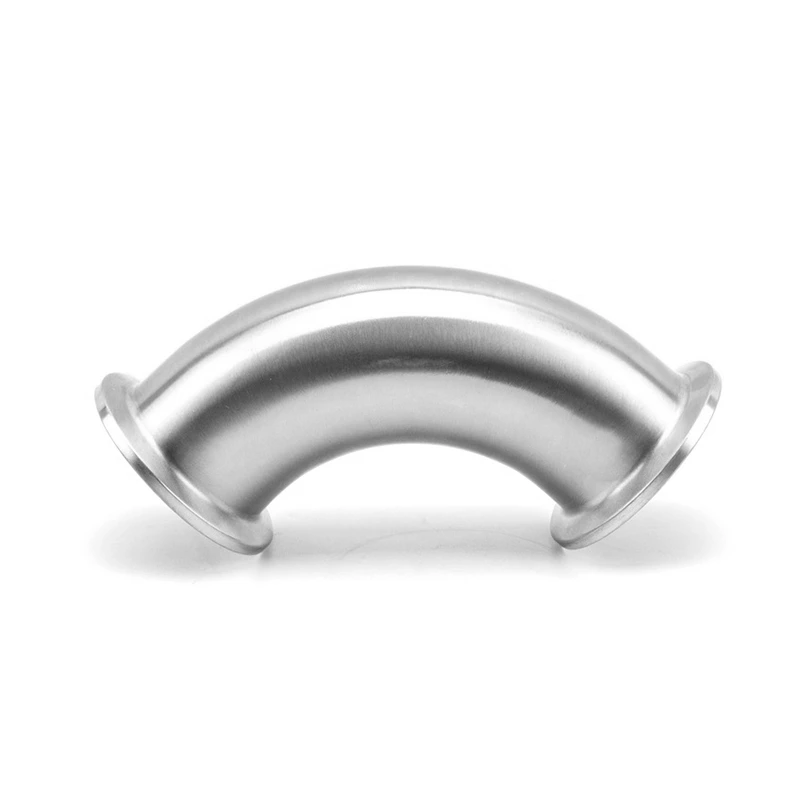

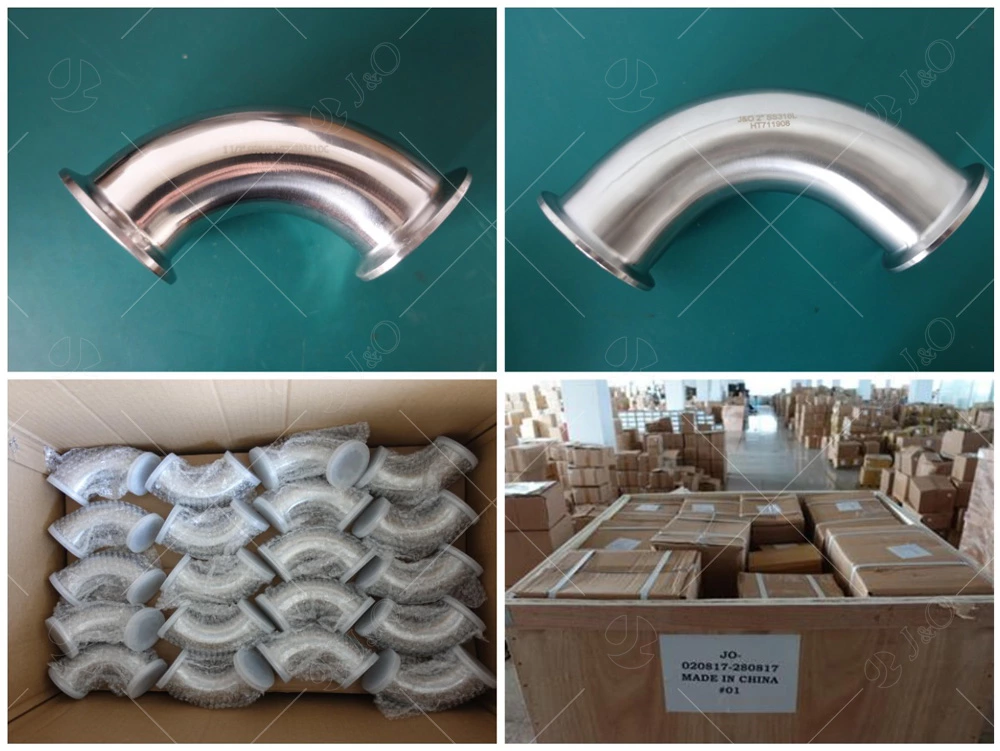

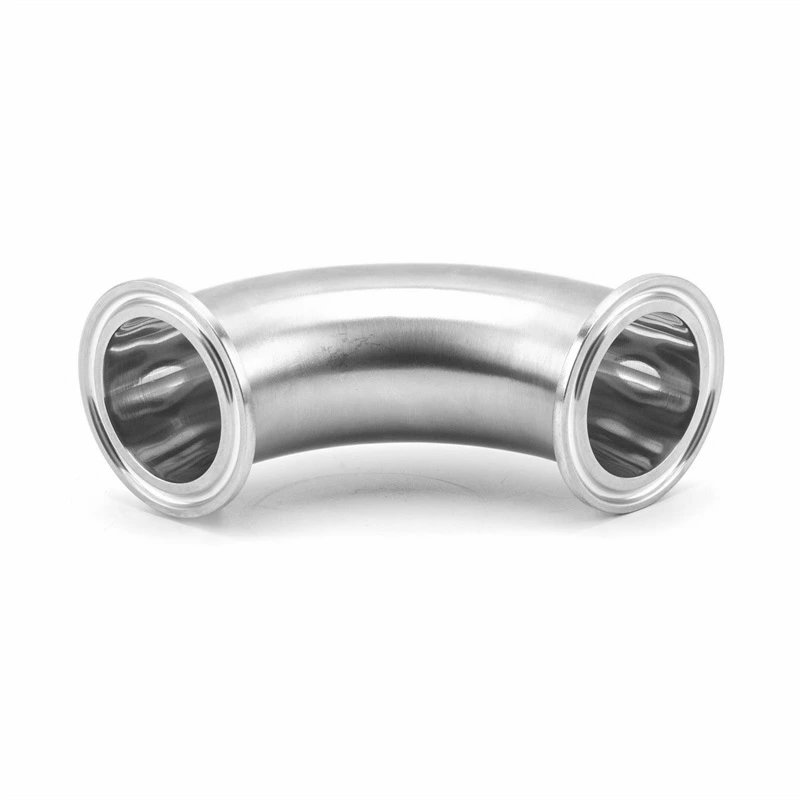

Product Pictures
