J&O Fluid Control Co., Limited.

Sanitary 90 Degree Elbow Welding Long

Our Sanitary Stainless Steel Pipe Fittings including Sanitary 45 Degree Short Elbow, Hygienic 45 Degree Long Elbow, Sanitary 90 Degree Elbow, Sanitary 180 Degree Elbow, Hygienic Tee, Stainless Steel Cross, Sanitary Reducer.

SS304 / SS316L

Sanitary Stainless Steel 90 Degree Welded Long Elbow

  • For Hygienic Stainless Steel 90 Degree Elbow, we can supply Sanitary 90 Degree Welding Short Elbow, Stainless Steel Long Type 90 Degree Elbow, Hygienic Clamped 90 Degree Elbow.

  • It is applied to the stainless steel pipeline system,which is used for milk,food,juice,beer,phramcy,ec.

  • Each kind of products has strong corrosion resistance and over-long service liftime.

  • Tank accessories are easy to be installed.

  • Problem-free welding and assembly and highest possible strenghth.

  • Welding Requirements:aware of the constantly increasing demands for quality of welding. In accordance with these demands, all our weld and fittings meet the hightest of standard. The reducers have cylindrical welding ends and are avaible for all tube combiations, ensuring you that the right diamter and wall thickness for your process.

Technical Data

Material: AISI304, AISI316L
Size: 12.7~152mm
Finish: mirror polish, stain finishing
Connection: weld ends
Standard: SMS
Certificate: CE, ISO9001/2008, 3A
Application scope: Dairy, food, beer, beverage, pharmacy, cosmetic, etc
Packaging Details: Shrink wrapped - carton - pallet . Or as per the request of customers
Delivery details: Usually within 20 days after receiving T/T down payment

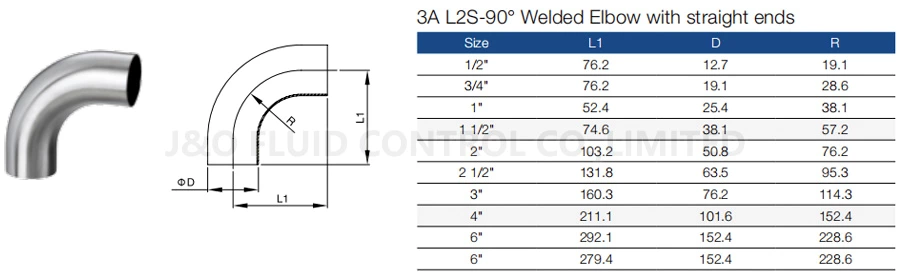

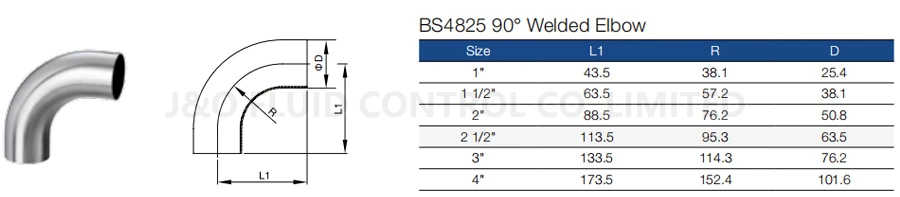

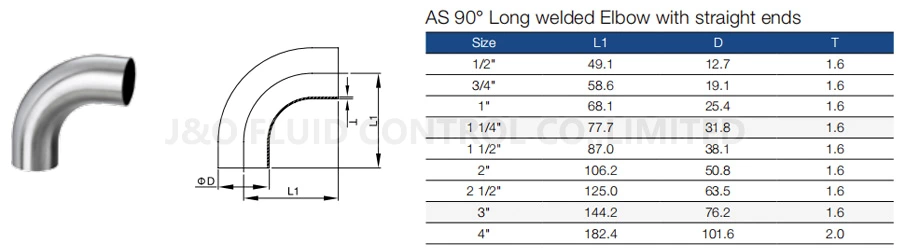

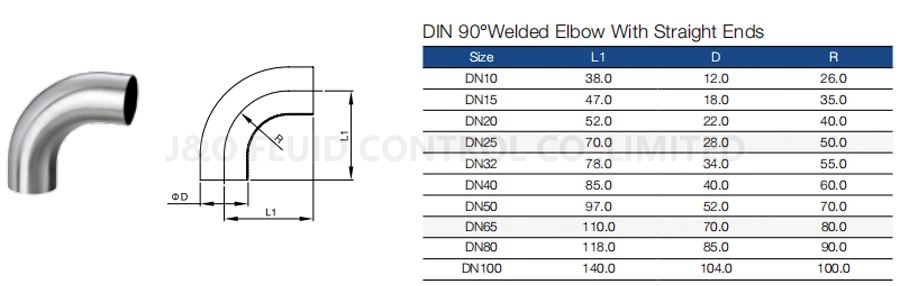

Product Parameter

Sanitary 90 Degree Elbow Welding LongSanitary 90 Degree Elbow Welding LongSanitary 90 Degree Elbow Welding LongSanitary 90 Degree Elbow Welding LongSanitary 90 Degree Elbow Welding Long

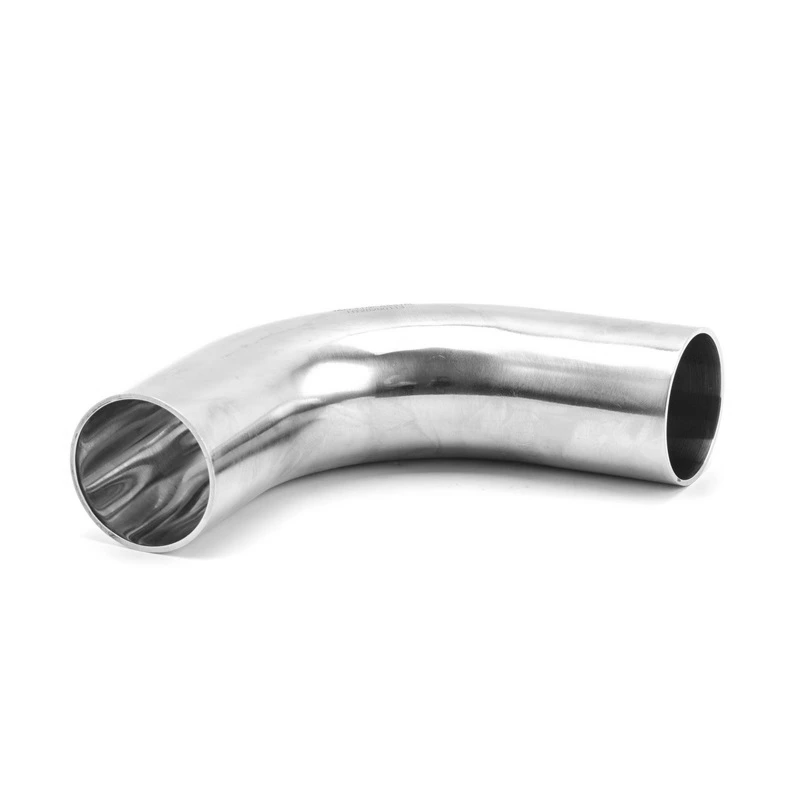

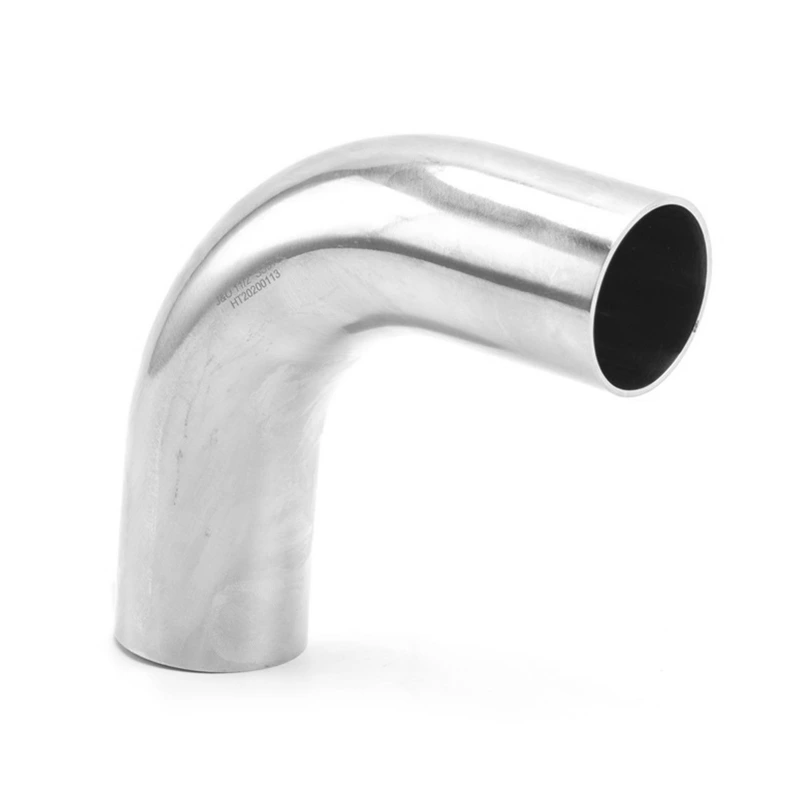

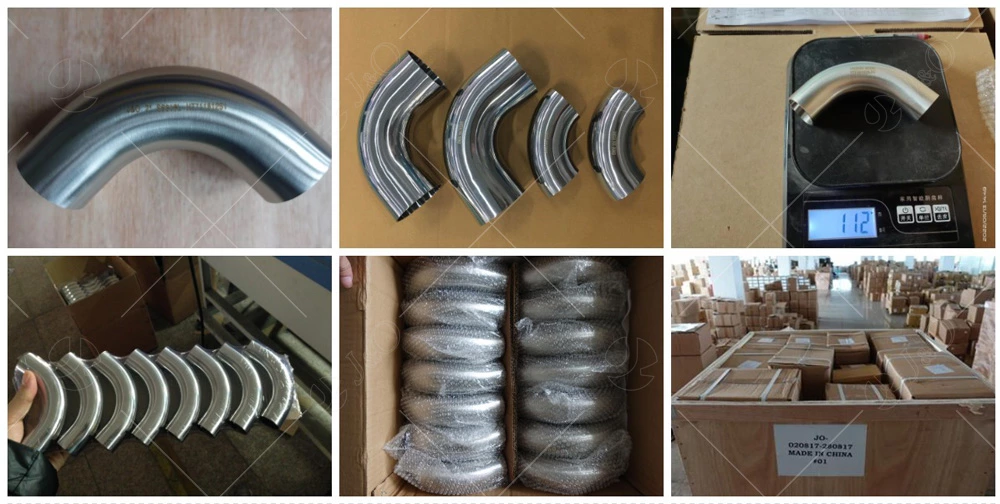

Product Pictures

Sanitary 90 Degree Elbow Welding Long
