China J&O Fluid Control Co., Limited


Sanitary 45 Degree Bend Weld Female

SS304 / SS316L
Weld / Femal Thread

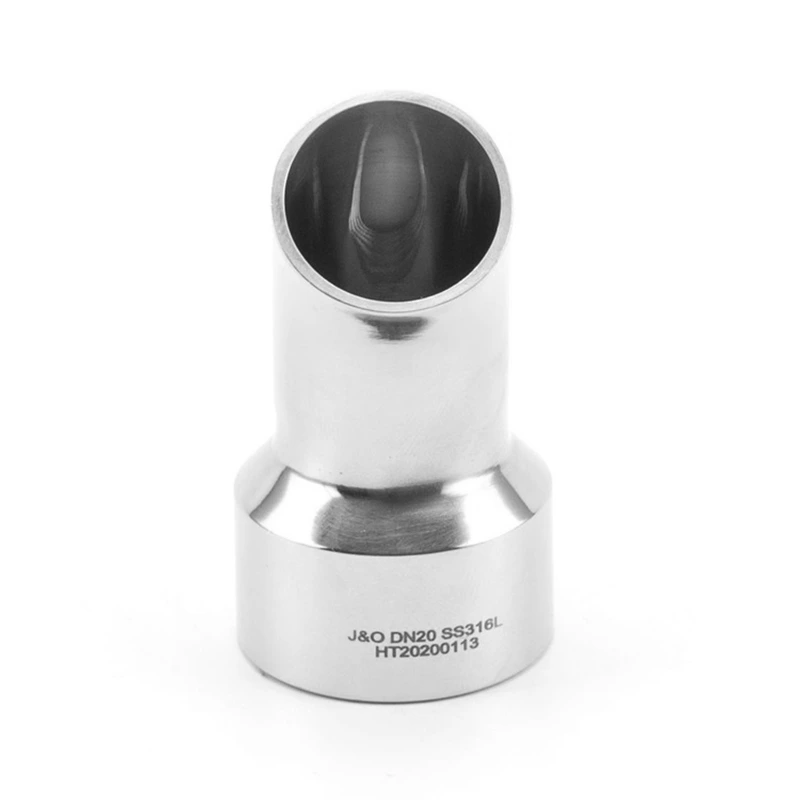

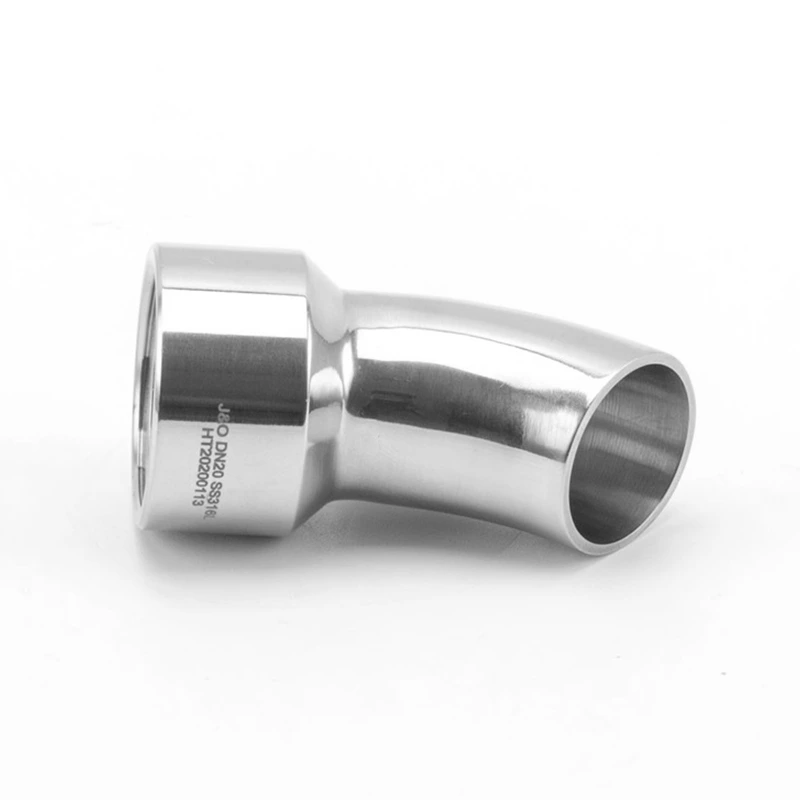

Sanitary Stainless Steel 45 Degree Welded Femal Elbow

  • Our Sanitary Stainless Steel Pipe Fittings including Sanitary 45 Degree Short Elbow, Hygienic 45 Degree Long Elbow, Sanitary 90 Degree Elbow, Sanitary 180 Degree Elbow, Hygienic Tee, Stainless Steel Cross, Sanitary Reducer...

  • It is applied to the stainless steel pipeline system,which is used for milk,food,juice,beer,phramcy,ec.

  • Each kind of products has strong corrosion resistance and over-long service liftime.

  • Tank accessories are easy to be installed.

  • Problem-free welding and assembly and highest possible strenghth.

  • Welding Requirements:aware of the constantly increasing demands for quality of welding. In accordance with these demands, all our weld and fittings meet the hightest of standard. The reducers have cylindrical welding ends and are avaible for all tube combiations, ensuring you that the right diamter and wall thickness for your process.

Technical Data

Material: AISI304, AISI316L
Size: 1/2''-10''
Finish: Mirror Polish, Matte Polish
Connection: Weld / Femal Thread
Standard: 3A/DIN/SMS/ISO/IDF
Certificate: CE, ISO9001/2008, 3A
Application scope: Dairy, Food, Beer, Beverage, Pharmacy, Cosmetic, Etc
Packaging Details: Shrink wrapped - Carton - Pallet . Or As Per The Request Of Customers
Delivery details: Usually within 20 days after receiving T/T down payment

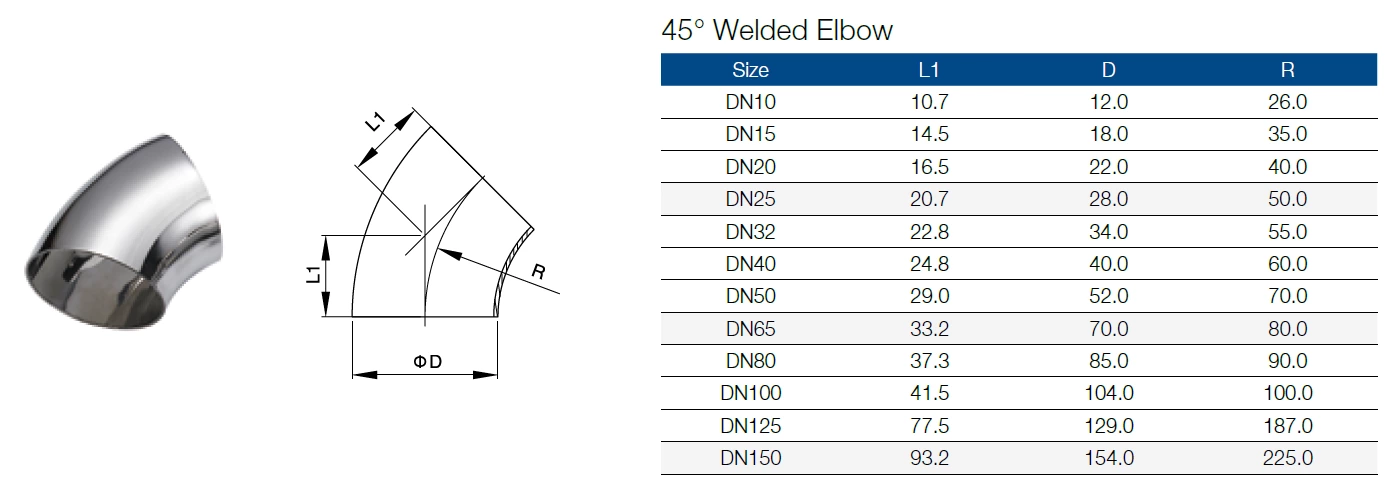

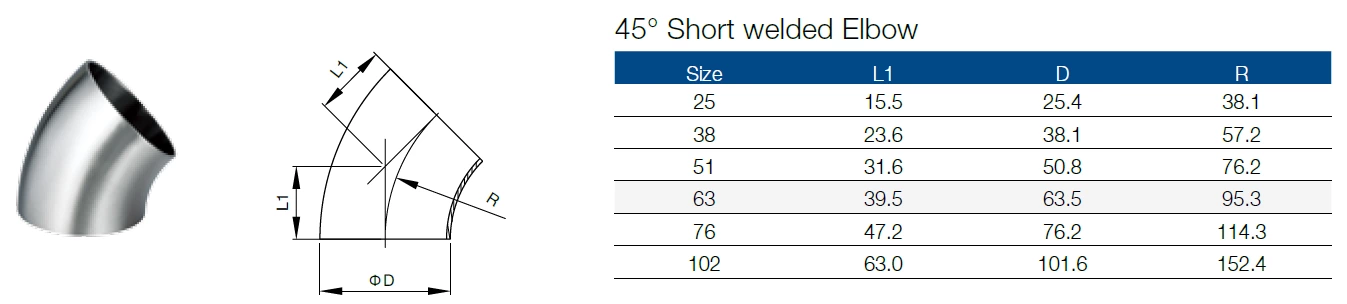

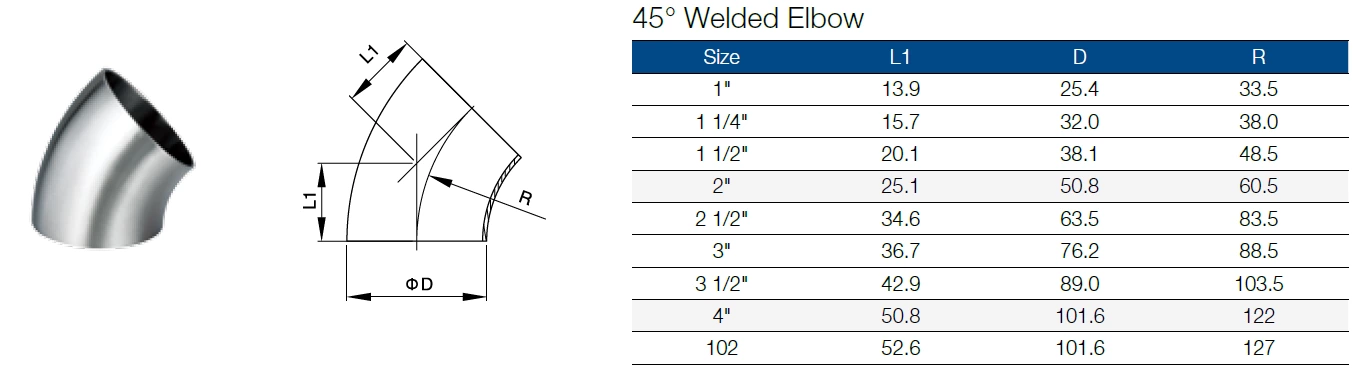

Product Parameter

Sanitary 45 Degree Bend Weld FemaleSanitary 45 Degree Bend Weld FemaleSanitary 45 Degree Bend Weld Female
