Hygienic Stainless Steel Clamped Type Manhole

Hygienic Stainless Steel Clamped Type Manhole The clamp type manhole, also known as the quick release manhole or powder manhole, is a feeding device used on the top of the powder tank. It is generally

Brand:
J&O
Material:
SS304/SS316L
Connection:
Weld
Gasket:
EPDM / Silicon / NBR / FKM
Code:
JOF-MHCLP02
Operation:
Manual

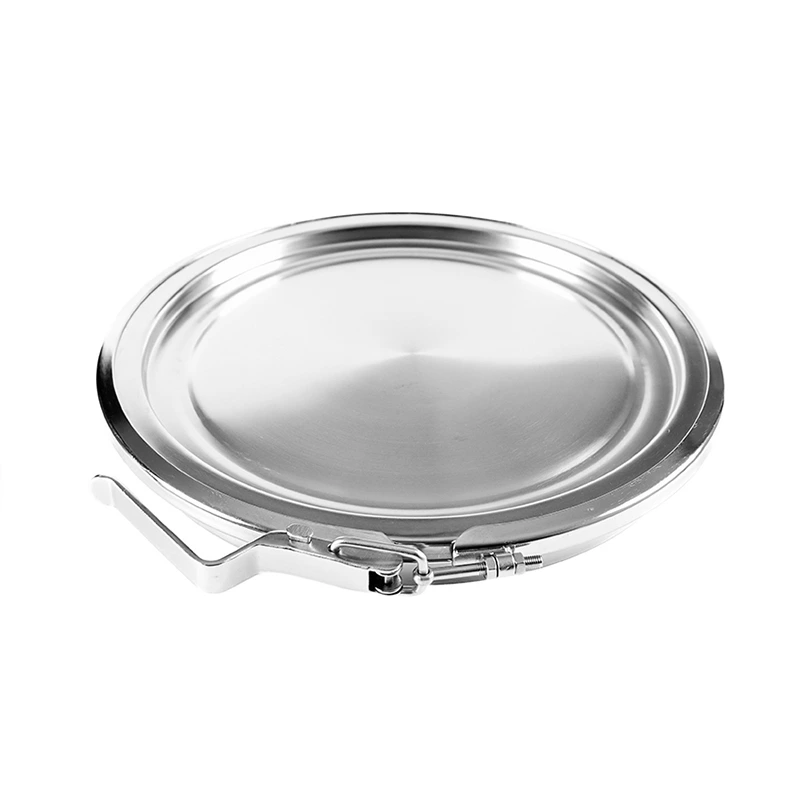

Hygienic Stainless Steel Clamped Type Manhole

  • The clamp type manhole, also known as the quick release manhole or powder manhole, is a feeding device used on the top of the powder tank.
  • It is generally used on pharmaceutical turnover powder silos and some lithium battery material turnover powder silo equipments.

Technical Data

Material: SS304 or SS316L
Size: 300mm-600mm
Height: 35mm
Thickness: 2.5-3mm
Handle Material : Stainless steel and plastic
Seal Material: Silicone, EPDM, Viton, NBR
Surface Finishing: Ra≤0.8
Working Temperature: -10 degree to +120 degree (EPDM)
Packing Details: Carton box,plywood case or customized

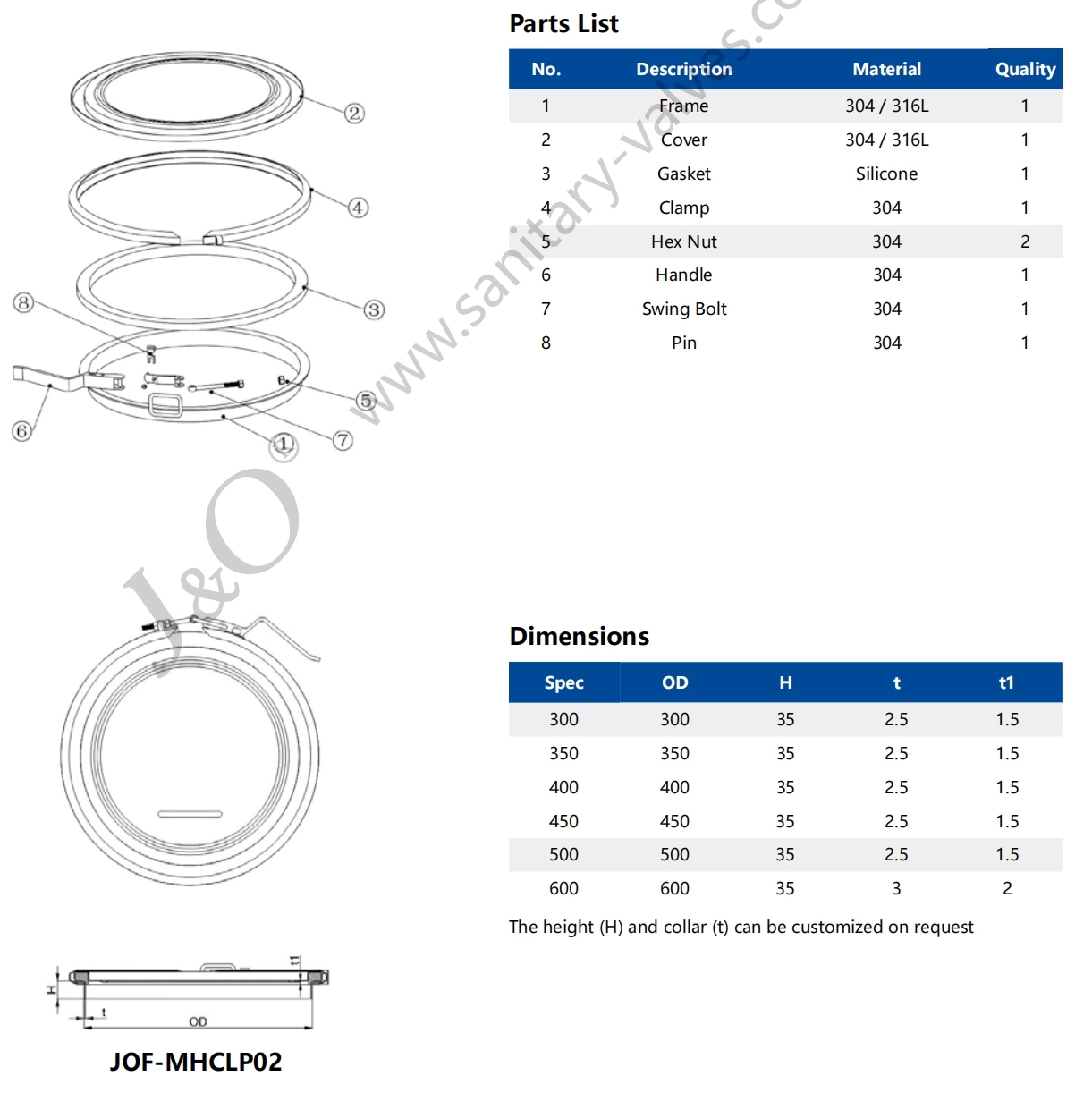

Product Parameter

Hygienic Stainless Steel Clamped Type Manhole
