Sanitary Stainless Steel Clamp Type Manhole
- Brand:
- J&O
- Material:
- SS304/SS316L
- Connection:
- Weld
- Gasket:
- EPDM / Silicon / NBR / FKM
- Code:
- JOF-MHCLP01
- Operation:
- Manual
- Payment:
- T/T, L/C, Western Union

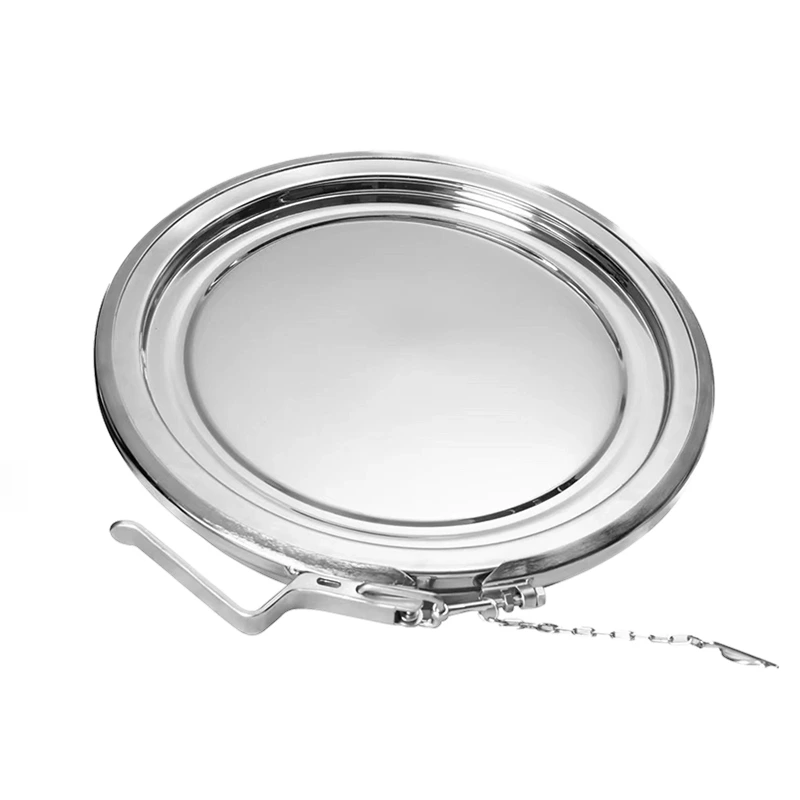

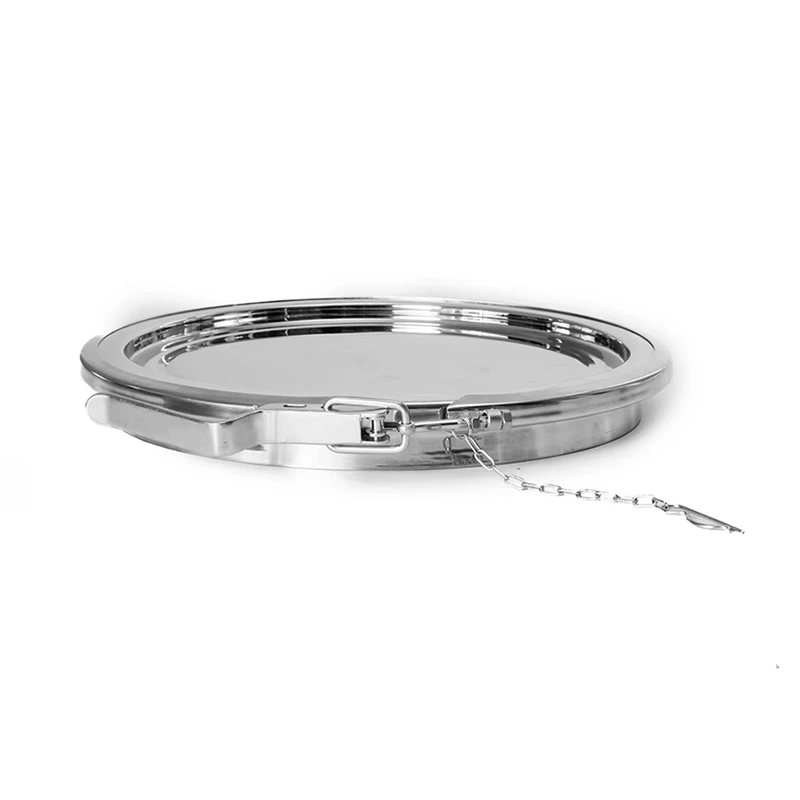

Sanitary Stainless Steel Clamp Type Manhole
- The clamp type manhole, also known as the quick release manhole or powder manhole, is a feeding device used on the top of the powder tank.
- It is generally used on pharmaceutical turnover powder silos and some lithium battery material turnover powder silo equipments.
Technical Data
| Material: | SS304 or SS316L |
| Size: | 300mm-600mm |
| Height: | 35mm |
| Thickness: | 2.5-3mm |
| Handle Material : | Stainless steel and plastic |
| Seal Material: | Silicone, EPDM, Viton, NBR |
| Surface Finishing: | Ra≤0.8 |
| Working Temperature: | -10 degree to +120 degree (EPDM) |
| Packing Details: | Carton box,plywood case or customized |

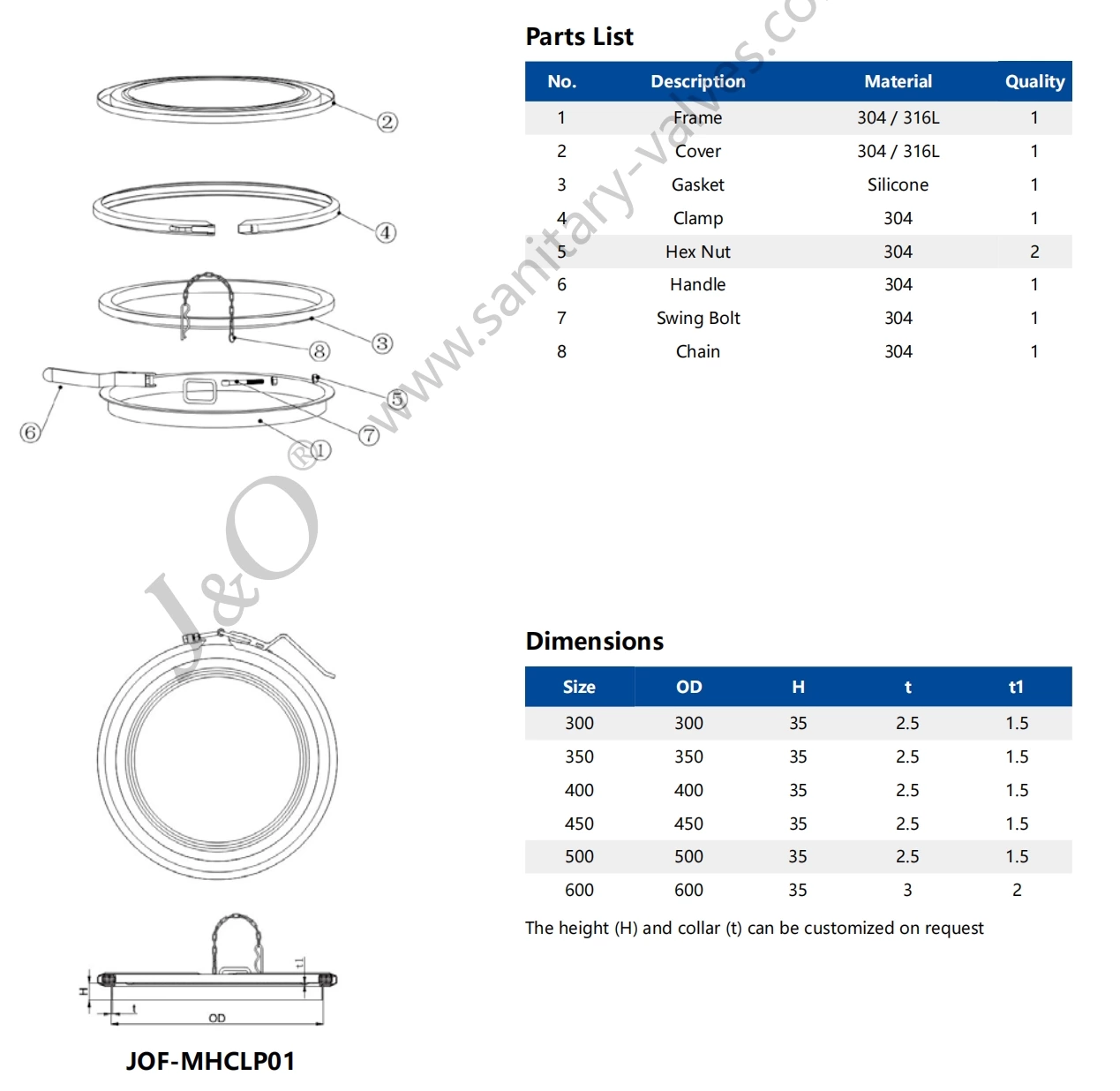

Product Parameter
