J&O Fluid Control Co., Limited.

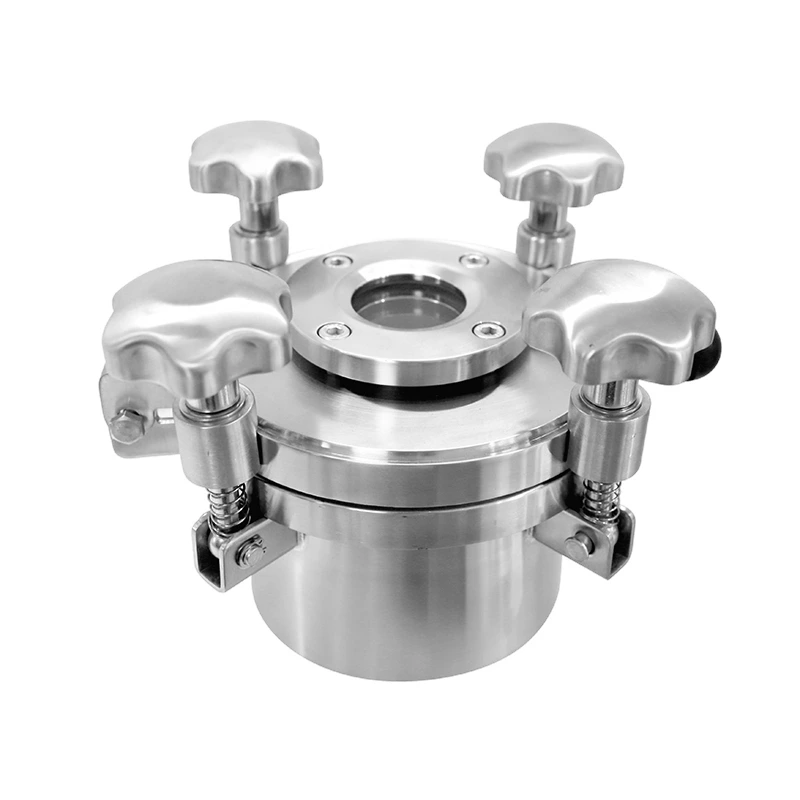

Sanitary Stainless Steel Pressure Handhole With Sight Glass

The pressure handhole can be used for the control water, gas, oil, and corrosive media in industries such as chemical, petroleum, plumbing, food, and pharmaceuticals.

Brand:
J&O
Material:
SS304/SS316L
Connection:
Weld
Gasket:
EPDM / Silicon / NBR / FKM
Code:
JOF-MHR006S

Sanitary Stainless Steel Pressure Handhole With Sight Glass

  • The pressure handhole can be used for the control water, gas, oil, and corrosive media in industries such as chemical, petroleum, plumbing, food, and pharmaceuticals.

Technical Data

Material: SS304 or SS316L
Size: 200mm-300mm
Height: 100mm
Thickness: 3mm
Handle Material : Stainless steel and plastic
Seal Material: Silicone, EPDM, Viton, NBR
Surface Finishing: Ra≤0.8
Working Temperature: -10 degree to +120 degree (EPDM)
Packing Details: Carton box,plywood case or customized

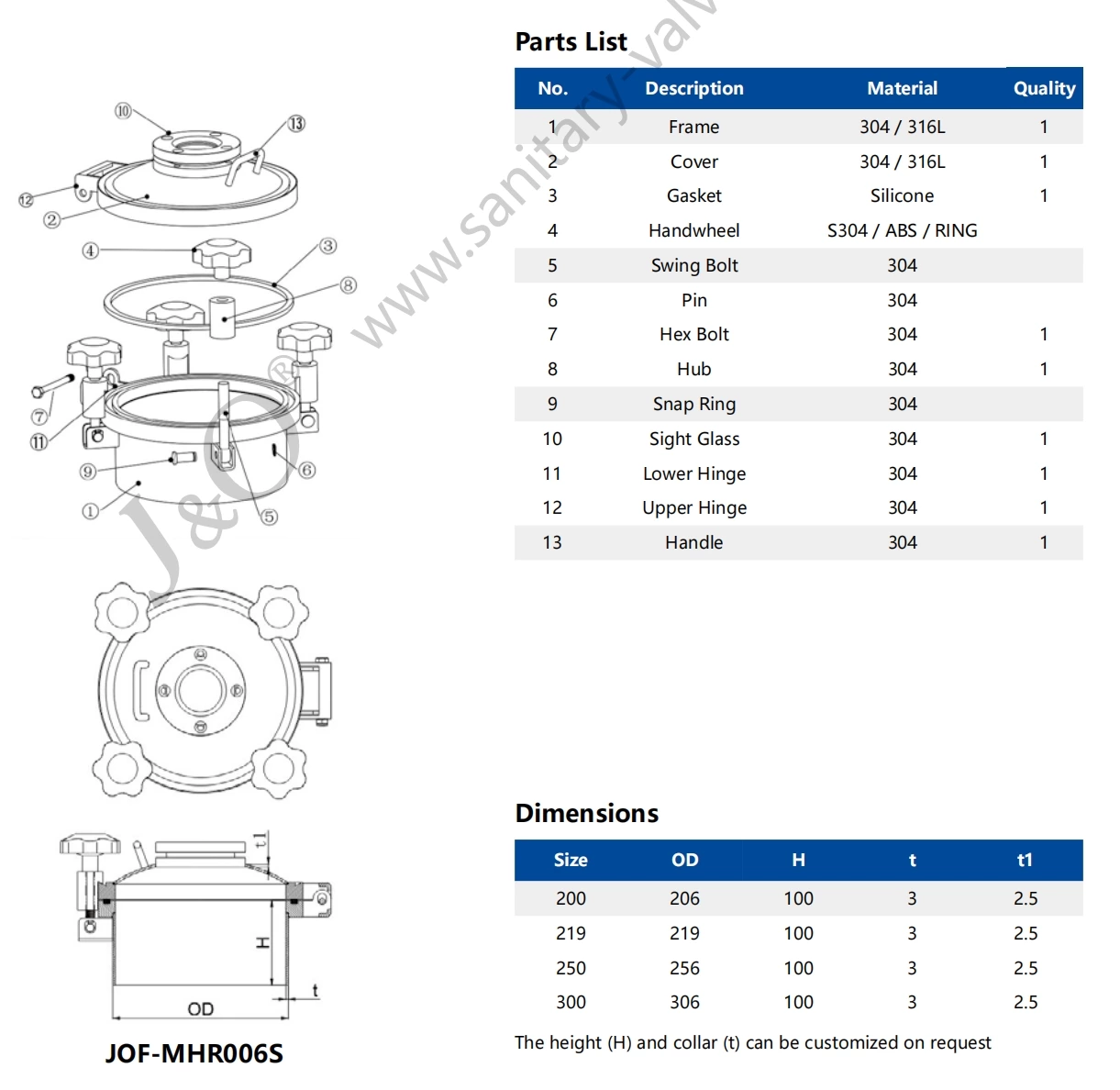

Product Parameter

Sanitary Stainless Steel Pressure Handhole With Sight Glass
