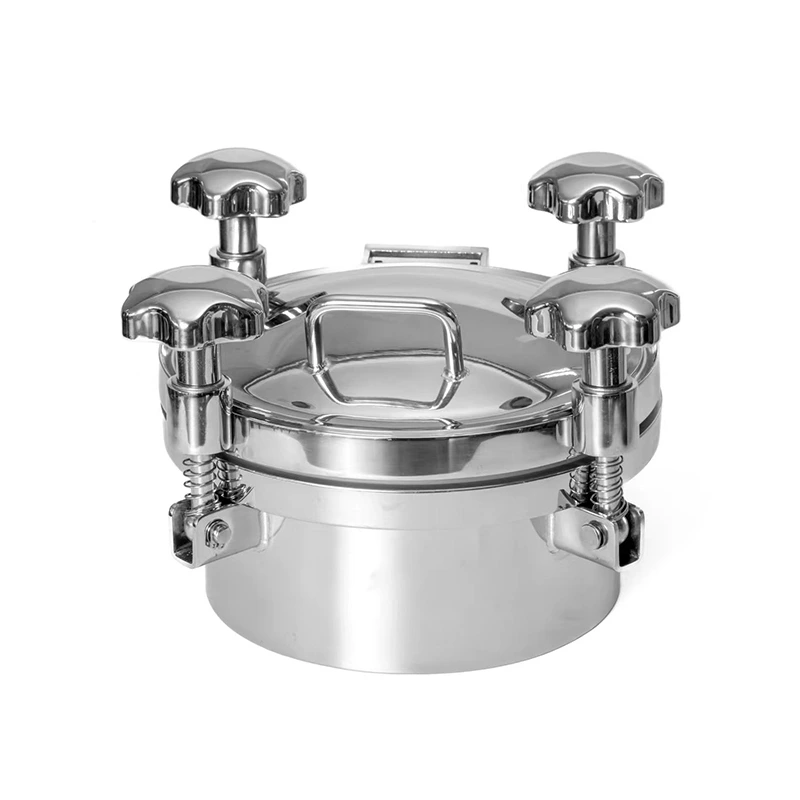

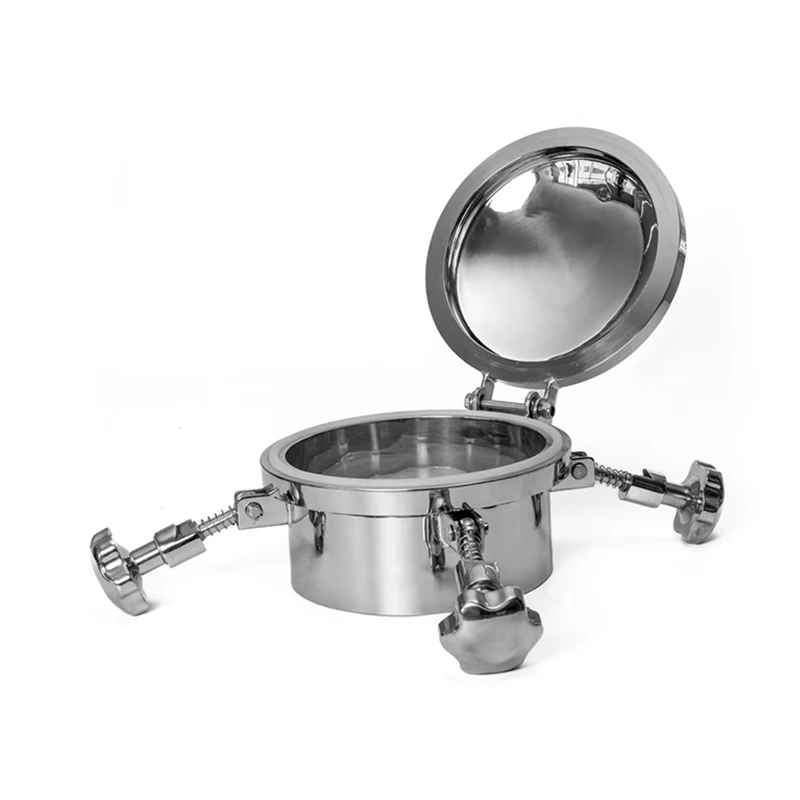

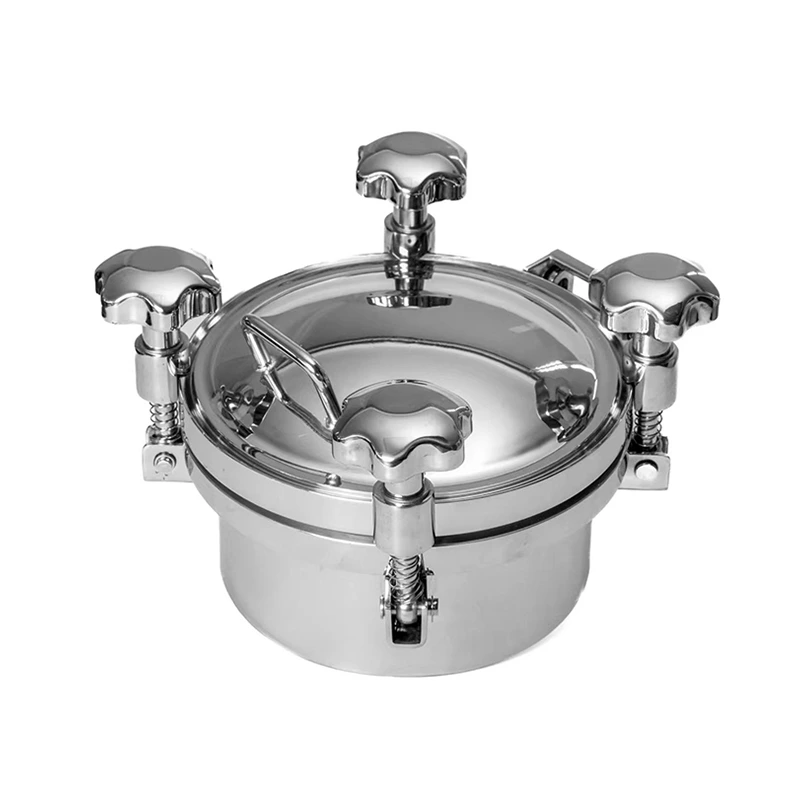

Sanitary Stainless Steel Pressure Handhole
- Brand:
- J&O
- Material:
- SS304/SS316L
- Connection:
- Weld
- Gasket:
- EPDM / Silicon / NBR / FKM
- Code:
- JOF-MHR003-02S
- Payment:
- T/T, L/C, Western Union
The pressure handhole can be used for the control water, gas, oil, and corrosive media in industries such as chemical, petroleum, plumbing, food, and pharmaceuticals.
Sanitary Stainless Steel Pressure Handhole
- The pressure handhole can be used for the control water, gas, oil, and corrosive media in industries such as chemical, petroleum, plumbing, food, and pharmaceuticals.
Technical Data
| Material: | SS304 or SS316L |
| Size: | 80mm-250mm |
| Height: | 100mm |
| Thickness: | 3mm |
| Handle Material : | Stainless steel and plastic |
| Seal Material: | Silicone, EPDM, Viton, NBR |
| Surface Finishing: | Ra≤0.8 |
| Working Temperature: | -10 degree to +120 degree (EPDM) |
| Packing Details: | Carton box,plywood case or customized |

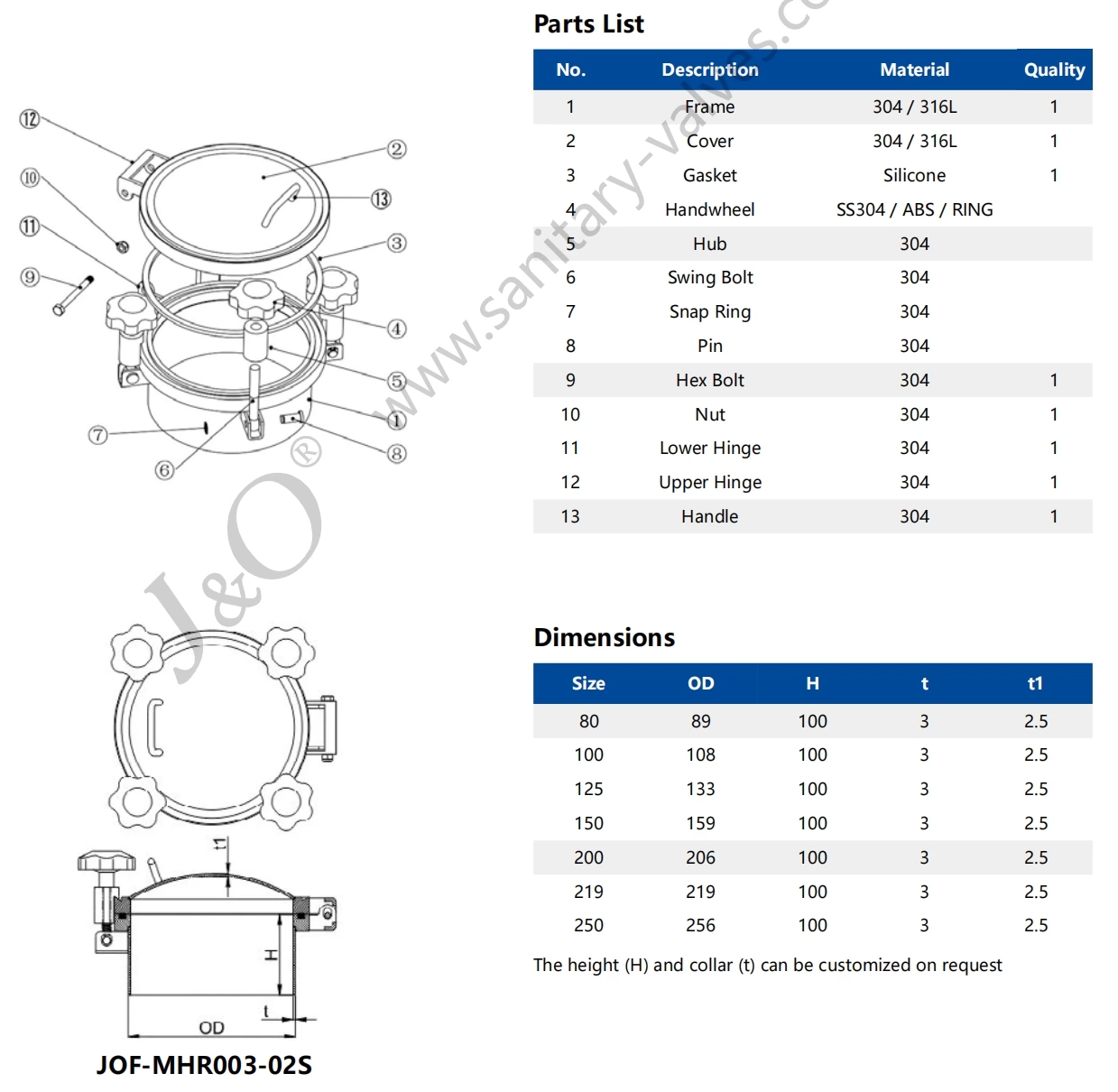

Product Parameter
