J&O Fluid Control Co., Limited.

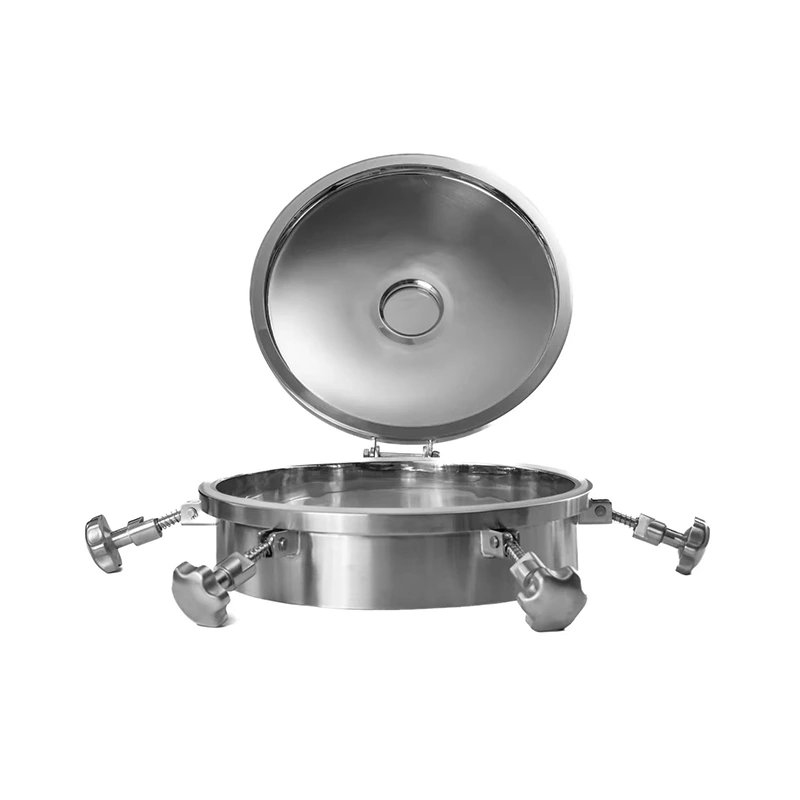

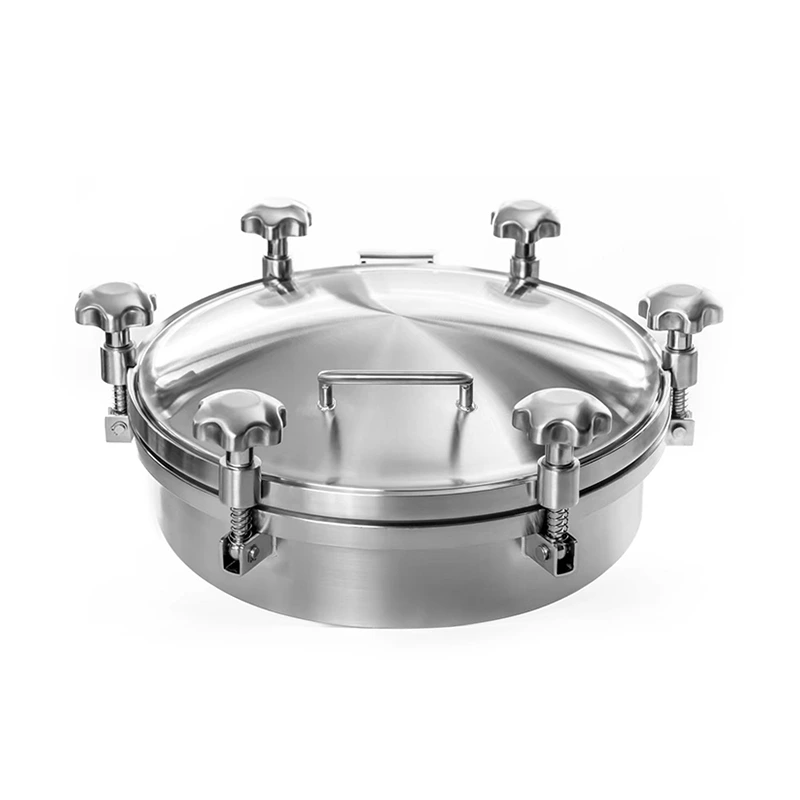

Hygienic Stainless Steel Round Pressure Manhole Cover

Applications: food tanks, pharmaceutical, chemical tanks, etc

Brand:
J&O
Material:
SS304/SS316L
Connection:
Weld
Gasket:
EPDM / Silicon / NBR / FKM
Code:
JOF-MHR003-02

Hygienic Stainless Steel Round Pressure Manhole Cover

  • Our Sanitary Stainless Steel Manhole including Hygienic Circular Manway Cover, Sanitary Oval Manhole, Hygienic Square Manhole, Sanitary Pressure Manway, Sanitary Stainless Steel Manhole with Sight Glass.
  • Manhole cover is mainly used for pressure vessel in the fields of food, beverage, chemical, etc.
  • All Stainless steel manhole cover are produced in both AISI 304L and AISI 316L stainless steel and can be supplied with the gasket in several different food grade materials (natural rubber, NBR, EPDM, silicone, viton & FEP/PFA-encapsulated).

Technical Data

Material: SS304 or SS316L
Size: 150mm-600mm
Height: 100mm
Thickness: 3mm
Handle Material : Stainless steel and plastic
Handle number: 4-8 pieces
Pressure Range: 0.1-0.3Mpa (higher pressure can be customized on request)
Seal Material: Silicone, EPDM, Viton, NBR
Surface Finishing: Ra≤0.8
Working Temperature: -10 degree to +120 degree (EPDM)
Packing Details: Carton box,plywood case or customized

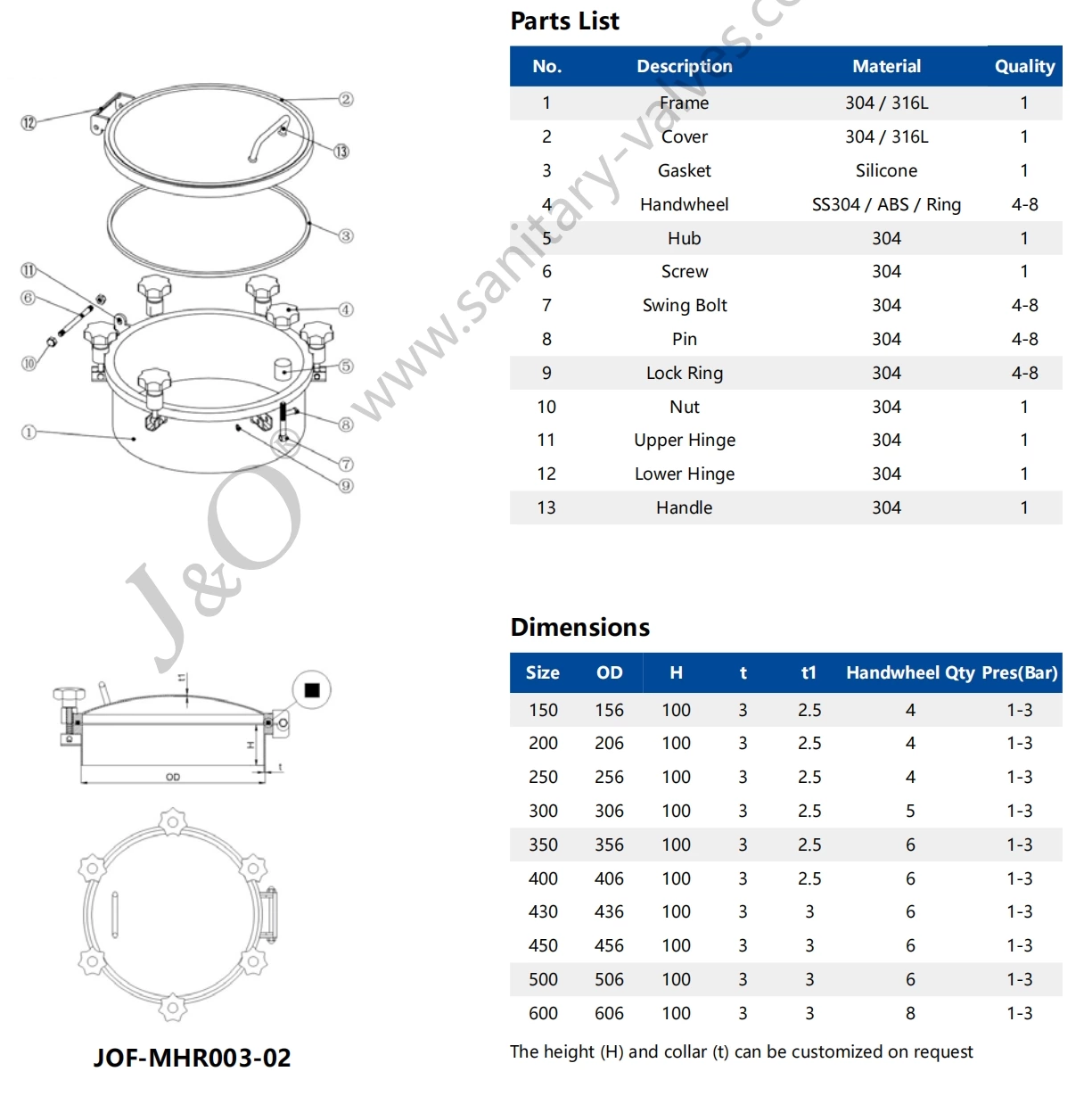

Product Parameter

Hygienic Stainless Steel Round Pressure Manhole Cover

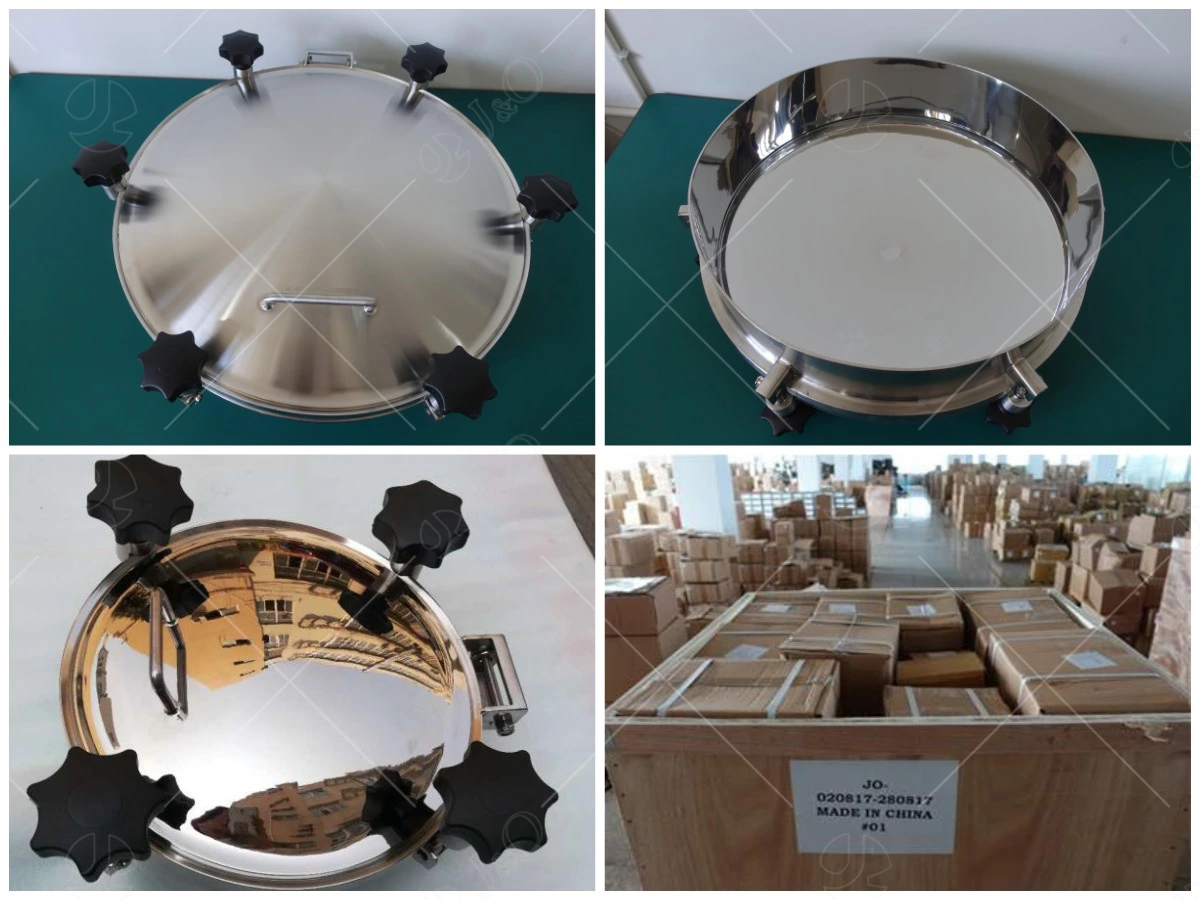

Product Pictures

Hygienic Stainless Steel Round Pressure Manhole Cover
