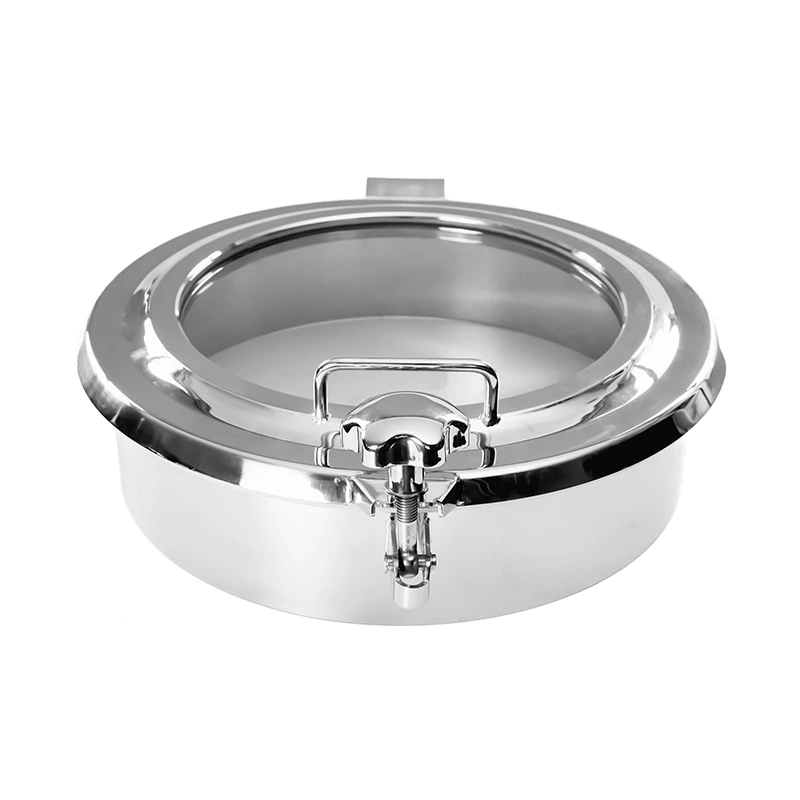

Hygienic Stainless Steel Round Manhole Cover With Sight Glass

It is generally installed on the top of the tank. It is the entrance and exit for production workers and maintenance workers when building, cleaning and pouring tanks.

Brand:
J&O
Material:
SS304/SS316L
Connection:
Weld
Gasket:
EPDM / Silicon / NBR / FKM
Code:
JOF-MHRWSG
Operation:
Manual

Hygienic Stainless Steel Round Manhole Cover With Sight Glass

  • J&O Round Manhole Cover with Sight Glass Non-pressure manhole is the most common manhole, which fits the non-pressure tanks.
  • It is generally installed on the top of the tank. It is the entrance and exit for production workers and maintenance workers when building, cleaning and pouring tanks.
  • Their primary application is to make the liquid in the tank accessible, allow checking of liquid levels.
  • While still retaining control over the head-space atmosphere of the tank - manholes do seal and prevent air exchange.
  • But are not designed to withstand the stronger pressure like tank manways.
  • Manholes are usually mounted on top of the tank with the size depending on the condition application: larger for ease of adding solids, or smaller for adding liquids or powders.

Technical Data

Material: SS304 or SS316L
Size: 300mm-600mm
Height: 100mm
Thickness: 3mm
Handle Material : Stainless steel and plastic
Seal Material: Silicone, EPDM, Viton, NBR
Surface Finishing: Ra≤0.8
Working Temperature: -10 degree to +120 degree (EPDM)
Packing Details: Carton box,plywood case or customized

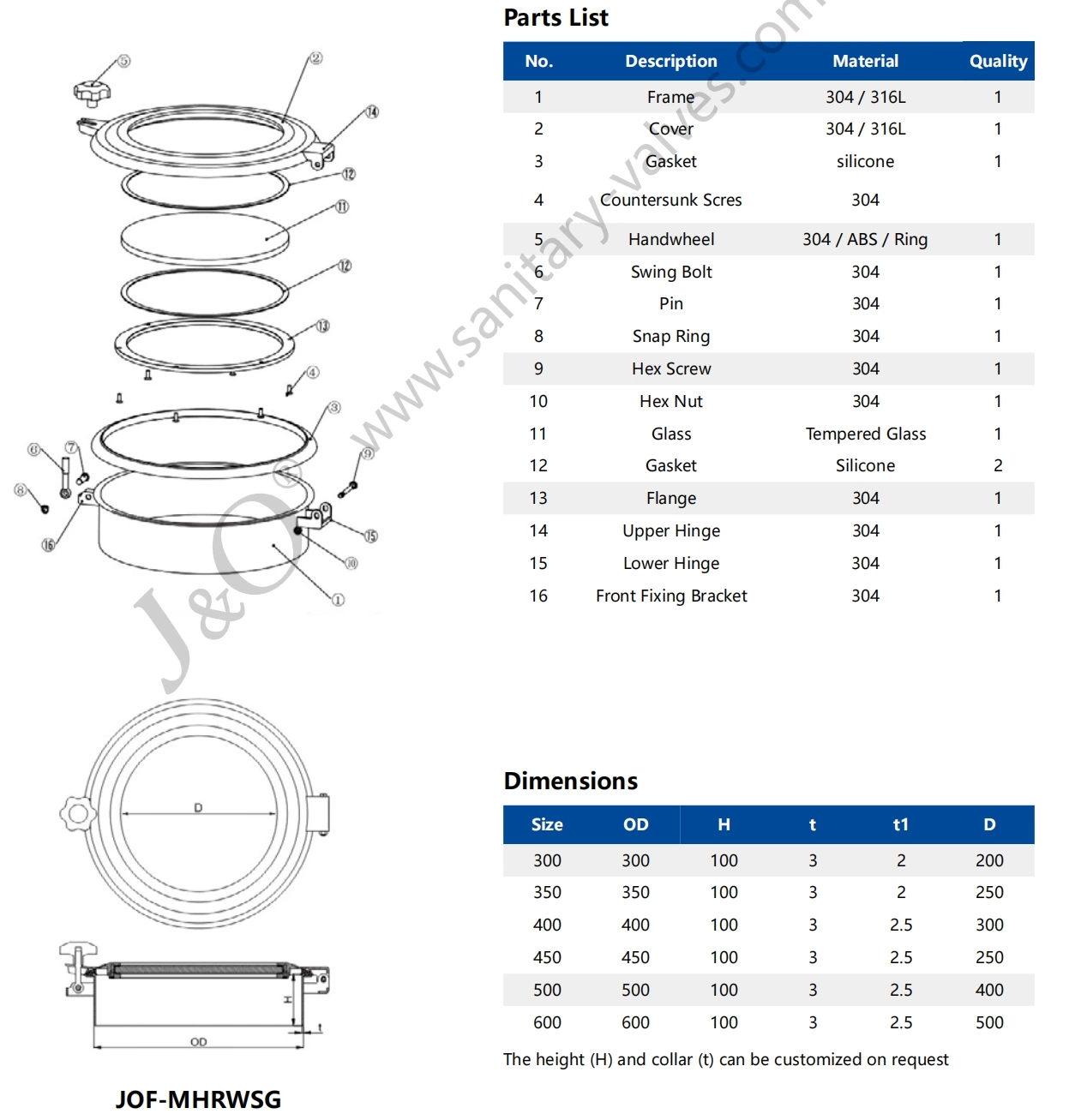

Product Parameter

Hygienic Stainless Steel Round Manhole Cover With Sight Glass
