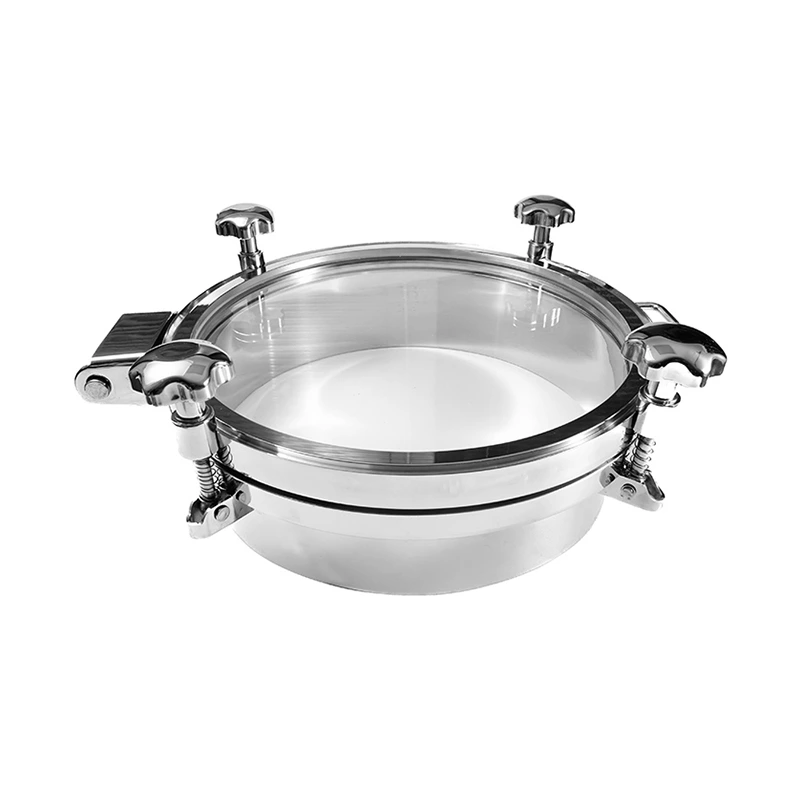

Sanitary Stainless Steel Manhole With Full View Sight Glass

The manhole cover with full view sight glass on the saccharification tank makes it convenient to observe the fermentation process.

Brand:
J&O
Material:
SS304/SS316L
Connection:
Weld
Gasket:
EPDM / Silicon / NBR / FKM
Code:
JOF-MHR005
Operation:
Manual

Sanitary Stainless Steel Manhole With Full View Sight Glass

  • The manhole cover with full view sight glass on the saccharification tank makes it convenient to observe the fermentation process.
    Its cover is made of 10-20mm thick tempered glass with stainless steel flange edges,providing a more intuitive observation of the biological fermentation state.
  • Their primary application is to make the liquid in the tank accessible, allow checking of liquid levels.
  • While still retaining control over the head-space atmosphere of the tank - manholes do seal and prevent air exchange.
  • But are not designed to withstand the stronger pressure like tank manways.
  • Manholes are usually mounted on top of the tank with the size depending on the condition application: larger for ease of adding solids, or smaller for adding liquids or powders.

Technical Data

Material: SS304 or SS316L
Size: 250mm-600mm
Height: 100mm
Thickness: 3mm
Handle Material : Stainless steel and plastic
Seal Material: Silicone, EPDM, Viton, NBR
Surface Finishing: Ra≤0.8
Working Temperature: -10 degree to +120 degree (EPDM)
Packing Details: Carton box,plywood case or customized

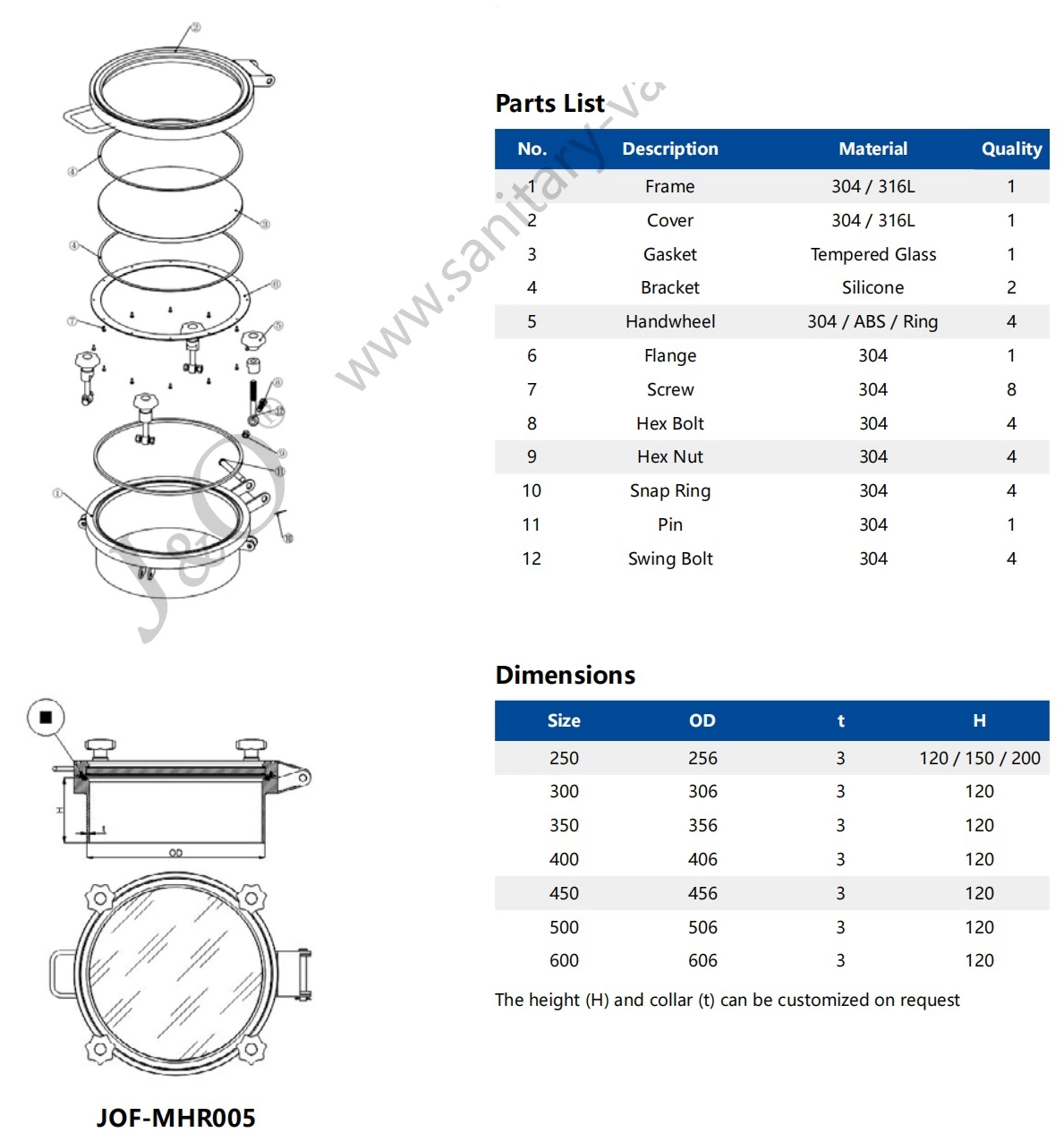

Product Parameter

Sanitary Stainless Steel Manhole With Full View Sight Glass
