Manhole Door With Sight Glass
With a sight glass, it is convenient to observe the material inside the tank without opening the cover.
- Brand:
- J&O
- Material:
- SS304/SS316L
- Connection:
- Weld
- Gasket:
- EPDM / Silicon / NBR / FKM
- Code:
- JOF-MHR006
Sanitary Stainess Steel Round Pressure Manhole With Sight Glass
- Manhole with a sight glass, it is convenient to observe the material inside the tank without opening the cover.
- It can be used for the control of water, gas, oil, and corrosive media in industries such as chemical, petroleum, plumbing, food, and pharmaceuticals.
- All Stainless steel manhole cover are produced in both AISI 304L and AISI 316L stainless steel and can be supplied with the gasket in several different food grade materials (natural rubber, NBR, EPDM, silicone, viton & FEP/PFA-encapsulated).
Technical Data
| Material: | SS304 or SS316L |
| Standard: | 3A, SMS, DIN, RJT, IDF |
| Size: | 8"-24" (200mm-600mm) |
| Height: | 100mm |
| Thickness: | 3mm |
| Handle Material : | Stainless steel and plastic |
| Handle number: | 4-8 pieces |
| Seal Material: | Silicone, EPDM, Viton, NBR |
| Surface Finishing: | Ra≤0.8 |
| Working Temperature: | -10 degree to +120 degree (EPDM) |
| Packing Details: | Carton box,plywood case or customized |

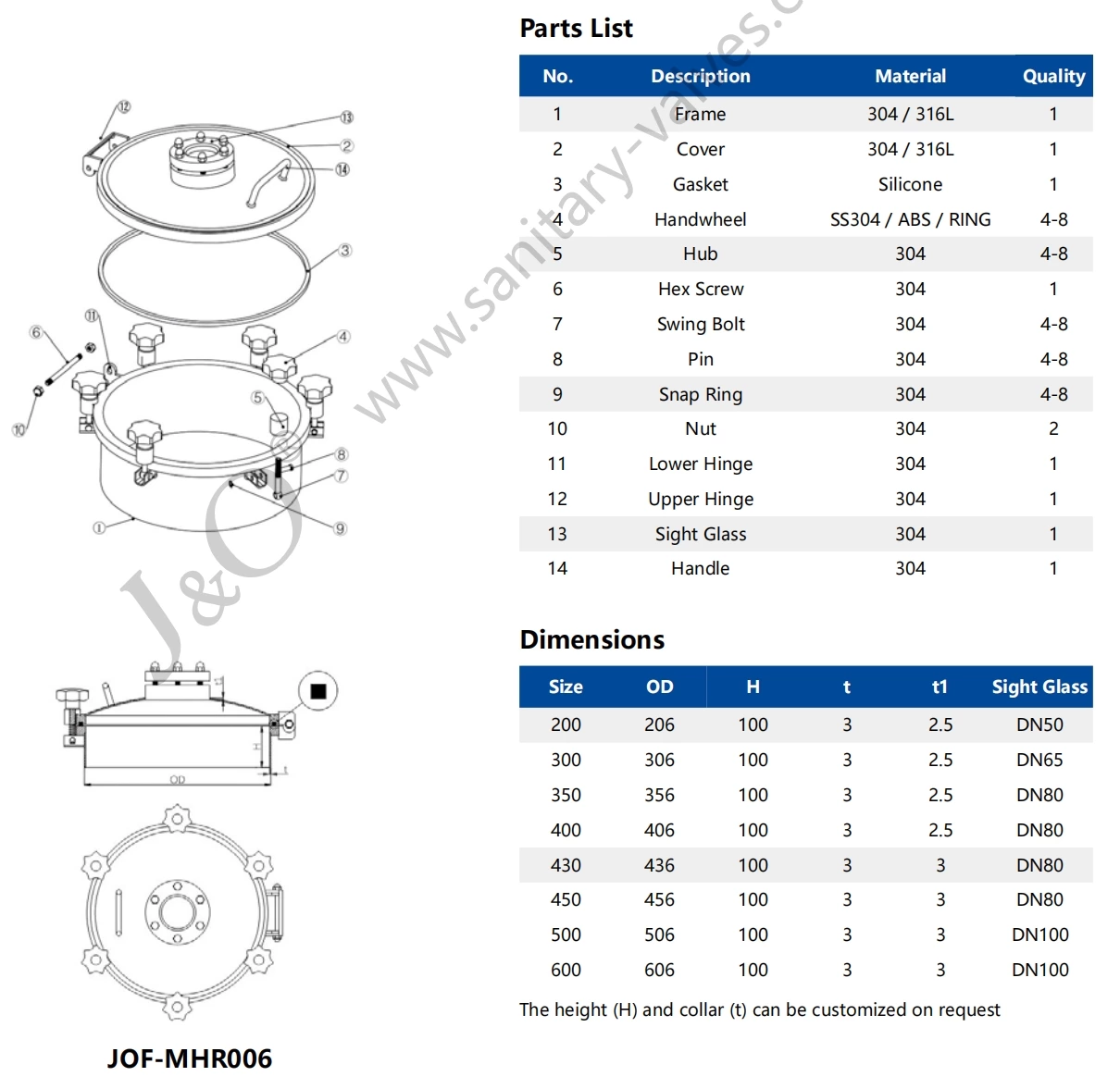

Product Parameter

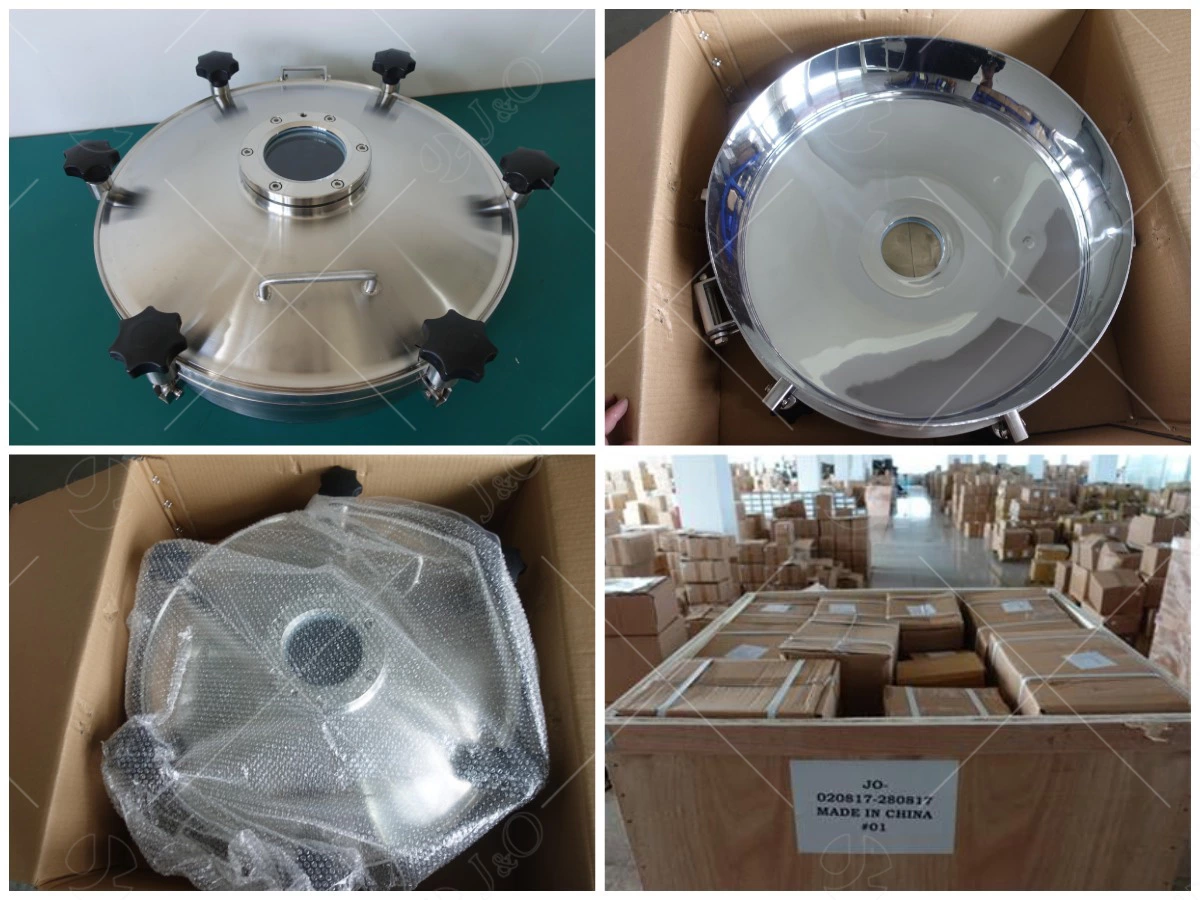

Product Pictures
