Safety Valve Thread

The sanitary safety valve,also known as a pressure relief valve,is intended to protect the whole pipe system from damage under over heavy flow situations

Brand:
J&O
Material:
SS304 or SS316L
Connection:
Thread
Gasket:
EPDM, SILICON, VITON, PTFE
Working Temperature:
-10 degree to +120 degree
Working Pressure:
6Bar
Download Catalog:
J&O Safety valve & Pressure Relief Valve.pdf
Enquiry
Safety Valve Thread

Sanitary Stainless Steel Pressure Release Safety Valve

  • The sanitary safety valve,also known as a pressure relief valve,is intended to protect the whole pipe system from damage under over heavy flow situations.When the flow pressure exceeds the recommended level,the safety valve will open releasing the excessive medium so that the flow pressure can go back to a safe level.It is easy to adjust with a wide calibration range.

  • We manufacture Sanitary Pressure Safety Valve, Hygienic Pressure Relief Valve, Sanitary Clamped Pressure Relief Safety Valve.

Technical Data

Working Pressure: ≤6bar
Pressure Control Range: 0.5-6 bar
Medium Temperature: -10 celsius degree-+120 celsius degree
Medium: liquid material,gas
Sealing: Food Rubber
Material Quality: SS304,SS316L
Connection of Standard: DIN,3A,SMS,ISO
Ends: Male ends,Tri clamp ends,Welded ends
Surface treatment: Ra 0.8um

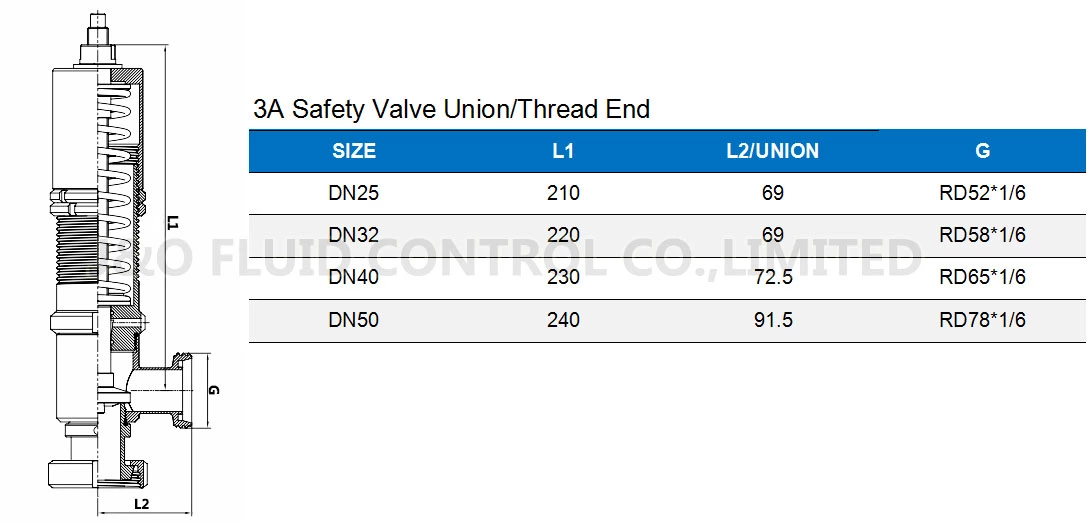

Product Parameter

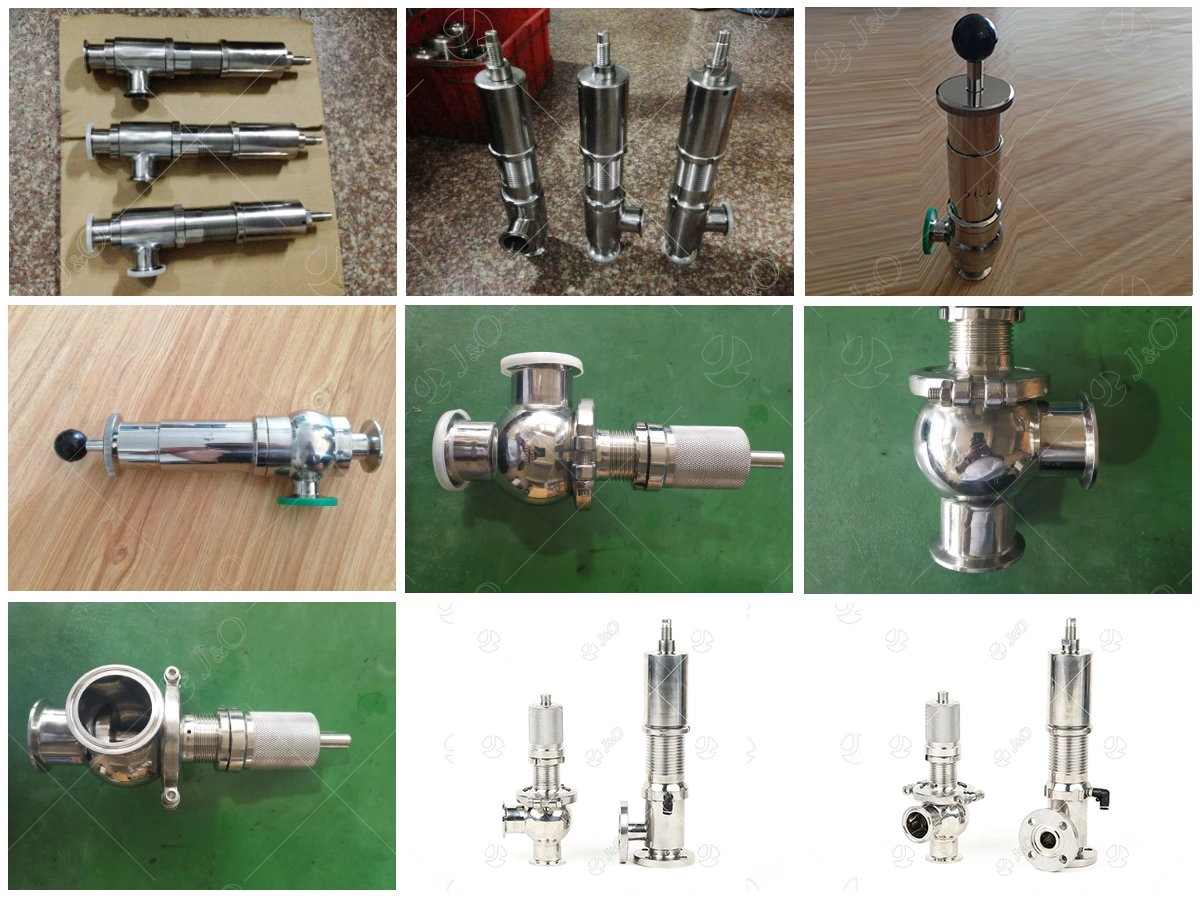

Product Pictures
