Products
Safety Valve
Hygienic Safety Valve is to adjust the spring compression nut to calibrate a particular pressure. The calibration of pressure is to fix the maximum pressure to avoid the equipment damage.
- Brand:
- J&O
- Material:
- SS304 or SS316L
- Connection:
- Clamped
- Gasket:
- EPDM, SILICON, VITON, PTFE
- Working Temperature:
- -10 celsius degree-+120 celsius degree
- Working Pressure:
- 6Bar

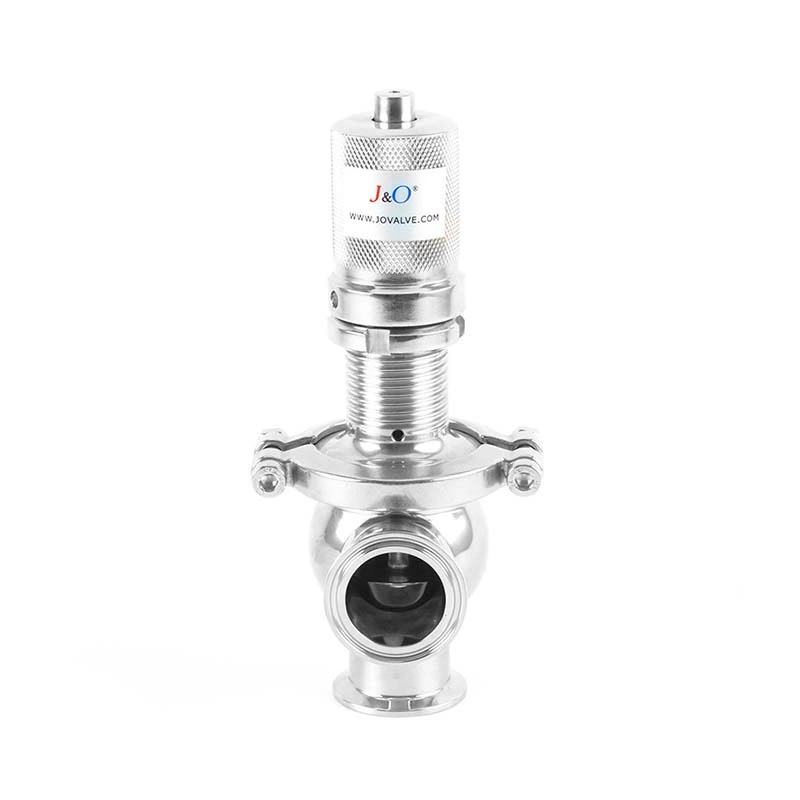

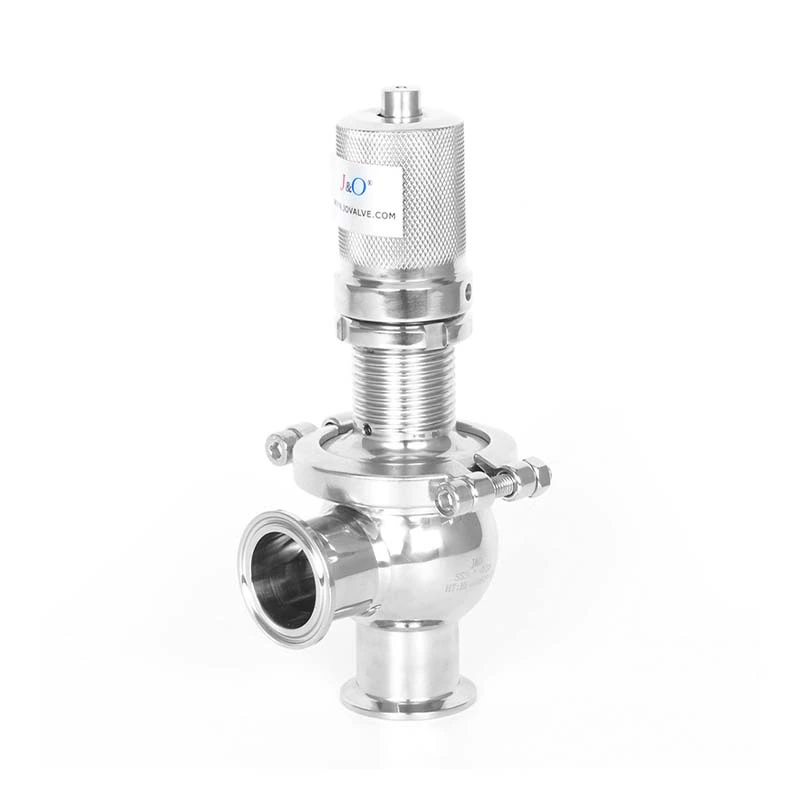

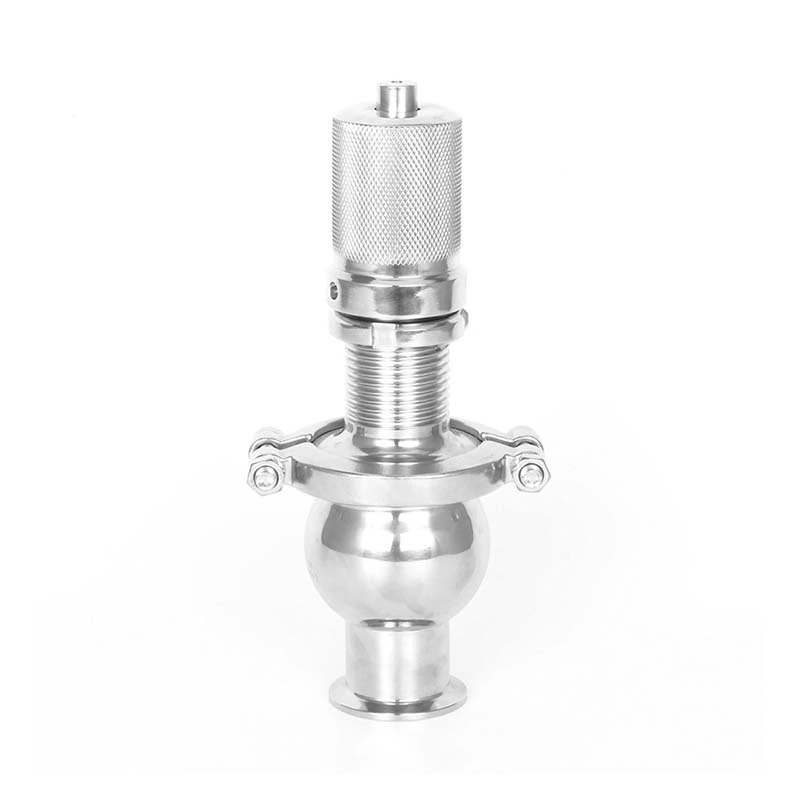

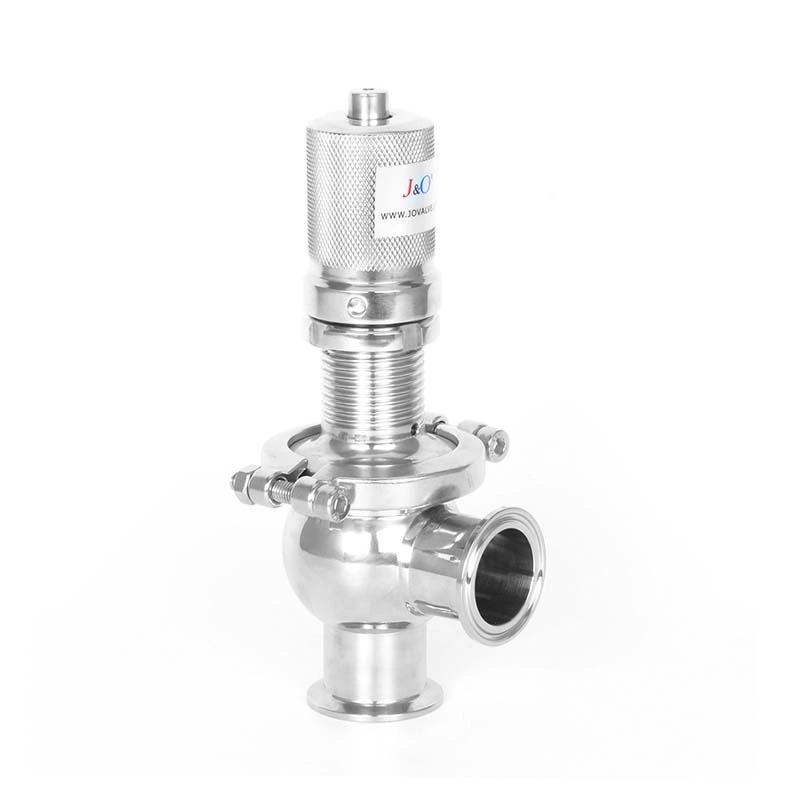

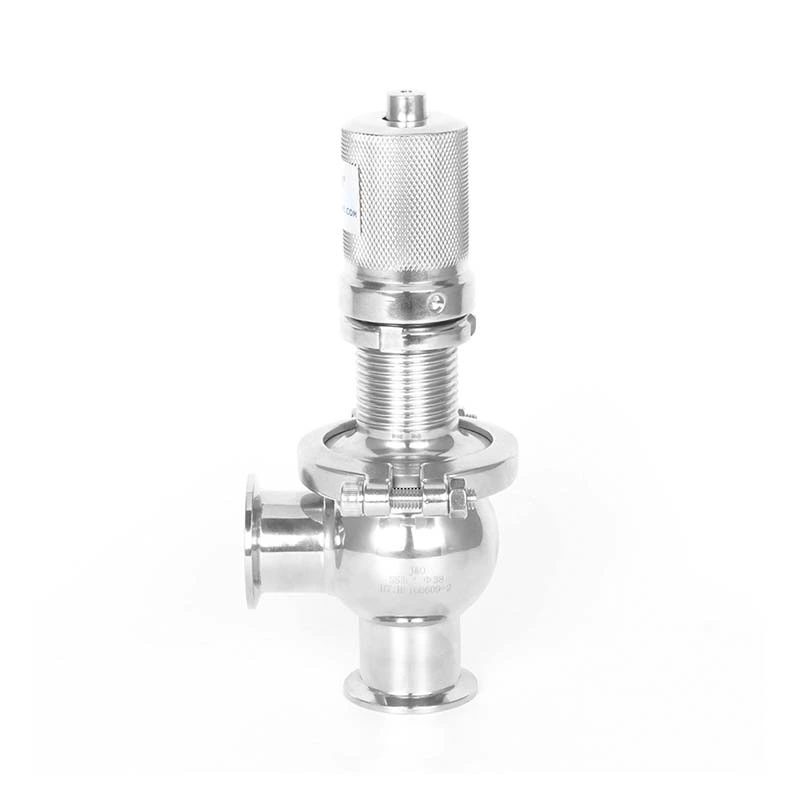

Sanitary Stainless Steel Clamped Relief Safety Valve
-
Hygienic Safety Valve is to adjust the spring compression nut to calibrate a particular pressure. The calibration of pressure is to fix the maximum pressure to avoid the equipment damage. In the normal working operating pressure, the valve is closed. When the system pressure exceeds the systerm and the equipment. The valve is with start the open device for the CIP cleaning of the safety valve and the piping.
-
The safety valve is a special valve through a rigorous calibration,but to make the valve more realistic operating conditions, so the conditions shoud be as mush as possible the scene of the valve and then parity.
Technical Data
| Working Pressure: | ≤6bar |
| Pressure Control Range: | 0.5-6 bar |
| Medium Temperature: | -10 celsius degree-+120 celsius degree |
| Medium: | liquid material,gas |
| Sealing: | Food Rubber |
| Material Quality: | SS304,SS316L |
| Connection of Standard: | DIN,3A,SMS,ISO |
| Available connection: | Male ends,Tri clamp ends,Welded ends |
| Surface treatment: | Ra 0.8um |

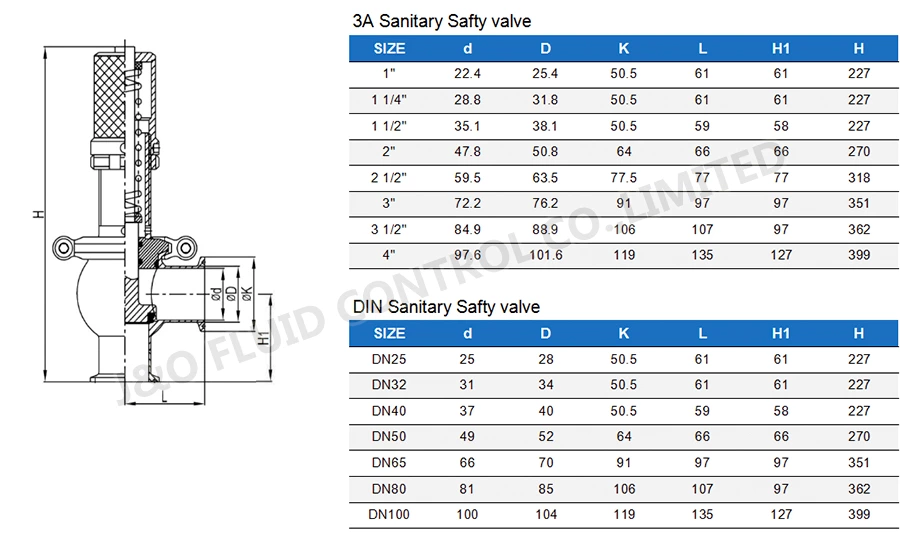

Product Parameter

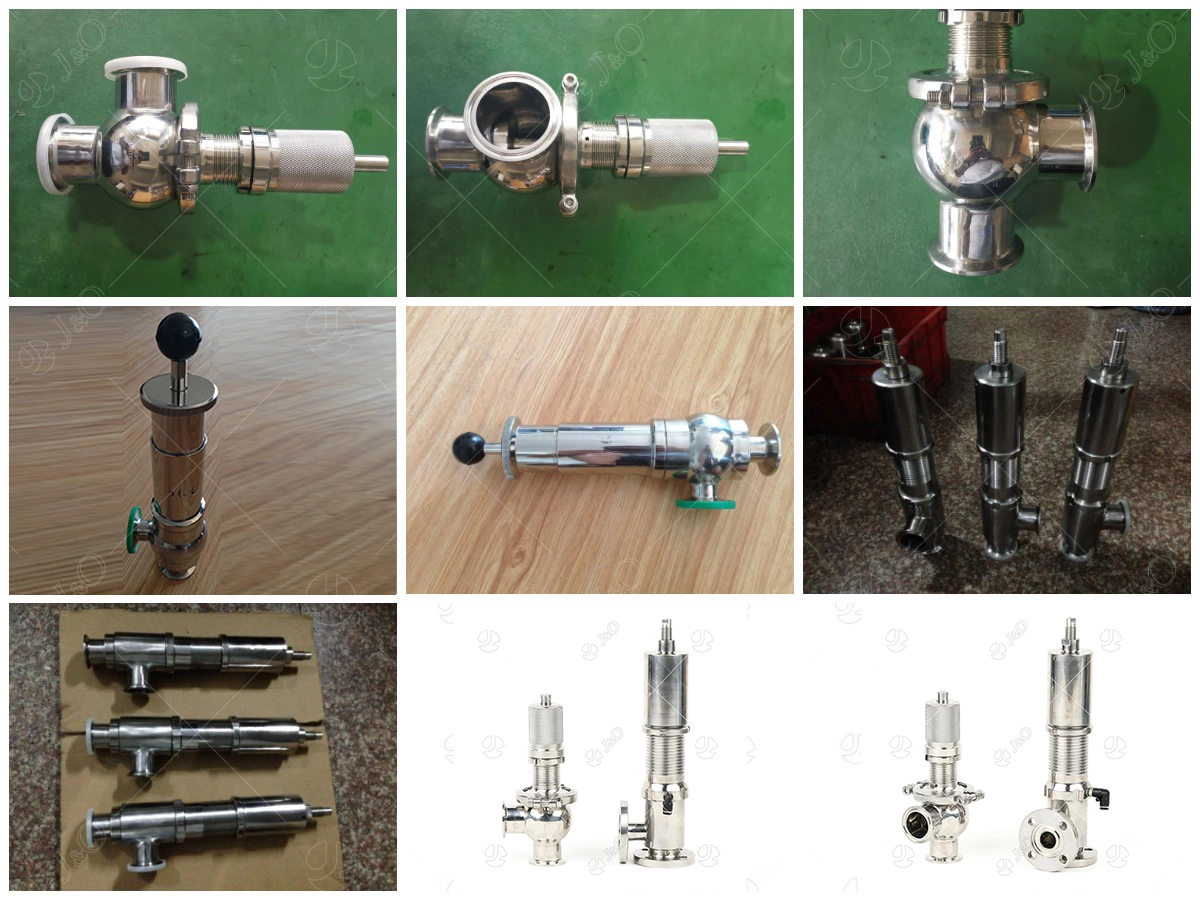

Product Pictures
