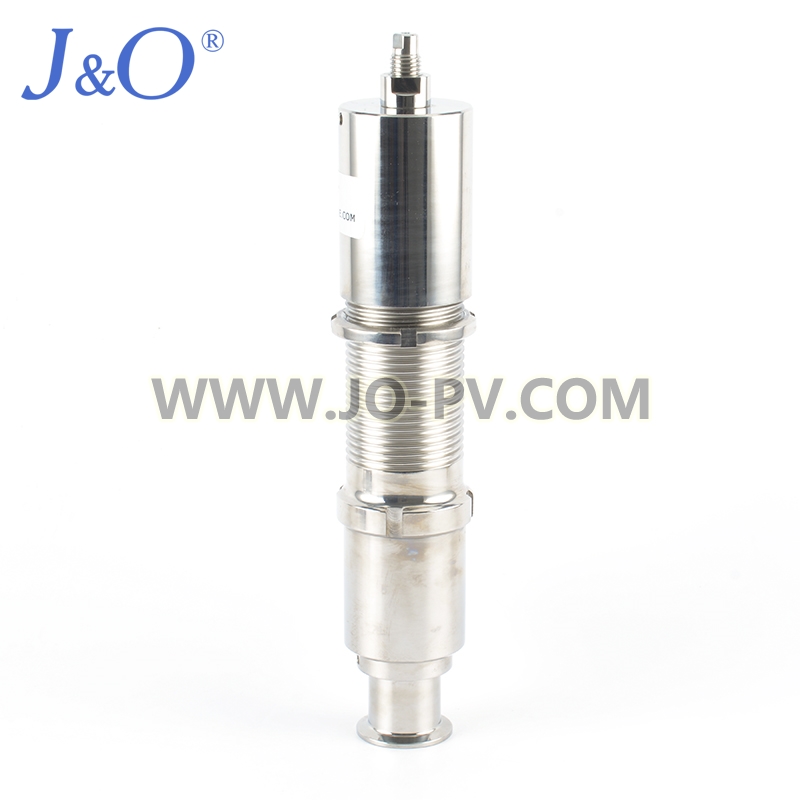

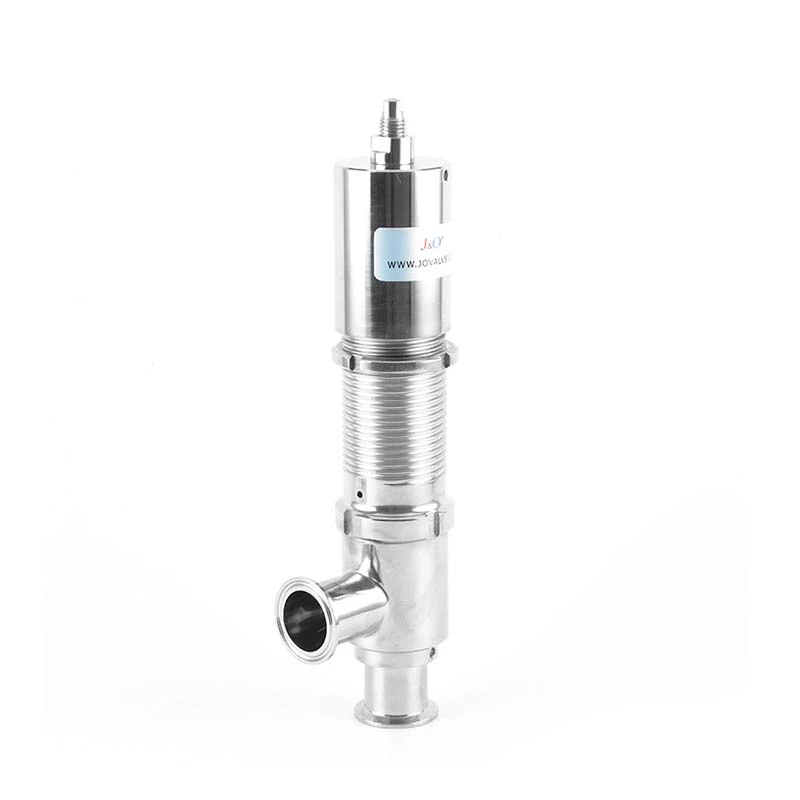

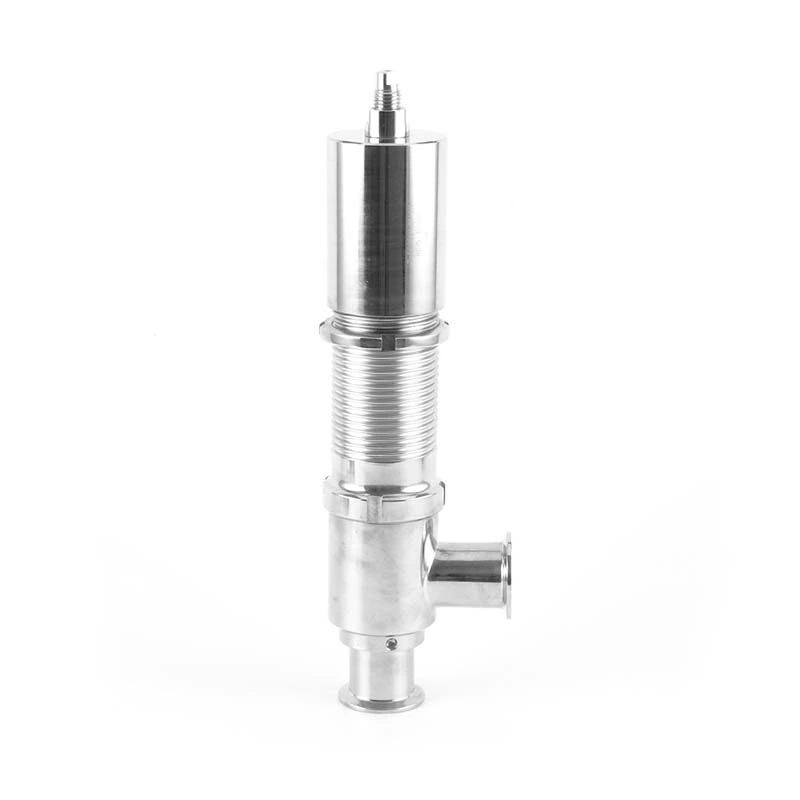

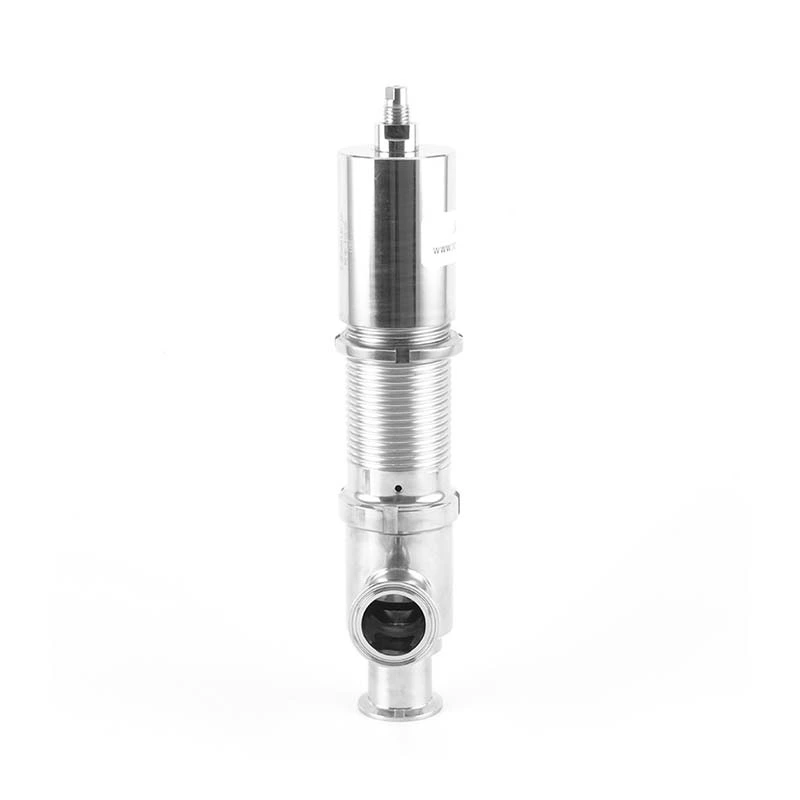

Sanitary Stainless Steel Clamped Safety Valve

Sanitary Pressure Release Valve is normally closed. The Pressure is set by calibrating the spring with nut. When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.

Model:
JOV-SFH001-22
Brand:
J&O
Material:
SS304 or SS316L
Connection:
Clamped
Gasket:
EPDM, SILICON, VITON, PTFE
Working Temperature:
-10 celsius degree-+120 celsius degree
Working Pressure:
6Bar
Download Catalog:
J&O Safety valve & Pressure Relief Valve.pdf
Enquiry
Sanitary Stainless Steel Clamped Safety Valve
Sanitary Stainless Steel Clamped Safety Valve Sanitary Stainless Steel Clamped Safety Valve Sanitary Stainless Steel Clamped Safety Valve Sanitary Stainless Steel Clamped Safety Valve Sanitary Stainless Steel Clamped Safety Valve

Sanitary Stainless Steel Clamped Safety Valve

  • The Safety Valve is used to protect pipe, pump from over pressure.

  • Sanitary Pressure Release Valve is normally closed. The Pressure is set by calibrating the spring with nut. When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.

Technical Data

Working Pressure: ≤6bar
Pressure Control Range: 0.5-6 bar
Medium Temperature: -10 celsius degree-+120 celsius degree
Medium: liquid material,gas
Sealing: Food Rubber
Material Quality: SS304,SS316L
Connection of Standard: DIN,3A,SMS,ISO
Available connection: Male ends,Tri clamp ends,Welded ends
Surface treatment: Ra 0.8um

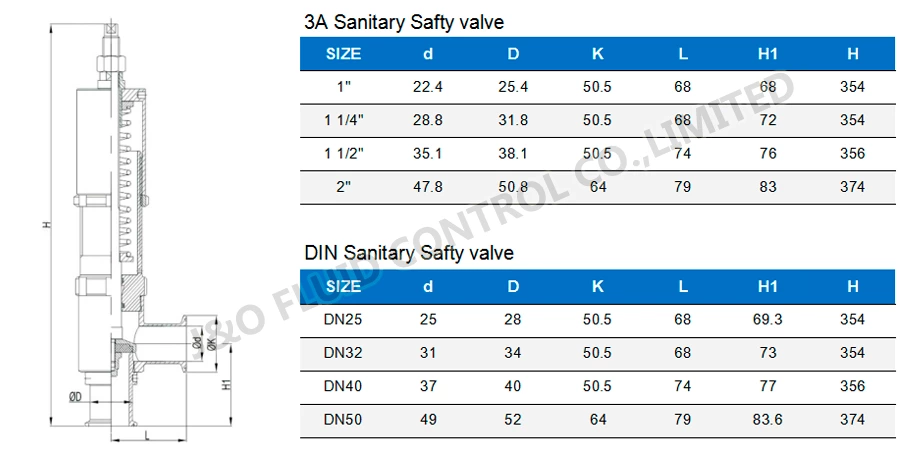

Product Parameter

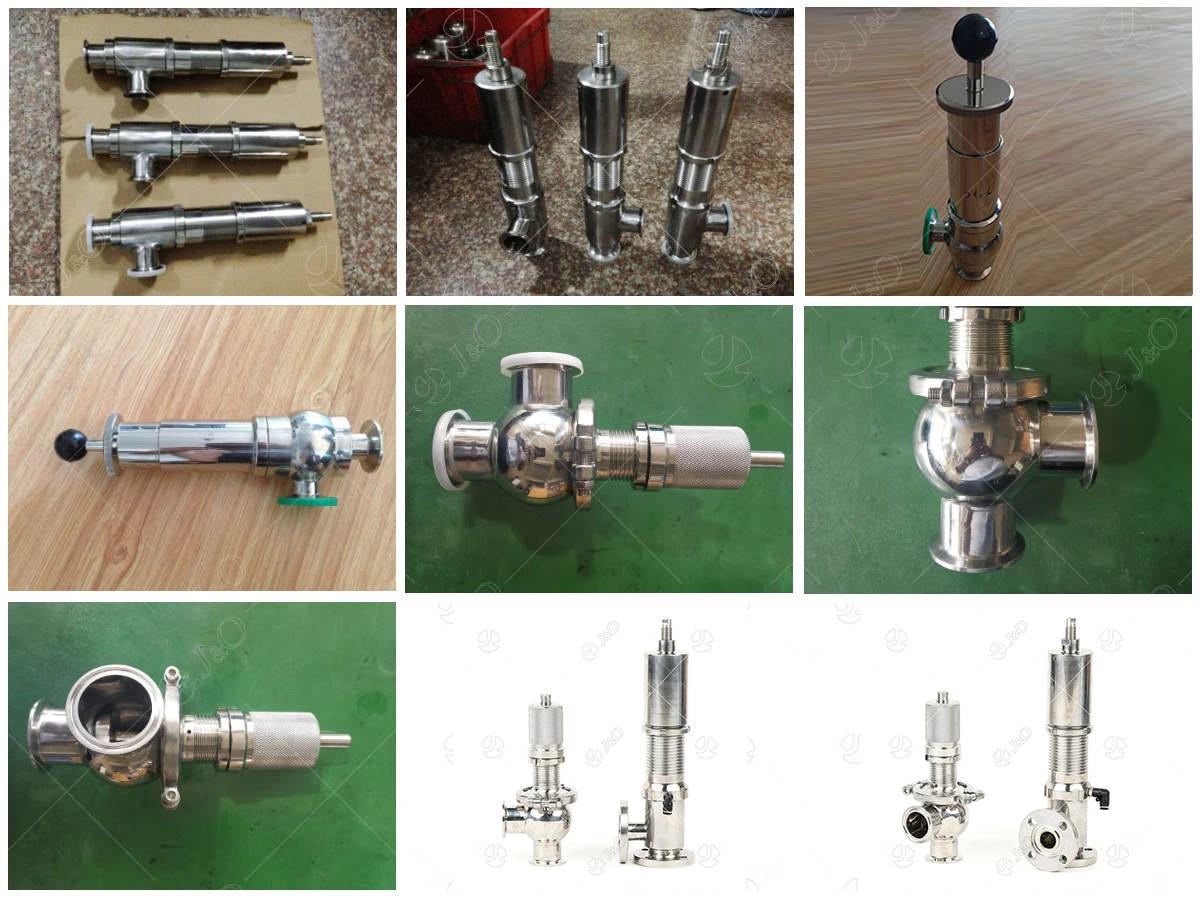

Product Pictures
