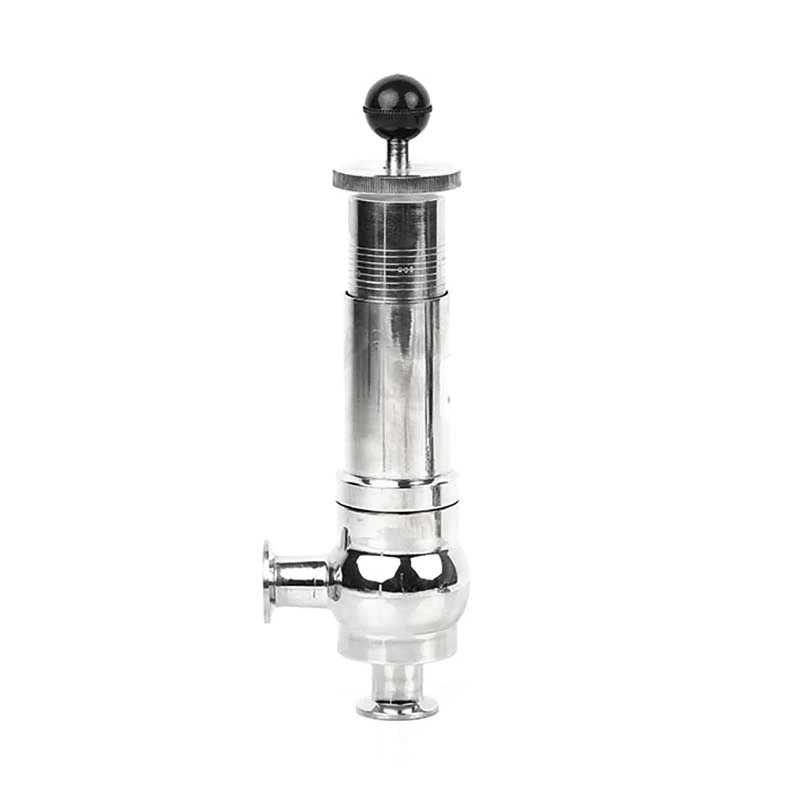

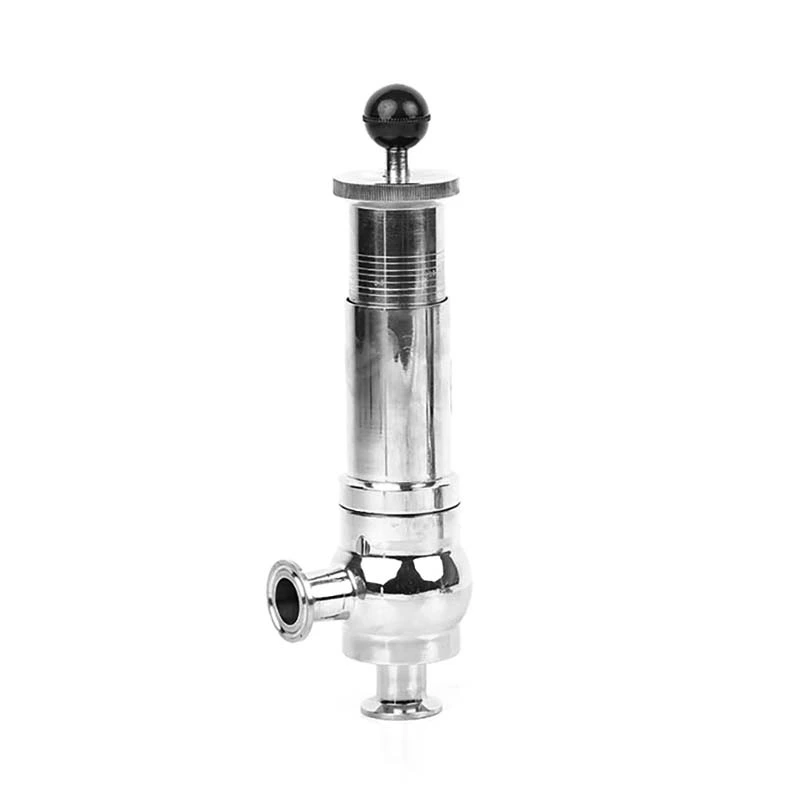

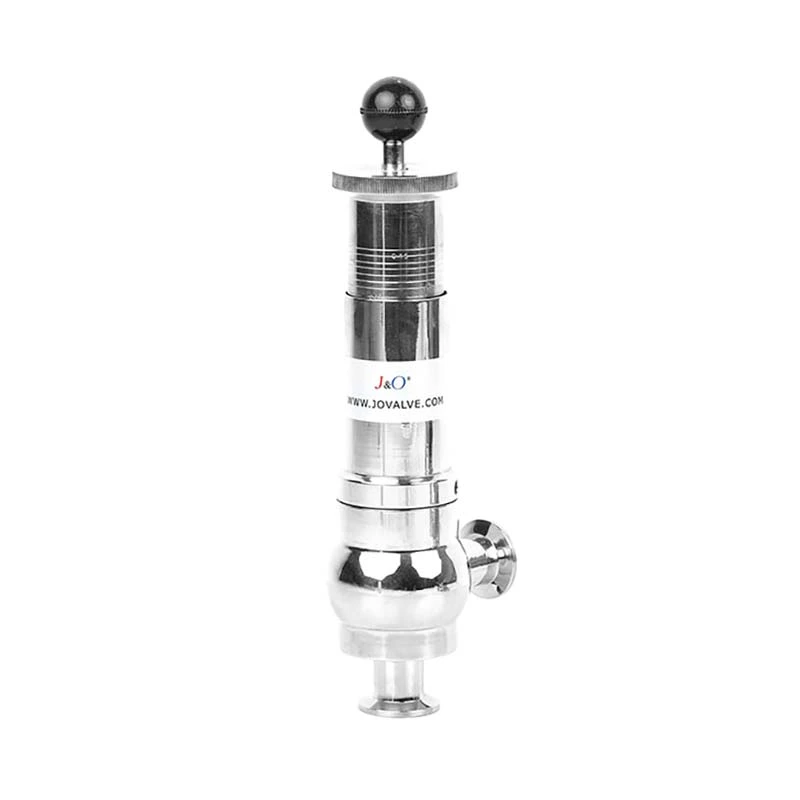

Sanitary Stainless Steel Tri Clamp Safety Valve

Sanitary Pressure Safety Valve is to adjust the spring compression nut to calibrate a particular pressure. The calibration of pressure is to fix the maximum pressure to avoid the equipment damage.

Brand:
J&O
Material:
SS304 or SS316L
Connection:
Clamped
Gasket:
EPDM, SILICON, VITON, PTFE
Working Temperature:
-10 celsius degree-+120 celsius degree
Working Pressure:
6Bar
Download Catalog:
J&O Safety valve & Pressure Relief Valve.pdf
Enquiry
Sanitary Stainless Steel Tri Clamp Safety Valve
Sanitary Stainless Steel Tri Clamp Safety Valve Sanitary Stainless Steel Tri Clamp Safety Valve Sanitary Stainless Steel Tri Clamp Safety Valve Sanitary Stainless Steel Tri Clamp Safety Valve Sanitary Stainless Steel Tri Clamp Safety Valve

Sanitary Stainless Steel Tri Clamp Safety Valve

  • Sanitary Pressure Safety Valve is to adjust the spring compression nut to calibrate a particular pressure. The calibration of pressure is to fix the maximum pressure to avoid the equipment damage. In the normal working operating pressure, the valve is closed. When the system pressure exceeds the fsysterm and the equipment. The valve is with start the open device for the CIP cleaning of the safety valve and the piping.

  • The Pressure Release Safety Valve is a special valve through a rigorous calibration,but to make the valve more realistic operating conditions, so the conditions shoud be as mush as possible the scene of the valve and then parity.

Technical Data

Working Pressure: ≤6bar
Pressure Control Range: 0.5-6 bar
Medium Temperature: -10 celsius degree-+120 celsius degree
Medium: liquid material,gas
Sealing: Food Rubber
Material Quality: SS304,SS316L
Connection of Standard: DIN,3A,SMS,ISO
Available connection: Male ends,Tri clamp ends,Welded ends
Surface treatment: Ra 0.8um

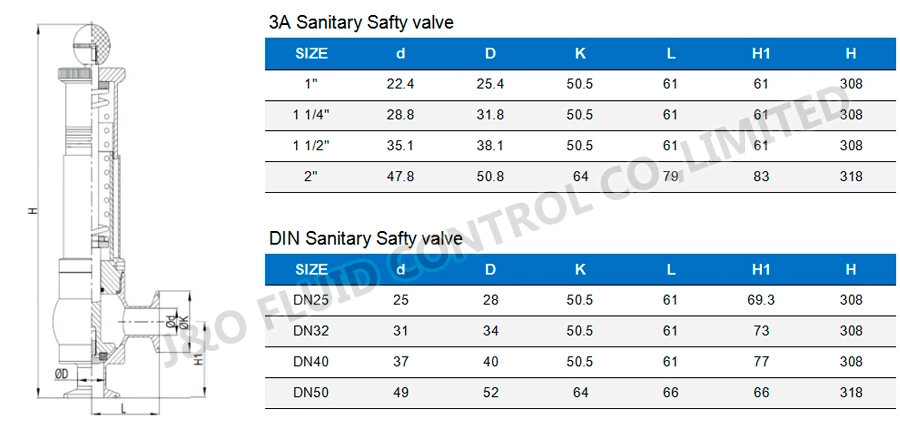

Product Parameter

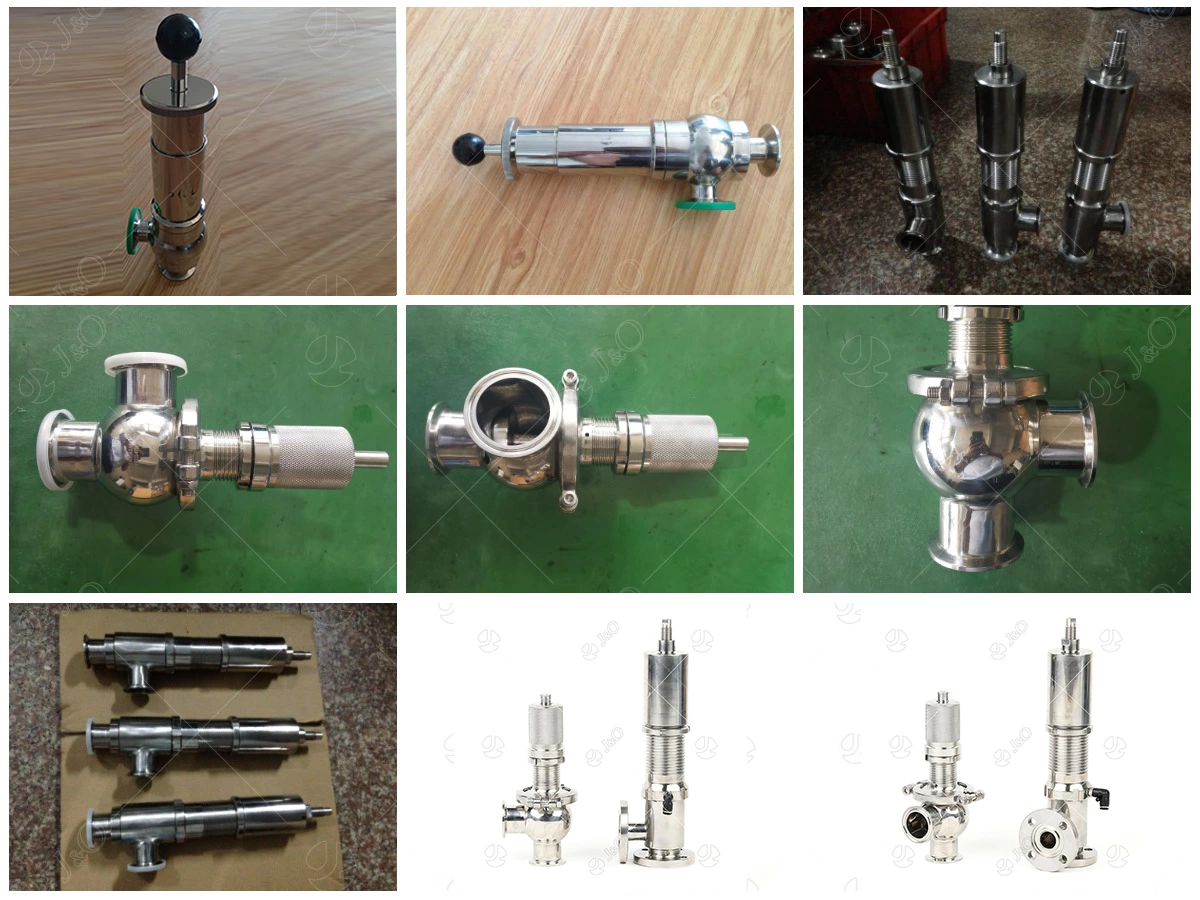

Product Pictures
