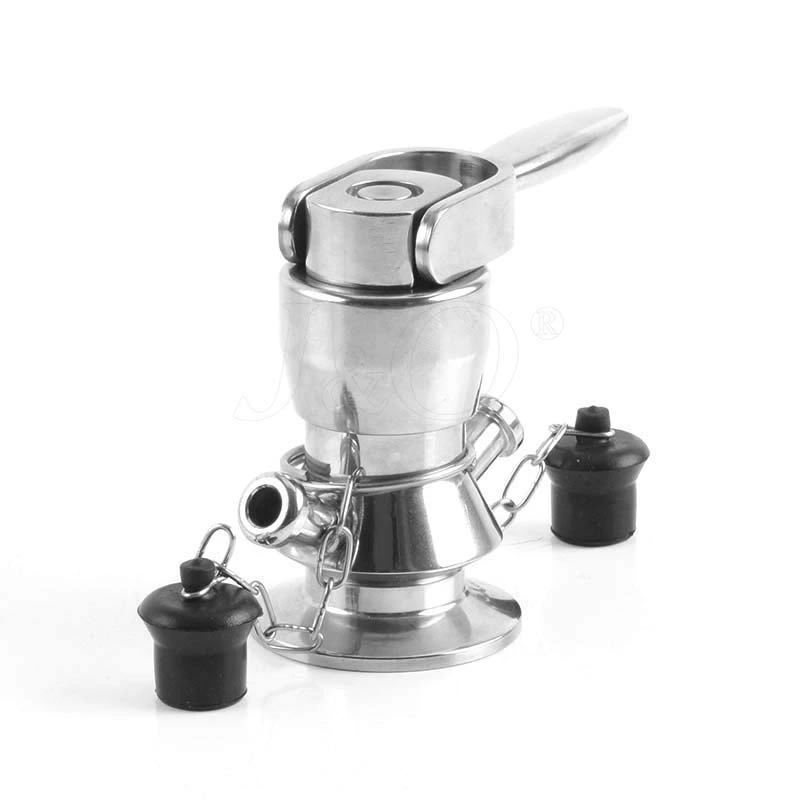

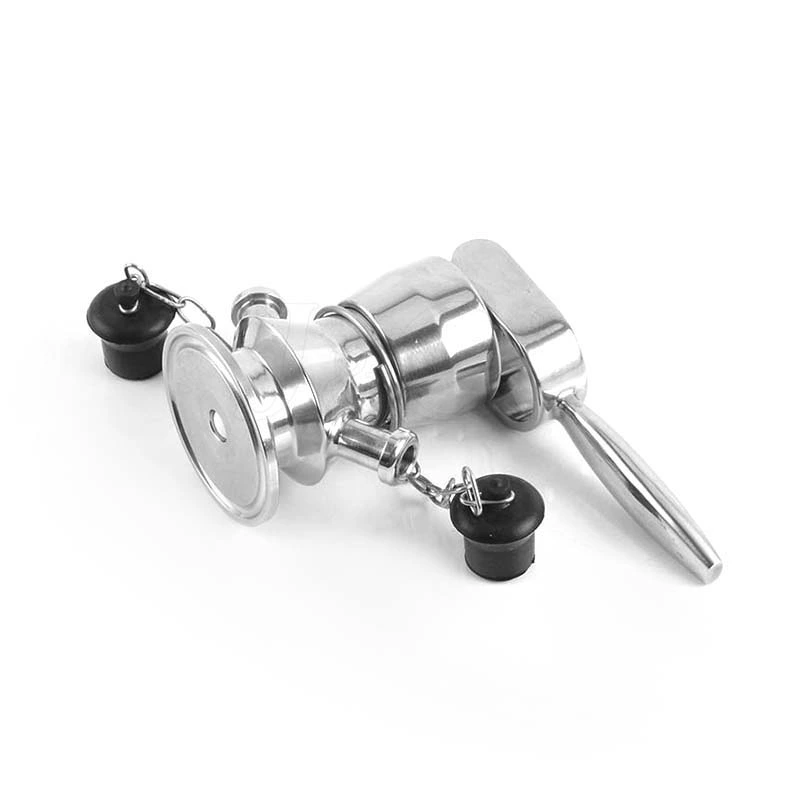

Hygienic Stainless Steel Tri Clamp Manual Sampling Valve With SS Handle

We can supply Sanitary Tri Clover Aseptic Sample Valve, Hygienic Welded Sampling Valve, Sanitary Pneumatic Aseptic Sampling Valve, Manual Aseptic Sample Valve.
Model:
JOV-SPHM005C-22
Brand:
J&O
Material:
SS316L
Connection:
Clamped
Gasket:
PTFE
Working Temperature:
120 degree C
Working Pressure:
10Bar
Operation:
Manual
Download Catalog:
J&O SAMPLING VALVE-NEW.pdf
Enquiry
Hygienic Stainless Steel Tri Clamp Manual Sampling Valve With SS Handle
Hygienic Stainless Steel Tri Clamp Manual Sampling Valve With SS Handle Hygienic Stainless Steel Tri Clamp Manual Sampling Valve With SS Handle Hygienic Stainless Steel Tri Clamp Manual Sampling Valve With SS Handle Hygienic Stainless Steel Tri Clamp Manual Sampling Valve With SS Handle

Sanitary Stainless Steel Manual Aseptic Sampling Valve

  • We can supply Sanitary Tri Clover Aseptic Sample Valve, Hygienic Welded Sampling Valve, Sanitary Pneumatic Aseptic Sampling Valve, Manual Aseptic Sample Valve.

  • Sampling Valve mainly applied to extract sample from tank or pipeline, it also can be assembled at the bottom of the tank or pipeline to drain away the remains. It is apply for the food, chemical, pharmaceutical, cosmetics and biotechnology industries. As well as all other sectors requiring sanitary type equipment.

  • Sanitary sampling valve adopts PTFE/EPDM seals and is operated by metal hand wheel. It is cost-effective and easy to operate.

  • Sanitary sampling valve adopts hard-metal seals and can be used for abrasive product sampling. It is operated by plastic hand wheel, and both angle and straight type structures are available.

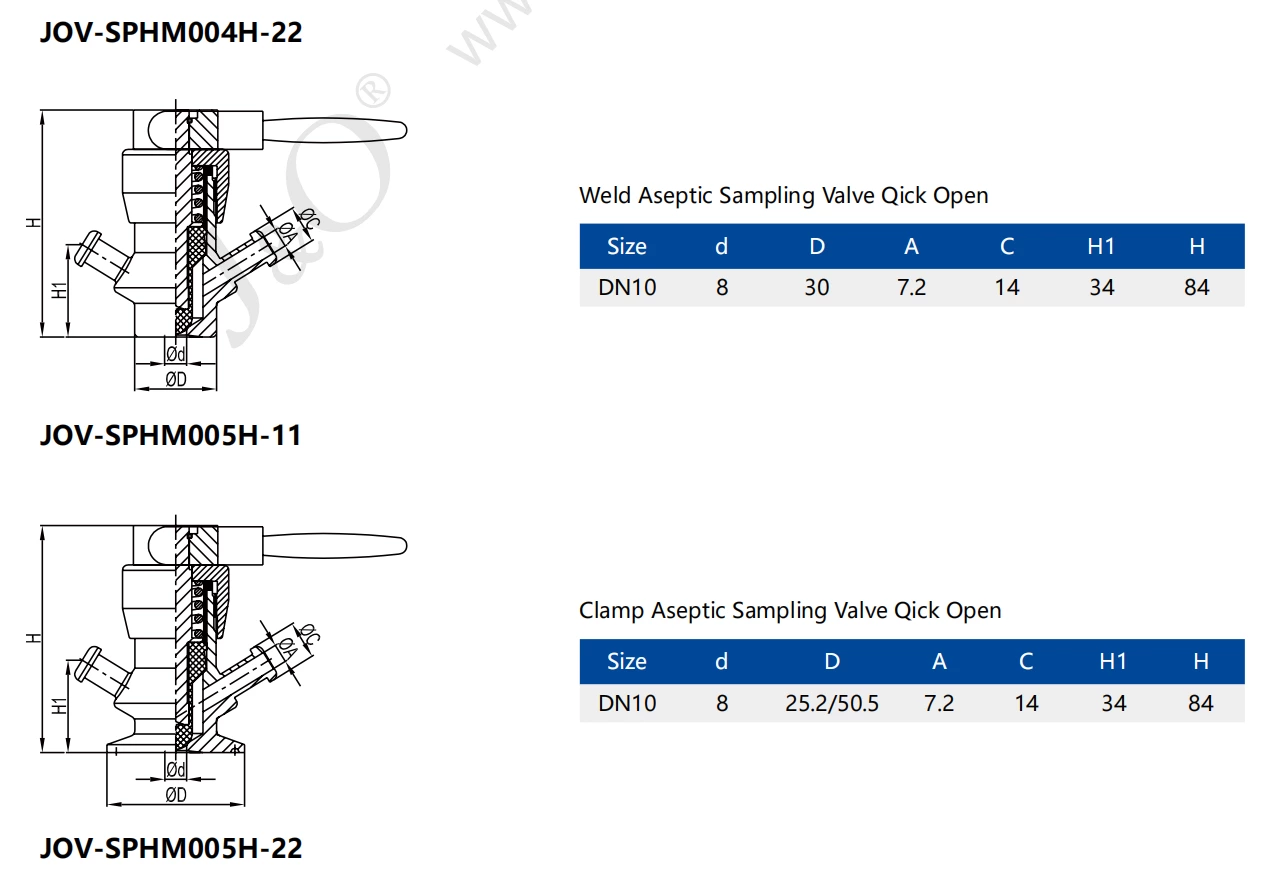

Technical Data

Valve Body Material: SS316L
Seal Material: PTFE
Max Working Pressure: 10Bar
Max. Working Temperature: 120 degree C
Availably connection: Weld
Operated: Manual,Pneumatic
Certificate: FDA

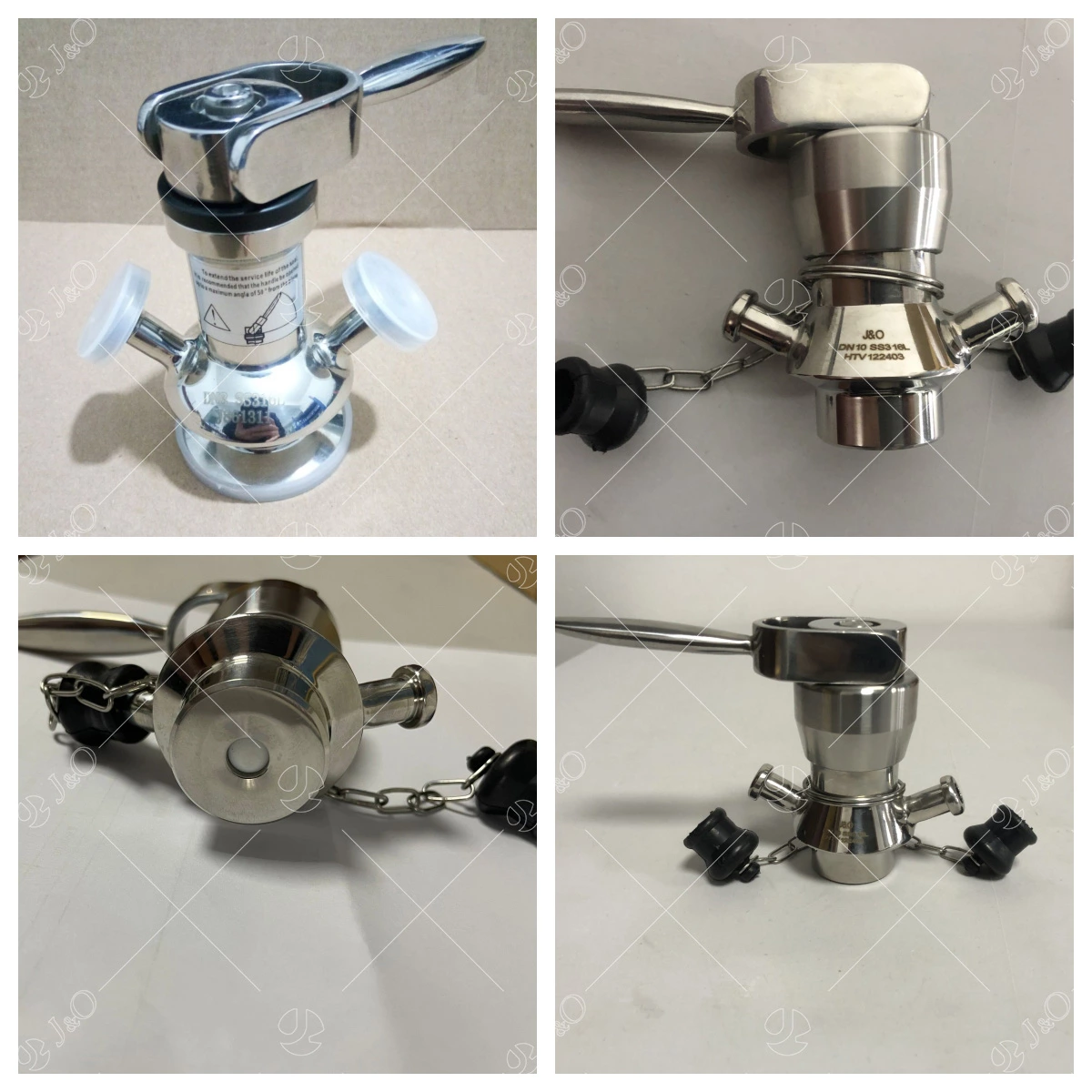

Product Pictures
