Sampling Valve

We can supply Manual Sanitary Sampling Valve, Pneumatic Hygienic Sampling Valve, Aseptic Sanitary Sample Valve, Sanitary Weld Sampling Valve, Hygienic Clamped Sample Valve, Sanitary Thread Sampling Valve.

Model:
JOV-SPHM005H-11
Brand:
J&O
Material:
SS304 or SS316L
Connection:
Welded
Gasket:
PTFE/EPDM
Working Temperature:
120 degree C
Working Pressure:
6Bar
Operation:
Manual
Download Catalog:
J&O SAMPLING VALVE-NEW.pdf
Enquiry
Sampling Valve

Sanitary Stainless Steel Sampling Valve

  • We can supply Manual Sanitary Sampling Valve, Pneumatic Hygienic Sampling Valve, Aseptic Sanitary Sample Valve, Sanitary Weld Sampling Valve, Hygienic Clamped Sample Valve, Sanitary Thread Sampling Valve.

  • Sampling Valve mainly applied to extract sample from tank or pipeline, it also can be assembled at the bottom of the tank or pipeline to drain away the remains. It is apply for the food, chemical, pharmaceutical, cosmetics and biotechnology industries. As well as all other sectors requiring sanitary type equipment.

  • Sanitary sampling valve adopts PTFE/EPDM seals and is operated by metal hand wheel. It is cost-effective and easy to operate.

  • Sanitary sampling valve adopts hard-metal seals and can be used for abrasive product sampling. It is operated by plastic hand wheel, and both angle and straight type structures are available.

Technical Data

Valve Body Material: SS316L
Seal Material: PTFE
Max. Working Pressure: 10Bar
Max. Working Temperature: 120 degree C
Availably connection: Welded,clamped
Operated: Manual
Certificate: FDA

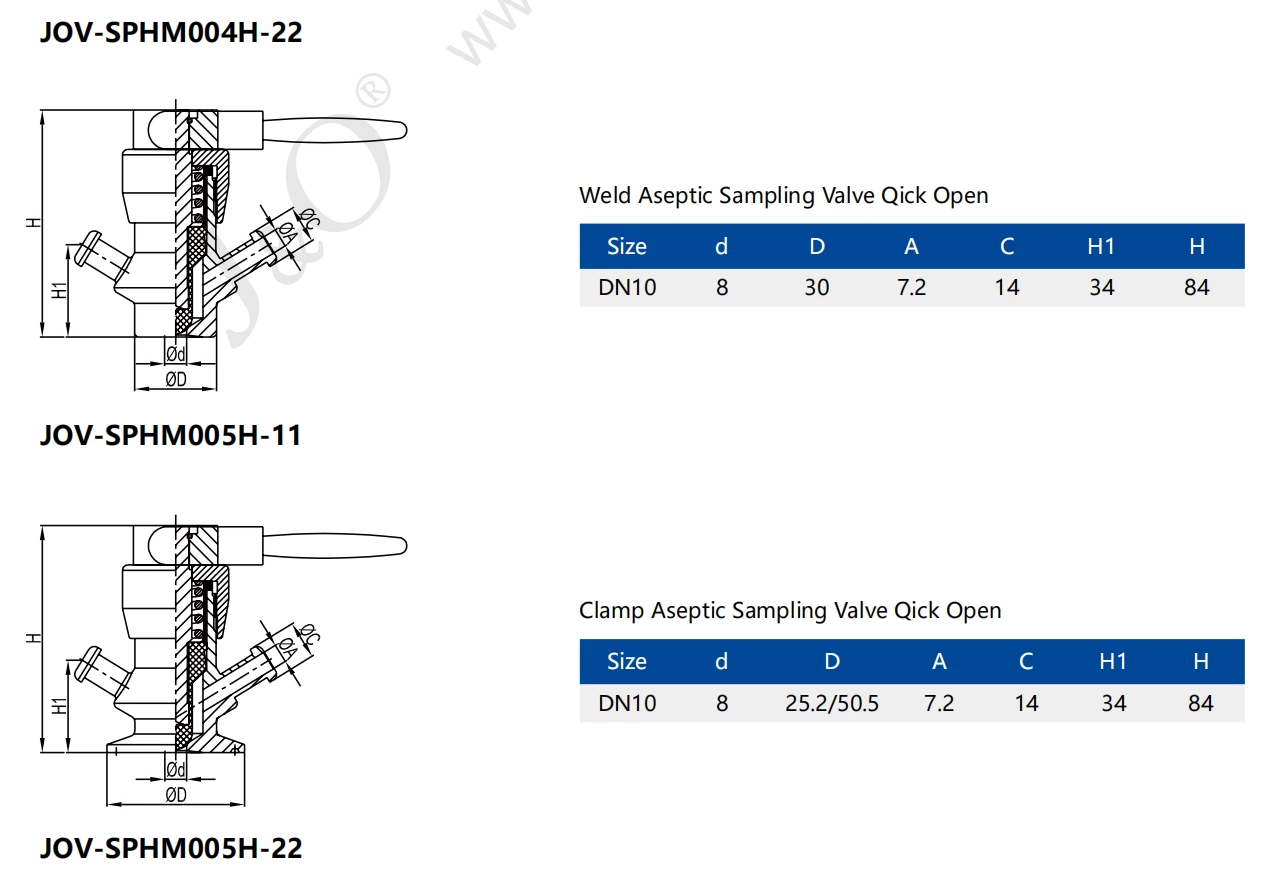

Product Parameter

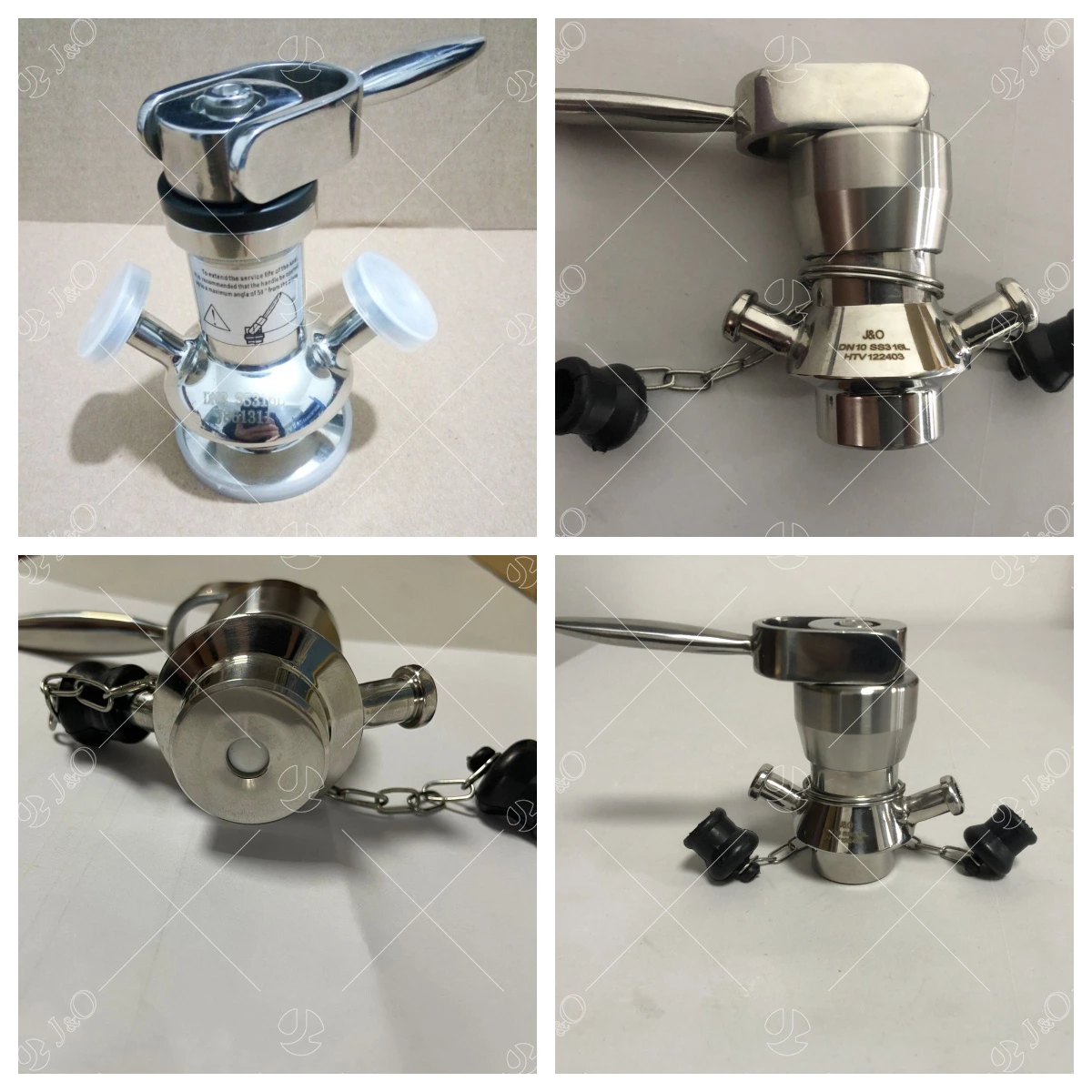

Product Pictures
