Sampling Valve Female Thread

A Sampling Valve is a type of valve used in process industries that allows taking a representative portion of a fluid ( gases , liquids , fluidized , solids , or slurries ) to test (e.g. by physical measurements, chemical analysis, microbiological examination), typically for the purposes of identification, quality control, or regulatory assessment.

Model:
JOV-SPHM001-33N
Brand:
J&O
Material:
SS304 or SS316L
Connection:
Female Thread
Gasket:
PTFE
Working Temperature:
120 degree C
Working Pressure:
10Bar
Operation:
Manual
Download Catalog:
J&O SAMPLING VALVE-NEW.pdf
Enquiry
Sampling Valve Female Thread
Sampling Valve Female Thread Sampling Valve Female Thread Sampling Valve Female Thread Sampling Valve Female Thread

Sanitary Stainless Steel Thread Sampling Valve

  • Our Sanitary Sampling Valve including Stainless Steel Manual Sampling Valve, Sanitary Clamp Sample Valve, Hygienic Welding Sampling Valve, Hygienic Thread Male Sampling Valve, Pneumatic Sampling Valve, Sanitary Aseptic Sample Valve.

  • A Sampling Valve is a type of valve used in process industries that allows taking a representative portion of a fluid ( gases ,  liquids ,  fluidized ,  solids , or slurries ) to test (e.g. by physical measurements, chemical analysis, microbiological examination), typically for the purposes of identification, quality control, or regulatory assessment. It is a valve used for sampling .

  • The Sampling Valve allows the operator to extract a sample of the product from the production line or reactor and safely store it for transportation to the laboratory where it will be analysed or to the archive room where it can be retrieved for further use.

  • In chemical plants, a sample can be taken during the process to ensure that the output meets specifications (or that the quality is acceptable), before shipping the chemical good or before accepting the chemical product.

Technical Data

Valve Body Material: SS304 or SS316L
Seal Material: PTFE
O ring seal: NBR
Max. Working Pressure: 10Bar
Max. Working Temperature: 120 degree C
Availably  size: 1/4" - 1/2"
Availably connection: Thread/ Clamp/ Weld
Availably standard: 3A
Operated: Manual
Certificate: FDA

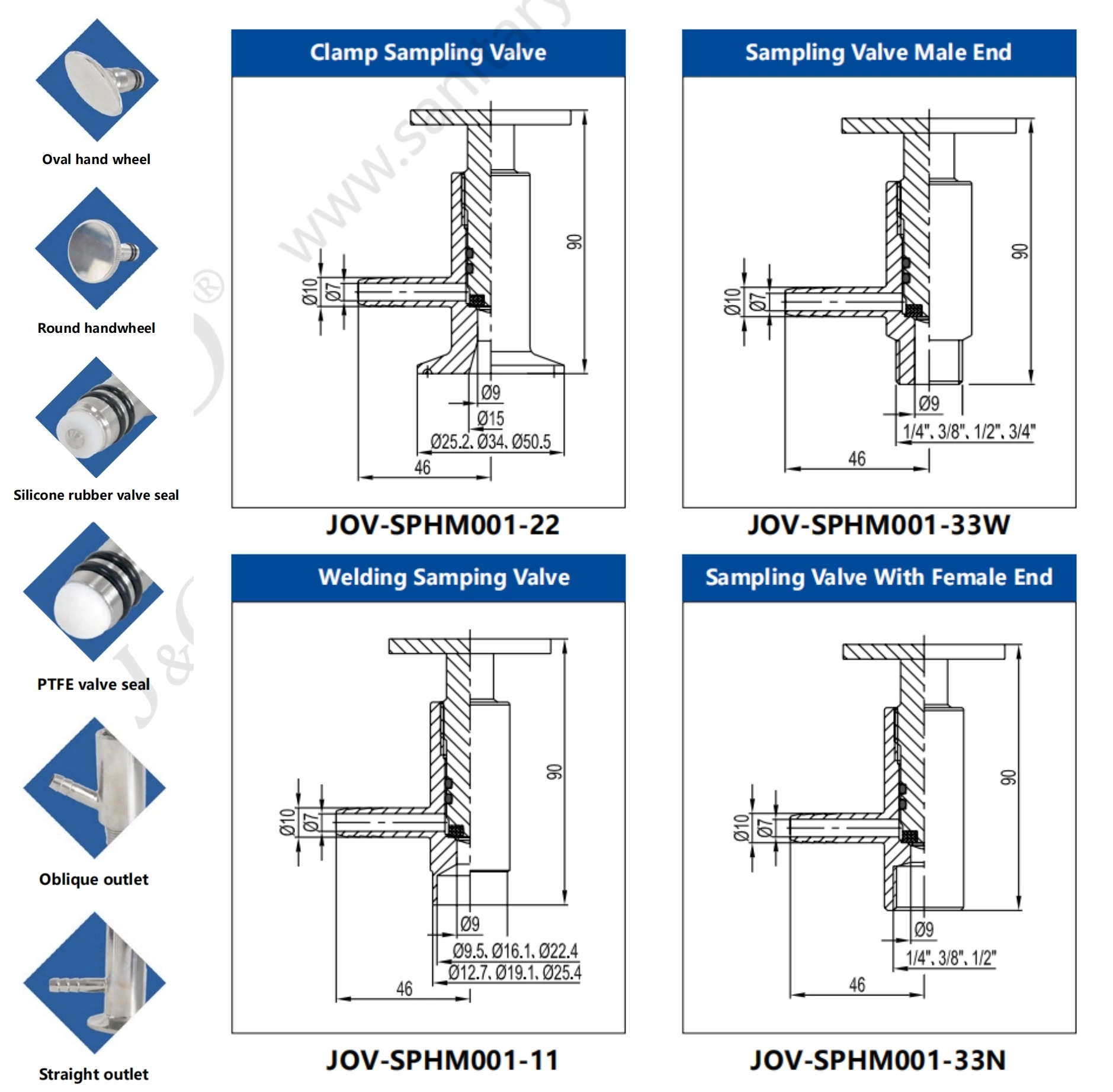

Product Parameter

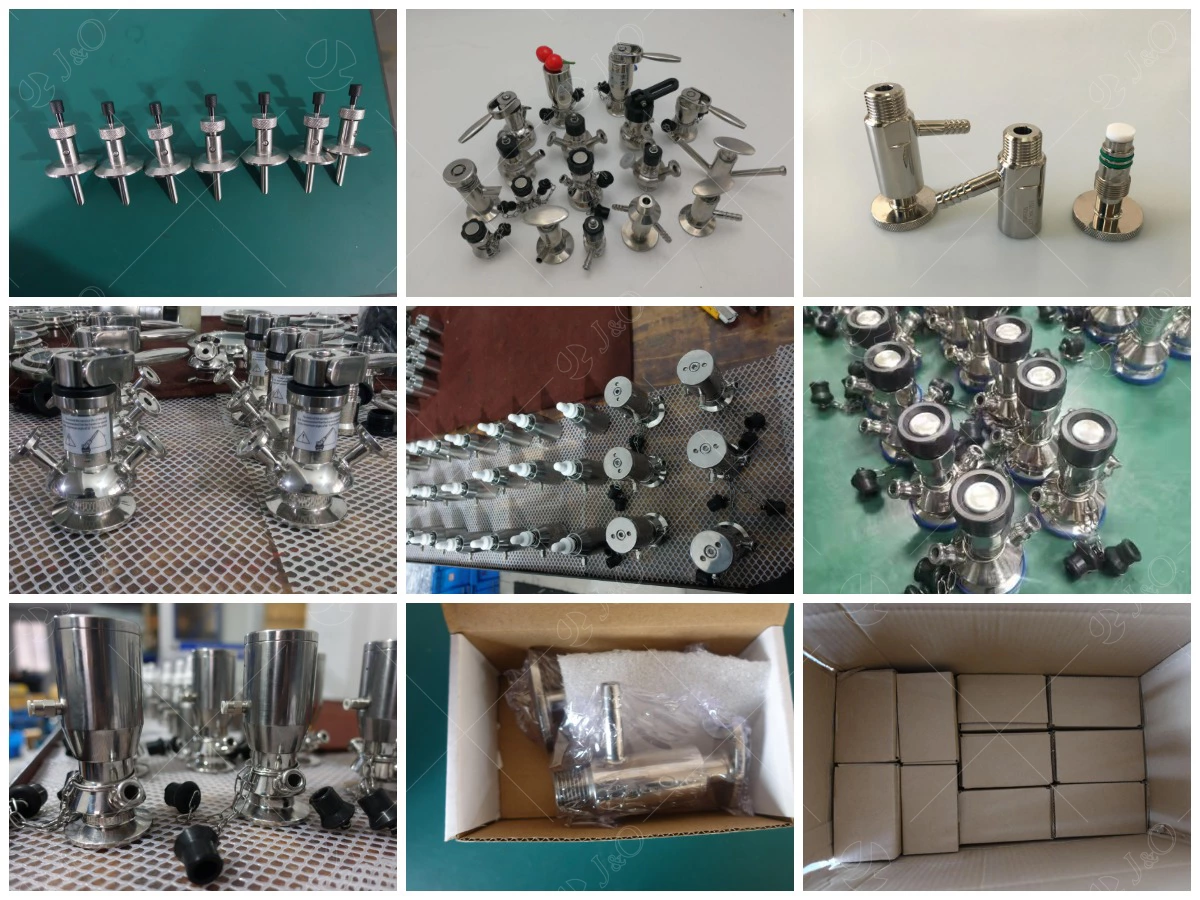

Product Pictures
